Product information "Kung Fu Master Free Play and High Score Save Kit"
Upgrade Your Original Irem Kung-Fu Master Arcade PCB
The HighScoreSaves Kung-Fu Master Free Play and High Score Save Kit upgrades compatible original Irem Kung-Fu Master arcade PCBs with Free Play, permanent Top 20 high score saving with player initials, attract sounds, and optional Wi-Fi leaderboard support. Enjoy separate score tables for 3-, 4-, and 5-life configurations, adjustable Easy and Hard difficulty, customizable energy-loss settings, God Mode practice, Flip Screen, Fast Boot, Stealth Mode, on-screen DIP settings, Score Backup and Restore, attract-screen protection, and ROM Saver functionality. Keep your original Irem arcade PCB, Z80 processor, controls, graphics, sound, and classic Kung-Fu Master gameplay without replacing the original arcade system with an emulator or generic multicade board.
|
Free Play Play with or without coins |
High Score Saving Top 20 scores saved with initials! |
|
Attract Sounds Every attract cycle |
Optional Wi-Fi Upload scores to Personal and Global pages! |
Kung-Fu Master PCB Compatibility at a Glance
| Compatible PCB | Documented compatible original Irem Kung-Fu Master arcade PCB |
|---|---|
| Processor | Compatible Z80 processor |
| CPU socket | Compatible 40-pin Z80 CPU socket required |
| Installation | Plug-in daughtercard when socketed; check height, clearance, and spacer requirements; optional ROM Saver |
| Cabinet support | Documented upright and cocktail configurations using compatible original Irem hardware |
Choose Your Kung-Fu Master Kit Version
Standard Kit
Permanently saves the Top 20 high scores with player initials using battery-free serial EEPROM storage. Independent supported score tables are maintained for 3-, 4-, and 5-life configurations. No internet connection required for gameplay, Free Play, attract sounds, difficulty settings, energy-loss adjustment, God Mode practice, Flip Screen, ROM Saver, or local score saving.
Wi-Fi Enabled Kit

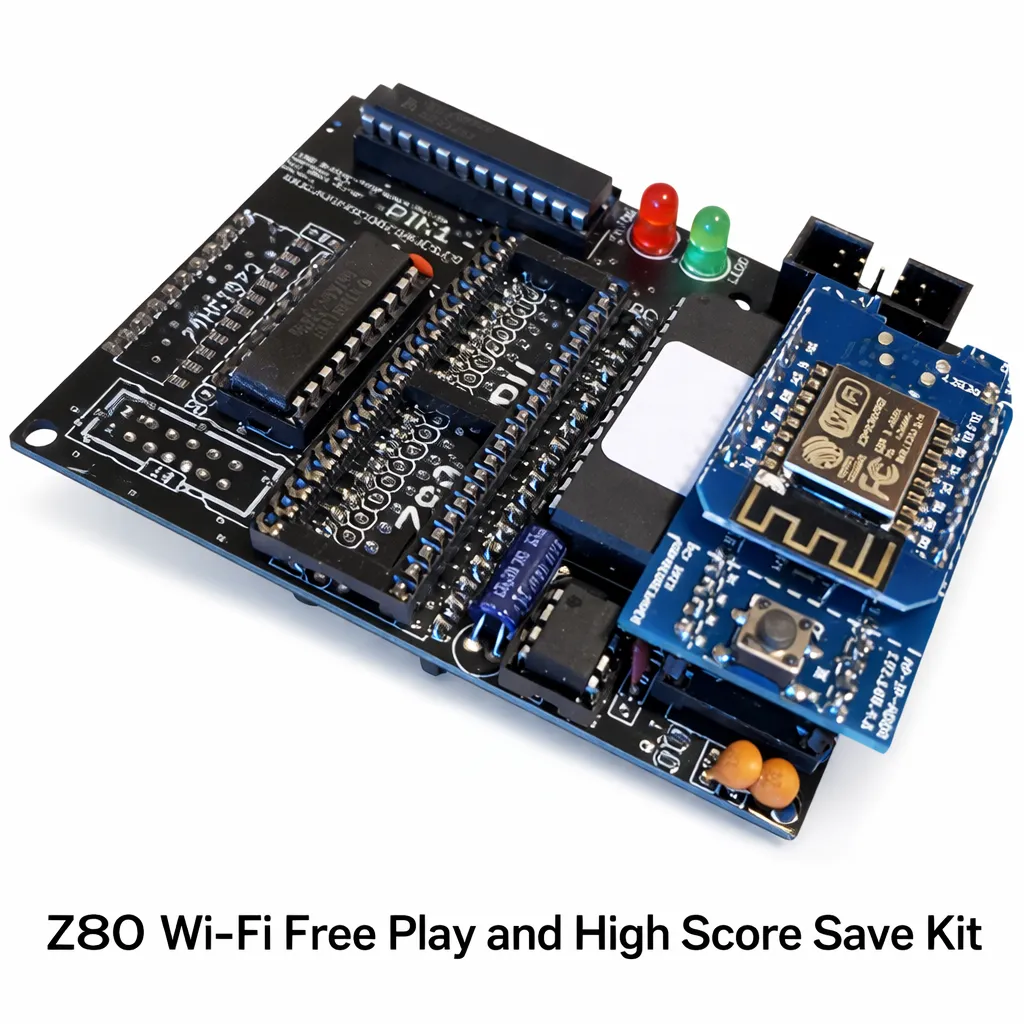

Includes Standard features and can submit qualifying completed Kung-Fu Master high scores with player initials to supported HighScoreSaves online leaderboards using a compatible 2.4 GHz Wi-Fi network. Local high scores, player initials, and normal gameplay continue working when Wi-Fi is disabled or unavailable.
What's Included

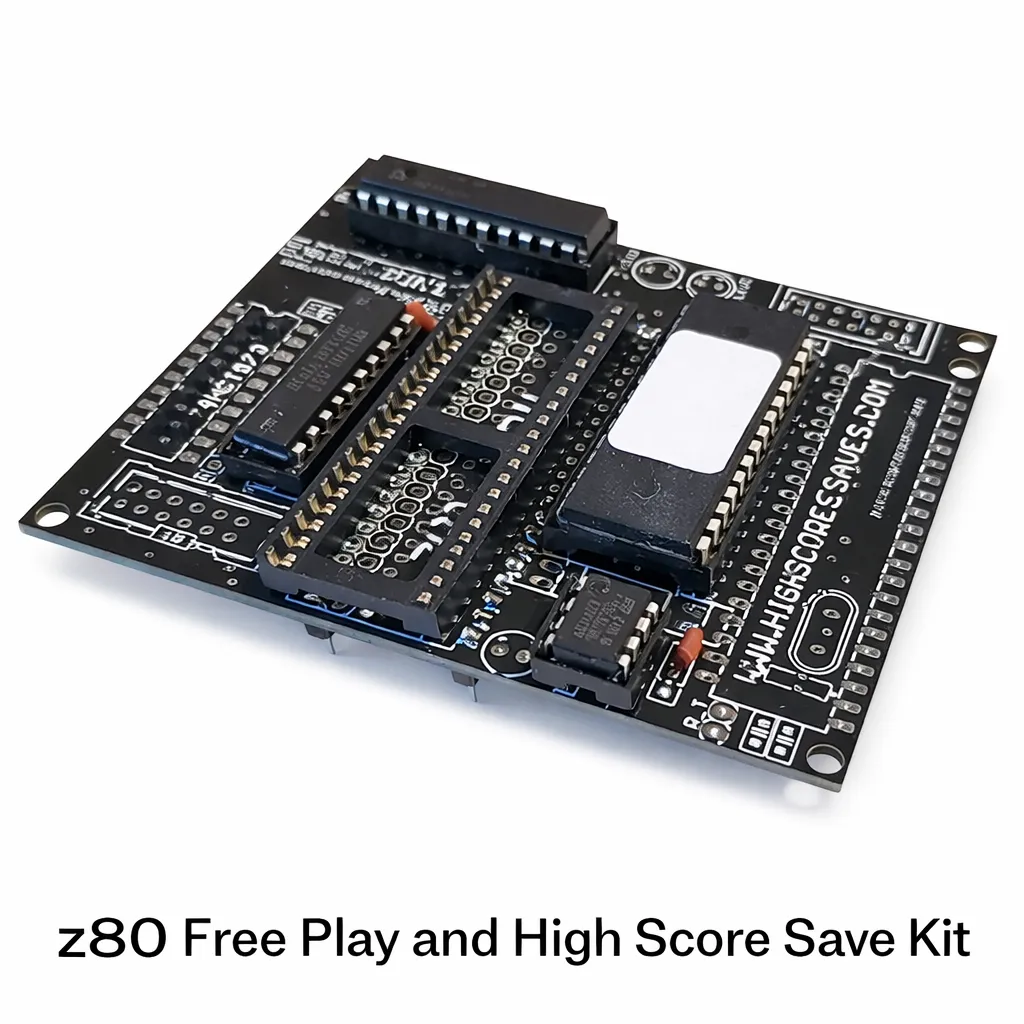

Base kit: HighScoreSaves Kung-Fu Master Free Play and High Score Save daughterboard upgrade.
Z80 processor required: A compatible Z80 CPU is required. The original compatible Z80 processor can be reused when installed in a suitable socket.
CPU socket: A compatible 40-pin processor socket must be present at the documented original Z80 location. Replacement processors and sockets are not included with the base kit unless explicitly selected when ordering.
Clearance considerations: Depending on the original PCB revision, additional spacing or suitable spacers may be required to raise the daughtercard and prevent unwanted contact. Confirm any additional hardware requirements before installation.
Original arcade hardware: Your existing compatible Irem Kung-Fu Master PCB, controls, graphics, sound hardware, and cabinet remain in service. This upgrade does not replace the original arcade system.
Installation & Helpful Guides
Verify your original Irem Kung-Fu Master PCB, Z80 processor, and compatible 40-pin socket before installation. Follow the installation PDF for CPU orientation, daughtercard alignment, clearance and spacer placement, and optional ROM Saver instructions.
| Identify Your Original Kung-Fu Master Arcade PCB Verify original Irem hardware, Z80 processor, CPU socket, and daughtercard clearance before ordering |
| View Kung-Fu Master Installation Guide PDF Z80 daughtercard installation, CPU socket, Pin 1 orientation, clearance requirements, and ROM Saver |
| Watch Kung-Fu Master Settings Menu Video Review gameplay settings, high score options, difficulty, energy loss, and display controls |
| Kung-Fu Master PCB Compatibility & Kit Details Review original Irem PCB compatibility, Z80 socket requirements, and daughtercard clearance |
Additional Details & Resources
Select any section below to see more details.
Advanced Kit Features
| Original Irem Hardware | Operates on documented compatible original Irem Kung-Fu Master arcade PCBs while retaining the original game controls, graphics, sound hardware, and classic gameplay without emulation. |
|---|---|

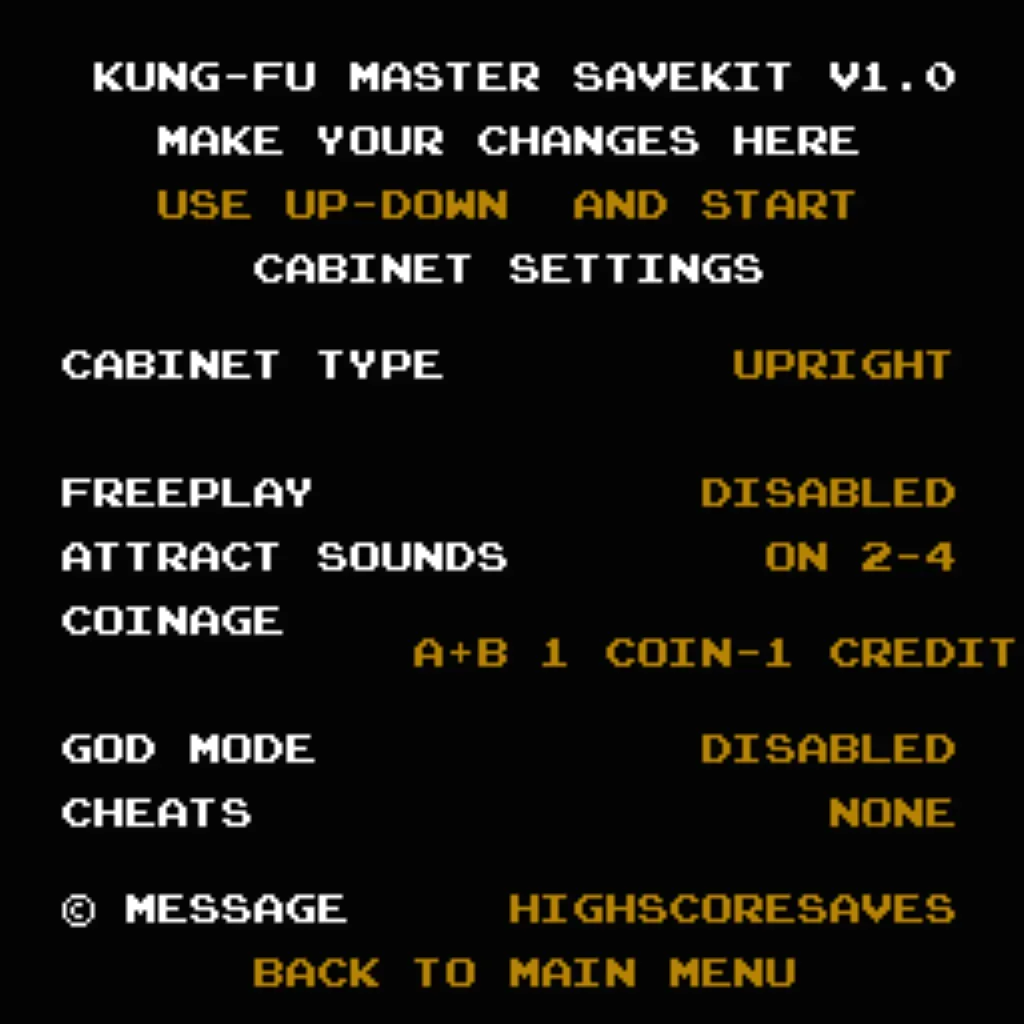

| Free Play & Coin Operation | Play Kung-Fu Master without inserting coins or retain traditional Coin-Up operation when Free Play is disabled. |
| Top 20 High Scores with Initials | Permanently saves the Top 20 supported Kung-Fu Master high scores with player initials, retaining scores and initials after cabinet power is removed. |
| Battery-Free Score Storage | Uses serial EEPROM storage to retain supported high scores and player initials without a backup battery or traditional NVRAM. |
| Separate Score Tables | Maintains independent supported high score tables with player initials for 3-, 4-, and 5-life game configurations. |

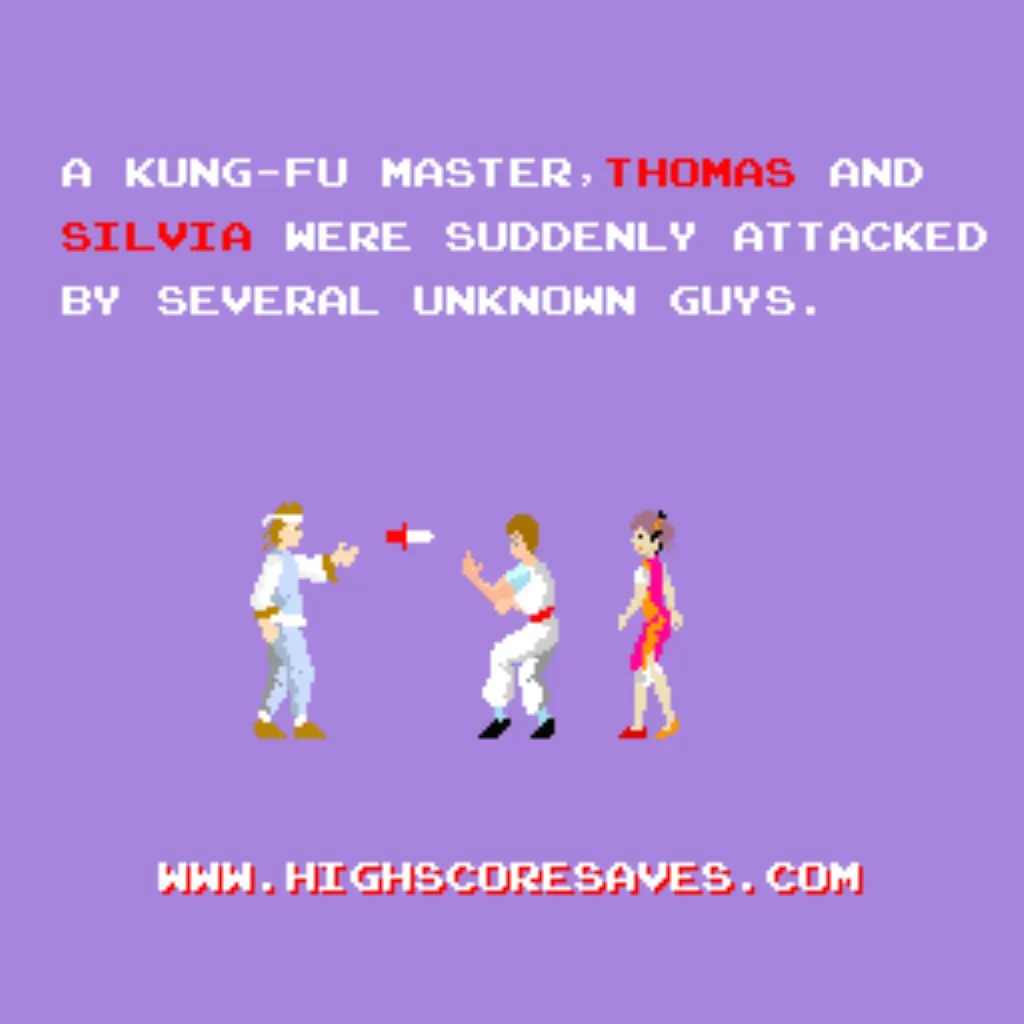

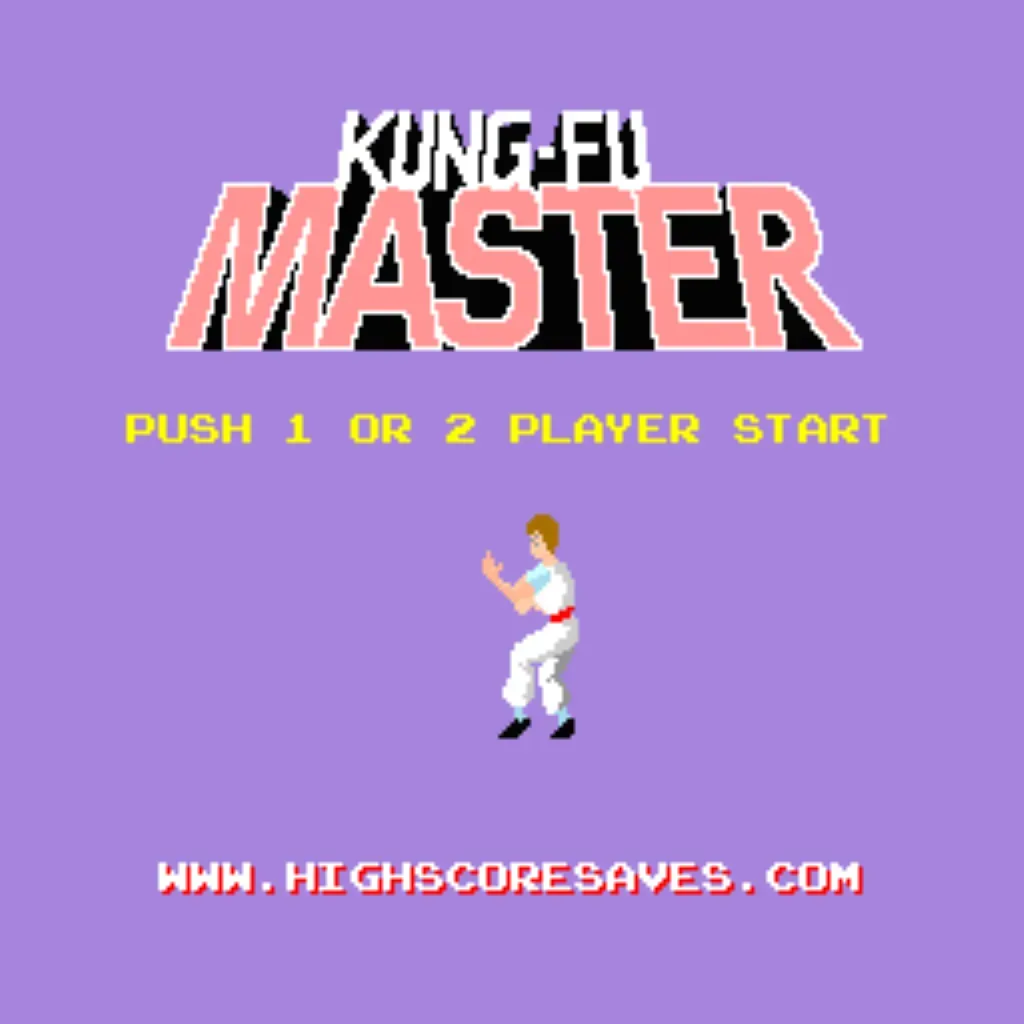

| Attract Sounds | Plays supported attract sounds during every attract cycle while the cabinet is idle. |
| Copyright Logo Options | Select between supported original manufacturer and HighScoreSaves logo options. |
| Attract-Mode Protection | Screen cycling helps reduce prolonged static-image display during attract mode and minimize the risk of CRT monitor burn-in. |
| Menu-Driven DIP Settings | Adjust supported gameplay and operator DIP settings through the HighScoreSaves on-screen menu without opening the arcade cabinet. |
| Easy & Hard Difficulty | Choose between supported Easy and Hard difficulty modes to adjust gameplay challenge. |
| Energy-Loss Settings | Adjust supported energy-loss settings to control how quickly the player's energy depletes during gameplay. |
| Score Backup & Restore | Back up supported saved high scores with player initials and restore stored score tables when needed for maintenance, service, or events. |
| Stealth Mode | Provides supported stock-style startup behavior for collectors who prefer a more original-looking cabinet boot experience. |
| Fast Boot | Provides streamlined startup with quick access to supported self-test functions through the menu or documented DIP-switch settings. |
| God Mode | Provides extended practice and fun gameplay without the normal game-over state. |
| Flip Screen | Rotates the display orientation for supported upright, cocktail, and other compatible cabinet configurations. |
| ROM Saver | Supports optional removal of designated original program ROMs when following the documented Kung-Fu Master installation procedure. Remove only components specifically identified in the current installation guide. |
| Upright & Cocktail Support | Supports documented upright and cocktail cabinet configurations using compatible original Irem arcade hardware. |
| Optional Wi-Fi | The Wi-Fi Enabled version can submit qualifying completed high scores with player initials to supported HighScoreSaves online leaderboards while retaining local score saving. |
Installation & Settings Access

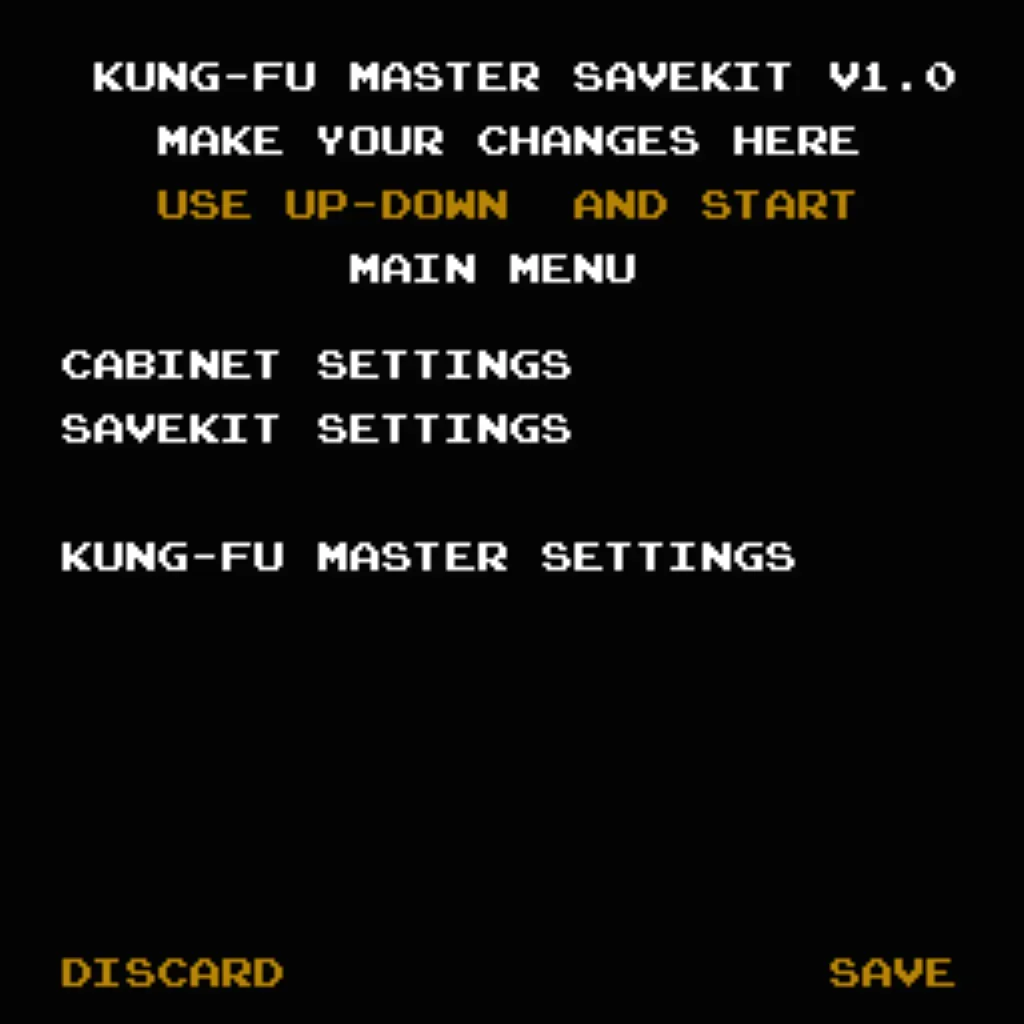

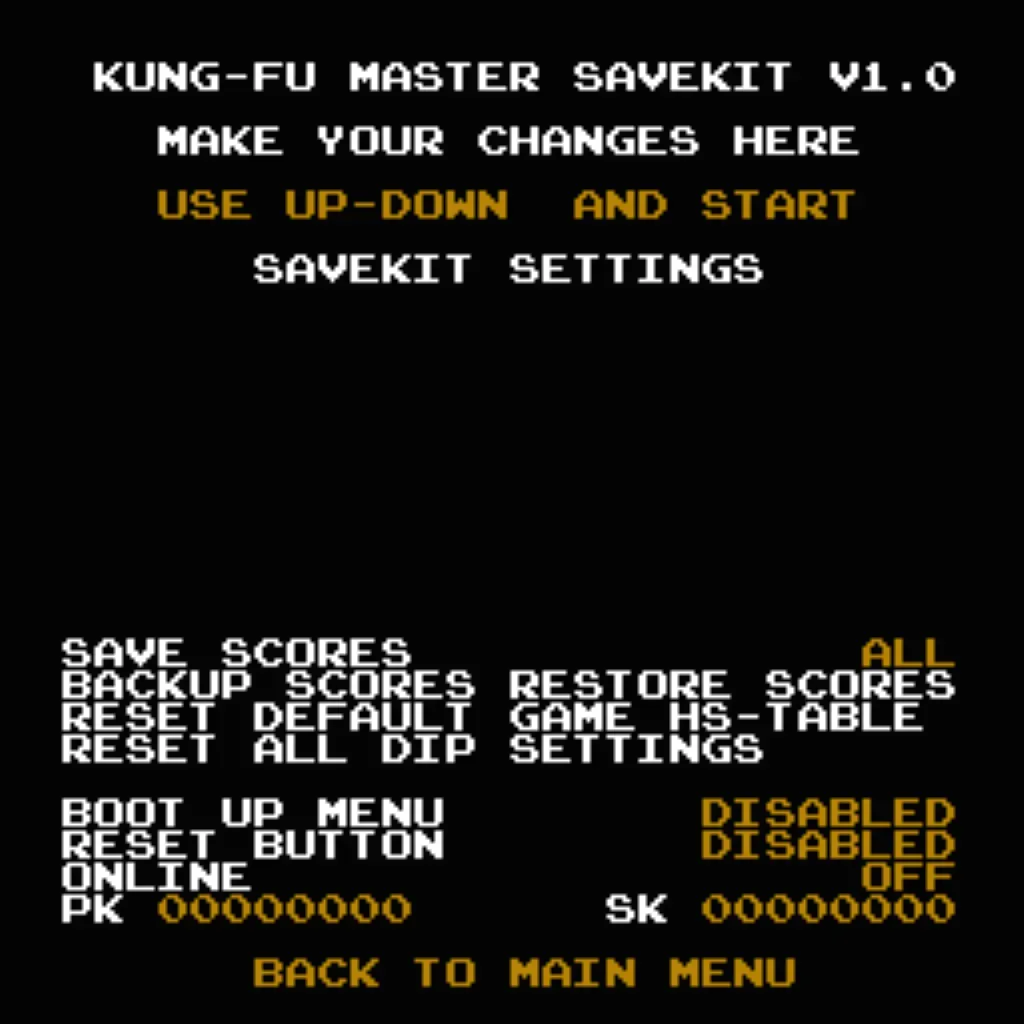

Settings menu: With the cabinet powered off, press and hold Player 1 Start while turning on the arcade cabinet for approximately four seconds, then follow the on-screen prompt to enter the HighScoreSaves settings menu.
Original Irem arcade hardware: This kit is designed for documented compatible original Irem Kung-Fu Master arcade PCBs. Confirm the original board is fully operational before beginning installation.
Z80 processor requirement: A compatible Z80 processor is required at the documented original CPU location. The processor must be installed in a suitable 40-pin CPU socket for normal daughtercard installation.
Installation preparation: Turn off cabinet power and disconnect the machine. Identify the original Z80 CPU location, record Pin 1 orientation, inspect the CPU socket, and check surrounding PCB components for daughtercard-clearance concerns.
Z80 processor installation: Install the compatible Z80 processor and HighScoreSaves daughtercard according to the Kung-Fu Master installation guide. Observe correct Pin 1 orientation and ensure that the processor and daughtercard are aligned correctly.
40-pin socket requirement: No soldering is required when the original Z80 is already socketed. If the processor is soldered directly to the original PCB, a qualified arcade technician must remove it and install a compatible 40-pin socket before the upgrade can be used.
Daughtercard clearance: Some original Irem Kung-Fu Master PCB revisions may require the daughtercard to be raised slightly to avoid physical or electrical contact with components or circuitry underneath. Check the daughtercard's height, surrounding components, and clearance before restoring power.
Additional spacers: Depending on the original board revision, suitable additional spacers or spacing hardware may be required. Follow the installation guide to ensure stable, properly aligned mounting with no unwanted contact.
Top 20 high scores with initials: The kit permanently saves the Top 20 supported Kung-Fu Master high scores with player initials using battery-free serial EEPROM storage. Saved scores and initials remain after cabinet power is removed.
Lives-specific score tables: Separate supported high score tables with player initials are maintained for 3-, 4-, and 5-life game configurations.
Attract sounds: The kit supports attract sounds during every attract cycle while the arcade cabinet is idle.
Copyright logo selection: Choose between the supported original manufacturer logo and HighScoreSaves logo options through the settings menu.
Attract-mode protection: Screen cycling helps limit prolonged static-image display during idle cabinet operation and minimize the risk of CRT monitor burn-in.
On-screen DIP settings: Adjust supported gameplay and operator settings directly through the HighScoreSaves menu using the original arcade controls.

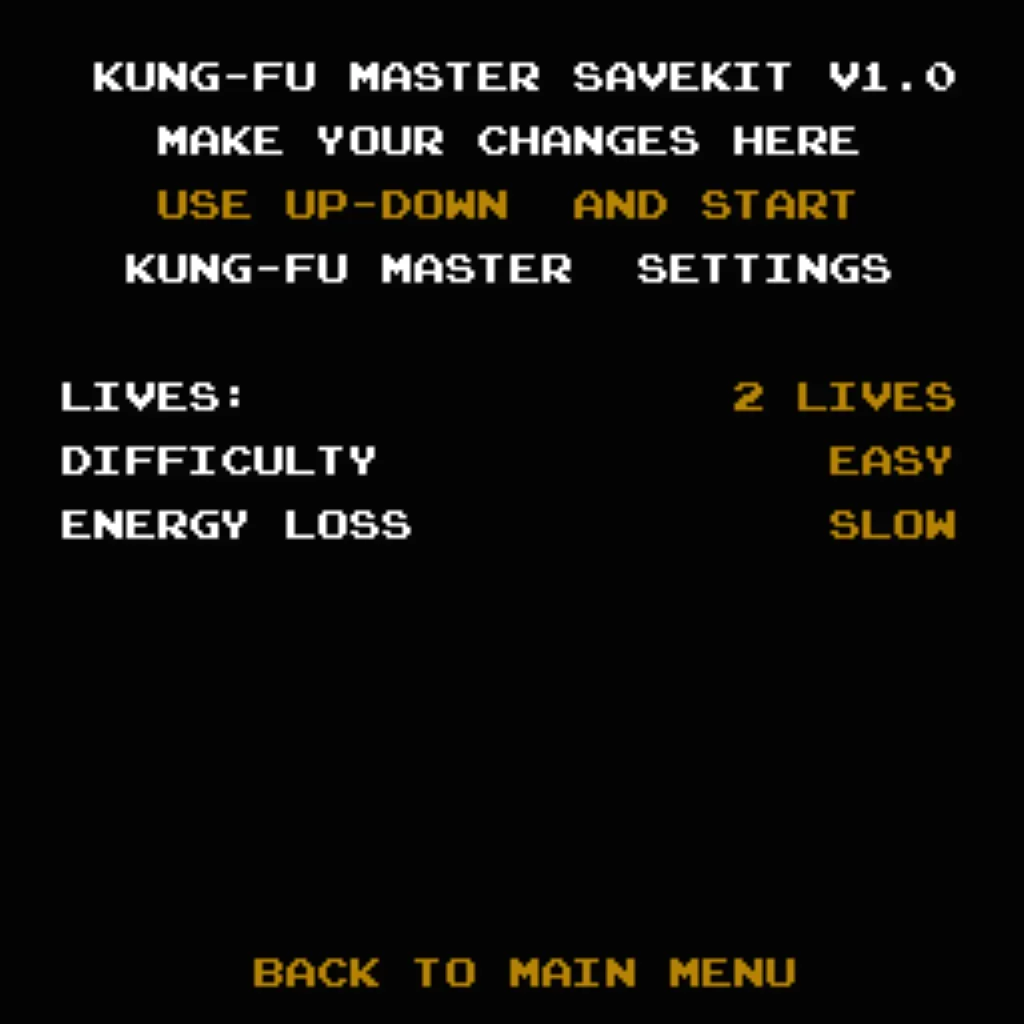

Difficulty settings: Choose between supported Easy and Hard gameplay difficulty modes.
Energy-loss settings: Adjust the supported energy-loss setting to change how quickly the player's energy decreases during gameplay.
God Mode: Enable extended gameplay and practice sessions without the normal game-over state.
Flip Screen: Use the supported display-orientation setting to rotate the screen for compatible cabinet configurations.
Fast Boot: Enable supported streamlined startup while retaining access to the documented self-test functions through the menu or DIP-switch configuration.
Stealth Mode: Use the supported stock-style startup presentation while retaining HighScoreSaves kit functionality and settings-menu access.
Score Backup and Restore: Use the HighScoreSaves menu to back up supported high scores with player initials and restore stored score data when needed.
ROM Saver: The kit supports optional removal of designated original program ROMs when installed as directed. Remove only the specific ROMs identified in the current Kung-Fu Master installation guide and retain removed components for safekeeping.
Final installation verification: Before restoring cabinet power, verify the compatible Z80 processor, Pin 1 orientation, correct daughtercard alignment, proper 40-pin socket seating, safe daughtercard clearance, required spacer placement, and original PCB connections. Ensure no part of the daughtercard contacts components or circuitry underneath.
Wi-Fi Setup & Global Scores
The Wi-Fi Enabled Kung-Fu Master Kit can submit qualifying completed high scores with player initials to supported HighScoreSaves online leaderboards using a compatible 2.4 GHz Wi-Fi network. Supported Top 20 high scores with player initials remain permanently saved locally using battery-free serial EEPROM storage even when Wi-Fi is disabled or unavailable.
Independent high score tables with player initials for supported 3-, 4-, and 5-life configurations remain stored locally. An active internet connection is not required for permanent local high score retention.
Free Play, Coin-Up operation, normal Kung-Fu Master gameplay, attract sounds, difficulty and energy-loss adjustment, God Mode practice, Flip Screen, Fast Boot, Stealth Mode, ROM Saver, Backup and Restore, and on-screen settings do not require Wi-Fi.
The Standard kit permanently saves supported high scores with player initials locally. Select the Wi-Fi Enabled version when ordering if online leaderboard submission is desired.
