Pacman Rearranged Multigame Free Play and High Score Save Kit
$180.00
Available, delivery time: 2-5 days
Product information "Pacman Rearranged Multigame Free Play and High Score Save Kit"
Pacman Rearranged Free Play and High Score Save Kit
Upgrade your original Pacman, Ms Pacman, or Pacman Plus PCB with this Rearranged Multigame Free Play and High Score Save Kit—designed for authentic arcade hardware with no emulation and no gameplay compromises. This advanced upgrade includes everything found in our standard Pacman | Ms Pacman multigame kit, plus exciting new gameplay enhancements. Enjoy the full multigame experience along with Pacman Rearranged, featuring both Fast and Original Speed variations for expanded play options.
Pacman Rearranged delivers a fresh twist on a classic by combining elements from Pacman, Ms Pacman, Pacman Plus, and Ms Pacman Plus into one seamless experience. Levels are intelligently mixed and matched, with difficulty that ramps up and slows down throughout gameplay—creating a dynamic and unpredictable challenge every time you play. Whether you're playing solo or alternating with a second player, each session feels new and engaging.

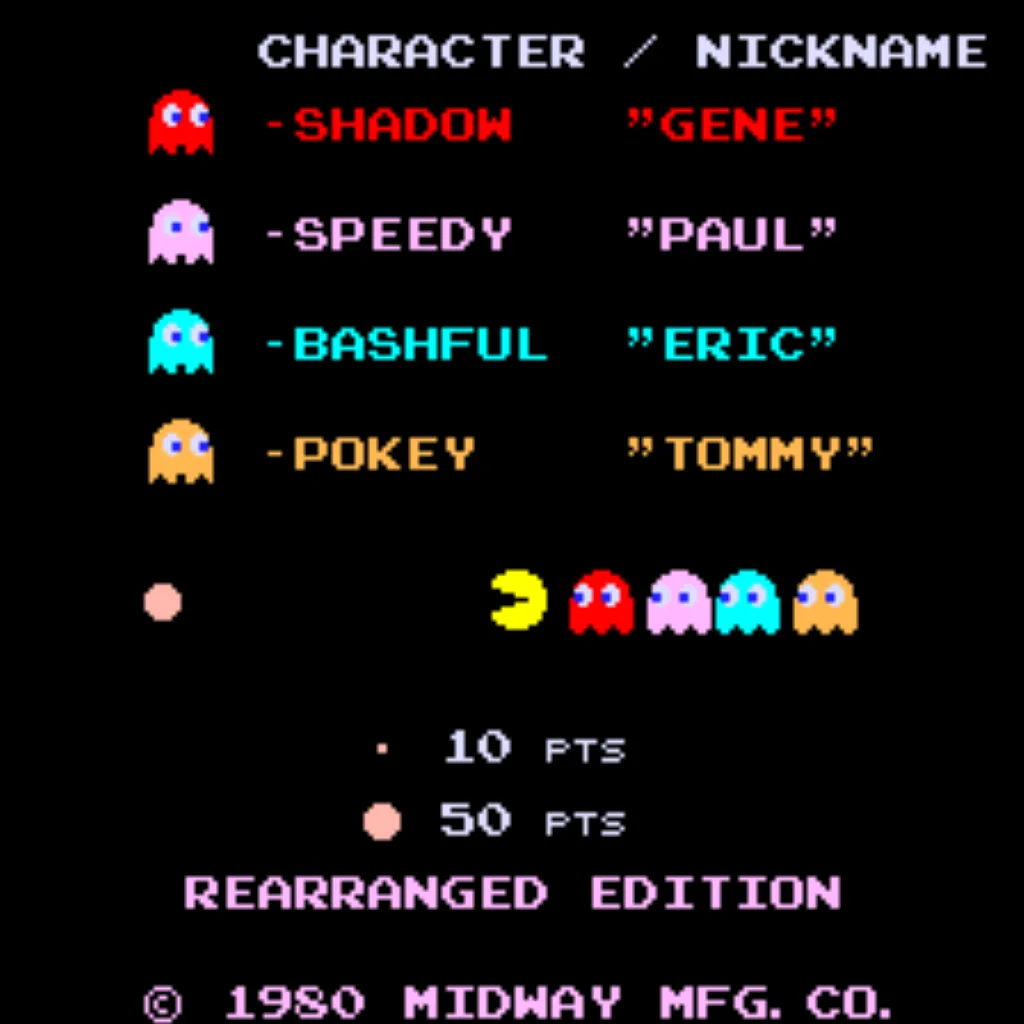

Take control of your experience with built-in customization features, including the ability to update ghost names directly from the settings menu, allowing you to personalize gameplay like never before. Combined with free play, high score saving, and menu-driven settings, this kit is the ultimate upgrade for any Pacman arcade machine.
Customize Your Pacman | Ms Pacman Multi Game Free Play and High Score Save Kit

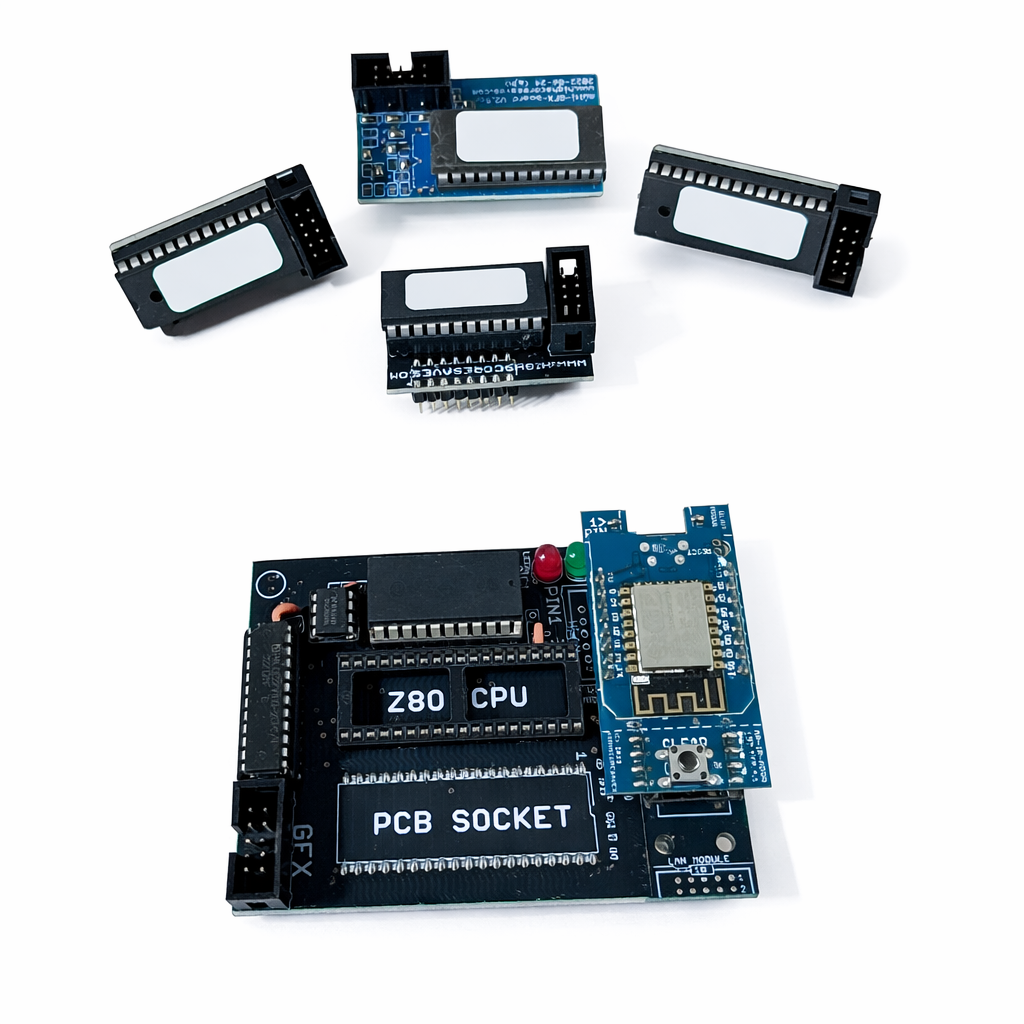

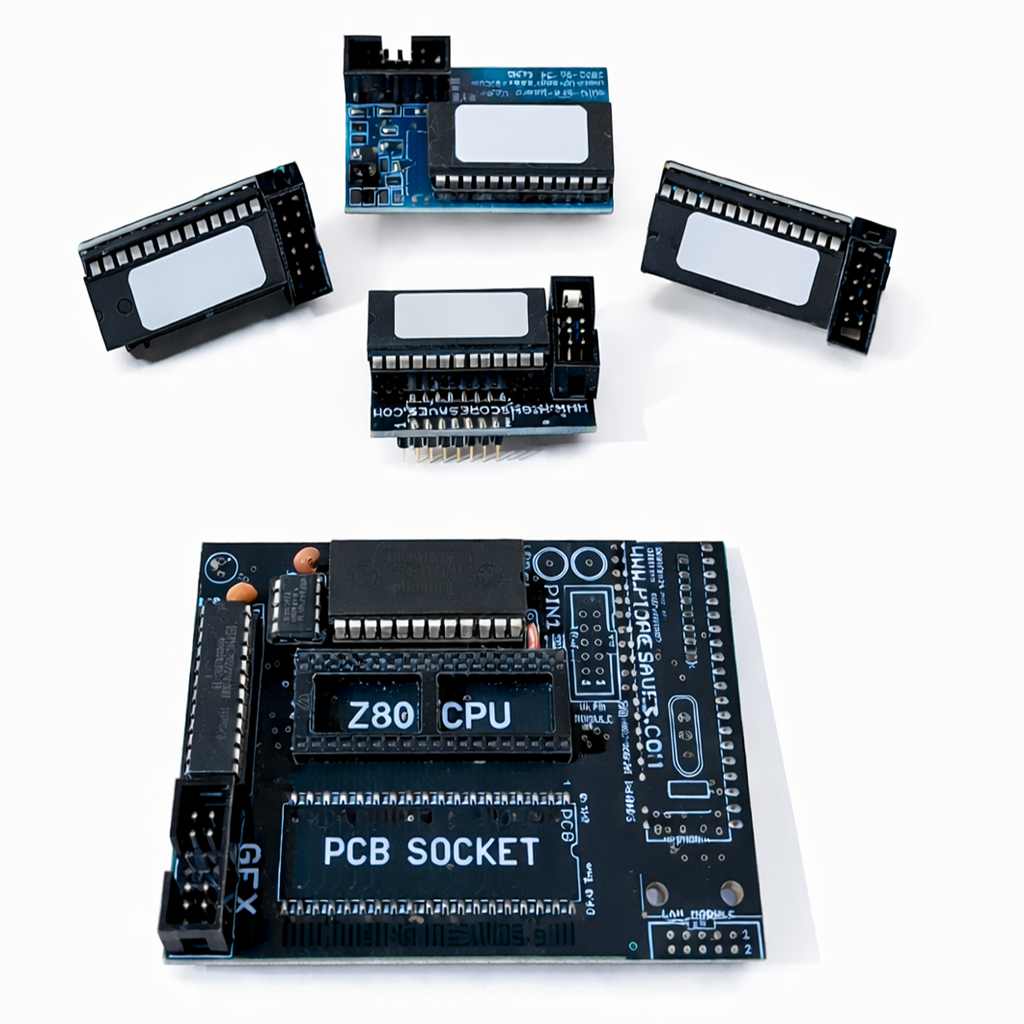

Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket — optional but recommended for easy installation.
Learn More About This Kit
Click a button to view details, tips, or the installation guide.
Main Features
- Easy install — No soldering, board modifications, or special wiring. Plug in and go.
- Save your scores forever — Uses reliable serial EPROM (not NVRAM or batteries).

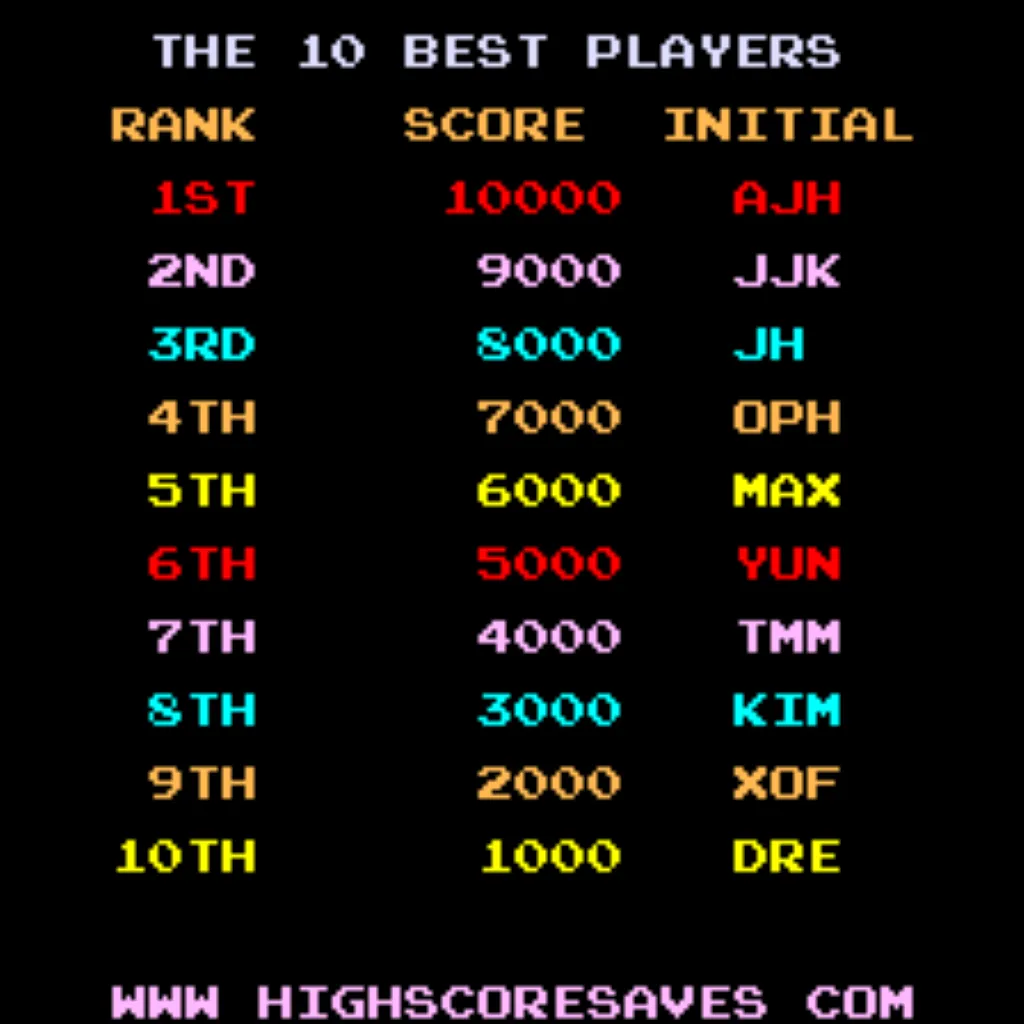

- High Score Save — Saves the Top 10 scores with initials.
- Attract Sounds — Adjustable to 25%, 50%, or every attract screen.
- Freeplay — No more coins or opening the coin door.
- Coin Up — Still supports coins if desired.

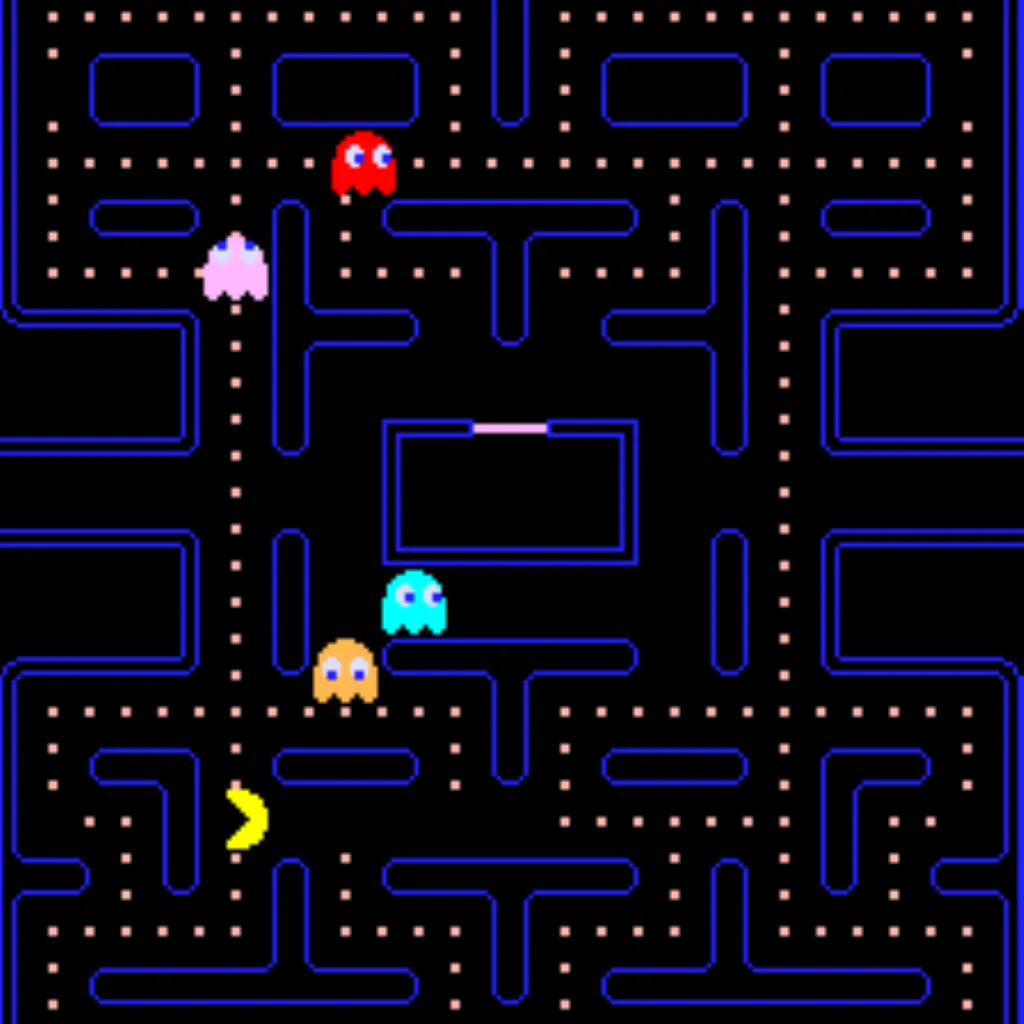

- Attract Mode — Prevents static burn-in on screens.
- Copyright options — Show original Midway logos or the HighScoreSaves logo.

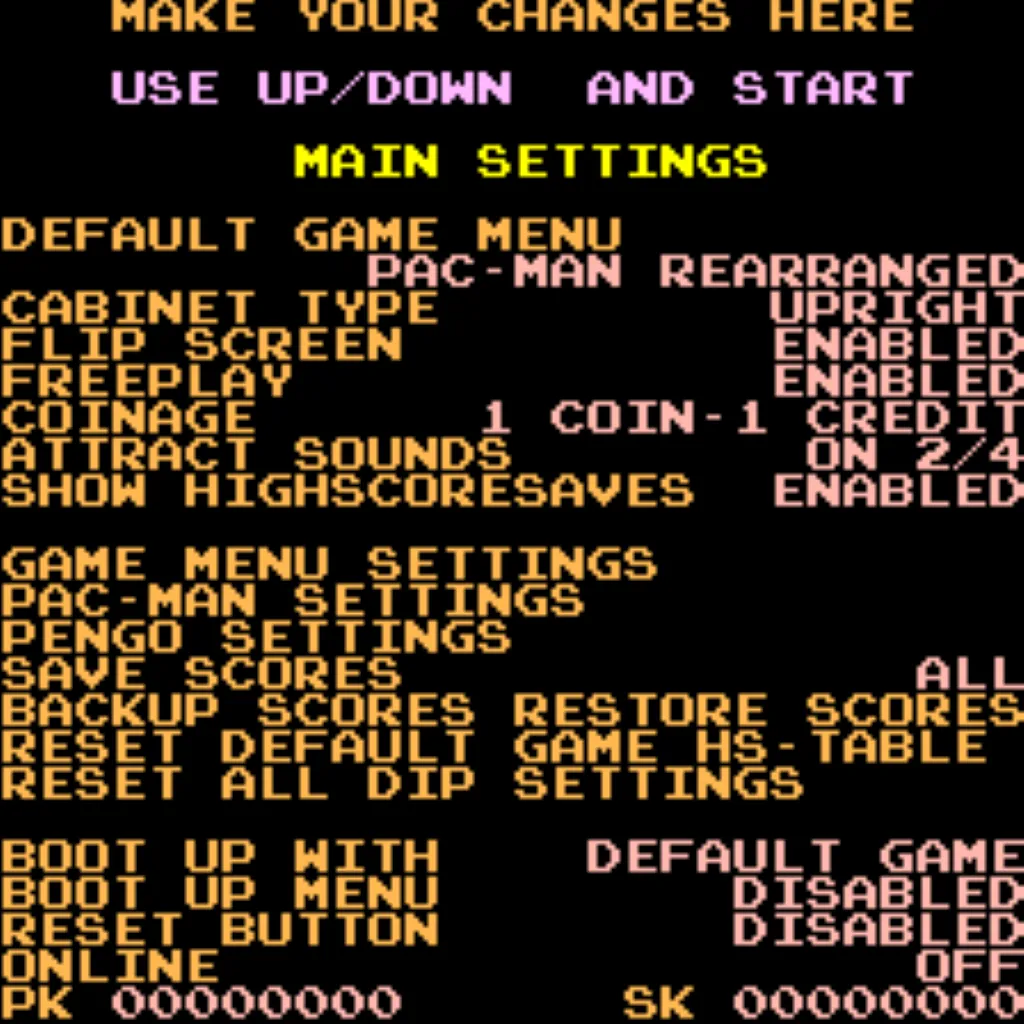

- Menu-driven DIP settings — Change DIP switches without opening the cabinet.
- ROM Saver — Original program ROMs must be removed with this kit installed.
- Cabinet support — Works in Upright, Cabaret, or Cocktail cabinets.
- Ships with latest v2.00B version — The best Pac Multi yet!
- Able to change ghost names to personalize your arcade game! (User controlled in Settings Menu)
Additional Features
- Backup & Restore — Back up and reload your scores, great for parties.
- Fast or Original versions — Play either mode.
- Extended scoring — Supports up to 9,999,990 points (7-digit saves, no rollover).
- Separate high score tables — Maintains separate tables for Fast and Original play.
- Stealth Mode — Choose what game the kit boots to.
- Enable/disable submenus to restrict guest access.

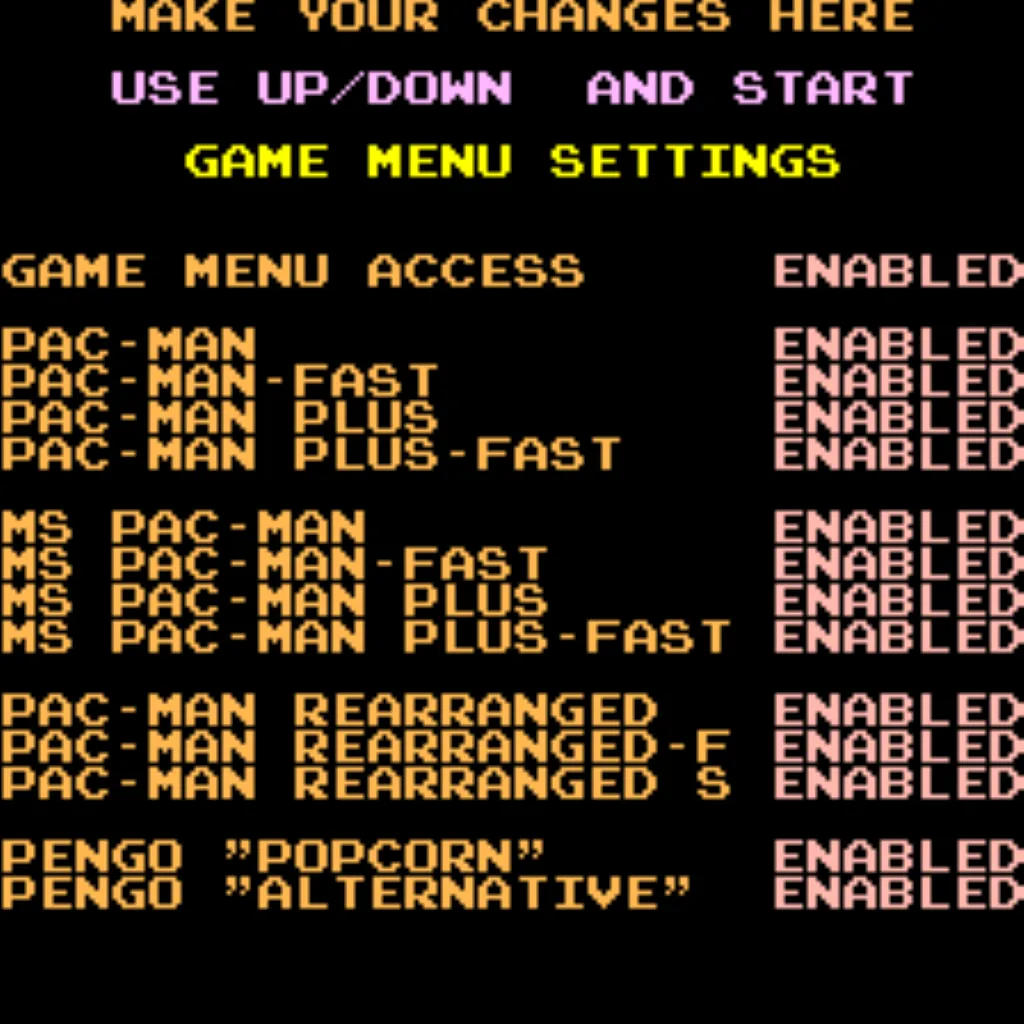

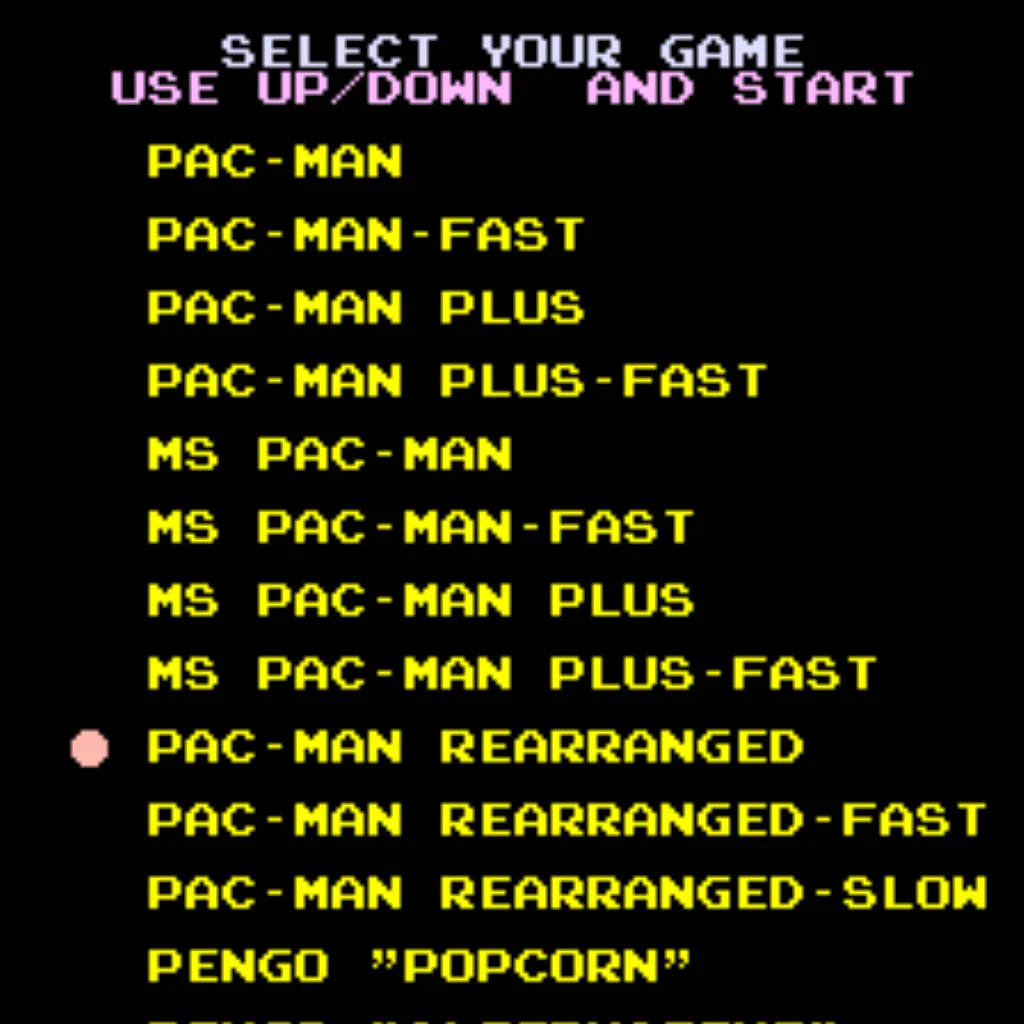

- Game select menu included.
- Option to play Inky and Pinky with original Pac bug behavior or fixed AI.
- Turn off the “kill screen” to continue past level 255.
- Switch ghost names from original to alternates.
- Start at Level 1, Apple level, Key level, or directly at 255 to see the kill screen.

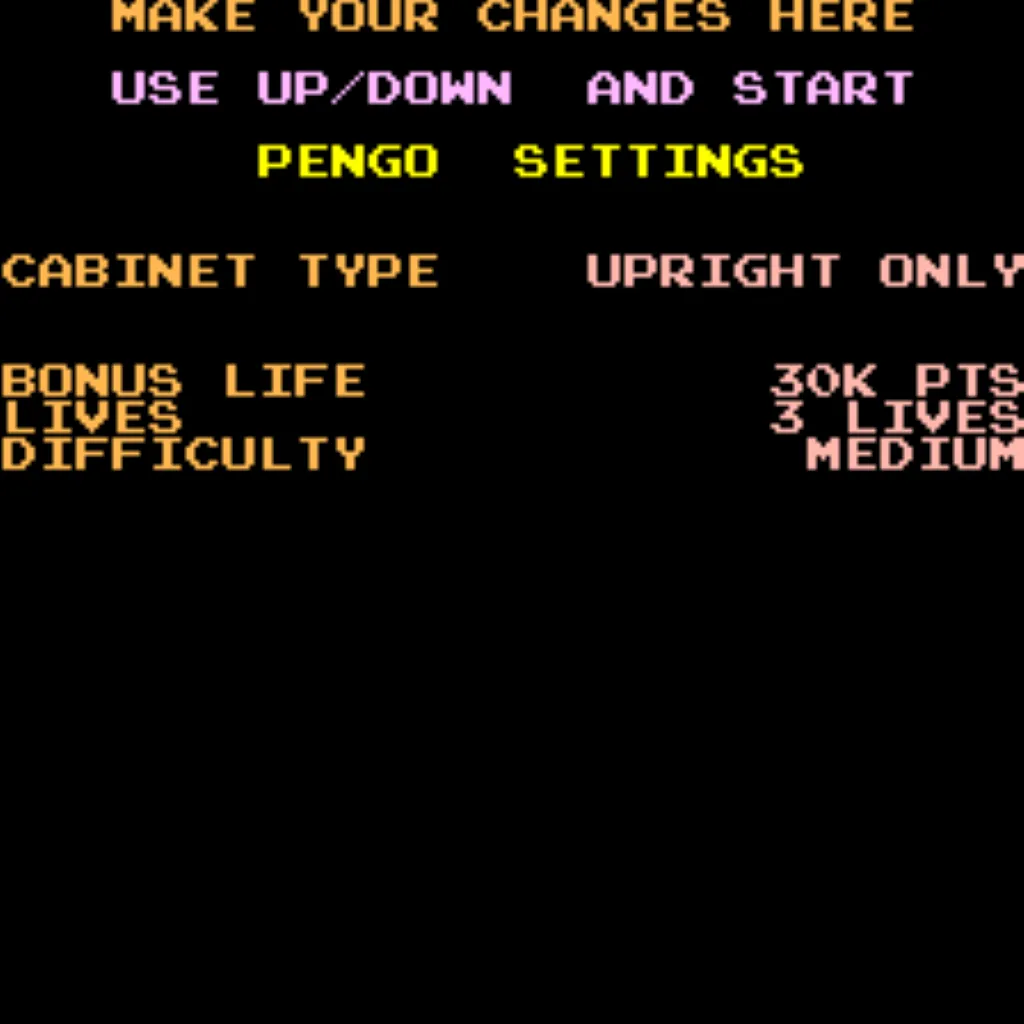

- Pengo! — Playable using P1 button, no control panel mods required.
Important Installation Notes
- Ensure your Z80 is socketed. If not, install a 40-pin socket for compatibility.
- Read the installation guide before starting — Pac-Man | Ms. Pac-Man Multigame Installation Guide (PDF) .
- Compatible PCBs — Works with Pac-Man, Ms. Pac-Man, and Pac-Man Plus boards.
- Changes color PROMs: Pac-Man Plus, Ms. Pac-Man Plus, and Pengo will have original colors and sounds.
- New RAM Test (v2.00B+) — DIP 1 and 2 OFF triggers an automatic RAM diagnostic at startup; DIP 1/2 ON disables the loop test.
Game List
Fast Versions
- Pac-Man
- Ms. Pac-Man
- Pac-Man Plus
- Ms. Pac-Man Plus
- Pacman Rearranged
Original Versions
- Pac-Man
- Ms. Pac-Man
- Pac-Man Plus
- Ms. Pac-Man Plus
- Pacman Rearranged
- Pengo V3
- Pengo V2
Just the FAQ's
Which PCBs are compatible?
Original Pac-Man, Ms. Pac-Man, and Pac-Man Plus boards.
Do I need to remove the original program ROMs?
Yes. With ROM Saver enabled, original program ROMs must be removed.
How many scores are saved?
The kit saves the Top 10 scores with initials and maintains separate tables for Fast and Original modes.
Does it support Freeplay and coins?
Yes. Enable Freeplay or keep Coin Up active—your choice.
Can I bypass the kill screen?
Yes. You can disable the kill screen and continue past level 255.
What’s included in v2.00B?
v2.00B includes the latest RAM test, extended scoring, and refinements to the multigame menu and options.
Is Pengo included and how is it controlled?
Yes, Pengo is included and is playable using the P1 button—no control panel mods required.
Can I change ghost AI and names?
Yes. Toggle original Pac bug behavior vs fixed AI, and switch between original and alternate ghost names.
Will colors/sounds be correct on Plus and Pengo?
Yes. Color PROMs are handled so Pac-Man Plus, Ms. Pac-Man Plus, and Pengo use original colors and sounds.
Where is the installation guide?
Right here: Pac-Man | Ms. Pac-Man Multigame Installation Guide (PDF) .
