Star Wars | Empire Strikes Back Multigame Free Play and High Score Save Kit
$225.00
Product information "Star Wars | Empire Strikes Back Multigame Free Play and High Score Save Kit"
Star Wars | Empire Strikes Back Multigame Free Play and High Score Save Kit
Features
- Easy install — No soldering, board modifications, or special wiring. Plug in and go!
- Star Wars PCB — Installs on an original Atari Star Wars PCB to play both games.
- Save your scores forever — Saves scores without batteries.
- High Score Save — Saves the Top 8 scores.
- Freeplay — No more coins or opening the coin door.
- Coin Up — Still supports coins if wanted.
- Attract Sounds — Hear the infamous music!
- Support — Can be used in Upright or Cockpit cabinets.
Changing games: Hold the LEFT THUMB button for 2 seconds and release. Then hold the RIGHT THUMB button for 2 seconds and release.
Game List
- Star Wars
- Empire Strikes Back
Important
- Requires an original Atari Star Wars PCB for installation.
- Read the Star Wars | Empire Strikes Back Installation Guide (PDF) before installing.
FAQ
Which PCB is required?
This kit installs on an original Atari Star Wars PCB.
Which games are included?
This multigame kit supports Star Wars and Empire Strikes Back.
How do I switch between games?
Hold the LEFT THUMB button for 2 seconds and release, then hold the RIGHT THUMB button for 2 seconds and release.
Does it save high scores?
Yes, it saves the Top 8 high scores permanently (no batteries required).
Does it support Freeplay?
Yes, Freeplay is supported. You can also still use coin-up if desired.
Where can I download the Installation Guide?
Download it here: Star Wars | Empire Strikes Back Multigame Installation Guide (PDF)
Login
Level up with these!
Star Wars | Empire Strikes Back Multigame Instruction Magnet This magnet applies and removes easily. It adheres to any ferrous metal (steel control panels, coin doors, etc.). For non-metal surfaces, use double-sided mounting tape (not included). Specifications Size: 3″ (L) × 2″ (W) Finish: Soft-laminated top Back: Strong magnetic backing

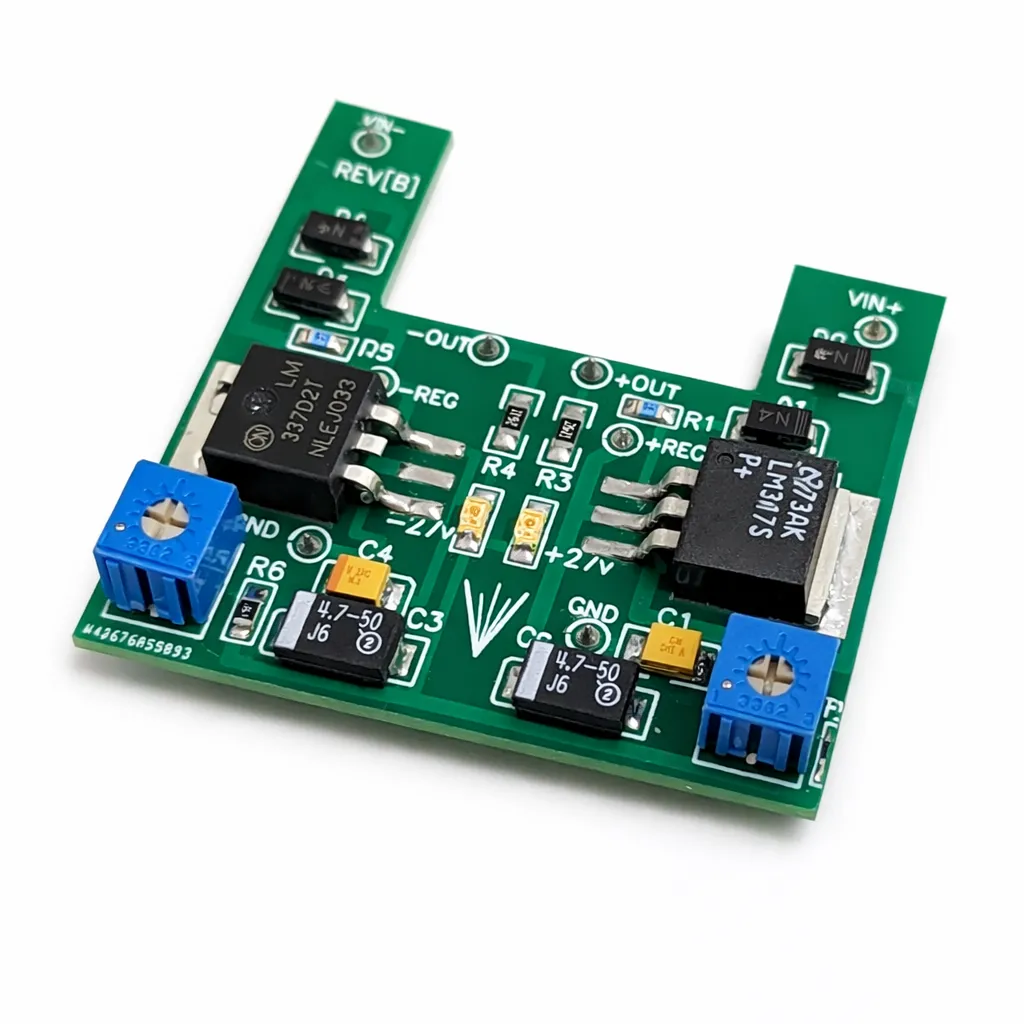

6100 Deflection Board LV Section Replacement Module The 6100 Deflection Board LV Section Replacement Module is designed to replace the unreliable low-voltage (LV) section found on the Atari 6100 vector monitor deflection board. This upgrade eliminates several common failure points that can cause instability, monitor shutdown, or inconsistent operation. Over time, the original low-voltage circuitry on the 6100 deflection board can become unreliable due to aging components, heat stress, and repeated power cycling. This replacement module modernizes that section of the circuit and provides improved reliability while maintaining proper monitor operation. Once installed, the module restores stable low-voltage regulation for the deflection board, helping ensure your vector monitor operates correctly in classic arcade machines such as Tempest, Star Wars, Major Havoc, Quantum, and other Atari vector cabinets that use the 6100 monitor. Key Features Replaces the original low-voltage section of the Atari 6100 deflection board Eliminates common LV circuit failure points Improves long-term reliability of the vector monitor Helps stabilize monitor operation and voltage regulation Designed for arcade restoration and repair work Compatibility Designed for use with the Atari 6100 vector monitor commonly found in classic arcade machines such as Tempest, Star Wars, Major Havoc, Quantum, and other Atari vector titles. Installation Notes Soldering and de-soldering are required for installation. The module installs directly onto the 6100 deflection board as shown in the gallery images. Installation should be performed by someone experienced with arcade PCB repair. This upgrade is an excellent solution for arcade collectors and technicians restoring original Atari vector monitors who want improved reliability without replacing the entire deflection board.
