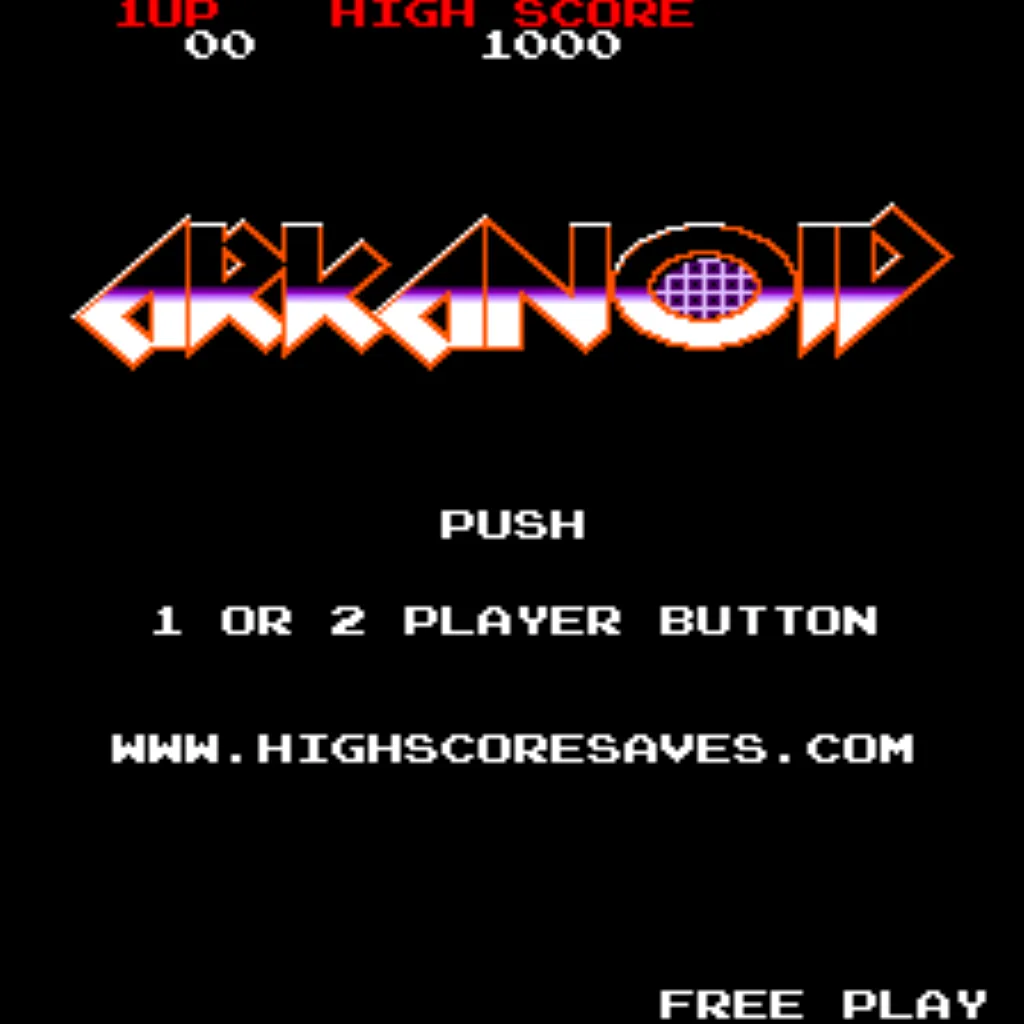

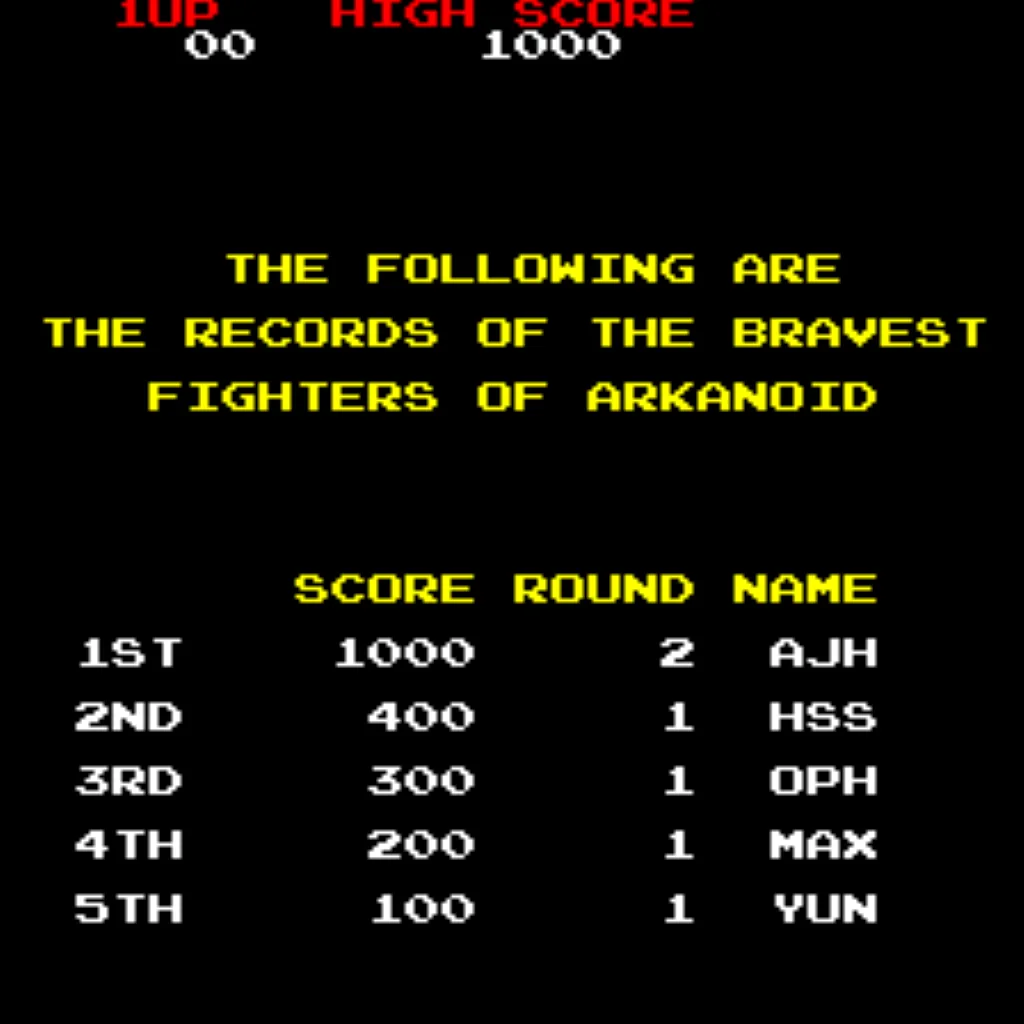

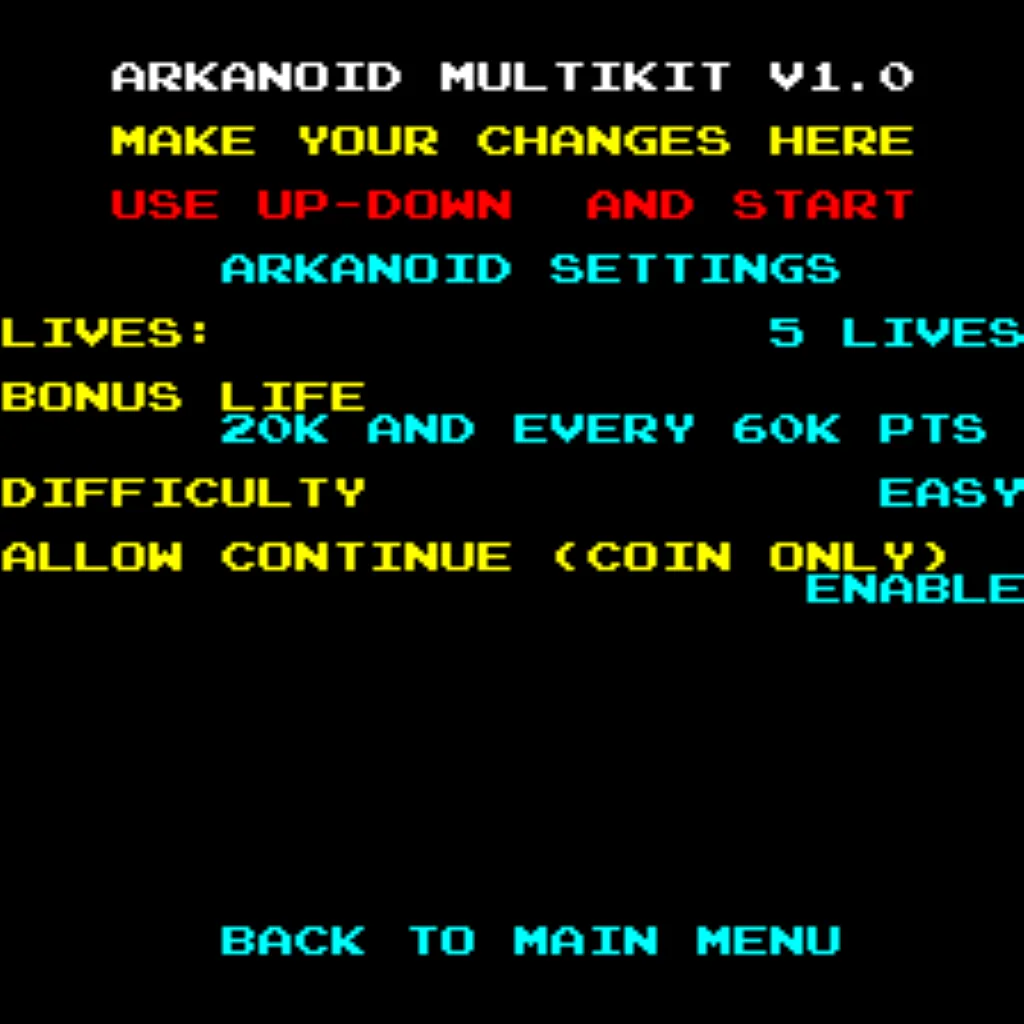

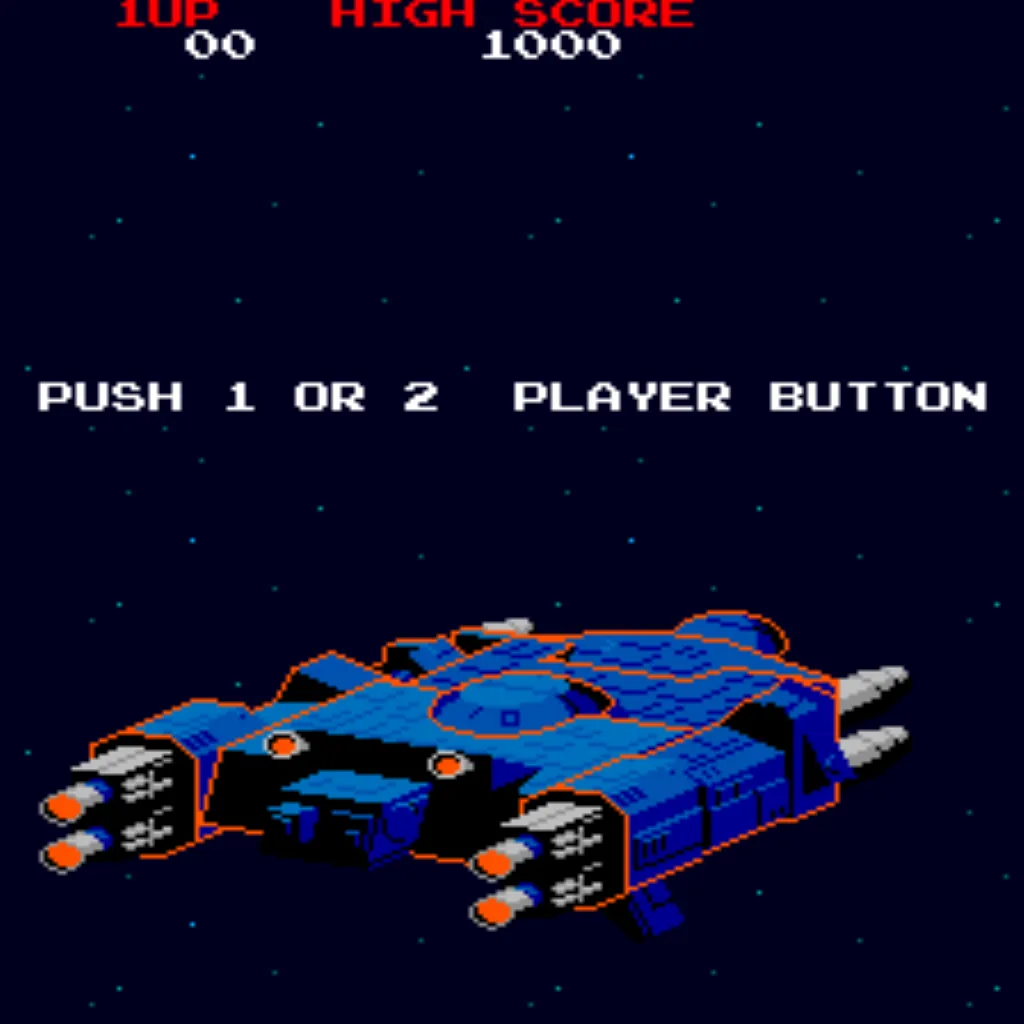

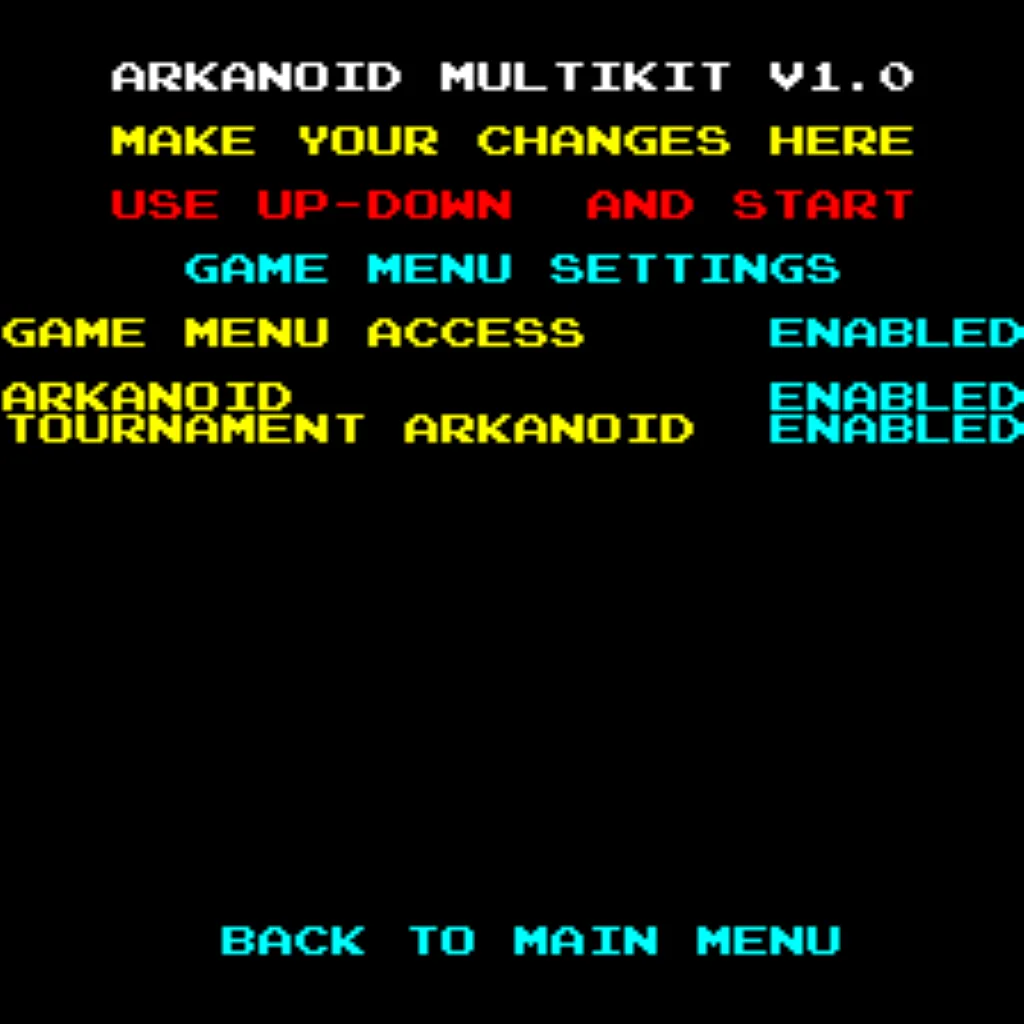

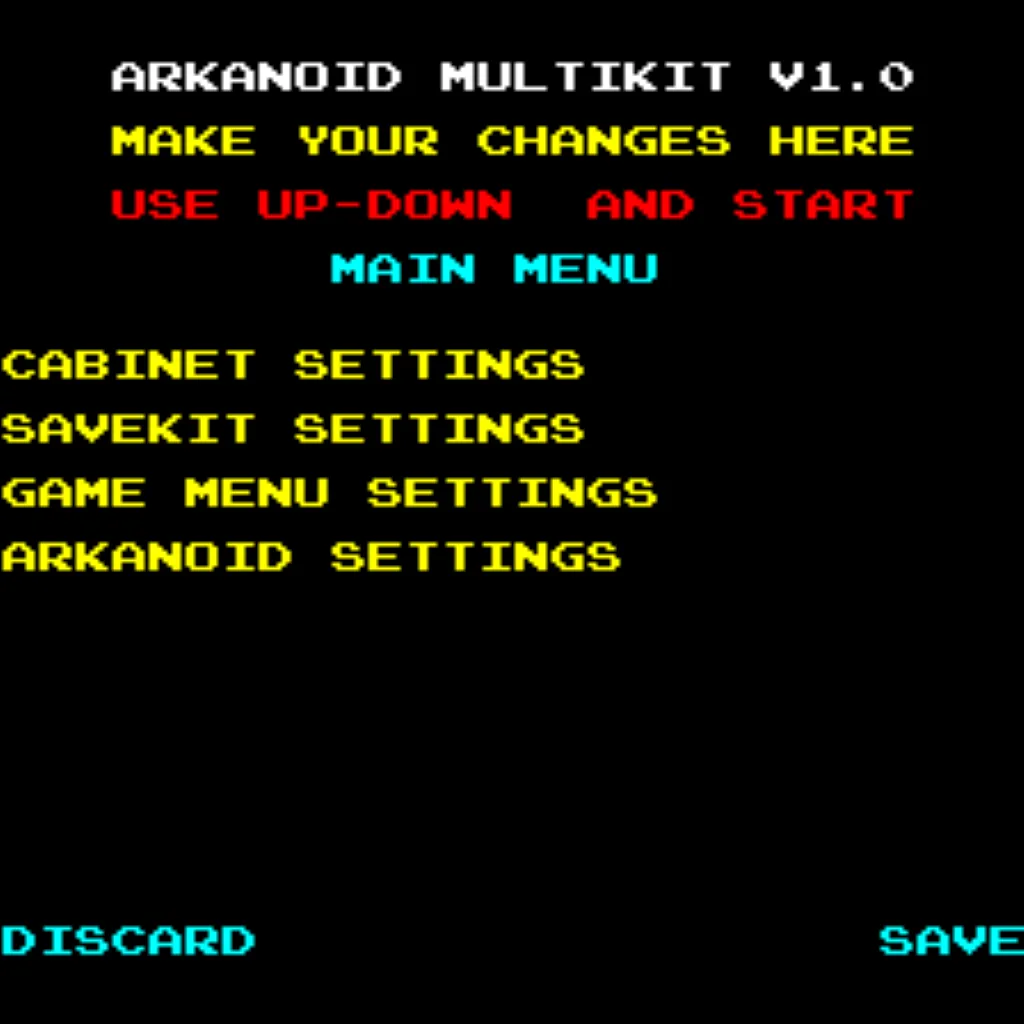

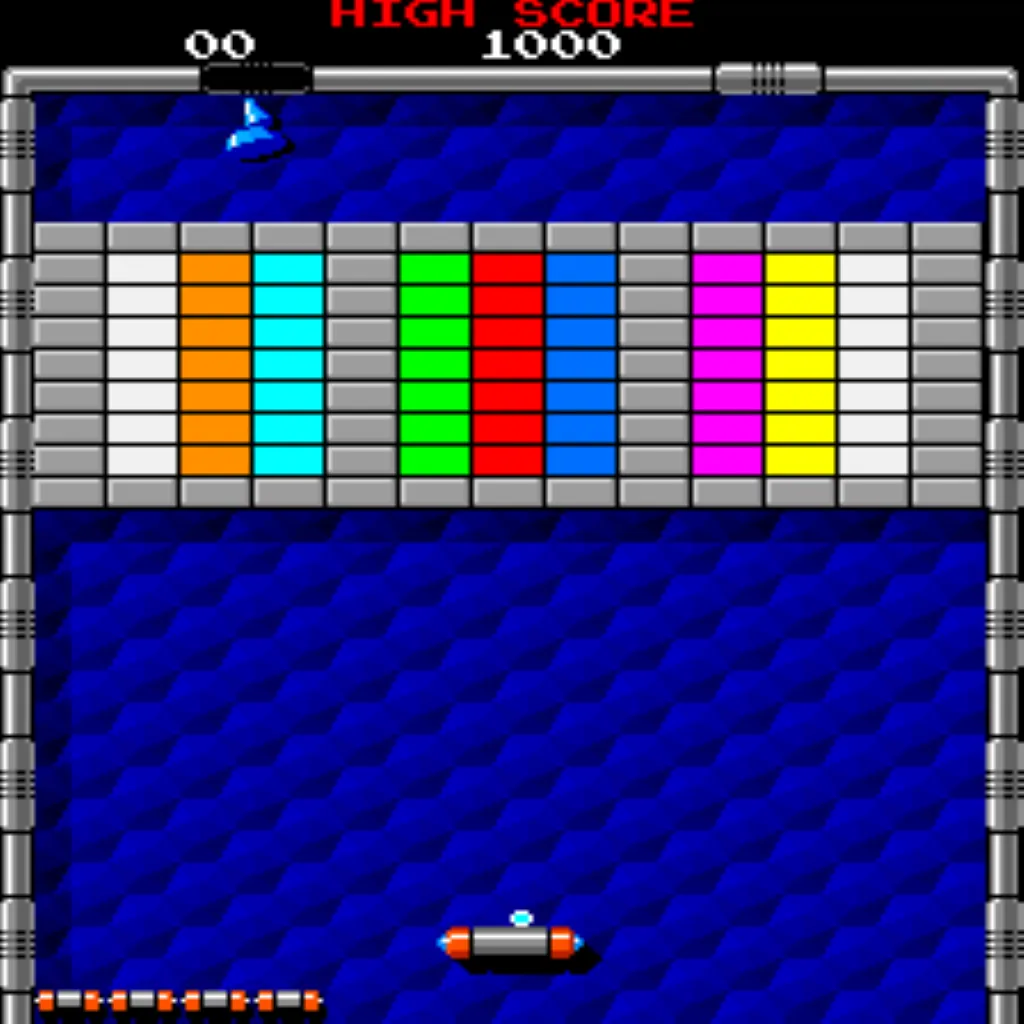

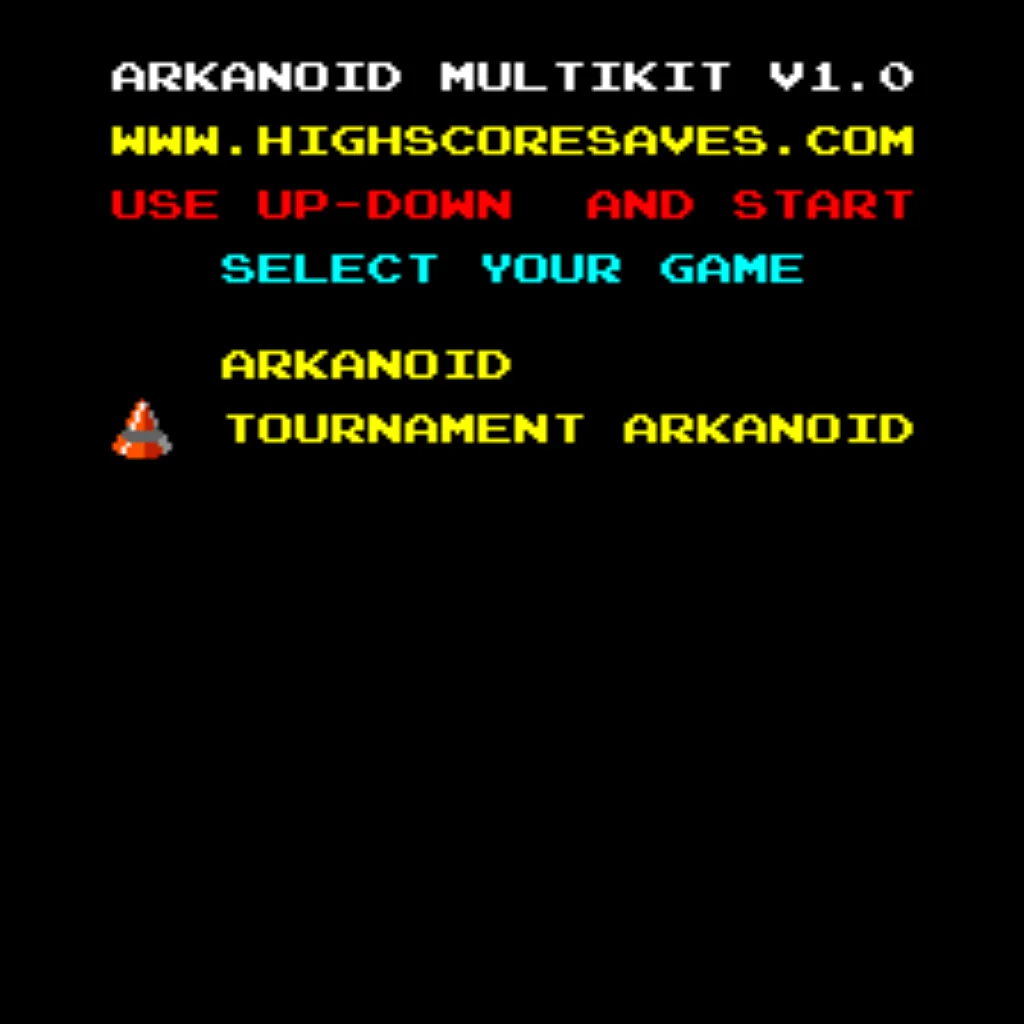

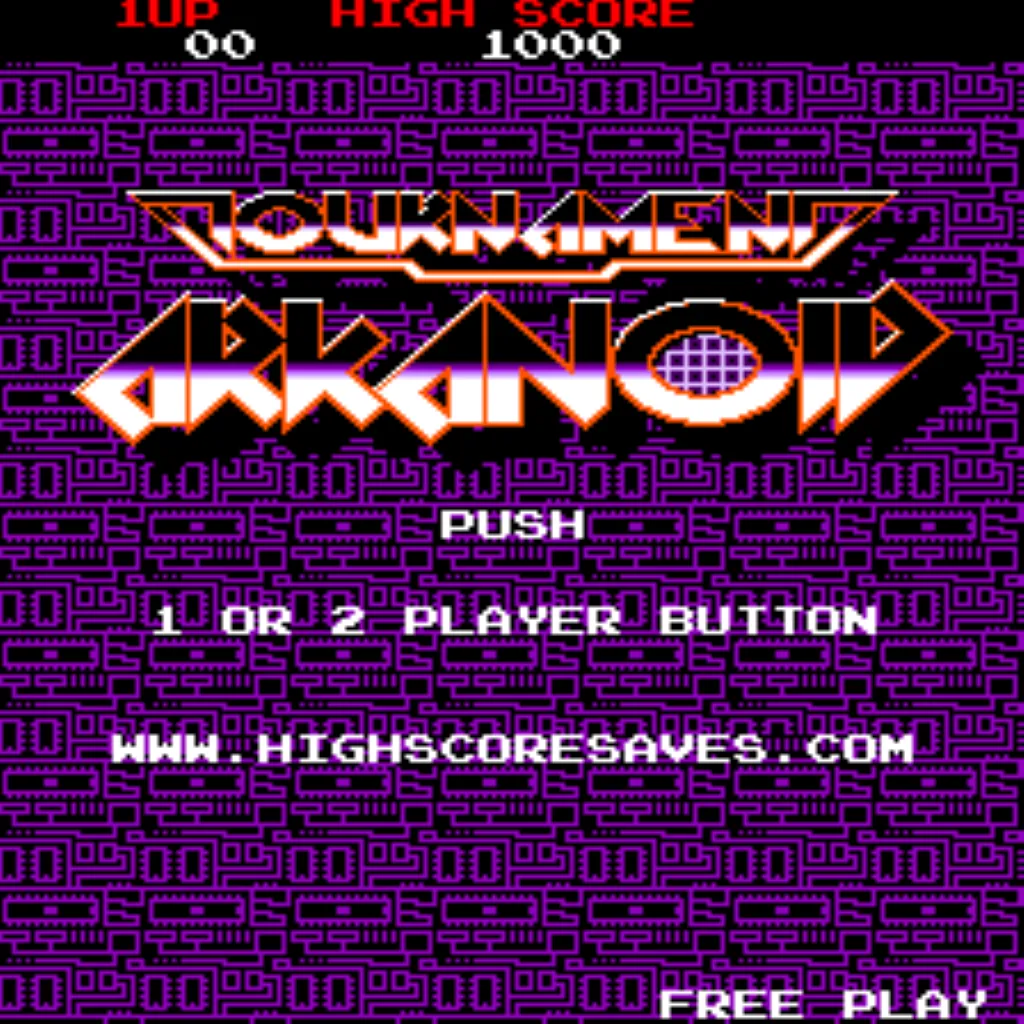

Arkanoid | Tournament Multigame Free Play and High Score Save Kit

Customize Your Pacman | Ms Pacman Multi Game Free Play and High Score Save Kit Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket — optional but recommended for easy installation. Learn More About This Kit Click a button to view details, tips, or the installation guide. Features Easy install — No soldering, board modifications, or special wiring. Plug in and go. Save your scores forever — Uses reliable serial EPROM (not NVRAM or batteries). High Score Save — Saves the Top 10 scores with initials. Attract Sounds — Adjustable to 25%, 50%, or every attract screen. Freeplay — No more coins or opening the coin door. Coin Up — Still supports coins if desired. Attract Mode — Prevents static burn-in on screens. Copyright options — Show original Midway logos or the HighScoreSaves logo. Menu-driven DIP settings — Change DIP switches without opening the cabinet. ROM Saver — Original program ROMs must be removed with this kit installed. Cabinet support — Works in Upright, Cabaret, or Cocktail cabinets. Ships with latest v1.09e version — The best Pac Multi yet! Additional Features Backup & Restore — Back up and reload your scores, great for parties. Fast or Original versions — Play either mode. Extended scoring — Supports up to 9,999,990 points (7-digit saves, no rollover). Separate high score tables — Maintains separate tables for Fast and Original play. Stealth Mode — Choose what game the kit boots to. Enable/disable submenus to restrict guest access. Game select menu included. Option to play Inky and Pinky with original Pac bug behavior or fixed AI. Turn off the “kill screen” to continue past level 255. Switch ghost names from original to alternates. Start at Level 1, Apple level, Key level, or directly at 255 to see the kill screen. Pengo! — Playable using P1 button, no control panel mods required. Important Ensure your Z80 is socketed. If not, install a 40-pin socket for compatibility. Read the installation guide before starting — Pac-Man | Ms. Pac-Man Multigame Installation Guide (PDF) . Compatible PCBs — Works with Pac-Man, Ms. Pac-Man, and Pac-Man Plus boards. Changes color PROMs: Pac-Man Plus, Ms. Pac-Man Plus, and Pengo will have original colors and sounds. New RAM Test (v1.09+) — DIP 1 and 2 OFF triggers an automatic RAM diagnostic at startup; DIP 1/2 ON disables the loop test. Game List Fast Versions Pac-Man Ms. Pac-Man Pac-Man Plus Ms. Pac-Man Plus Original Versions Pac-Man Ms. Pac-Man Pac-Man Plus Ms. Pac-Man Plus Pengo V3 Pengo V2 Just the FAQ's Which PCBs are compatible? Original Pac-Man, Ms. Pac-Man, and Pac-Man Plus boards. Do I need to remove the original program ROMs? Yes. With ROM Saver enabled, original program ROMs must be removed. How many scores are saved? The kit saves the Top 10 scores with initials and maintains separate tables for Fast and Original modes. Does it support Freeplay and coins? Yes. Enable Freeplay or keep Coin Up active—your choice. Can I bypass the kill screen? Yes. You can disable the kill screen and continue past level 255. What’s included in v1.09e? v1.09e includes the latest RAM test, extended scoring, and refinements to the multigame menu and options. Is Pengo included and how is it controlled? Yes, Pengo is included and is playable using the P1 button—no control panel mods required. Can I change ghost AI and names? Yes. Toggle original Pac bug behavior vs fixed AI, and switch between original and alternate ghost names. Will colors/sounds be correct on Plus and Pengo? Yes. Color PROMs are handled so Pac-Man Plus, Ms. Pac-Man Plus, and Pengo use original colors and sounds. Where is the installation guide? Right here: Pac-Man | Ms. Pac-Man Multigame Installation Guide (PDF) .

Customize Your Hyper Sports | Track and Field | Rearranged Multigame Free Play and High Score Save Kit Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket—optional but recommended for easy installation. Learn More About This Kit Click a button to view details, tips, or the installation guide: Compatibility Installs only on a working Hyper Sports PCB. Not compatible with Track & Field PCBs. The Hyper Sports PCB is unique in its sprite and graphics sections compared to Track & Field. This multigame kit lets you play three games—Track & Field, Hyper Sports, and the new Hyper Sports Rearranged—on a Hyper Sports PCB. Hyper Sports Rearranged mixes events and adds fresh twists to Track & Field and Hyper Sports (with potential new levels). Requirements & Install Notes Please review the installation guide before purchase/installation. Soldering is required. Upper PCB: Z80 sound CPU socket (40-pin) at AB18; PROM socket 16-pin narrow at C3. Lower PCB: PROM sockets 16-pin narrow at A9 and J12. Set jumpers to 128 (not 64) at D10/D11 and F18/F19. Features Save your scores forever – Uses reliable serial EEPROM (not failure-prone NVRAM or batteries). High Score Save – Top 10 on Track & Field, Top 13 on Hyper Sports, Top 23 on Rearranged; plus local world records tracking for T&F and Hyper Sports/Rearranged. Separate Score Tables – Independent high-score saving for Track & Field, Hyper Sports, and Rearranged. ROM Revisions – Based on the latest Hyper Sports and Track & Field revisions. Attract Sounds – Set to 25%, 50%, or 100% of the attract-screen rotation. Attract Jingles – Short jingles every 4th attract rotation; bonus sounds in Rearranged. Freeplay – Start games without coins or opening the coin door. Coin Up – Still supports coin play if desired. Attract Mode – Minimizes screen burn by reducing static screens. Controls – Supports Players 1–4. On-screen DIP settings – Menu-driven; no cabinet access needed to flip switches. ROM Saver – Original program ROMs can be removed. Cabinet Support – Works in Upright and 4-player Cocktail cabinets. Backup & Restore – Save and restore high scores (great before/after parties). Reset Button – Restart a game without powering down (enable in menu). Additional Features Choose your game – Boot to Hyper Sports, Track & Field, or the new Rearranged edition. “Stealth Mode” – Boot to last-played or a selected game. Practice Levels – Start at the event that challenges you most; difficulty/qualify times still apply. Bonus Man Options – Choose when you earn a bonus man (Track & Field). Copyright – Show original Konami/Centuri logos or the website logo. Menu Lock – Optionally disable the settings sub-menu (prevent guest access). Processor – Requires a 6809E processor on the save kit. Important Ensure required sockets (Z80 and PROMs) are installed before setup. This kit requires soldering; it is not plug-and-play. Read the Hyper Sports Rearranged Installation Guide (PDF) before beginning installation. Game List Track & Field Hyper Sports Hyper Sports Rearranged FAQ Which games are included with this kit? The kit includes Track & Field, Hyper Sports, and the new Hyper Sports Rearranged. Can I install this kit on a Track & Field PCB? No. This kit installs only on a working Hyper Sports PCB due to unique sprite/graphics hardware. Is soldering required? Yes. This kit requires socket installation and jumper adjustments. It is not plug-and-play. How many high scores are saved? The kit saves the Top 10 scores for Track & Field, Top 13 for Hyper Sports, and Top 23 for Rearranged, with world record tracking included. Does Freeplay disable coin use? No. Freeplay is supported, but Coin Up can still be used if desired. Where can I download the installation guide? You can download it here: Hyper Sports Rearranged Installation Guide (PDF).

Customize Your Frontline Multigame Free Play and High Score Save Kit Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket—optional but recommended for easy installation. Learn More About This Kit Click a button to view details, tips, or the installation guide. This is the Frontline Vertical Multi Taito Free Play and High Score Save Kit you’ve been waiting for! It’s recommended for Frontline or Wild Western cabinets because of their unique controls. The rotary spinner doubles as a button—perfect for Alpine Ski. Features Easy install – No soldering, board modifications, or special wiring. Plug in and go! Save your scores forever – Uses a serial EPROM (not failure-prone NVRAM or batteries). High Score Save – Saves the Top 10 scores with initials. Attract Sounds – Adjustable at 25%, 50%, or 100%. Freeplay – No more coins or opening the coin door. Coin Up – Still supports coins if desired. Attract Mode – Minimize screen burn; no more static screens. Menu-driven DIP – Change DIP settings on-screen; no cabinet opening required. ROM Saver – Optionally remove original program ROMs to save power. Cabinet support – Works in Upright cabinets. Additional Features Backup and Restore – Save and restore high scores (great before/after parties). Separate score tables – Different tables for 2, 3, or 4 lives. Reset Button – Restart a game without powering off (enable in menu). Self-test – Accessible via main menu or by setting all PCB DIP switches to OFF. Continue? – Enable or disable. God Mode – Unlimited lives (scores won’t save). Flip screen – Rotate the image 180°. Important Ensure your Z80 is socketed. If not, install a 40-pin socket for the kit to work. Can install on a Frontline or Wild Western PCB; can also install on Jungle Hunt or Elevator Action PCBs (rotary dial required). Read the Frontline Multigame Installation Guide (PDF) before installing. Game List Frontline Wild Western Alpine Ski Bio Attack Water Ski Highway Race Space Cruiser Just the FAQ's Which games are supported? This kit supports Frontline, Wild Western, Alpine Ski, Bio Attack, Water Ski, Highway Race, and Space Cruiser. How many scores are saved? The kit saves the Top 10 scores with initials for each supported game. Does it support Freeplay and coin operation? Yes. You can use Freeplay mode or keep coin-up enabled—your choice. Do I need to modify my cabinet? No. Installation is plug-and-play. However, ensure your Z80 is socketed. Rotary dial is required for Jungle Hunt/Elevator Action PCBs. What extra features are included? Includes Backup & Restore, God Mode, Flip Screen, and a Reset Button option. Where can I download the Installation Guide? You can download it here: Frontline Multigame Installation Guide (PDF).

Customize Your Tron Multigame Free Play and High Score Save Kit Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket—optional but recommended for easy installation. Learn More About This Kit Click a button to view details, tips, or the installation guide. Features Easy install — No soldering, board modifications, or special wiring. Plug in and go on your Tron PCB. 8-digit scoring — Score up to 99,999,999 (no rollover at 999,999). Save your scores forever — Uses reliable serial EEPROM (not failure-prone NVRAM or batteries). High Score Save — Stores the Top 10 scores. Separate score tables — Independent high-score tables for each of the 4 game menus. Attract Sounds — Set to 25%, 50%, or 100% of the attract rotation. Freeplay — No more coins or opening the coin door. Coin Up — Still supports coins if desired. Attract Mode — Minimizes screen burn by avoiding static screens. On-screen DIP settings — Menu-driven; no cabinet pull-out to change physical dip switches. ROM Saver — Original program ROMs can be removed if desired. Cabinet support — Works in Upright and Cabaret cabinets. Additional Features Backup and Restore — Save and restore high scores (perfect before/after parties). Reset Button — Restart a game without powering off (enable in menu). ROM Revision — Satan’s Hollow and Tron use the latest revisions (Tron 8/09). Stealth Mode — Choose which game the kit boots to (last played or from list). Satan’s Hollow shield can be activated via Spinner, Up, Down, or Player 2 button (menu selectable). Important Ensure your Z80 CPU is socketed; if not, install a 40-pin socket for the kit to work. Read the Installation Guide (PDF) before you install. Just the FAQ's Is installation truly plug-and-play? Yes. No soldering or board mods are required. Ensure your Z80 is socketed. What’s the benefit of 8-digit scoring? Scores can reach 99,999,999 without rolling over at 999,999, preserving accurate high scores. Do Tron and Satan’s Hollow each keep separate scores? Yes. There are independent high-score tables for each of the 4 game menus. Can I use Freeplay but still accept coins? Absolutely. Freeplay is available, and coin inputs remain supported if you want them. Can I back up and restore high scores? Yes. Use Backup/Restore to save before events and restore afterward. Can I pick which game the kit boots into? Yes. Enable Stealth Mode to boot into your chosen game (last played or selected). Which cabinets are supported? Upright and Cabaret cabinets are supported. What processor is required? A socketed Z80 CPU is required for this multigame kit. Does the kit include the latest ROM revisions? Yes. Tron and Satan’s Hollow use the latest available revisions (Tron 8/09). Where can I download the installation guide? Right here: Tron & Satan’s Hollow Multigame Installation Guide (PDF) .

Customize Your Donkey Kong Rearranged Multigame Free Play and High Score Save Kit Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket—optional but recommended for easy installation. Learn More About This Kit Click a button to view details, tips, or the installation guide. In the drop-down selections above, choose which PCB to install the kit on (kits differ by selection), add the 4-game Remix Collection, and enable Wi-Fi to upload your scores to your personal webpage. Donkey Kong Multigame Install Guides 3DK Install Guide (on a Donkey Kong PCB) 3DKJr Install Guide (on a Donkey Kong Jr. PCB) This is the newest Donkey Kong kit on the scene: high-score saves, Free Play, and attract sounds—designed for the 21st century. This is NOT Double Donkey Kong. Install on a Donkey Kong or Donkey Kong Jr. board set (selected in the drop-downs) and play Donkey Kong, Donkey Kong Jr., Donkey Kong 3, D2K: Jumpman Returns plus the Rearranged Edition and unlockable editions on your PCB. Adding the Remix Collection gives you four more game versions. No special wiring or switches required. Enter the Modern Menu by holding P1 for 4 seconds to access the Game Select Menu instantly. Game List Donkey Kong Pauline Donkey Kong Donkey Kong Junior Donkey Kong 3 D2K: Jumpman Returns Pauline D2K: Jumpman Returns Donkey Kong (Japan ROMs) Donkey Kong Jr. (Japan ROMs) Practice Levels Rearranged Edition – an intertwined game-level lineup Optional Remix Collection Donkey Kong Remix Donkey Kong Jr. Remix Donkey Kong Christmas Remix Donkey Kong Spooky Remix Unlockable Levels Drunken Master Edition – Grab the bottle for 2× points during a 30-second timer; controls are reversed. Black Hammer Edition – When the lights go out… Wild Barrel Edition – More Wild Barrels than ever. Miner 2049er Edition – A tough, nostalgic challenge. Builders Edition FHMC Edition – Faster, Harder, More Challenging Rearranged lineup starting at L04+. Personal Edition – Create your own Rearranged version. Features No soldering required – No board mods or special harness wiring. Plug in and go. Modern Menu – Sleek interactive game menu (or choose a standard list). Save your scores forever – Uses a reliable serial EPROM (not failure-prone NVRAM or batteries). High Score Save – Saves the Top 5 scores and initials for each game. Separate score tables – Per game/mode (DK/DKJr/DK3/Pauline, etc.). HighScoreSaves splash logo – Optional on game change/startup. Extended scoring – Saves scores over 1,000,000 points for all games. Attract sounds – Set at 25%, 50%, or 100% of the attract rotation. Free Play – No coins or opening the coin door. Coin Up – Still supports coins if desired. Cabinet type – Upright or Cocktail (with a 2-board stack). Screen saver – Reduces burn-in; if left on Game Select, it auto-cycles attracts. DIP settings – Menu-driven coinage, Free Play, bonus lives, etc.—no cabinet opening. ROM Saver – Optionally remove original program ROMs to save power. Practice Mode – Most start at Level 4; some start earlier. Sound Expansion Module – Truist sounds across all games. Kill-screen switchable – Toggle on/off in DIPs (standard DK/Pauline). Important Socketed Z80 required: If your Z80 isn’t socketed, install a 40-pin socket. Board compatibility: Choose the correct kit for DK or DKJr in the drop-down. DK3 PCBs are not supported. Stack type: Works on a 2-board stack only (not 4-board). Read the install guide for your board set: 3DK Install Guide (Donkey Kong) or 3DKJr Install Guide (Donkey Kong Jr.). Just the FAQ's Do I need to send in my PCB to get the kit installed? No. Install it yourself in ~15 minutes. No soldering required. Refer to the installation guides and the video overview. Does the 3DK Multigame kit sound correct? Yes. Choose preferred audio in the Game Settings menu. Options include DK analog sounds for DKJr, NES-style DKJr sounds, and a 100% accurate external Sound Expansion Module (default). Can this run on DK and DKJr PCBs? Yes—DK and DKJr are supported (select the correct option in the drop-down). DK3 PCBs are not supported for this kit. Will it work on a 4-board DK stack? No. The daughter cards fit a 2-board stack only. Cocktail use is possible with a DKJr cocktail that has a DK 2-board stack installed. Where can I download the Installation Guide? Download the PDF for your board set here: 3DK Install Guide (Donkey Kong) — PDF 3DKJr Install Guide (Donkey Kong Jr.) — PDF
