Bomb Jack Arcade Service Manual PDF Download – Tehkan
$0.00
Available, processing time: Instant download
Product information "Bomb Jack Arcade Service Manual PDF Download – Tehkan"
Bomb Jack Arcade Service Manual PDF Download

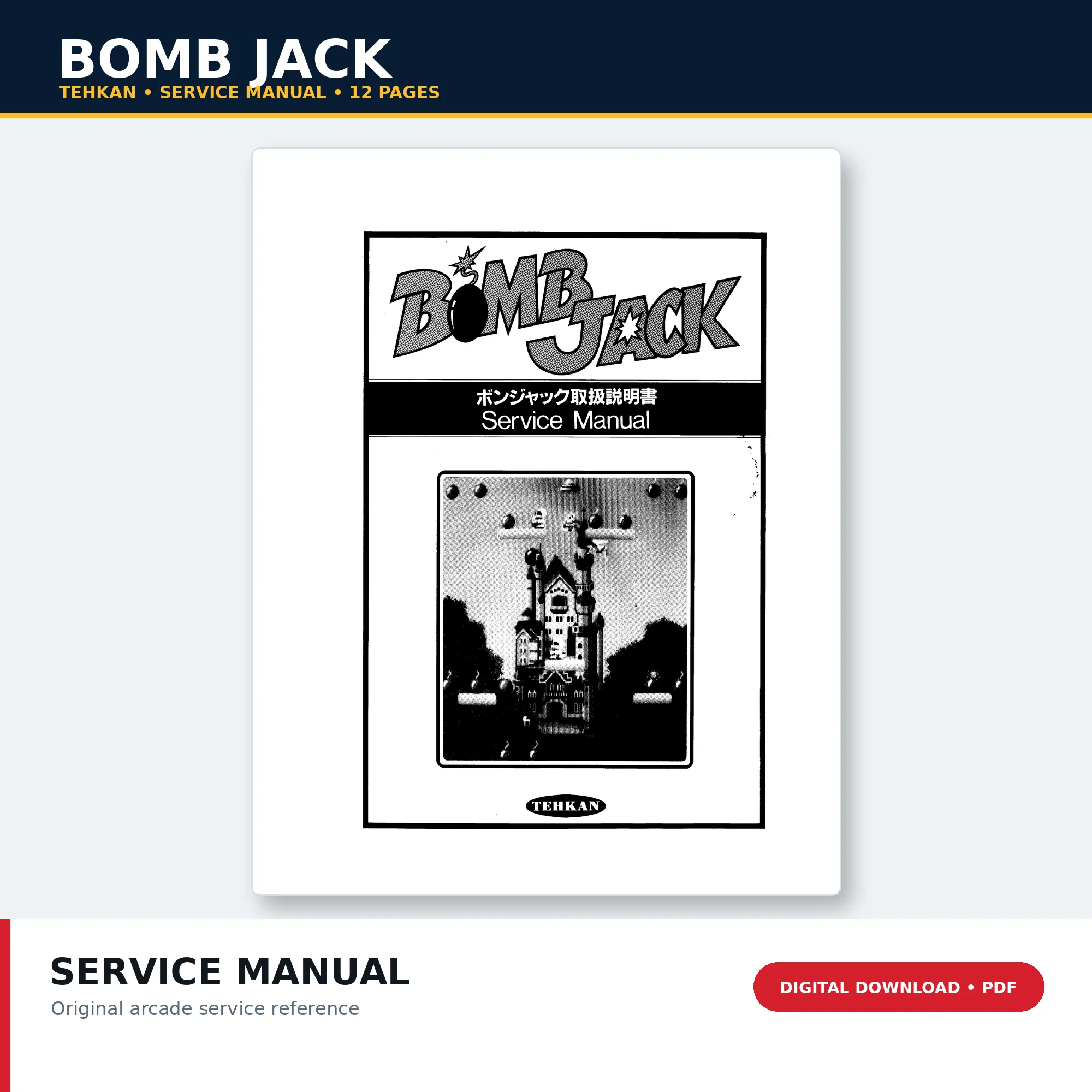

Download the original Tehkan Bomb Jack Service Manual. This 12-page digital PDF combines bilingual Japanese and English setup and service information with edge-connector details, power requirements, DIP switch settings, ROM and RAM checks, color and switch tests, handling precautions, and schematic sheets 1 through 8.
The complete scan has been reviewed page by page and retained in full. No blank or duplicate pages were found. The manual contains four cover and service-information pages followed by eight numbered schematic sheets.
Document Details
- Game: Bomb Jack
- Manufacturer and publisher: Tehkan Ltd.
- Document title: Bomb Jack Service Manual
- Language: Japanese and English service information
- Publication date: Not stated in the scan
- Page count: 12 pages
- File format: Digital PDF download
Information Included in the Manual
- Tehkan Bomb Jack service-manual cover
- Edge-connector pinout and connector orientation
- Joystick, jump-button, RGB video, sync, speaker, and power connections
- DIP switch settings for coinage, number of Jacks, cabinet type, sound demonstration, difficulty, and enemy behavior
- ROM and RAM check display information
- Color, switch, and crosshatch test procedures
- PC board handling and connector precautions
- Eight numbered Bomb Jack circuit schematic sheets
Schematic overlap: This manual includes schematic sheets 1 through 8. The separate Bomb Jack Schematics and Wiring Diagrams download contains a 1984 Tehkan cover plus sheets 1 through 10, including the same first eight sheets and two additional drawings.
Related Bomb Jack Hardware and Technical Resources
Add Free Play, permanent Top 10 high score saving, configurable settings, and optional Wi-Fi features to compatible original Tehkan hardware with the Bomb Jack Free Play and High Score Save Kit .
For the more complete 10-sheet technical drawing set, download the Bomb Jack Arcade Schematics and Wiring Diagrams PDF .
Confirm Compatibility Before Downloading
Arcade documentation is hardware-specific. Compare the Tehkan board layout, edge connector, installed components, cabinet wiring, and DIP switch arrangement with your Bomb Jack game before using this manual for setup or service. Bootlegs, conversions, reproductions, alternate revisions, and previously modified boards may differ.
This original arcade service reference is not the installation guide for a HighScoreSaves upgrade kit. Follow the separate Bomb Jack kit installation guide when installing the HighScoreSaves product.
How Digital Delivery Works
- Add the Bomb Jack manual download to your shopping cart.
- Complete checkout, including when the listed price is $0.00.
- Use a valid email address for digital delivery.
- Download and save the PDF using the delivery information provided.
Browse additional documents in the Arcade Operator Manuals category.
Digital product: No printed manual, programmed chip, circuit board, disc, USB drive, or other physical item will be shipped.
