Braze Battlezone Free Play and High Score Save Kit
Product information "Braze Battlezone Free Play and High Score Save Kit"
Braze Battlezone High Score Save Kit — Features & Install
Overview

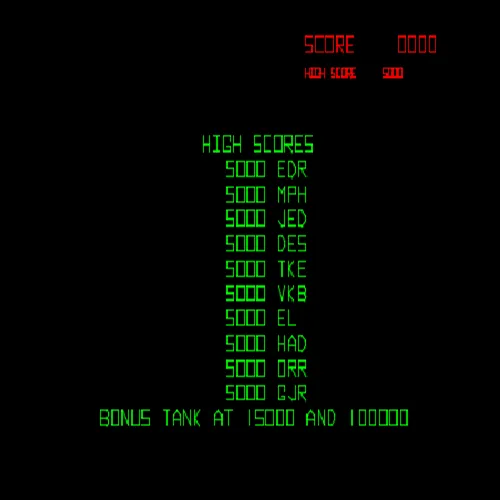

A high score save kit for Battlezone that permanently remembers the top 10 scores and initials—even after power-off—without any batteries. It also doubles as a “ROM saver”, reducing issues from aging ROM sockets. Note: this version does not include attract sounds; the Highscoresaves.com version does. No special wiring or soldering is required.
Installation Summary
- Power down the cabinet and access the CPU board.
- Carefully remove the 6502 CPU from the Battlezone board.

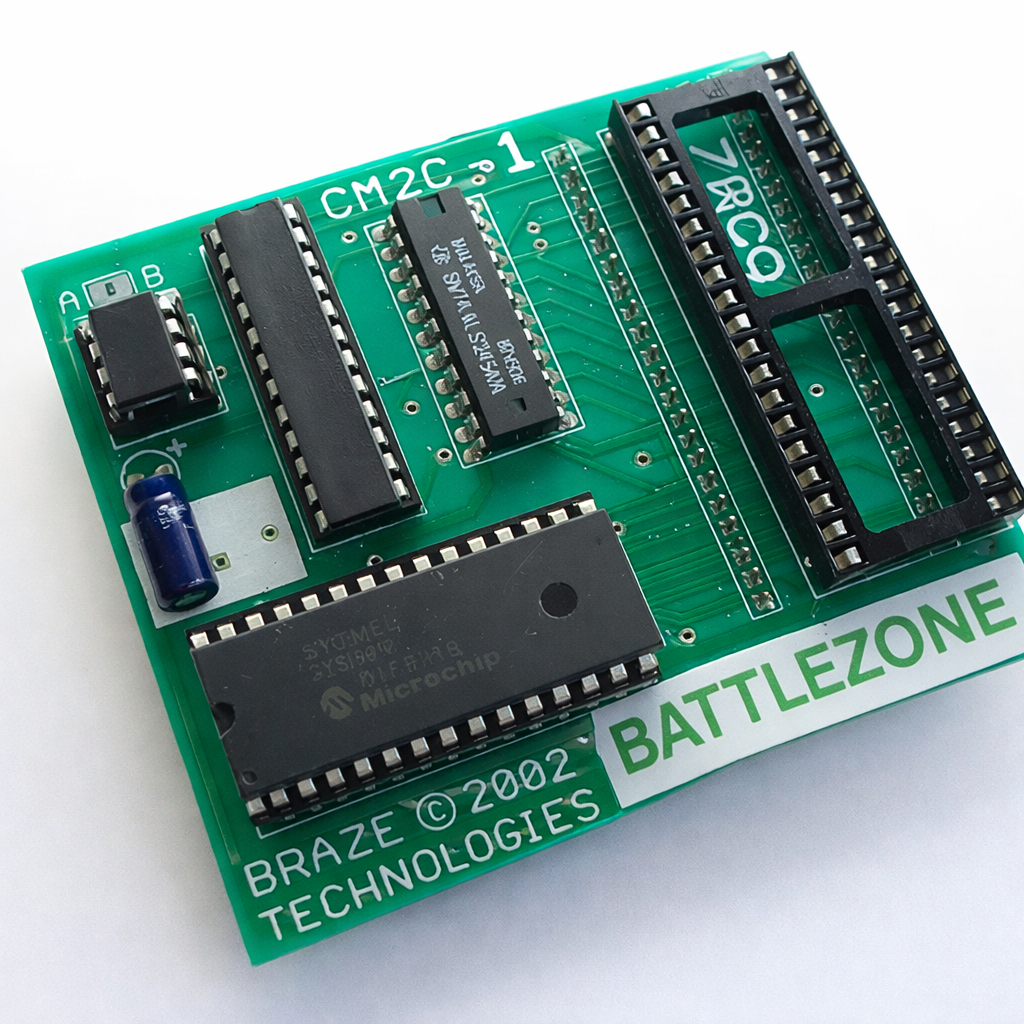

- Insert the 6502 into the included daughter card.
- Plug the daughter card into the vacated 6502 CPU socket on the board.
- Power on and follow the install guide to verify operation.

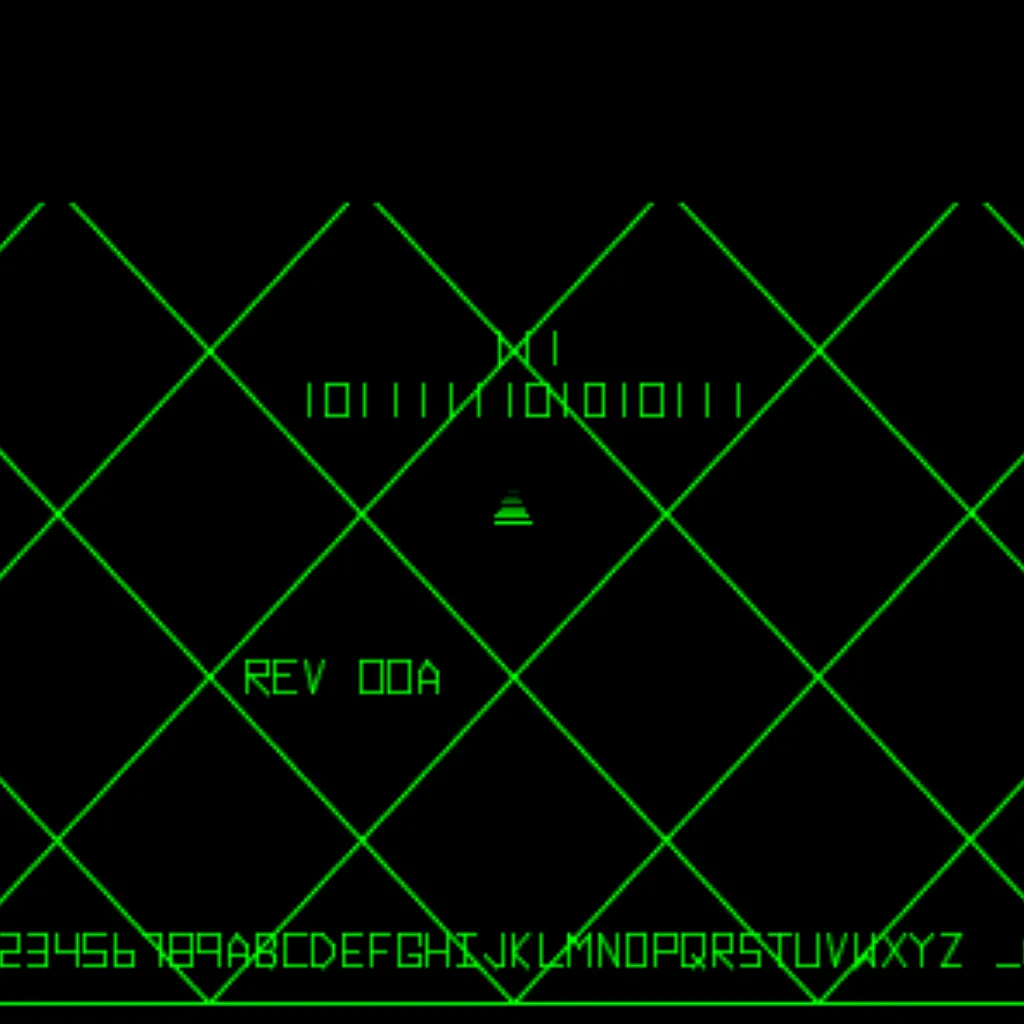

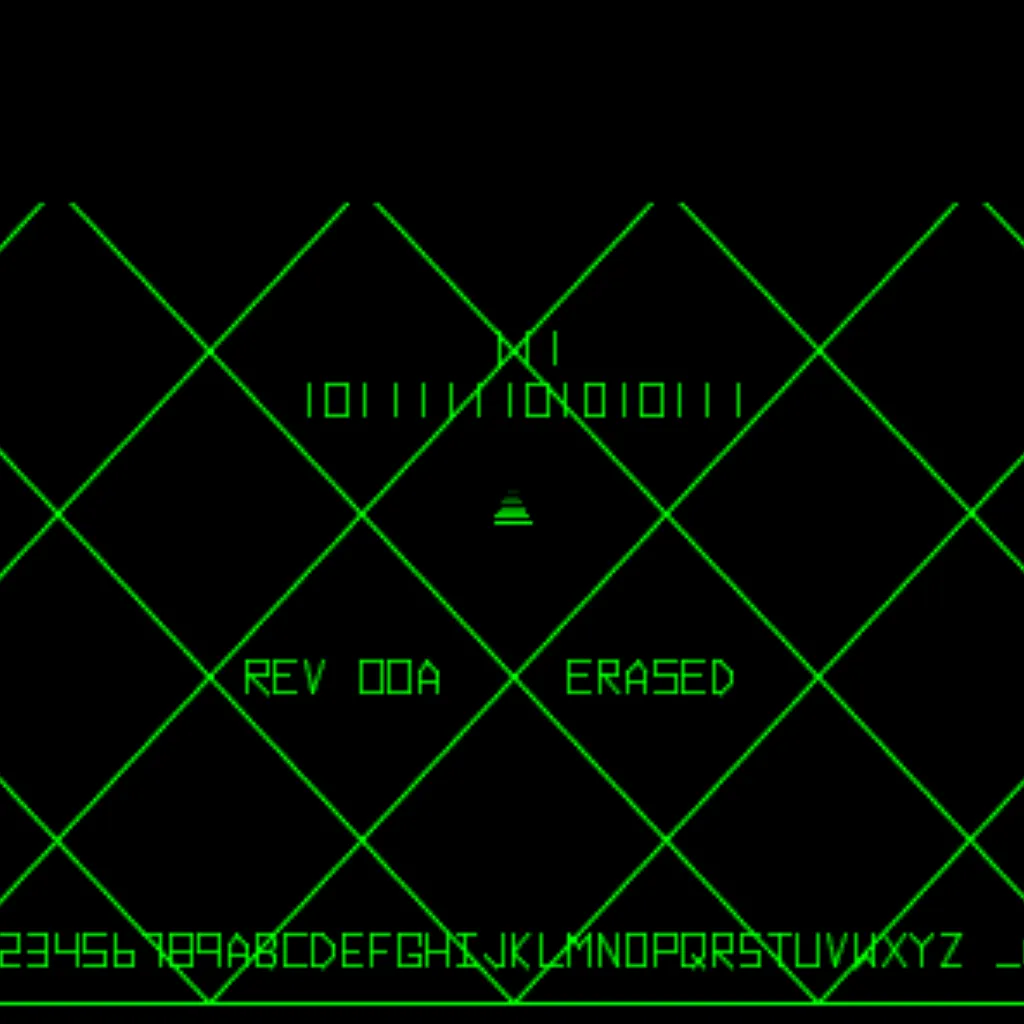

To clear saved scores: enter Self Test, then press and hold the Start and Fire buttons together until the screen shows “ERASED.”
Key Features
- Installs in minutes: no board modifications or special wiring.

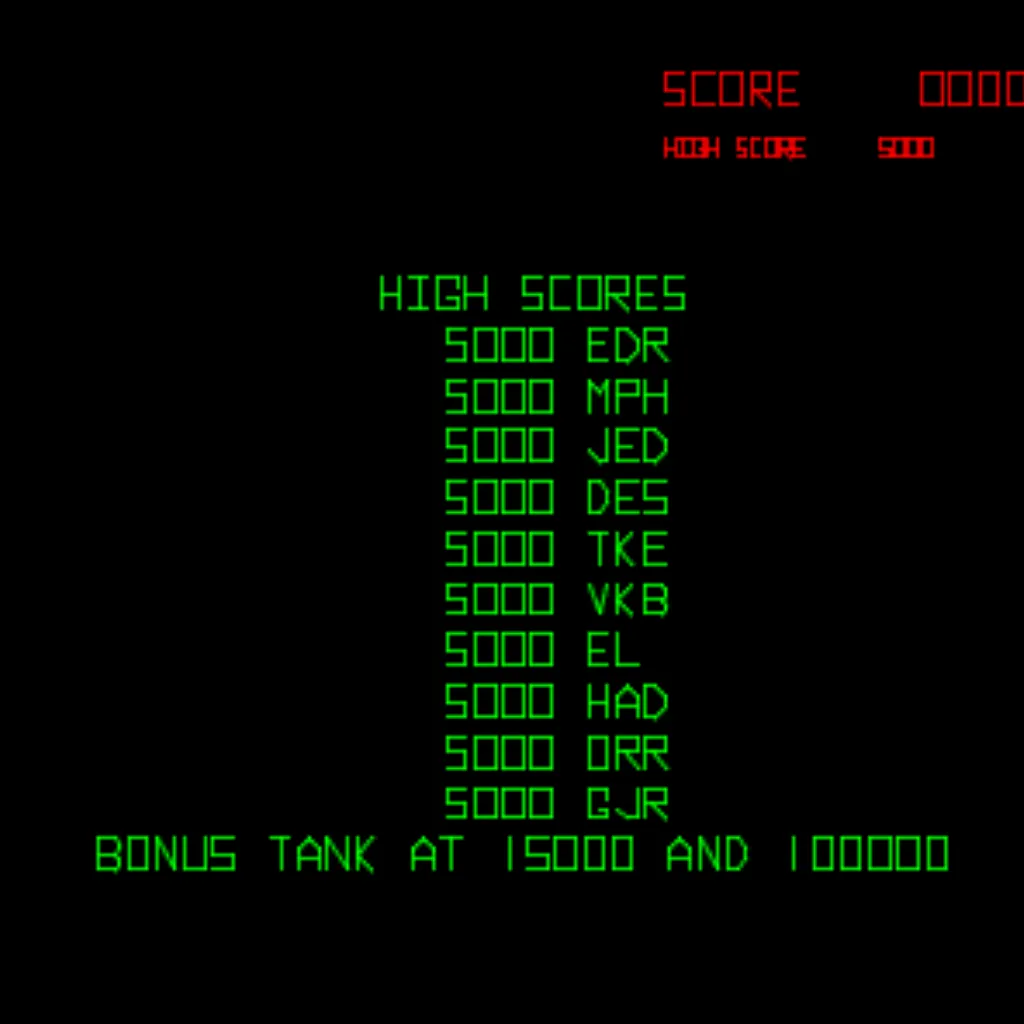

- Top 10 High Score Save: remembers scores and initials permanently (no batteries).
- ROM Saver: reduces problems from old or faulty ROM sockets.
- Premium hardware: gold-plated machined header pins for a strong, reliable connection; daughter card snaps firmly into place.
- Easy reset: clear the table via Self Test (Start + Fire) with on-screen “ERASED” confirmation.
- Attract sounds: not included in this version (available on the Highscoresaves.com version).
FAQ
Where can I download the install guide?
Do I need to solder anything?
No. Installation requires no soldering or special wiring.
How do I clear the high scores?
Enter Self Test, then press and hold the Start and Fire buttons together until “ERASED” appears.
Does this kit include attract sounds?
No. This version has no attract sounds. The Highscoresaves.com version includes them.
What CPU does this kit interface with?
The kit uses the 6502 CPU—remove the existing 6502, place it in the daughter card, then plug the card into the 6502 socket.
What makes the connection reliable?
Gold-plated machined header pins provide a secure, long-lasting connection to the Battlezone CPU socket.
Login
2 reviews
September 23, 2025 4:58 PM
Battlezone
Excellent kit. Easy install. I like how you can make the attract sound more or less. I use 1-4. You can turn off if that’s your preference.
September 23, 2025 12:03 AM
Super fun, super easy to install worth every penny
So I got this kit a little while back and I absolutely love it! Just like they say it's easy to install and I love watching my scores and not having to coin up on every game. In fact by being able to hold the high scores it allows me to come back after I've turned off the machine turn it back on and challenge myself again.. it helps with the replayability
Accessories
40 pin Socket Specifications Pitch: 2.54 mm (0.100″) Pins: 40 (2×20) Mounting: Through-hole (THT)

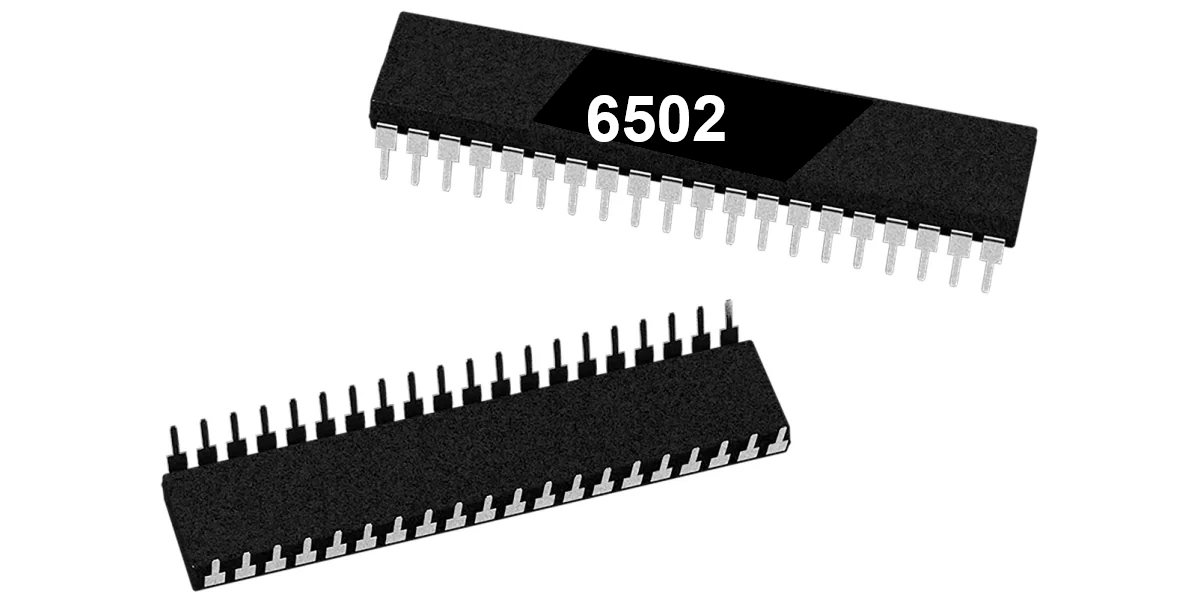

6502 8-Bit Microprocessor (40-Pin CPU) The 6502 is an 8-bit microprocessor widely used in classic arcade PCBs. This 40-pin CPU handles core game logic and timing and is essential for reliable board operation. Used In Arcade Games Such As Asteroids Battlezone Centipede Tempest Warlords …and more! *Brands may vary.
