Bubble Bobble Arcade New Game Package Installation and Service Manual PDF Download – Romstar
$0.00
Available, processing time: Instant download
Product information "Bubble Bobble Arcade New Game Package Installation and Service Manual PDF Download – Romstar"
Bubble Bobble Arcade New Game Package Manual PDF Download

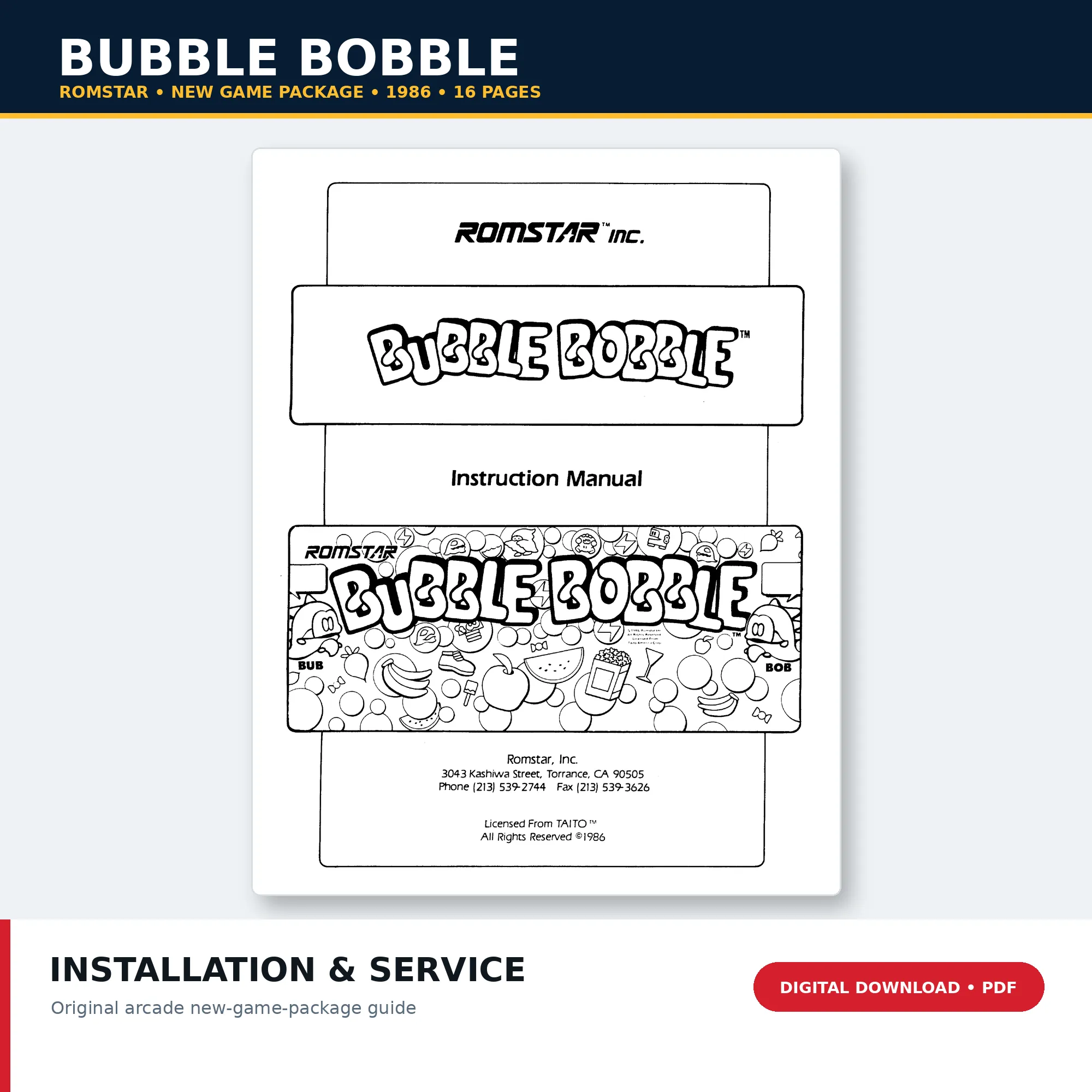

Download the original 1986 Romstar Bubble Bobble Instruction Manual for installing and servicing a New Game Package. This 16-page digital PDF explains cabinet-selection requirements, conversion parts, DIP switch settings, gameplay, wiring, controls, power, monitor requirements, installation procedures, testing, artwork installation, and harness connections.
The complete scan has been reviewed page by page and retained in full. No blank or duplicate pages were found. This document was published by Romstar for its Taito-licensed Bubble Bobble New Game Package; it is not presented as the original Taito dedicated-cabinet operators manual.
Document Details
- Game: Bubble Bobble
- Publisher: Romstar, Inc.
- Licensed from: Taito
- Cover title: Bubble Bobble Instruction Manual
- Document scope: Installing and Servicing Your Bubble Bobble New Game Package
- Copyright: 1986
- Page count: 16 pages
- File format: Digital PDF download
Information Included in the Manual
- New game package contents and cabinet-selection checks
- Power-supply and horizontal raster-monitor requirements
- Recommended installation tools and supplies
- DIP switch tables for coinage, difficulty, bonus, lives, and operating options
- Basic Bubble Bobble controls and game operation
- PCB, wiring harness, power, monitor, speaker, coin-door, and service-switch connections
- Smoke test, initial power-up, troubleshooting, and board-orientation information
- Control-panel positioning, joystick and button installation, and control-panel wiring
- Marquee, side-graphic, and finishing procedures
- Warranty, repair, return, and wire-harness connection tables
Related Bubble Bobble Hardware and Technical Resources
Add Free Play, permanent Top 10 high score saving, menu-driven settings, and optional Wi-Fi features to compatible original Taito hardware with the Bubble Bobble Free Play and High Score Save Kit .
For Taito CPU and video PCB component layouts and circuit drawings, download the Bubble Bobble Arcade Schematics and Wiring Diagrams PDF .
Confirm the Document Scope Before Downloading
This manual was written for installing a Romstar Bubble Bobble New Game Package into a suitable existing cabinet. Cabinet wiring, power supplies, monitors, controls, artwork, connectors, and installed hardware can differ in dedicated cabinets, conversions, bootlegs, reproductions, alternate revisions, and previously modified games.
This original arcade reference is not the installation guide for a HighScoreSaves upgrade kit. Follow the separate Bubble Bobble kit installation guide when installing the HighScoreSaves product.
Safety warning: Arcade cabinets and CRT displays may contain hazardous voltages. CRT displays can retain a dangerous electrical charge after power is disconnected. Use a qualified arcade technician when you are not trained to work safely with arcade electronics.
How Digital Delivery Works
- Add the Bubble Bobble manual download to your shopping cart.
- Complete checkout, including when the listed price is $0.00.
- Use a valid email address for digital delivery.
- Download and save the PDF using the delivery information provided.
Browse additional documents in the Arcade Operator Manuals category.
Digital product: No printed manual, programmed chip, circuit board, artwork, disc, USB drive, or other physical item will be shipped.
