Bump 'n' Jump High Score Save Kit
$66.00
Product information "Bump 'n' Jump High Score Save Kit"

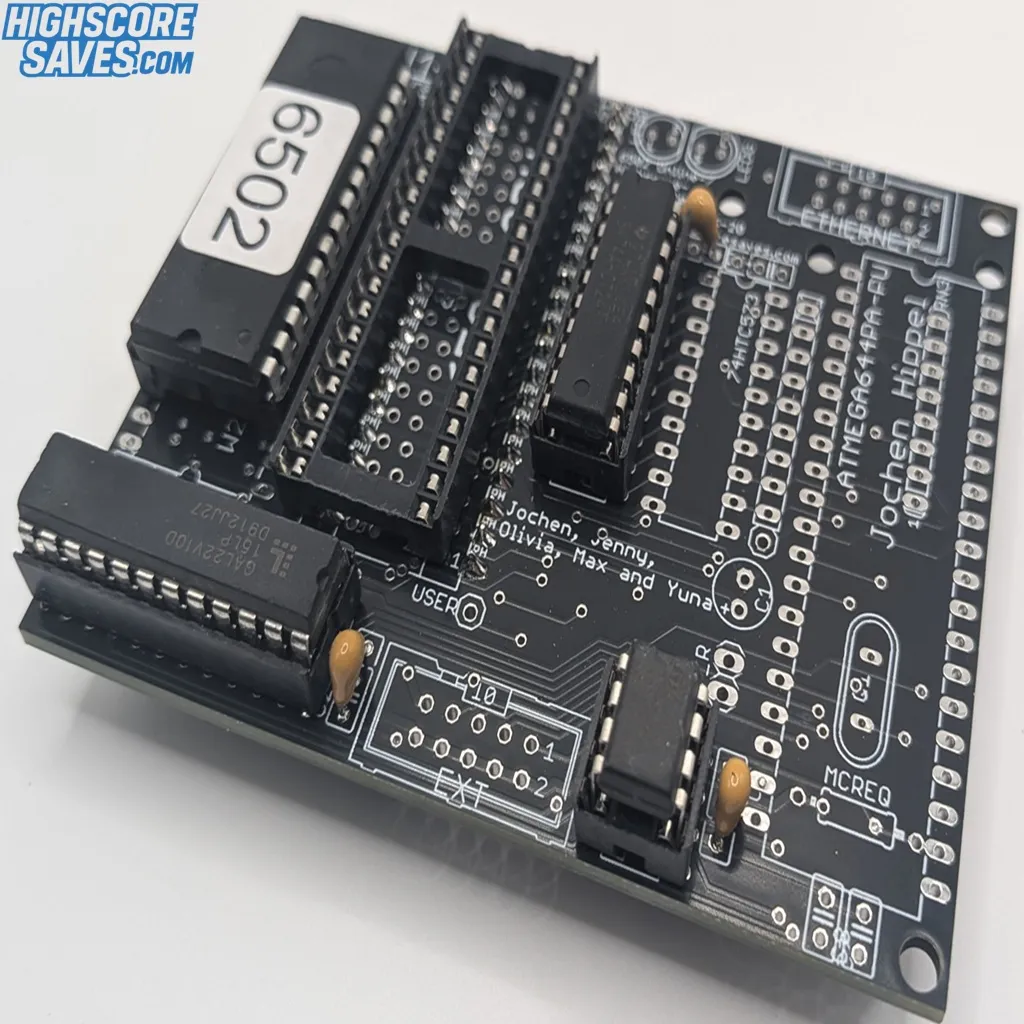

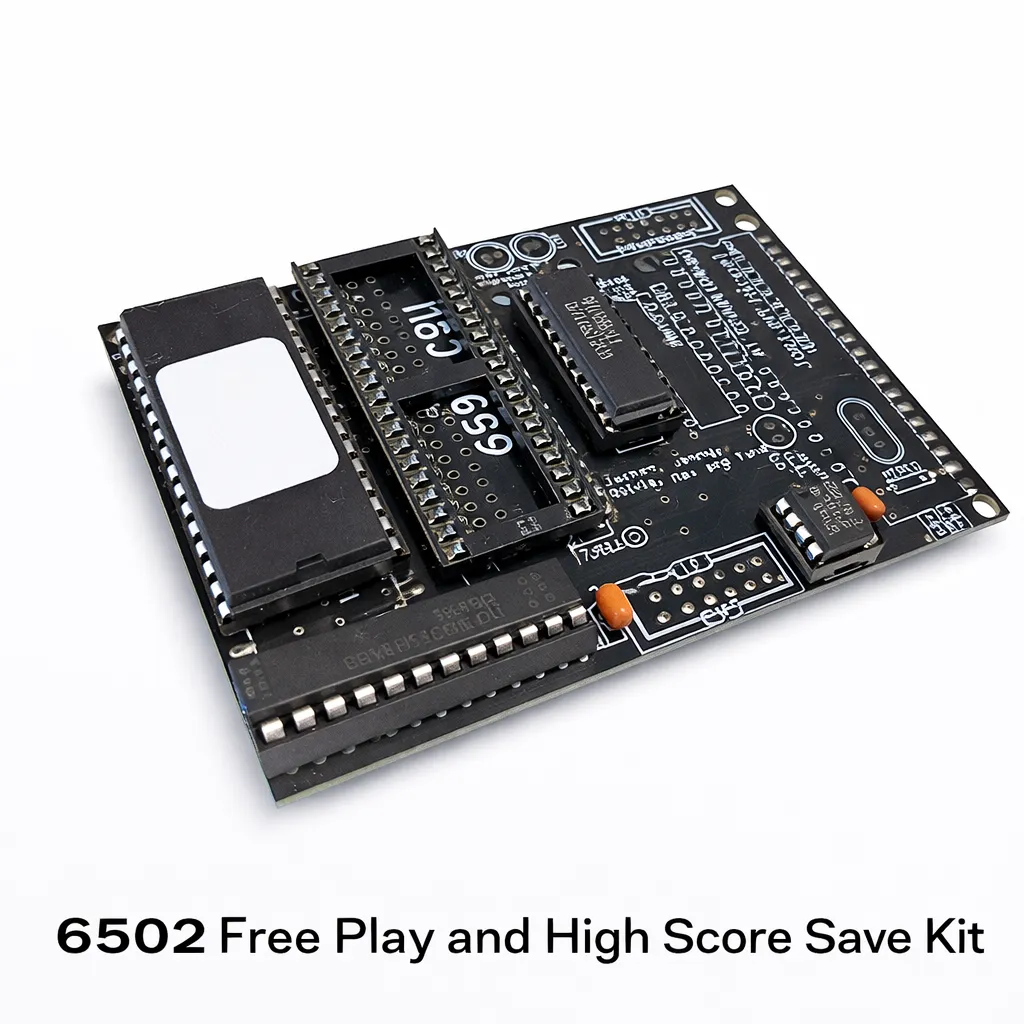

Bump 'n Jump High Score Save Kit for Data East Arcade PCBs
Upgrade your original Bump 'n Jump arcade PCB with reliable high score saving, long-term EEPROM memory storage, and optional Wi-Fi leaderboard functionality while preserving authentic gameplay and original arcade hardware.
Designed specifically for original Data East hardware, this plug and play upgrade improves long-term reliability without changing gameplay timing, controls, sound, or the classic driving and combat gameplay collectors expect.

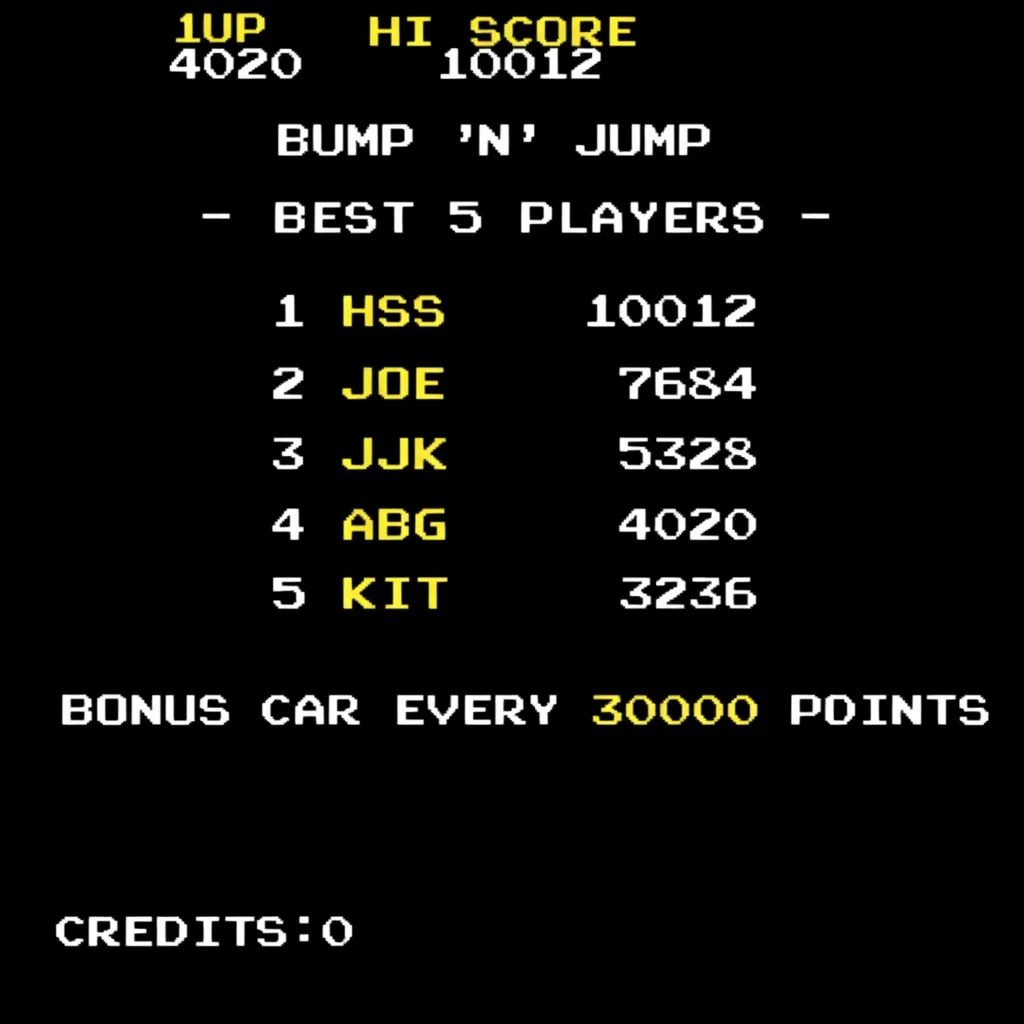

Saves up to 150 scores while displaying the Top 5 on-screen.
Reliable serial EEPROM replaces batteries and NVRAM.
Supports coins and tokens exactly like the original arcade PCB.
Upload scores online to global arcade leaderboards.
Upgrade Your Bump 'n Jump Arcade Experience
Restore and enhance your original Bump 'n Jump arcade machine with a professionally designed High Score Save Kit built specifically for authentic Data East arcade hardware.
Original boards often lose scores due to failing batteries, unstable NVRAM, or aging components. This upgrade modernizes your PCB while preserving the original gameplay, controls, timing, and high-speed vehicular combat gameplay that made Bump 'n Jump an arcade favorite.
Unlike emulation or reproduction hardware, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects.
Available Kit Options
Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit.
Optional processor and socket upgrades are also available to simplify installation on original hardware.
Important Installation Notes
- Encrypted CPU Required: Requires the original encrypted 6502 processor (C10707-1)
- Socketed CPU Required: Install a 40-pin socket if your CPU is soldered directly to the PCB
- ROM Saver Support: Original program ROMs may optionally be removed
- Ensure your PCB and wiring harness are functioning correctly before installation
- Read the Bump 'n Jump Installation Guide before setup
Main Features
- Easy Install: No soldering, board modifications, or special wiring required
- Permanent Score Saving: Uses reliable serial EEPROM instead of batteries or failure-prone NVRAM
- High Score Save: Stores up to 150 scores while displaying the Top 5 on-screen
- Coin-Up Only: Supports coins and tokens exactly like the original hardware
- No Free Play: Free Play mode is not available on this kit
- ROM Saver: Original program ROMs can optionally be removed while running directly from the kit
- Cabinet Compatibility: Works in Upright and Cocktail cabinets
Additional Requirements and Notes
- Socketed 6502 Required: Install a 40-pin socket if needed
- Encrypted CPU Required: Requires original encrypted 6502 (C10707-1)
- ROM Saver Support: Program runs directly from the kit
- Top 5 Display: Top 5 scores shown directly on-screen
Installation Information
- Installation Difficulty: Easy
- Soldering Required: No, if CPU is socketed
- Processor Requirement: Requires encrypted 6502 (C10707-1)
- Socketed CPU Required: Install a 40-pin socket if needed
- Free Play Support: Not available on this kit
- Cabinet Compatibility: Upright and Cocktail supported
- Installation Guide: Download PDF Installation Guide

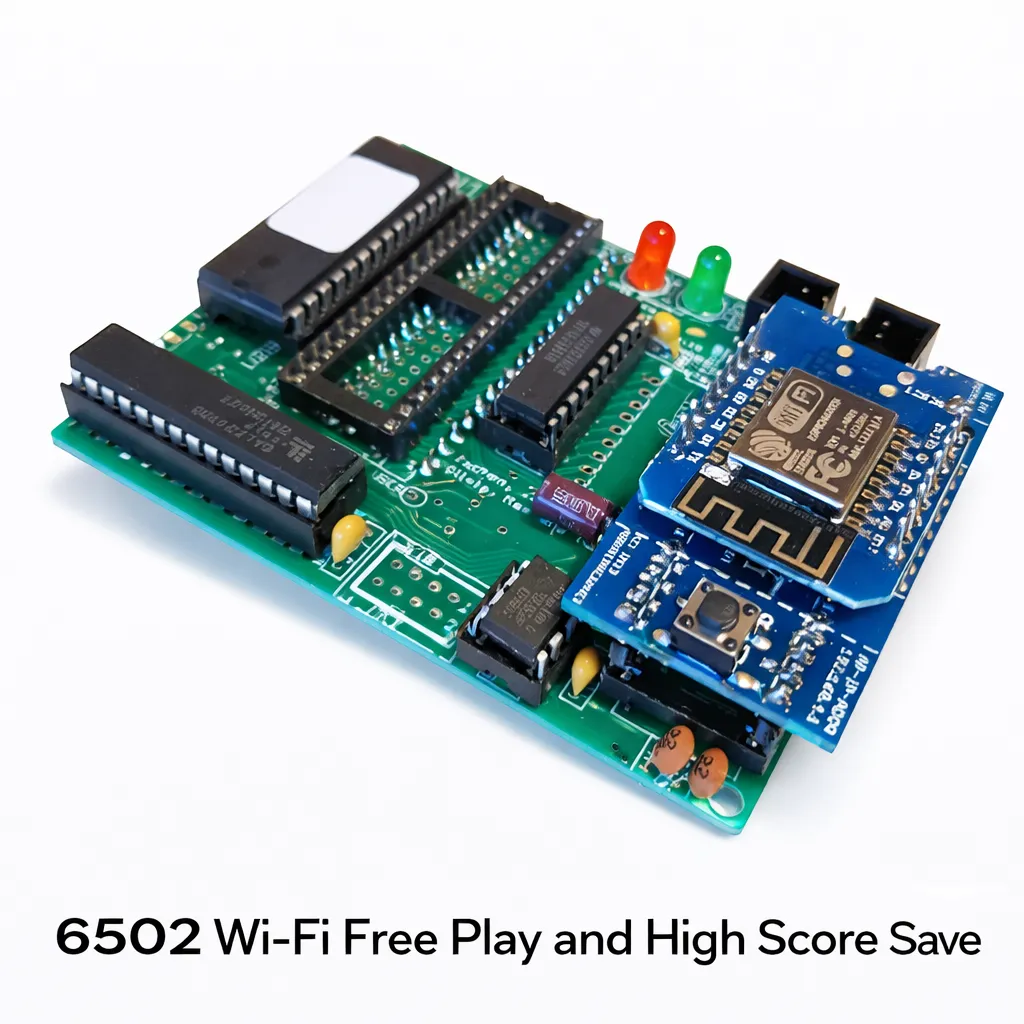

Optional Wi-Fi Features and Online Leaderboards
Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network.
Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform.
Bump 'n Jump High Score Save Kit FAQ
How many scores are saved?
The kit stores up to 150 scores while displaying the Top 5 directly on-screen.
Does this kit support Free Play?
No. This kit is designed for Coin-Up only. Free Play is not available.
What is ROM Saver?
ROM Saver allows the original program ROMs to be removed while the program runs directly from the kit.
Which CPU is required?
Requires the original encrypted 6502 (C10707-1) processor.
Does the CPU need to be socketed?
Yes. Install a 40-pin socket if your CPU is soldered directly to the PCB.
Which cabinet styles are supported?
Compatible with both Upright and Cocktail cabinets.
Where can I download the installation guide?
