Crazy Kong Part II Free Play and High Score Save Kit

Product information "Crazy Kong Part II Free Play and High Score Save Kit"

Upgrade Your Original Falcon Crazy Kong Part II Arcade PCB

The HighScoreSaves Crazy Kong Part II Free Play and High Score Save Kit adds Free Play, permanent Top 5 high score saving with player initials, selectable attract sounds, and configurable game settings to your compatible original Falcon Crazy Kong Part II arcade PCB. Enjoy Score Backup and Restore, Reset, Fast Boot, Attract-Mode Protection, and optional Wi-Fi leaderboard support while retaining your original arcade hardware and classic gameplay. This kit is designed for compatible Falcon PCBs only and does not support ORCA Crazy Kong boards.

Free Play

Play with or without coins

High Score Saving

Top 5 scores saved

with initials!

Attract Sounds

Selectable in settings

Optional Wi-Fi

Upload scores to Personal and Global pages!

Crazy Kong Part II PCB Compatibility at a Glance

Compatible PCB Documented compatible original Falcon Crazy Kong Part II arcade PCB
Not compatible ORCA Crazy Kong PCBs are not supported
Required CPU Compatible Z80 processor
CPU location Documented Z80 CPU position on the original Falcon PCB
CPU socket Compatible 40-pin CPU socket required
Installation Plug-in installation when the original Z80 CPU location is already socketed
Soldering Not required when the original Z80 is already socketed
Cabinet support Documented upright and cocktail configurations
Before you order: This kit supports documented compatible Falcon Crazy Kong Part II arcade PCBs only. It is not compatible with ORCA Crazy Kong boards. Confirm your original PCB manufacturer before ordering. A compatible Z80 processor and 40-pin CPU socket are required. Transfer your original socketed Z80 to the daughterboard or select a compatible Z80 option when ordering. If the CPU is soldered directly to the PCB, a qualified arcade technician must install a compatible 40-pin socket before the kit can be used.

Choose Your Crazy Kong Part II Kit Version

Standard Kit

Permanently saves the Top 5 high scores with player initials, along with supported game settings and configuration data, using battery-free serial EEPROM storage. No internet connection required.

Wi-Fi Enabled Kit

Includes Standard features, including local high score and initials saving, and can submit qualifying completed scores to the HighScoreSaves global leaderboard.

What's Included

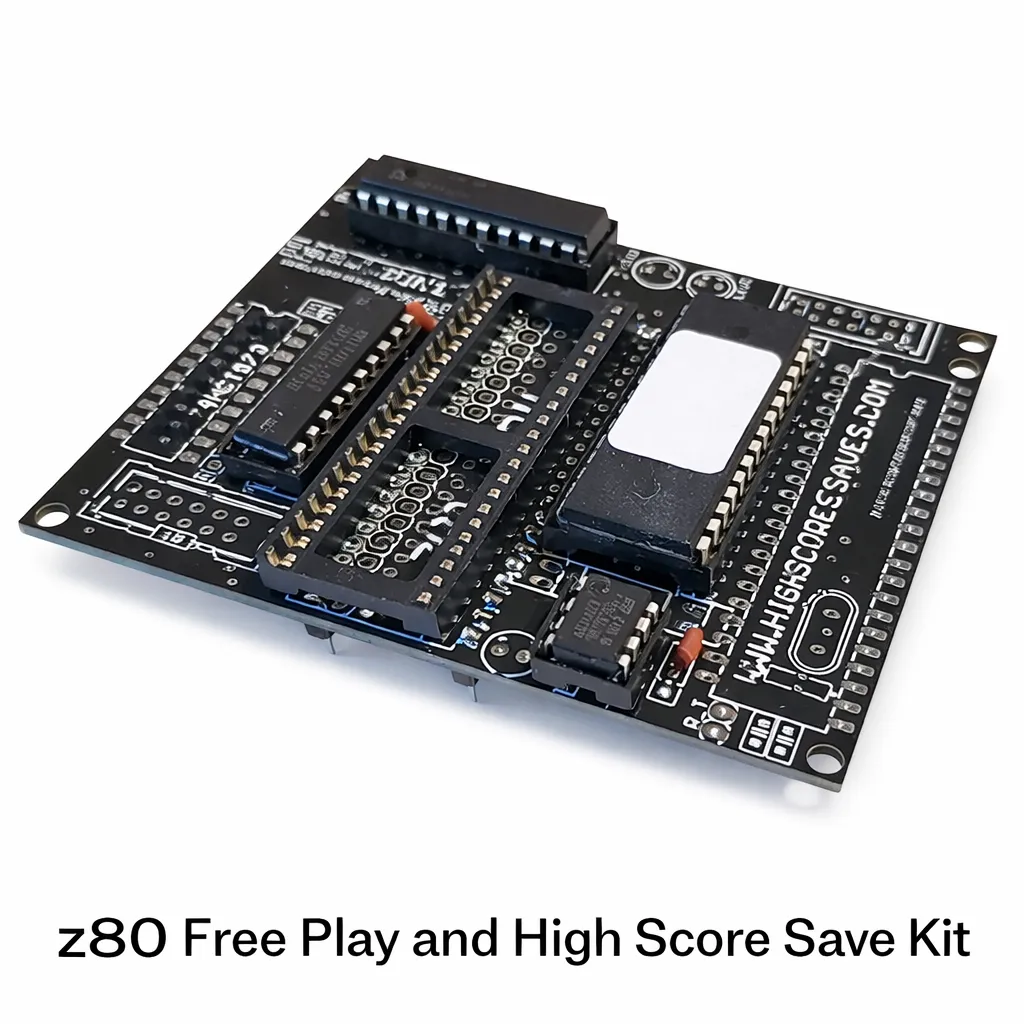

Base kit: 1 × HighScoreSaves Z80 daughter PCB.

Z80 processor required: Transfer your original compatible Z80 to the daughterboard or select a compatible processor option when ordering.

40-pin socket: A compatible 40-pin CPU socket is required on the original Falcon PCB. A compatible socket is available as an optional add-on if needed; professional installation may be necessary for boards without a socket.

Installation & Helpful Guides

Verify that you have an original compatible Falcon Crazy Kong Part II PCB, not an ORCA board, and confirm its Z80 processor and socket before installation.

Compare Crazy Kong Kits & PCB Compatibility
Compare Crazy Kong Part II and Crazy Kong Remix options, including original Falcon PCB requirements
View Crazy Kong Part II Installation Guide PDF
Falcon PCB identification, Z80 daughterboard installation, and CPU orientation
Watch Crazy Kong Part II Settings Menu Video
See the kit settings menu, game options, and available controls in action

Additional Details & Resources

Select any section below to see more details.

Advanced Kit Features
Free Play & Coin Operation Play Crazy Kong Part II without coins while retaining traditional Coin-Up operation when desired.

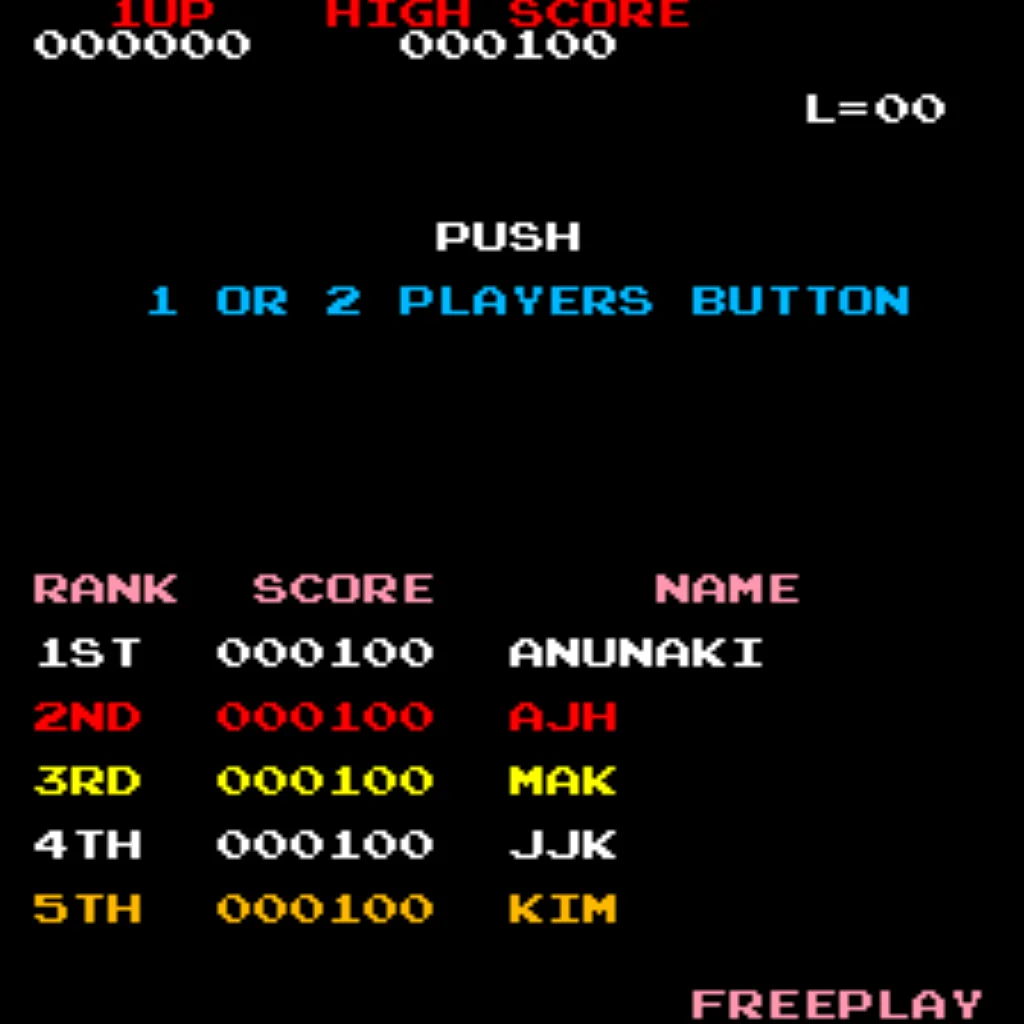

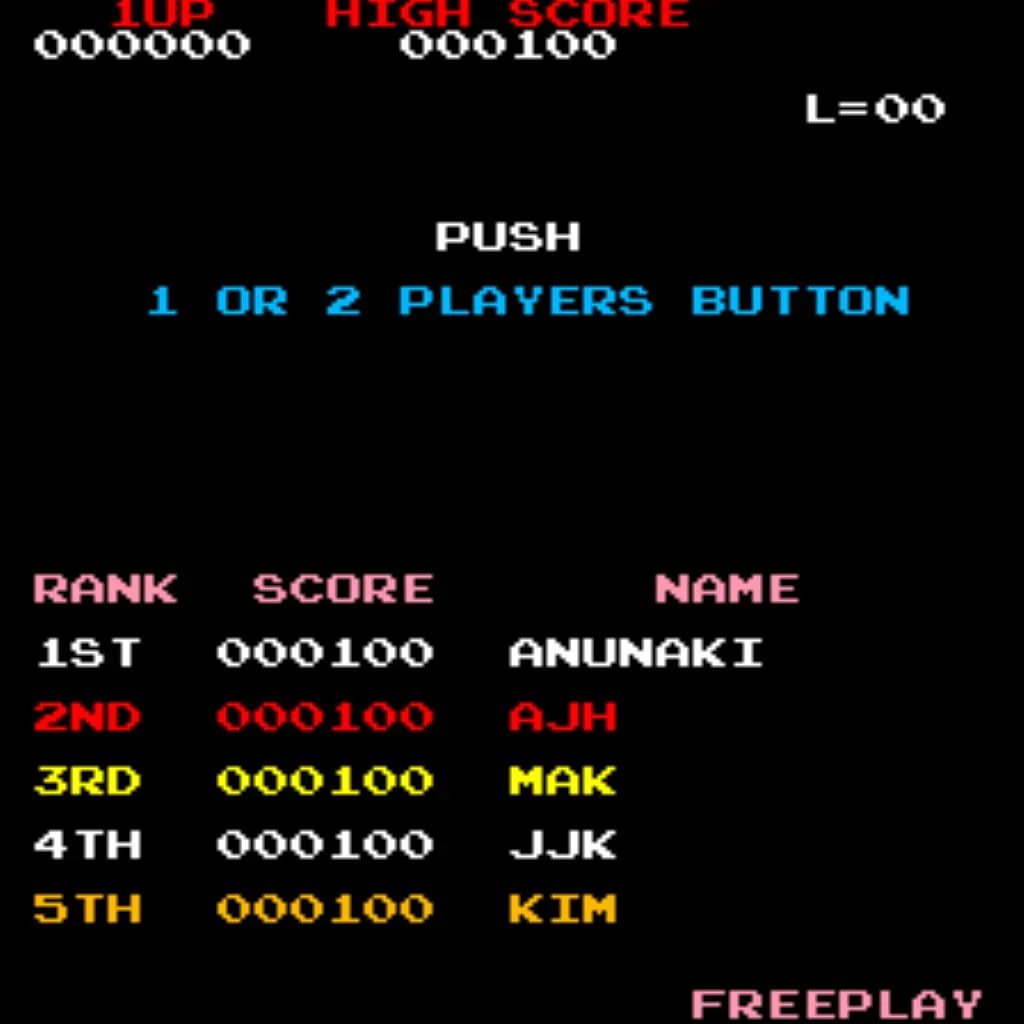

High Score Storage Permanently saves the Top 5 high scores with player initials using battery-free serial EEPROM storage.
Selectable Attract Sounds Supports attract sounds that can be selected through the kit settings menu.
On-Screen Settings Configure supported game and operator options directly through the kit menu.
Score Backup & Restore Back up supported high score data and restore it later when needed.
Reset Restart Crazy Kong Part II without cycling cabinet power when the supported Reset option is used.

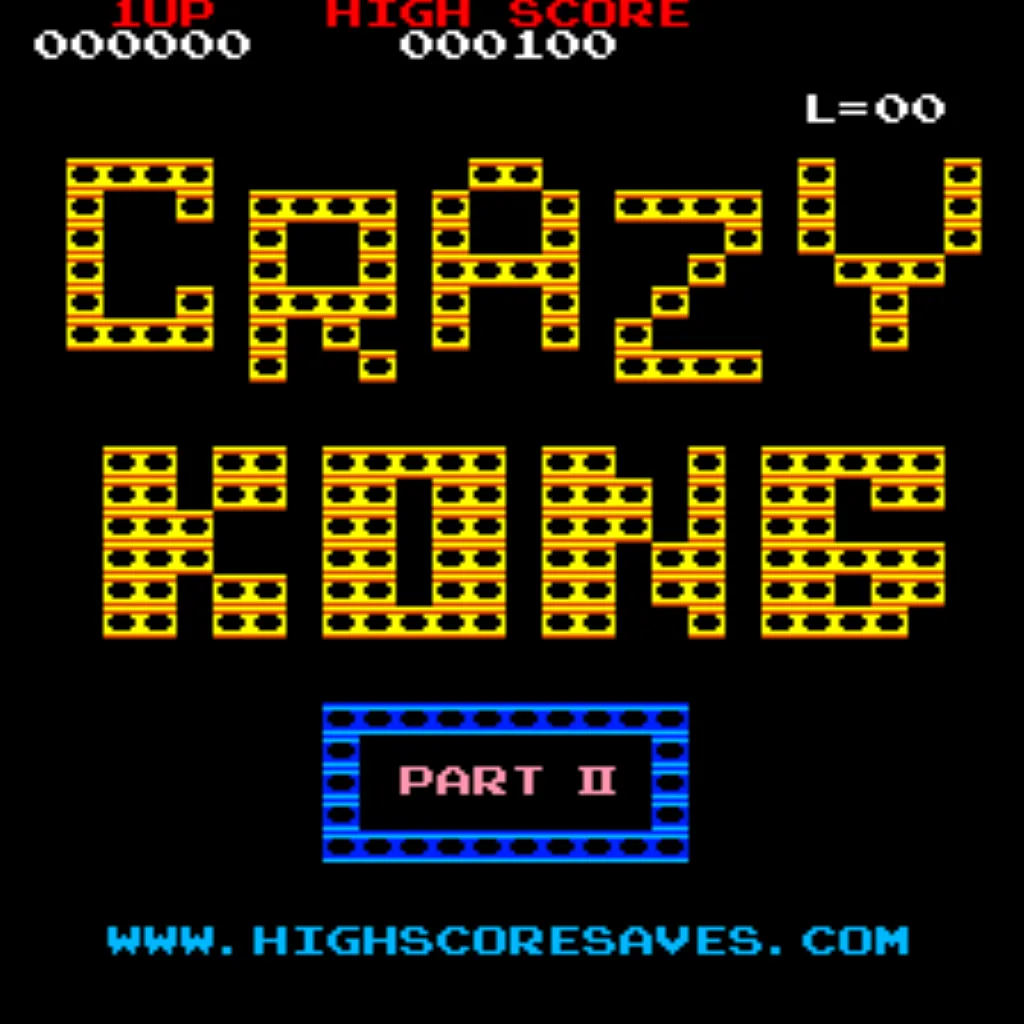

Fast Boot Reduces initialization time so Crazy Kong Part II starts quickly after cabinet power is applied.
Attract-Mode Protection Dynamic supported attract behavior helps reduce prolonged static-screen display during idle operation. This feature is separate from selectable attract sounds.
ROM Saver Supports optional removal of designated original program ROMs when using the kit's ROM Saver functionality, as described in the installation guide.
Installation & Settings Access

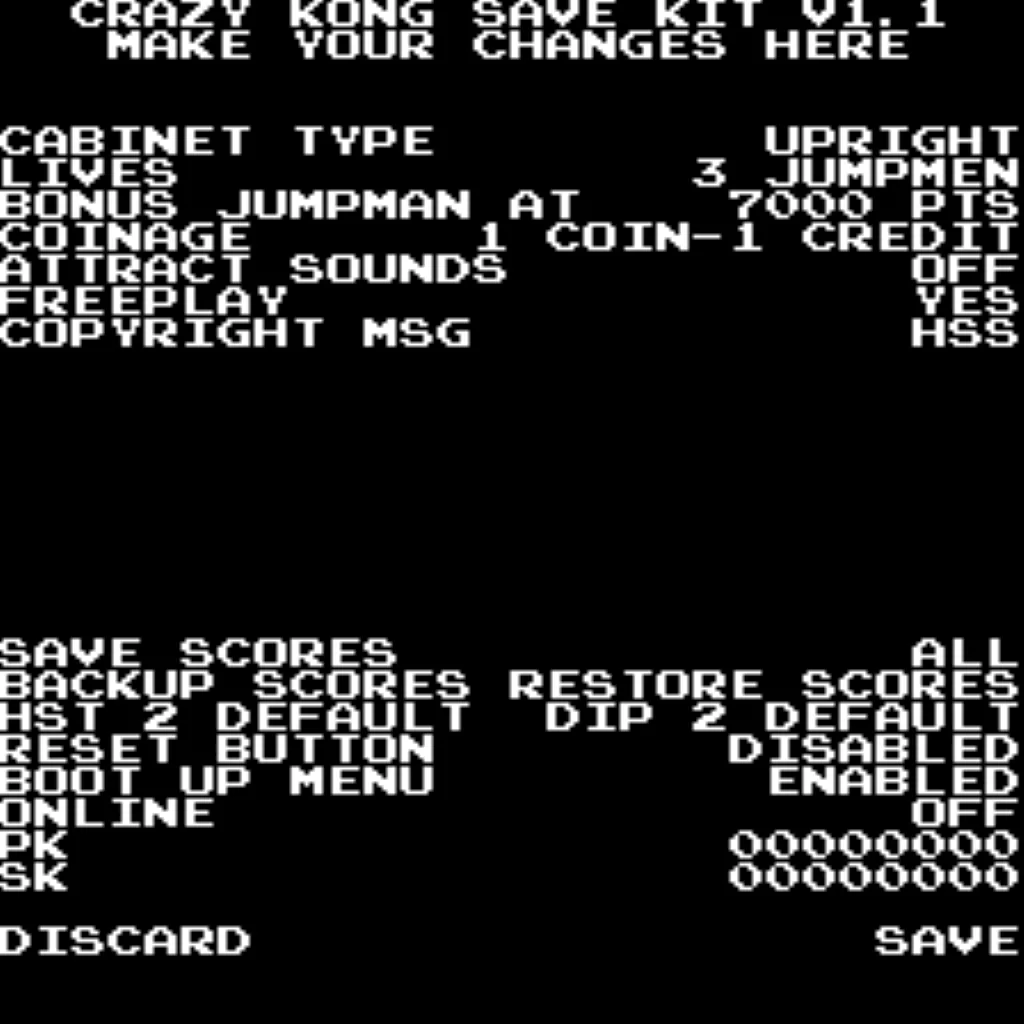

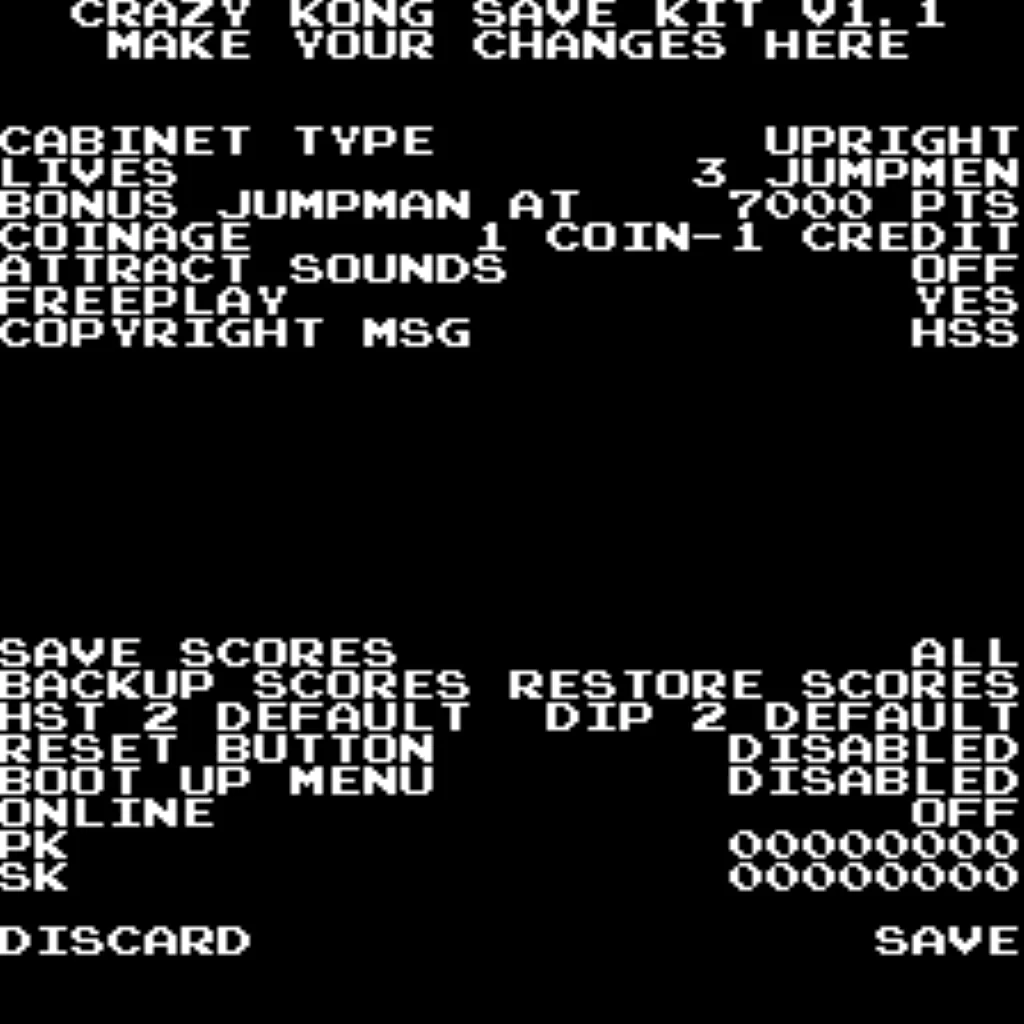

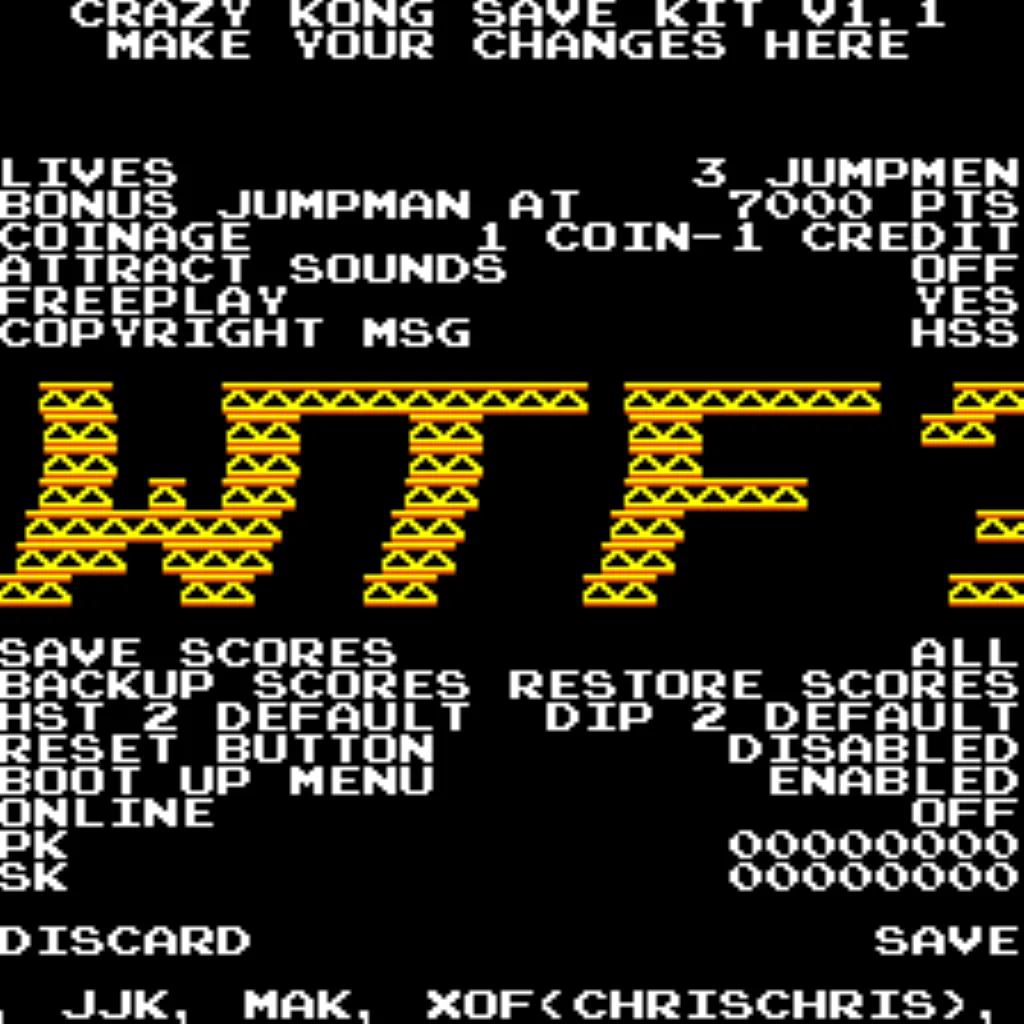

Enter the settings menu: Hold Player 1 Start for approximately 4 seconds while turning on the cabinet. The settings menu video demonstrates the supported controls and options.

PCB compatibility: This Crazy Kong Part II kit supports documented compatible Falcon PCBs only. It is not compatible with ORCA Crazy Kong PCBs. Verify your original PCB before installing the kit.

CPU installation: Carefully remove the original compatible Z80 processor from its socket on the Falcon Crazy Kong Part II PCB. Transfer the processor to the HighScoreSaves Z80 daughterboard unless a compatible replacement processor was selected.

Install the daughterboard: Insert the assembled HighScoreSaves daughterboard into the documented original Z80 CPU socket. Follow the installation guide for correct CPU and daughterboard orientation.

CPU socket requirement: A compatible 40-pin CPU socket is required. If the original Z80 is soldered directly to the Falcon PCB, a qualified arcade technician must install a compatible socket before the kit can be used.

Crazy Kong Part II vs. Crazy Kong Remix: Choose this kit for the original single-game Crazy Kong Part II experience on a compatible Falcon PCB. The Crazy Kong Remix Multigame kit is a separate option for customers who want multiple Crazy Kong variants and on-screen game selection. Review compatibility before choosing either kit.

ROM Saver: Only remove designated original program ROMs according to the installation guide when using ROM Saver functionality. Verify the installation and processor orientation before restoring cabinet power.

Wi-Fi Setup & Global Scores

The Wi-Fi version uses a compatible 2.4 GHz Wi-Fi network. Wi-Fi can be disabled or unavailable without affecting local high score and initials saving, Free Play, Coin-Up operation, selectable attract sounds, on-screen settings, Score Backup and Restore, Reset, Fast Boot, ROM Saver functionality, or normal gameplay.

Learn about HighScoreSaves Wi-Fi kits

View Global Arcade High Scores

Manuals, Schematics & More

Stay in the Game

New arcade kits, restocks, technical tips, and exclusive offers. Delivered to your inbox.

Sign Me Up →

HighScoreSaves Newsletter

1 of 1 reviews

Average rating of 5 out of 5 stars


100%

0%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


1 review

September 23, 2025 12:08 AM

Review with rating of 5 out of 5 stars

This worked with my Orca board.

So I have a crazy calm which is not necessarily the falcon but this worked for it as well. If you don't have an OG donkey Kong board but you still want some of the same fun features, this is what you need to get. Even if you have an original donkey Kong board still nice to give the crazy bootlegs some love. Like all of the other kids this is super high quality I absolutely love it and it helps breathe new life into my game
