Darksoft CPS1 | CPS1.5 Multigame Kit
Product information "Darksoft CPS1 | CPS1.5 Multigame Kit"
The Darksoft CPS1/CPS1.5 Multigame Kit allows supported CPS1 and CPS1.5 QSound games to run on compatible original Capcom CPS1 arcade hardware. The multigame PCB replaces the original CPS1 B-board while retaining a compatible original A-board and C-board.
CPS1 / CPS1.5 Compatibility & Requirements
Important: Confirm the exact A-board and C-board before ordering. CPS1.5 A-boards that do not have the required sound section populated are not compatible in that condition.
What This Kit Adds
What's Included
- Darksoft CPS1/CPS1.5 multigame PCB
- Sound-board assembly
- Filter board
- JAMMA finger board
- LCD game selector
- 30 cm LCD ribbon cable
- Two female DuPont jumper wires
- Two PCB spacers
- Replacement PAL chip

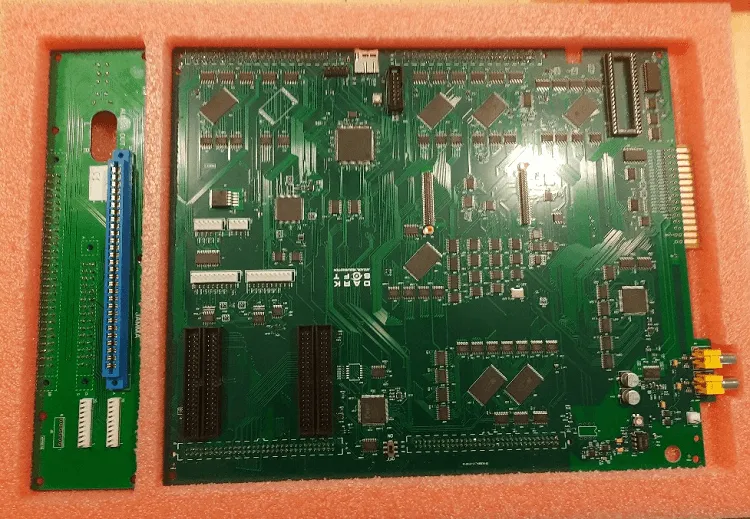

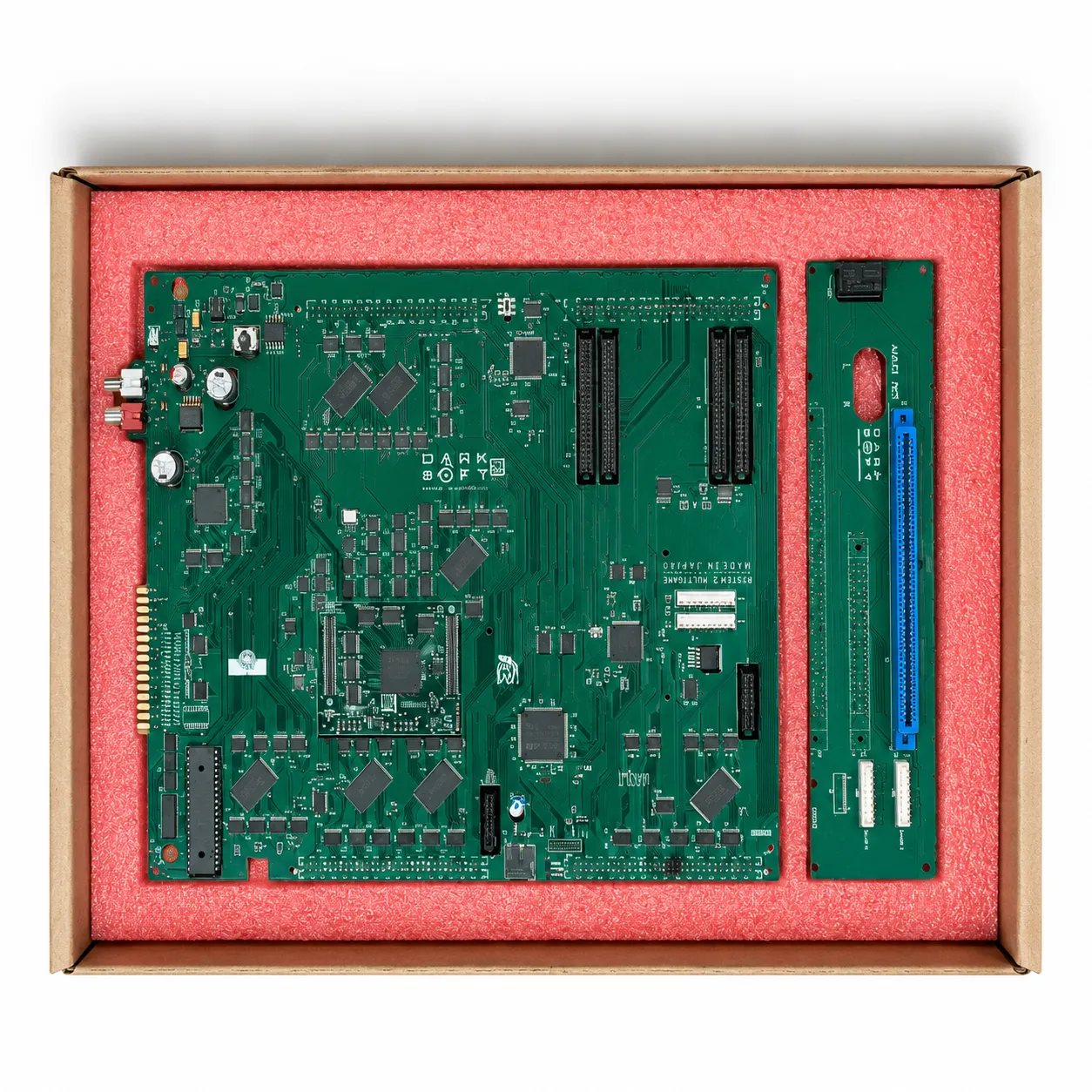

The shipping box contains two layers of components. Remove the main multigame PCB from the upper antistatic-foam layer to inspect the components stored underneath.
CPS1 A-Board Compatibility
Compatible Original CPS1 C-Boards
C-Board Switch Setting
Set the multigame PCB's C-board switch according to the installed original C-board:
- ON: 90630C-4
- ON: 92641C-1
- ON: C-board without original CNI01 and CNI02 control connectors
- OFF: 90631C-5 with two PAL chips
Installation Overview
The CPS1.5 QSound or FPGA sound board can physically be installed backward. Installing it in the wrong orientation can damage both the sound board and the main multigame PCB.
Compare the sound-board orientation with the photographs and silkscreen markings in the installation guide before applying power.
microSD Card & Game Files
- A compatible microSD card is required and is not included.
- Game software is not supplied with the multigame kit.
- Prepare supported game folders using the structure required by the installation guide.
- CPS1 and CPS1.5 QSound configurations use different audio-file layouts.
- Standard unprepared MAME sets may not use the required file structure.
- Use only game data you are legally entitled to possess and operate.
- Do not remove the microSD card or interrupt power while game data, firmware, or CPLD updates are being written.
LCD Game Selection & Flash Loading
CPS1 & CPS1.5 Audio Adjustment
- Standard CPS1 volume is adjusted with the original volume control on the A-board.
- The multigame PCB provides an opening near the Z80 for access to the original control.
- CPS1.5 QSound volume over JAMMA is adjusted with the dedicated potentiometer on the multigame PCB.
-
If using the FPGA sound-board version, follow the
qsound.binprogramming instructions before initial operation.
- Confirm the exact A-board and C-board models before ordering.
- Do not use long A-board model 88617A-7B.
- Do not use an A-board without its CPS1 sound section populated.
- Remove the battery from a compatible C-board when one remains installed.
- Do not force any PCB or connector into place.
- Install the sound board only in the documented orientation.
- RESET and QSound wiring requires precise soldering.
- Use an experienced arcade technician if you are not comfortable with this work.
- Disconnect power and discharge static before handling the hardware.
Shipping Information
Please note: This product ships with insurance and signature confirmation. The current processing time is displayed near the Add to Cart button.
United States: Flat-rate shipping is $35.99 through USPS or UPS based on package size, weight, and destination.
Two Darksoft Multigame Kits can ship together for the same flat-rate U.S. shipping price.
International: Darksoft orders ship by expedited UPS international service.
Customs duties, taxes, brokerage charges, and import fees are the customer's responsibility.
A telephone number is required for international shipments, and HighScoreSaves cannot
under-declare shipment values. Suggested tariff code: 95049080.
Darksoft CPS1 Technical Support
Technical information and community assistance are available through the Arcade Projects Capcom CPS1 forum.
ArcadeProjects.com — Capcom CPS1 SupportReview the installation guide and contact HighScoreSaves or the support community before concluding that the multigame kit or another component is defective.
Darksoft CPS1 / CPS1.5 FAQ
Which CPS1 A-boards are compatible?
Most original short CPS1 A-boards with the required sound section populated are supported. Long A-board model 88617A-7B and boards without the required sound section are not compatible.
Which original C-boards are supported?
Supported original C-board models are 90630C-4, 90631C-5, and 92641C-1. A remaining battery must be removed before use.
Does the kit support CPS1.5 QSound games?
Yes. Compatible CPS1.5 QSound titles can be used with the correct sound board, required connections, and supported game-file structure.
Does installation require soldering?
Yes. The supplied RESET and QSound wires must be soldered to the documented points on the original CPS1 A-board.
Is a microSD card included?
No. A compatible microSD card must be supplied separately and prepared with the required folders and files.
Does the selected game remain after power is removed?
Yes. The selected game remains in flash memory until a different title is chosen and written.
How is audio volume adjusted?
Standard CPS1 volume is adjusted with the original A-board control. CPS1.5 QSound output over JAMMA uses the dedicated potentiometer on the multigame PCB.
Where can I review CPS1 compatibility information?
Visit the Darksoft CPS1 Multigame Kits compatibility category for hardware identification, compatibility, installation, and accessory information.
