Donkey Kong 3 Free Play and High Score Save Kit
Product information "Donkey Kong 3 Free Play and High Score Save Kit"
Donkey Kong 3 Free Play and High Score Save Kit for Nintendo Arcade PCB
Upgrade your original Donkey Kong 3 arcade PCB with reliable free play, high score saving, attract sound enhancements, and optional Wi-Fi leaderboard support while preserving authentic gameplay and original arcade hardware.
Designed specifically for original Nintendo hardware, this plug and play upgrade improves long-term reliability without changing gameplay timing, controls, or the classic arcade experience collectors expect.
Play without coins while retaining optional coin operation.
Stores the Top 5 scores using reliable EEPROM storage.
Configure settings directly from the on-screen menu system.
Upload scores online to global arcade leaderboards.
Upgrade Your Donkey Kong 3 Arcade Experience
Restore and enhance your original Donkey Kong 3 arcade machine with a professionally designed Free Play and High Score Save Kit built specifically for authentic Nintendo arcade hardware.
Original boards often lose high scores, rely on aging components, or suffer from unstable resets. This upgrade modernizes your PCB while preserving the original gameplay, controls, timing, and arcade feel that made Donkey Kong 3 one of Nintendo’s most unique arcade sequels.
Unlike multigame systems or reproduction boards, this kit keeps your original arcade PCB intact while improving long-term reliability for collectors, operators, and restoration projects.
Important Installation Notes
- Socketed Z80 required: Install a 40-pin socket if your CPU is not socketed
- Read the Donkey Kong 3 Installation Guide before setup
Included Features
- Easy Installation: No soldering, board modifications, or special wiring required
- Permanent Score Saving: Reliable serial EEPROM storage instead of batteries or NVRAM

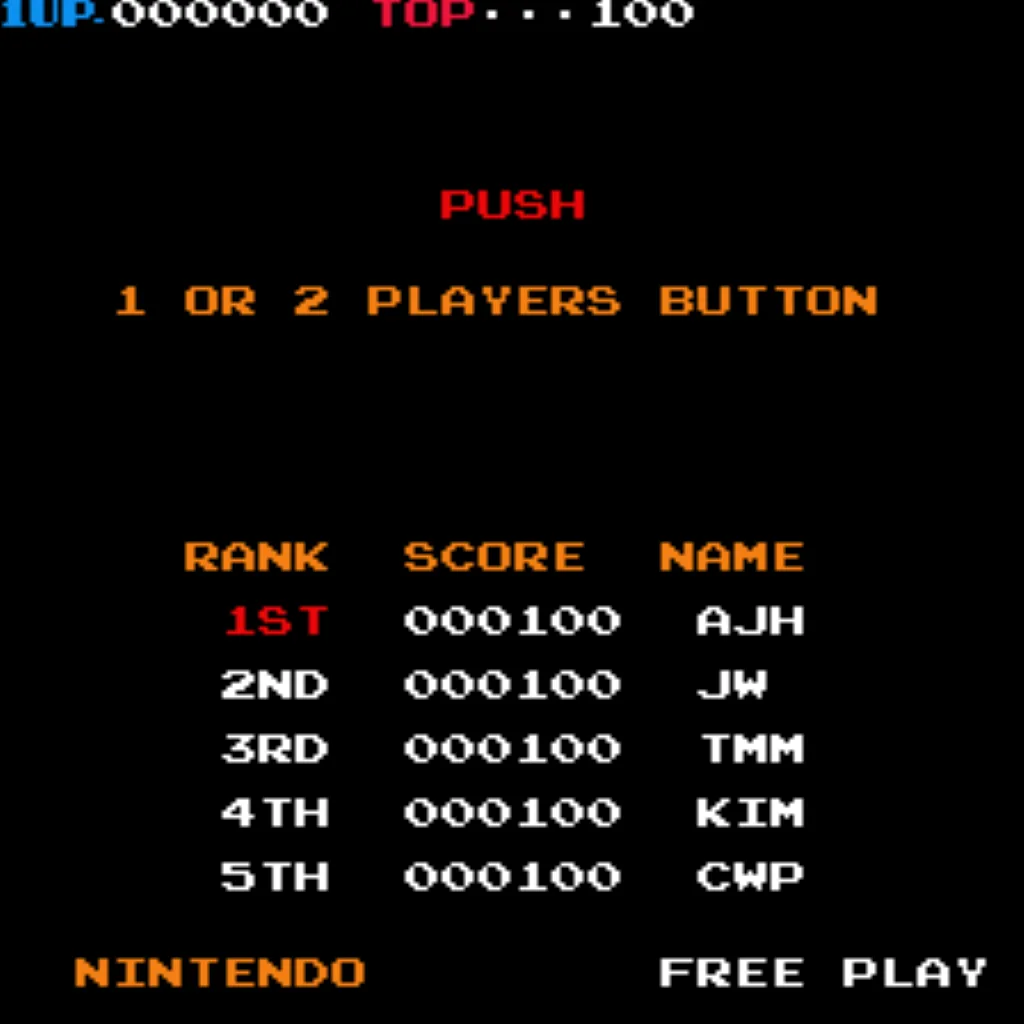

- High Score Save: Stores the Top 5 scores
- No Service Switch Needed: Uses an on-screen menu system (Braze requires service/test switch)

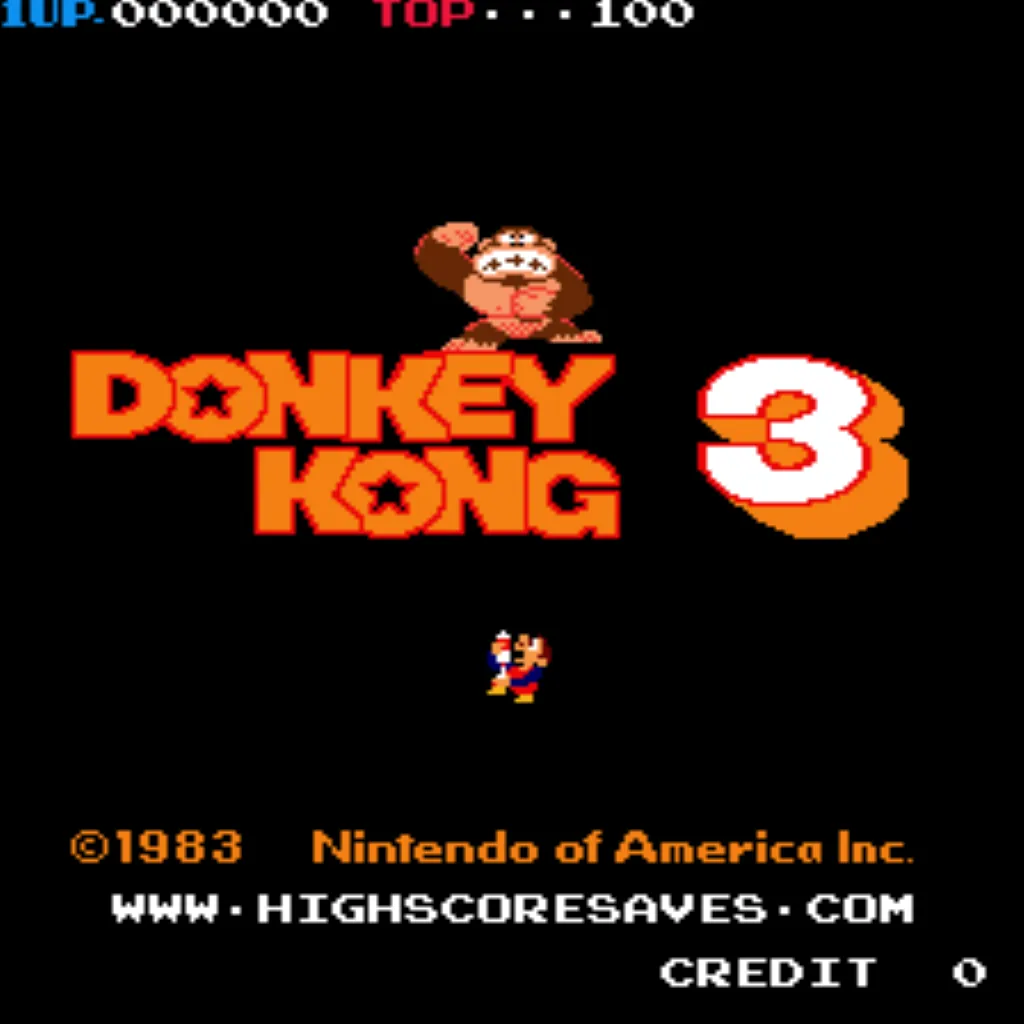

- Logo Options: Switch between manufacturer or HighScoreSaves logos
- Freeplay Mode: No more coins or opening the coin door
- Coin-Up Support: Continue using quarters or tokens
- Attract Sounds: Adjustable at 25%, 50%, or 100%
- Attract Mode Protection: Helps minimize screen burn

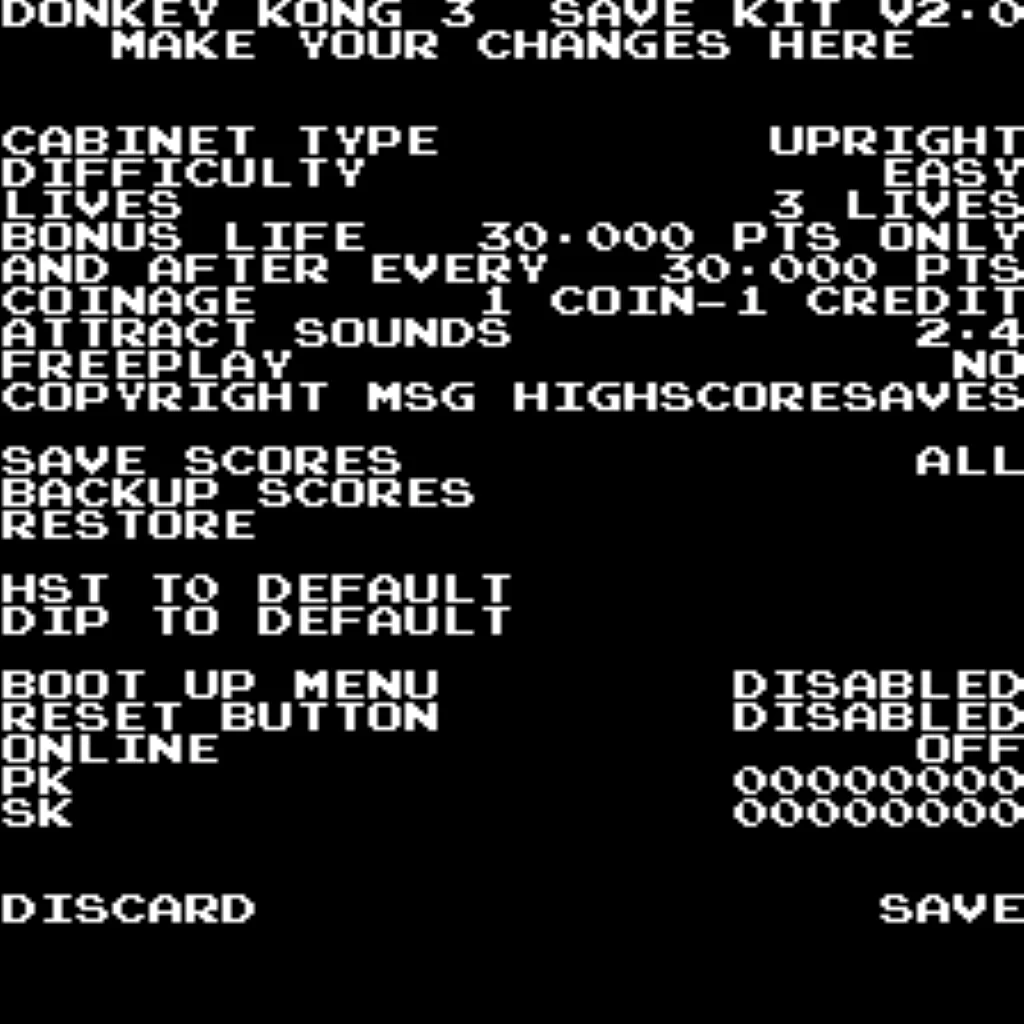

- On-Screen DIP Settings: Fully menu-driven configuration system
- ROM Saver: Optionally remove original program ROMs
- Cabinet Compatibility: Works in Upright and Cocktail cabinets
- Backup and Restore: Save and restore your high scores anytime
- Separate Score Tables: Supports 2, 3, 4, or 5 lives settings
Installation Information
- Installation Difficulty: Easy
- Soldering Required: No, if CPU is socketed
- Processor Requirement: Requires a Z80 processor
- Socketed CPU Required: Install a 40-pin socket if needed
- Cabinet Compatibility: Upright and Cocktail supported
- Installation Guide: Download PDF Installation Guide
Optional Wi-Fi Features and Online Leaderboards
Upgrade to a Wi-Fi Enabled Kit to upload scores online and compete against players around the world, locally within your arcade, or across your own connected cabinet network.
Standard kits save scores locally to the PCB, while Wi-Fi kits add automatic online score syncing through the HighScoreSaves global leaderboard platform.
Donkey Kong 3 Free Play and High Score Save Kit FAQ
Which game does this kit support?
This kit is specifically designed for Donkey Kong 3 arcade hardware.
How many scores are saved?
The kit stores the Top 5 high scores.
Does it support Freeplay and coin operation?
Yes. Use Freeplay or standard Coin-Up operation.
Can I adjust settings without opening the cabinet?
Yes. All settings are controlled through the on-screen menu system.
Is a service switch required?
No. A service switch is not required for menu access.
Which processor is required?
A socketed Z80 processor is required.
Where can I download the Installation Guide?
