Product information "Donkey Kong Rearranged Multigame Free Play and High Score Save Kit"
Upgrade Your Original Nintendo Donkey Kong or Donkey Kong Jr. Two-Board PCB
The HighScoreSaves Donkey Kong Rearranged 3DK and 3DKJr Multigame Free Play and High Score Save Kit transforms a compatible original Nintendo Donkey Kong or Donkey Kong Jr. two-board PCB into a multigame system featuring Donkey Kong, Donkey Kong Jr., Donkey Kong 3, D2K: Jumpman Returns, Pauline variations, and Donkey Kong Rearranged. Enjoy Free Play, permanent Top 5 high score saving with player initials, selectable attract sounds, practice content, unlockable Rearranged editions, and optional Wi-Fi leaderboard support while continuing to use original Nintendo arcade hardware.
|
Free Play Play with or without coins |
High Score Saving Top 5 scores saved with initials! |
|
Attract Sounds Selectable in settings |
Optional Wi-Fi Upload scores to Personal and Global pages! |
Donkey Kong Rearranged PCB Compatibility at a Glance
| Compatible PCB | Original Nintendo Donkey Kong or Donkey Kong Jr. two-board PCB only |
|---|---|
| CPU location | Documented Z80 and 8035 positions on the original Nintendo PCB stack |
| CPU socket | Socketed Z80 and 8035 locations required; designated EPROM and PROM locations must also be socketed |
| Installation | Multiple daughterboards across CPU and video PCBs; included Z80 and transferred original 8035 |
| Cabinet support | Cabinets using documented compatible Donkey Kong or Donkey Kong Jr. two-board hardware |
Choose Your Donkey Kong Rearranged Kit Version
Standard Kit
Stores supported scores, initials, and settings locally on the installed HighScoreSaves kit. No internet connection required.
Wi-Fi Enabled Kit
Includes Standard features and can submit qualifying scores to the HighScoreSaves global leaderboard.
What's Included
Base kit components:

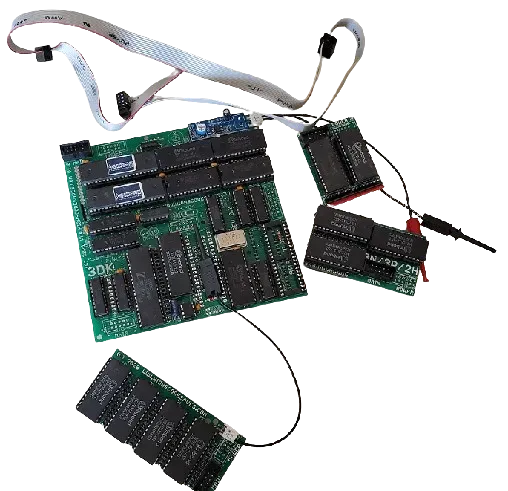

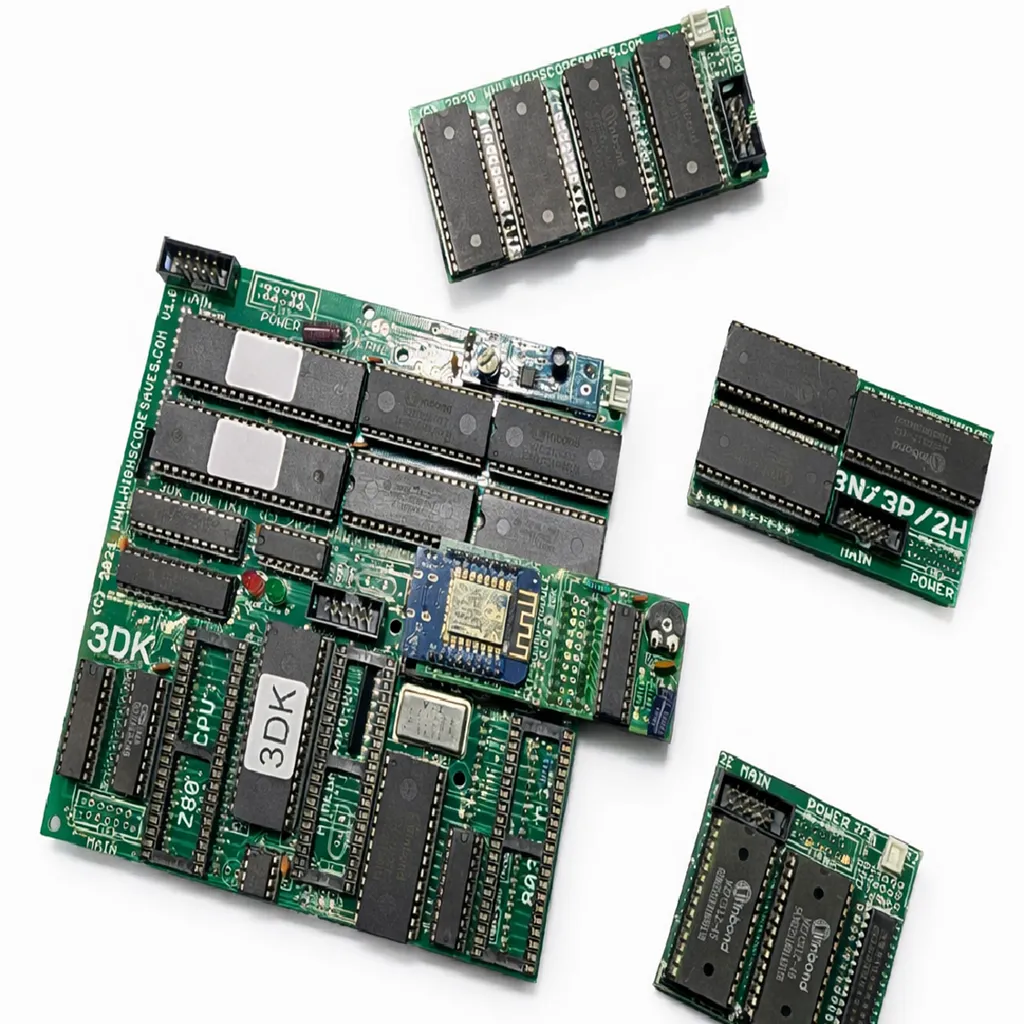

- 1 × HighScoreSaves Main Daughter Board with Z80 processor installed
- 1 × 2E Daughter Board
- 1 × 3N-3P-2N Daughter Board
- 1 × 7C-7D-7E-7F Daughter Board

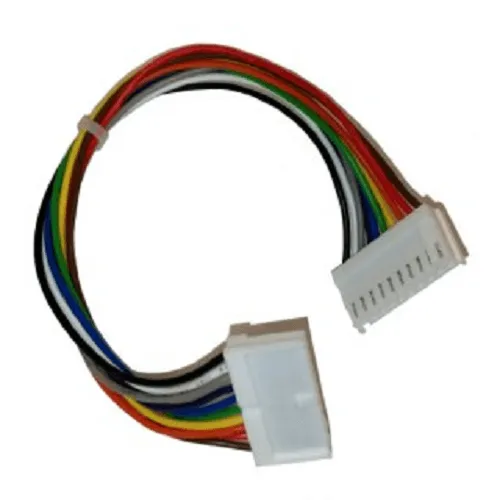

- 1 × Ribbon Cable
- 1 × Single Wire with Grabber
- 1 × Dual Wire with Grabbers

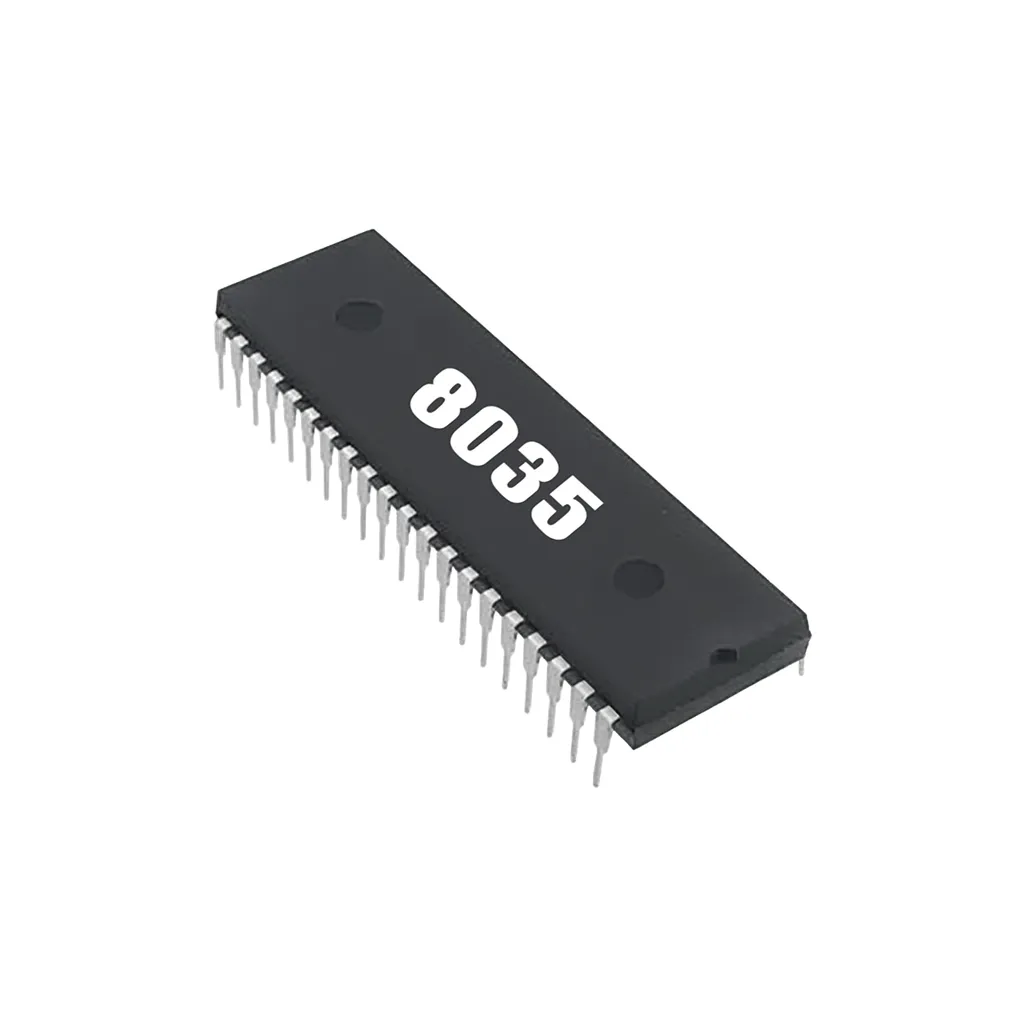

Processor note: The Z80 is already installed on the main daughterboard. Transfer the original compatible 8035 processor from your Nintendo PCB as instructed in the installation guide.
Optional upgrade: The four-game Remix Collection is not included unless selected in the product options above.
Installation & Helpful Guides
This multigame has two different installation configurations. Use the 3DK guide for a Donkey Kong two-board PCB or the 3DKJr guide for a Donkey Kong Jr. two-board PCB. Both guides cover the required daughterboards and processor installation.
|
Donkey Kong Rearranged PCB Compatibility & Kit Details
Check 3DK and 3DKJr hardware requirements before choosing your configuration |
|
View 3DK Installation Guide PDF
Installation on an original Nintendo Donkey Kong two-board PCB |
|
View 3DKJr Installation Guide PDF
Installation on an original Nintendo Donkey Kong Jr. two-board PCB |
|
Watch Donkey Kong Rearranged Settings Menu Video
See the multigame settings menu and available options |
Additional Details & Resources
Select any section below to see more details.
Advanced Kit Features

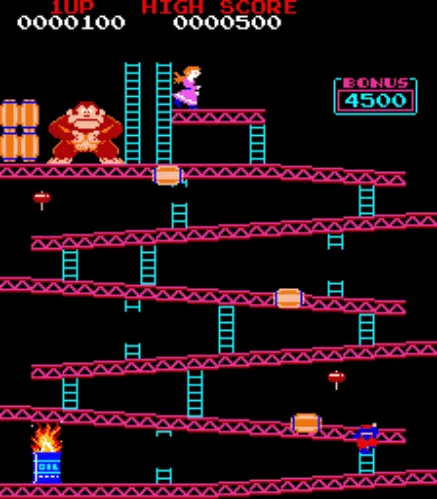

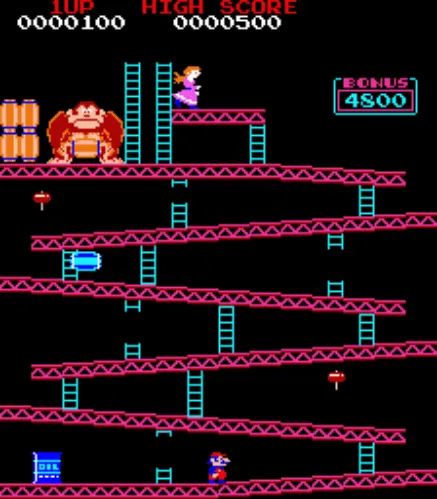

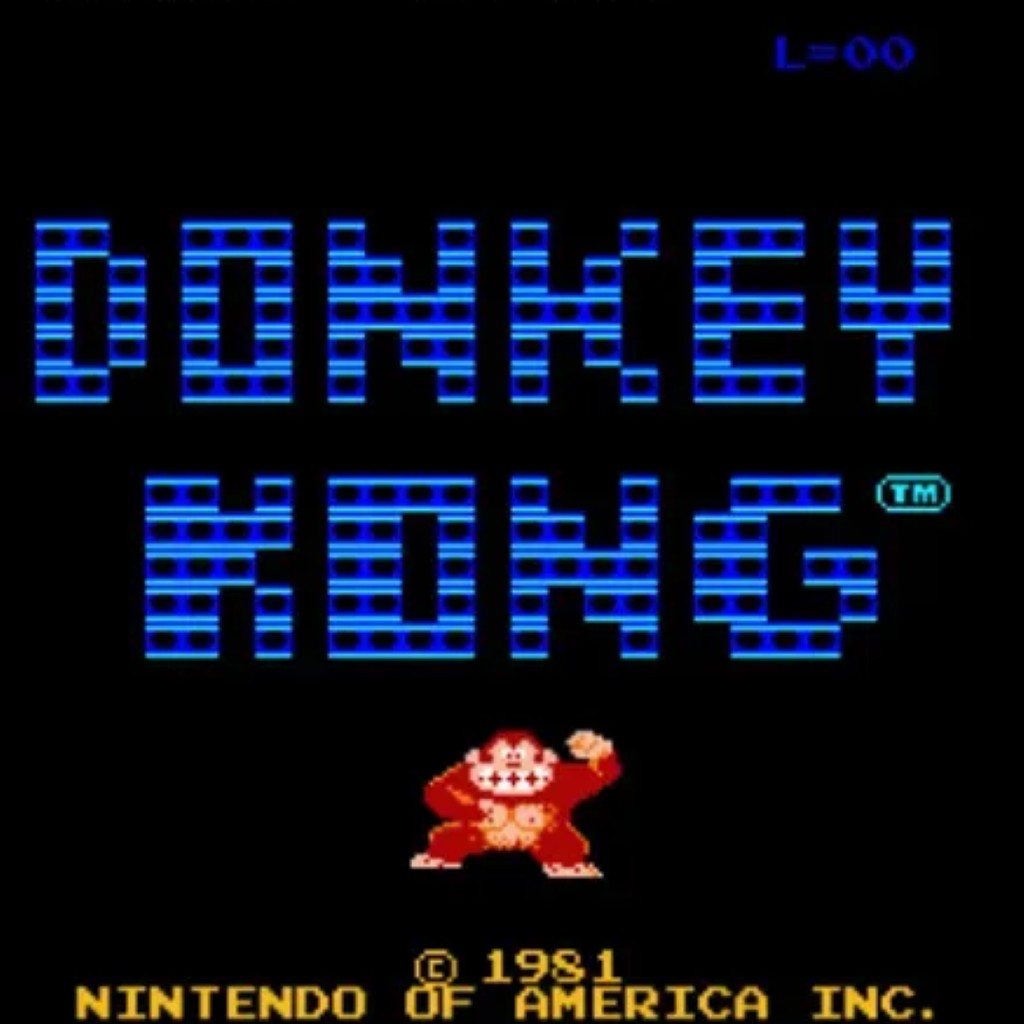

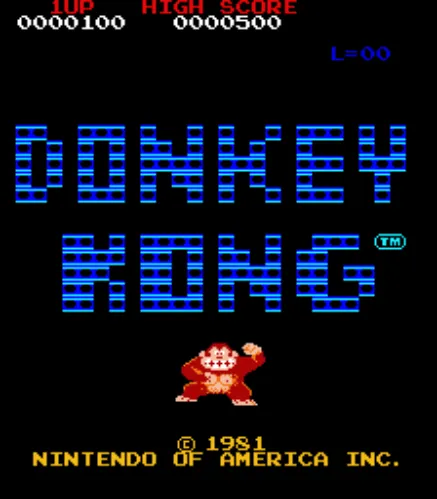

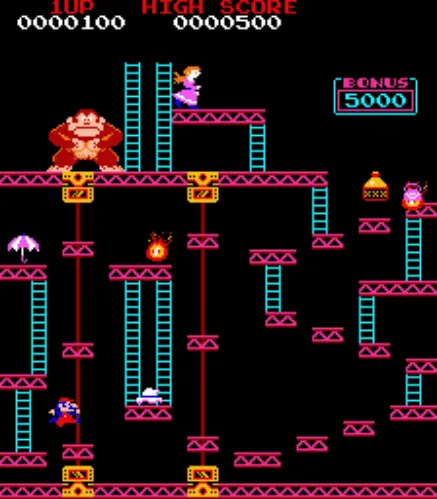

| Donkey Kong | Original Donkey Kong game content on compatible Nintendo arcade hardware. |
|---|---|

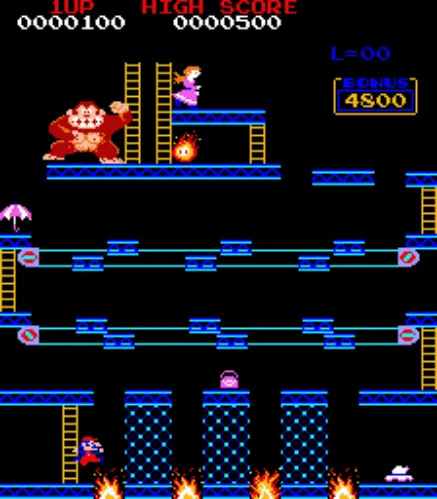

| Pauline Donkey Kong | Pauline-themed Donkey Kong game presentation included in the multigame collection. |

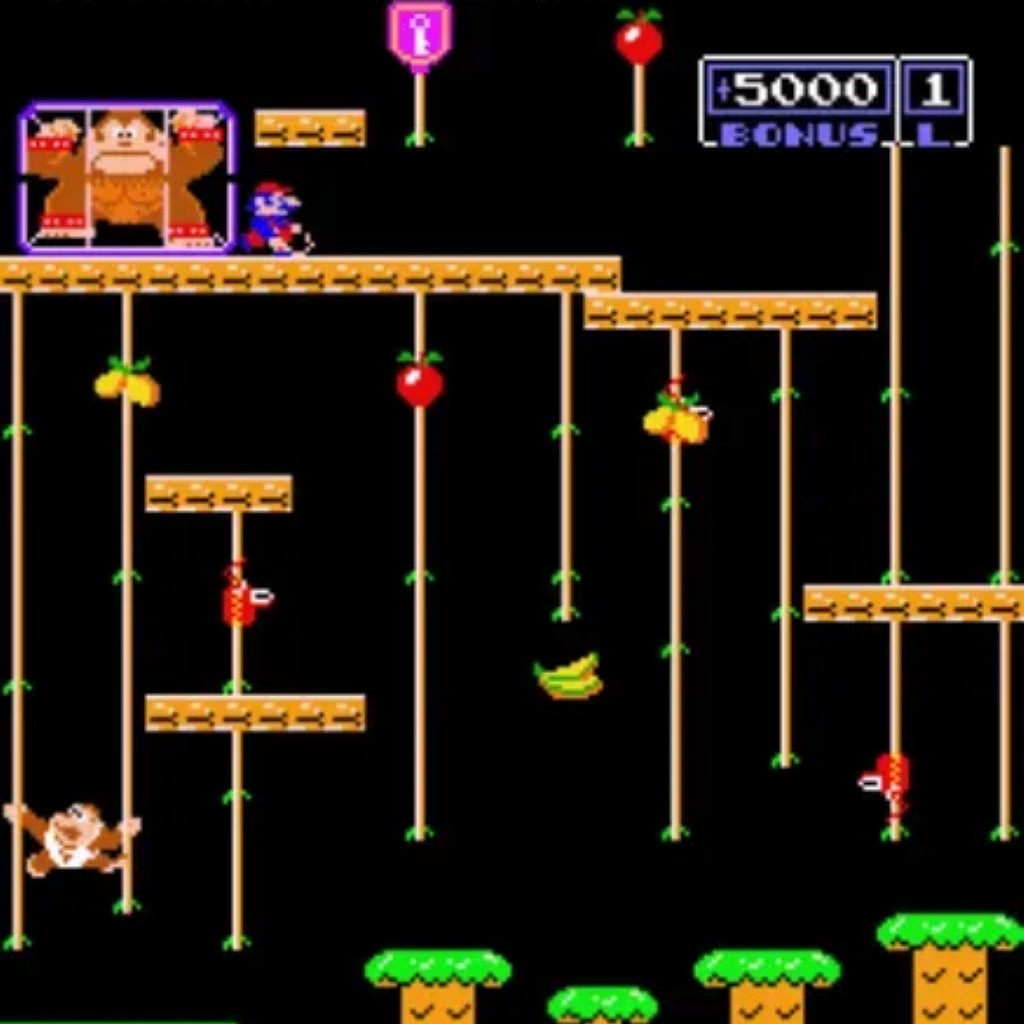

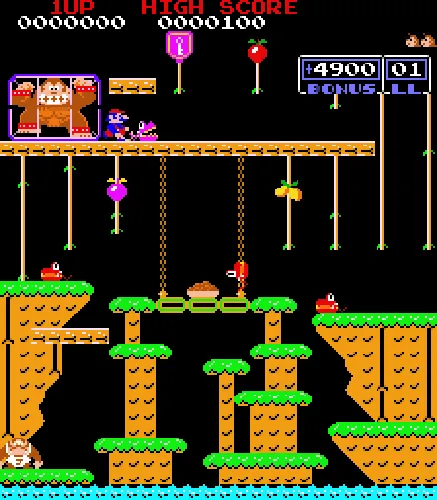

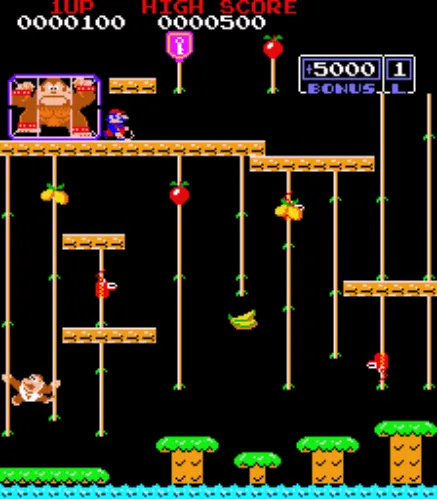

| Donkey Kong Jr. | Original Donkey Kong Jr. game content included in the multigame system. |

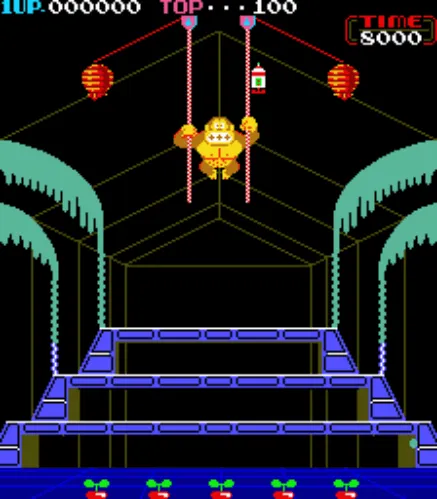

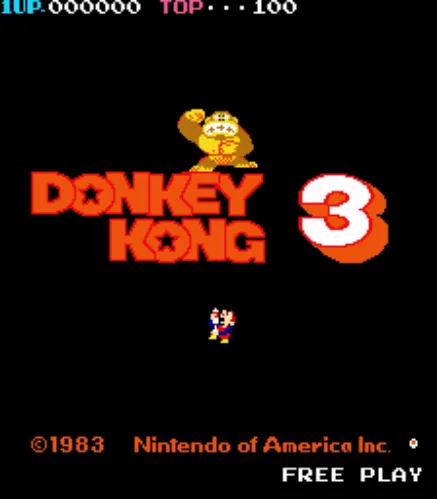

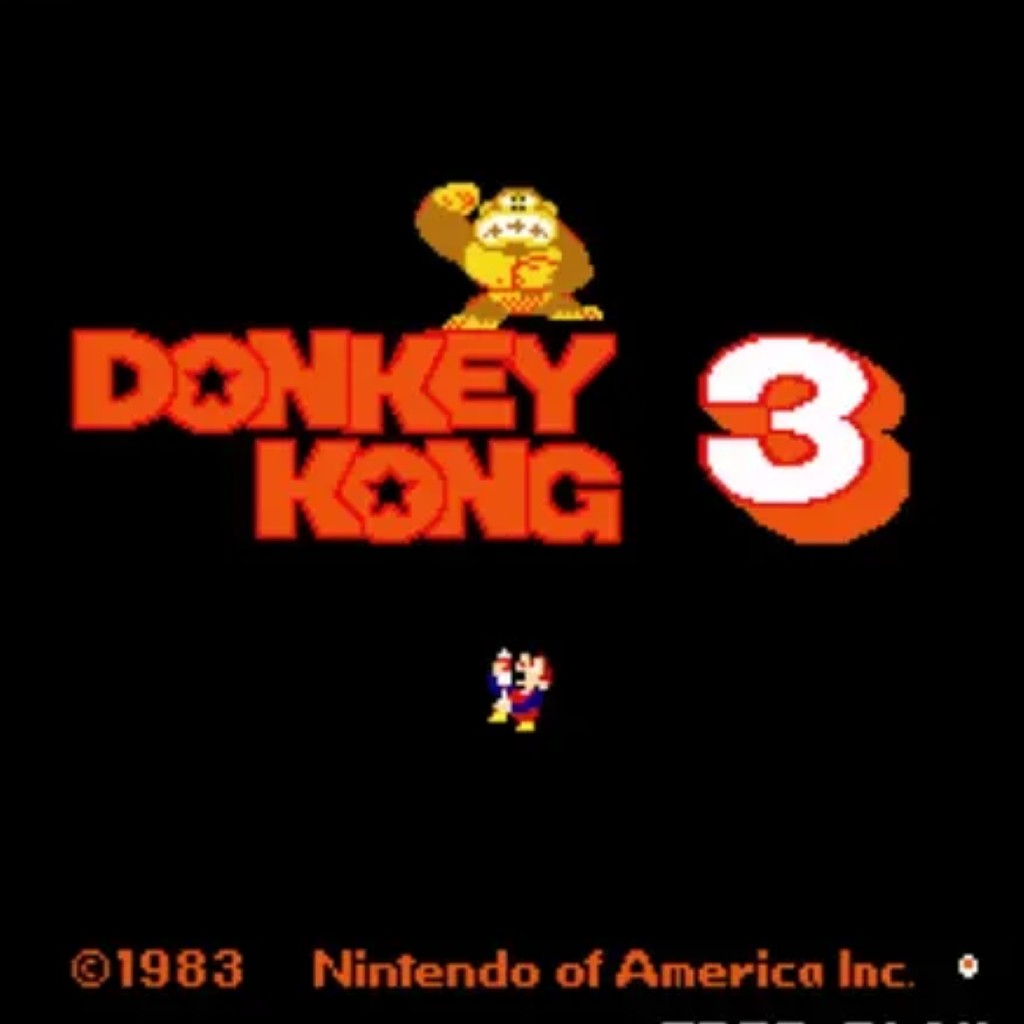

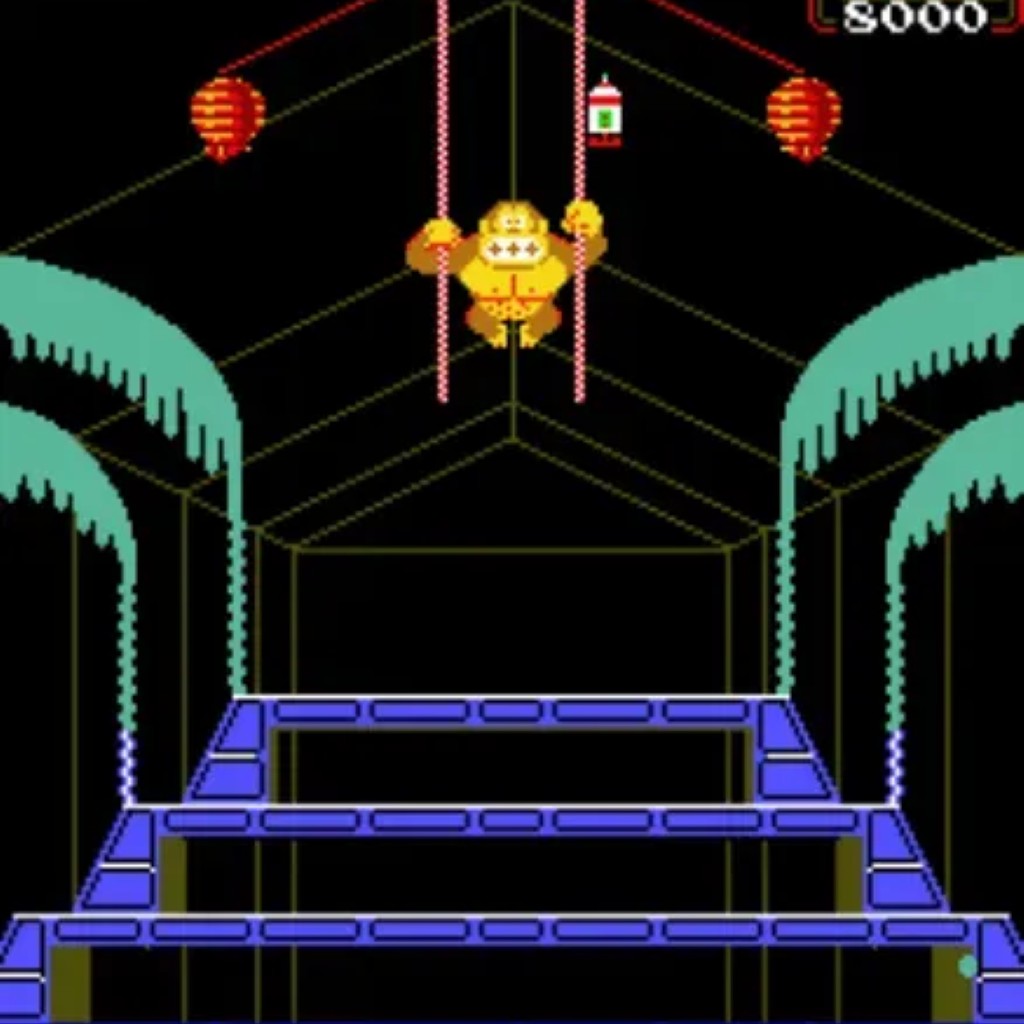

| Donkey Kong 3 | Included as playable multigame content. The kit does not install on a standalone Donkey Kong 3 PCB. |

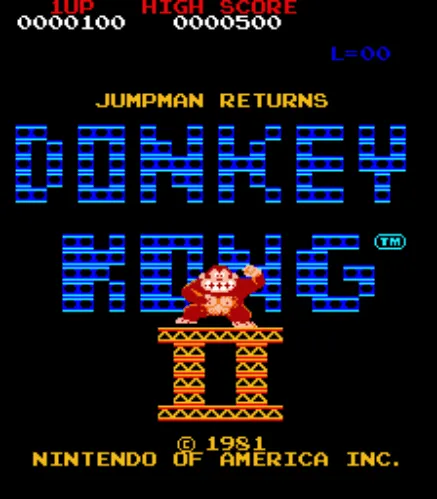

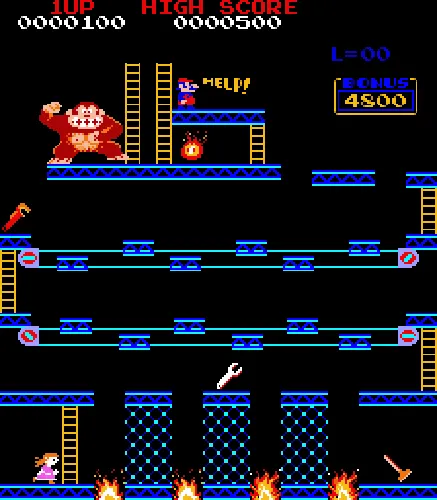

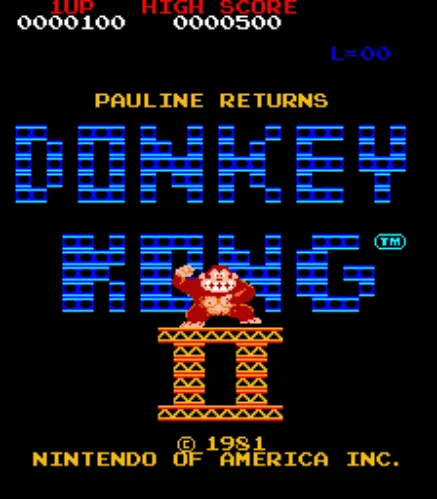

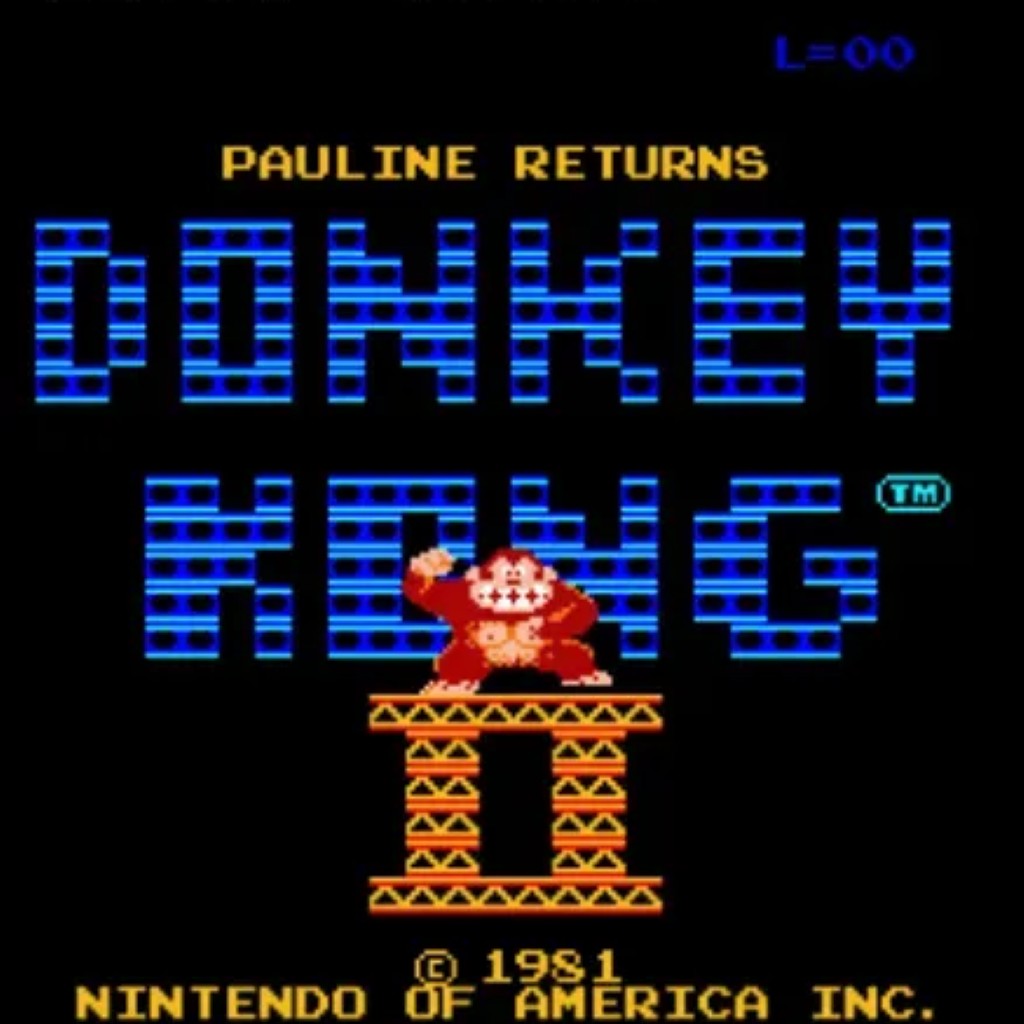

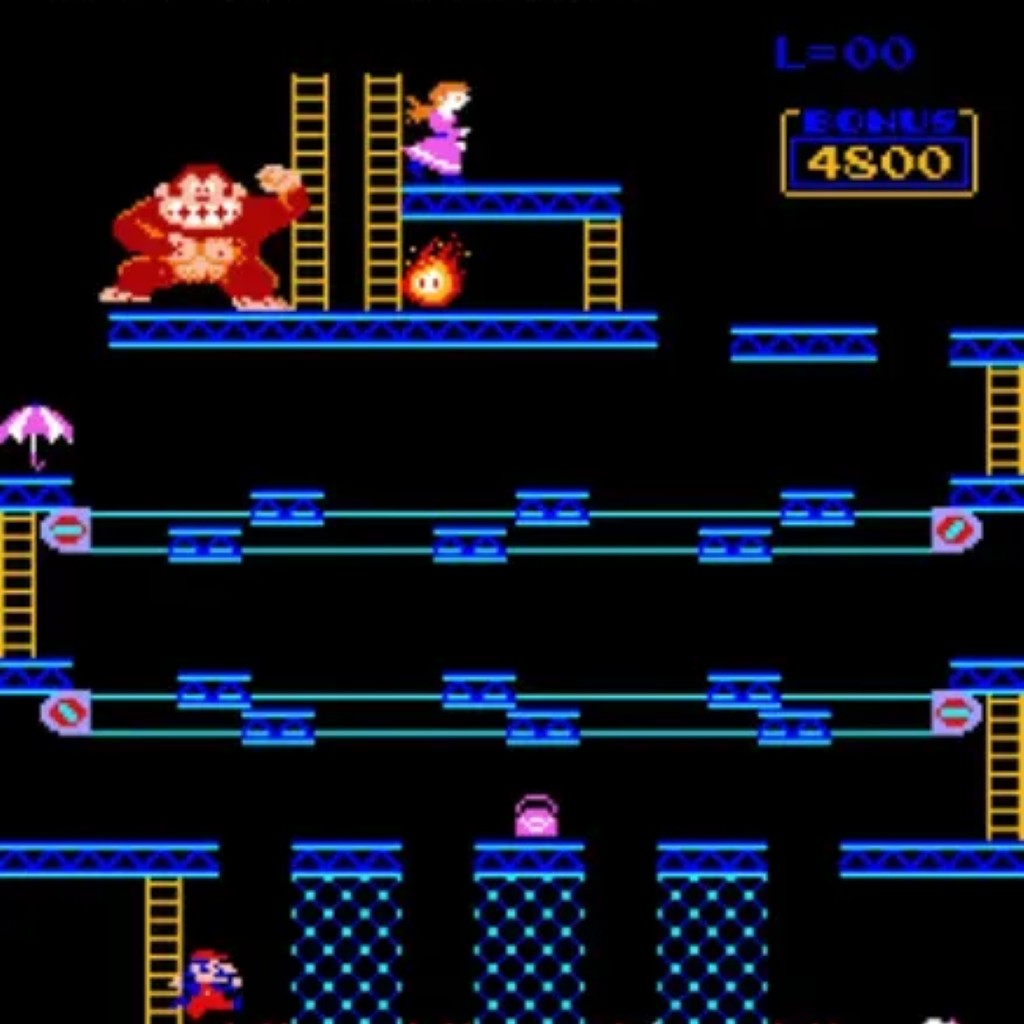

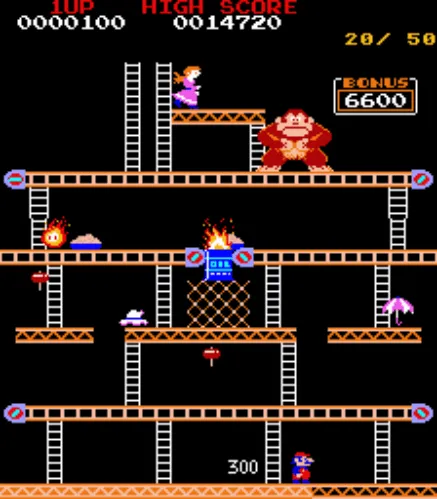

| D2K: Jumpman Returns | Expanded Donkey Kong-based game featuring additional stages, layouts, patterns, and challenges. |
| Pauline D2K | Pauline-themed D2K: Jumpman Returns content included in the multigame collection. |
| Japanese Game Revisions | Supported Japanese Donkey Kong and Donkey Kong Jr. revisions are available through the multigame system. |

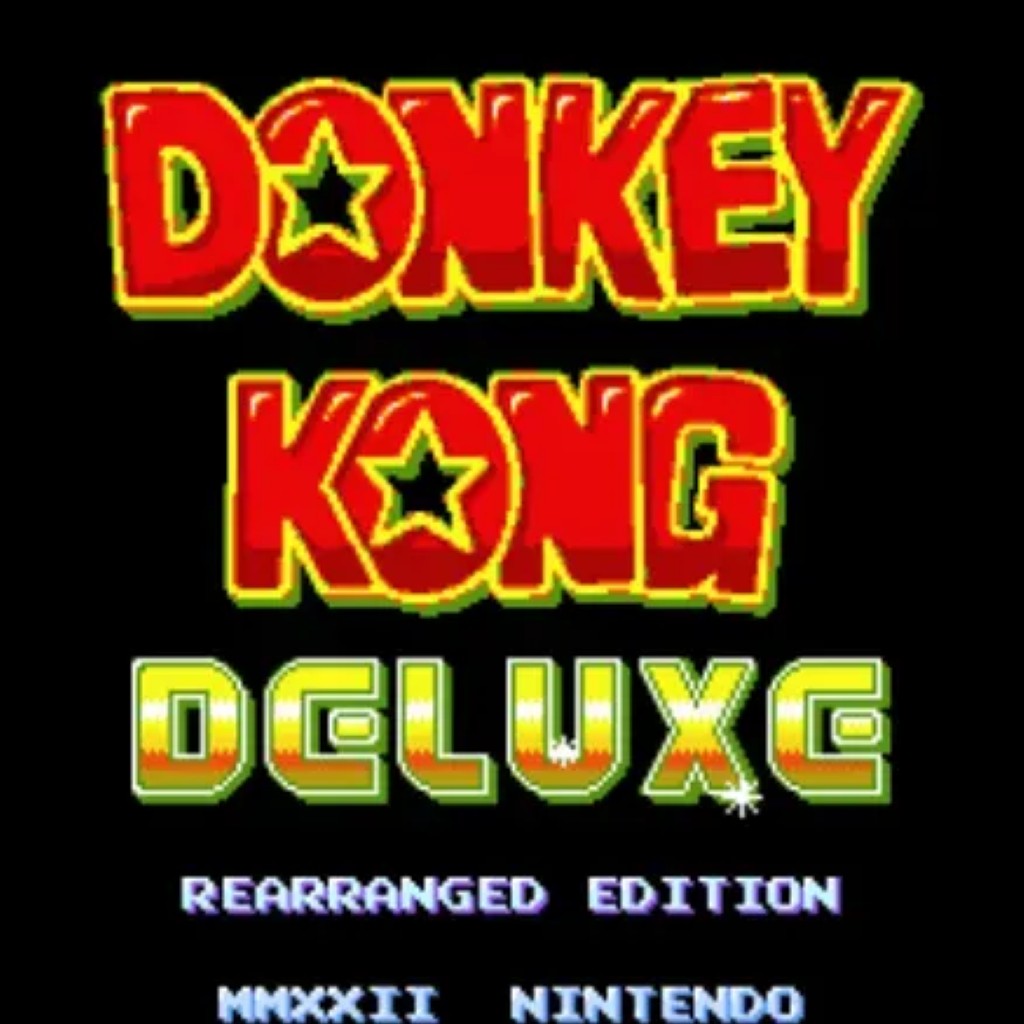

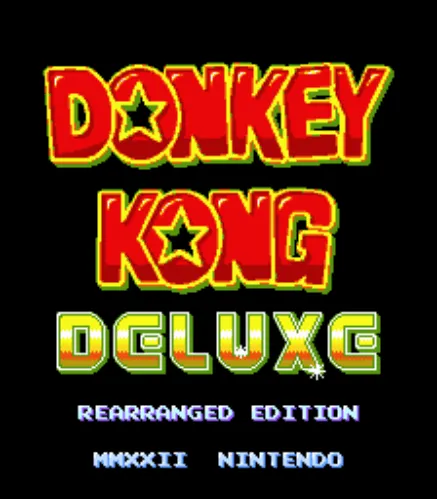

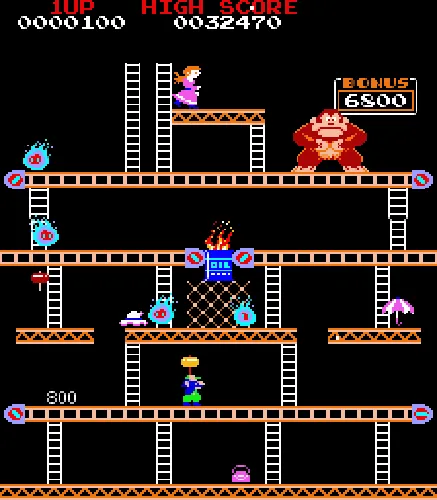

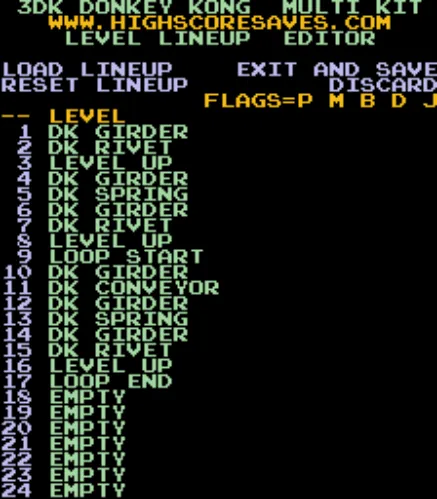

| Donkey Kong Rearranged | A mixed gameplay progression that combines and intertwines familiar stage layouts into a Rearranged experience separate from the original game modes. |

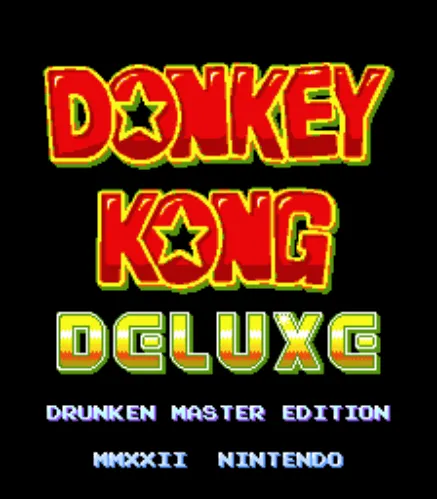

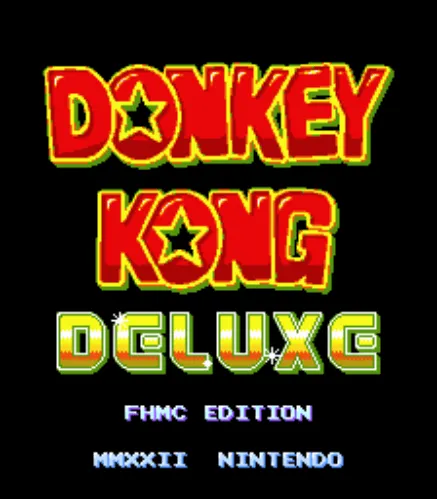

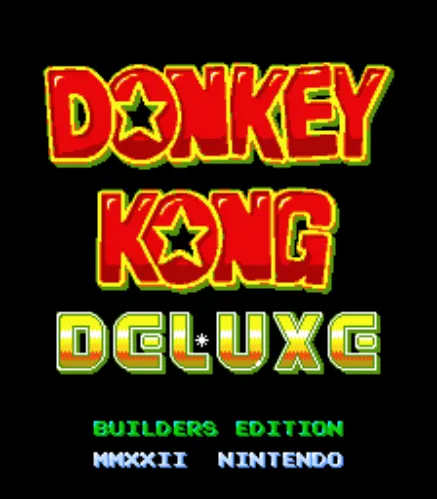

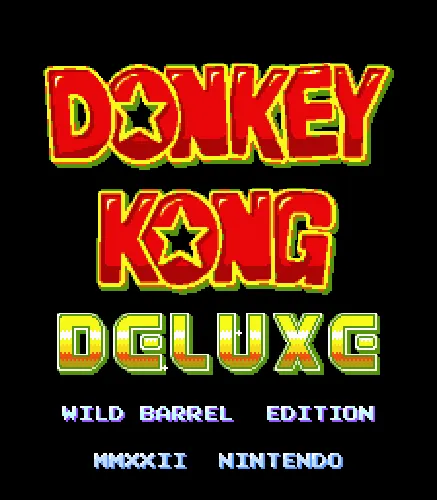

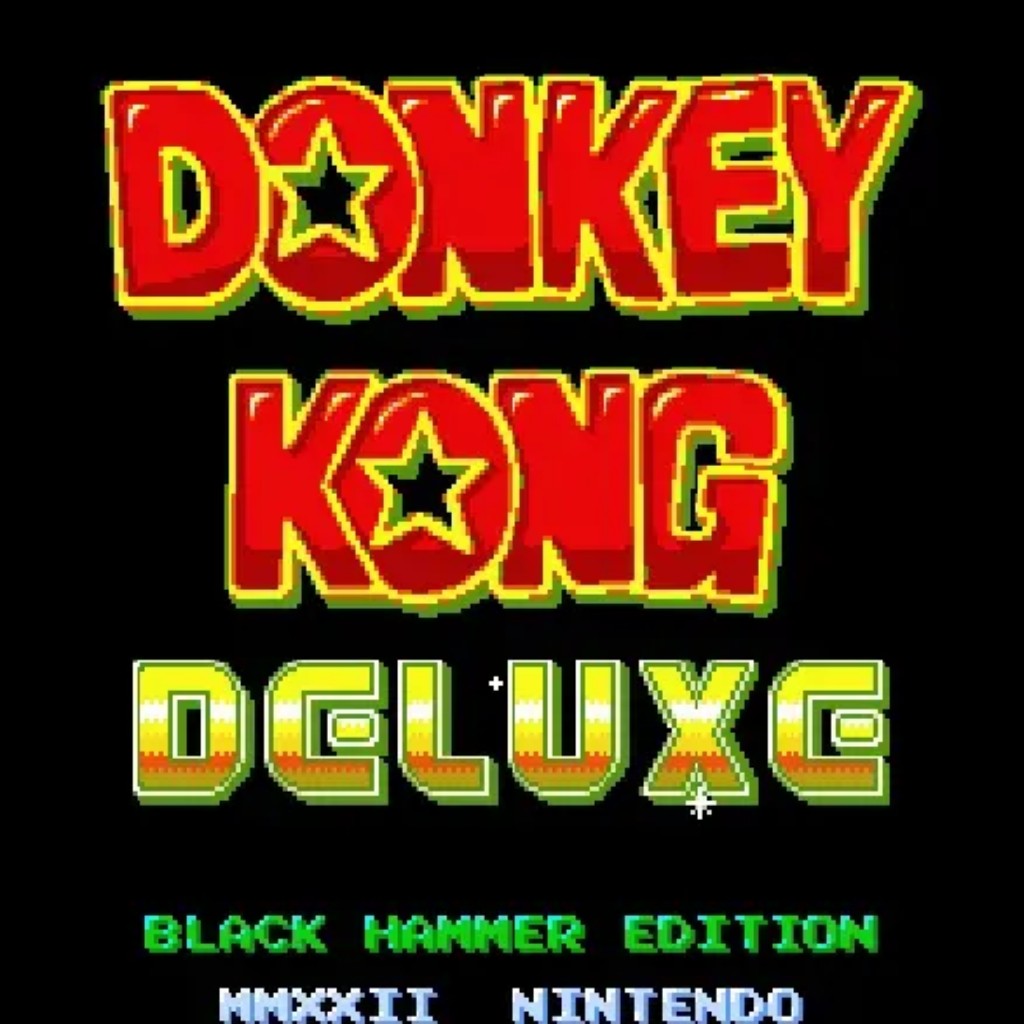

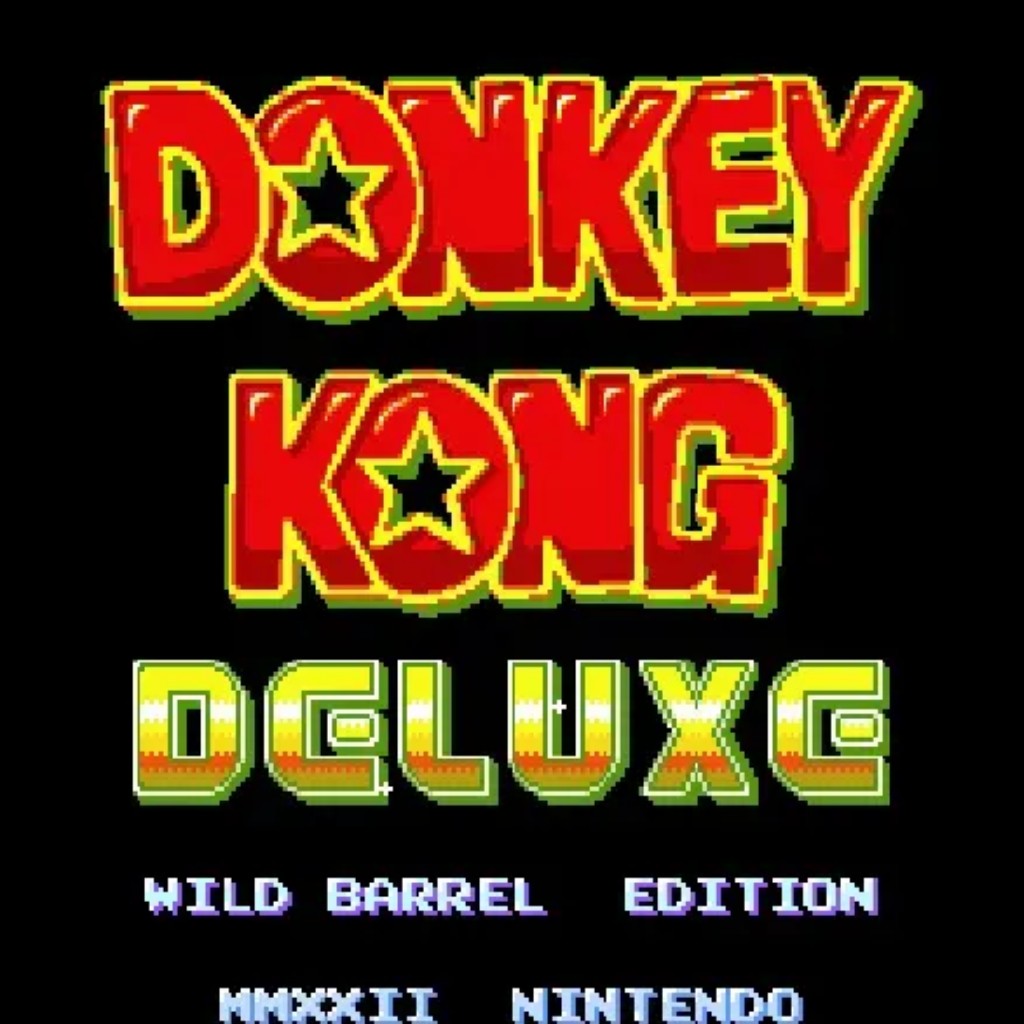

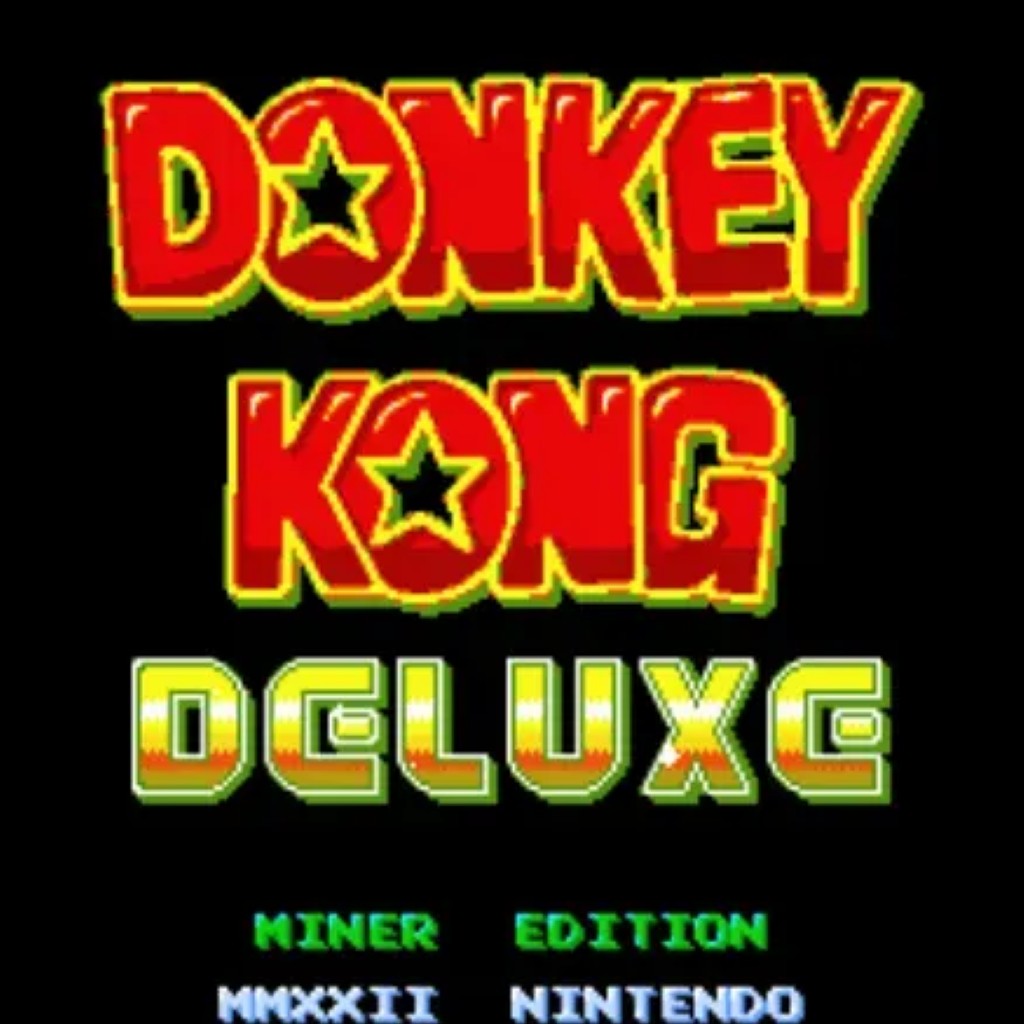

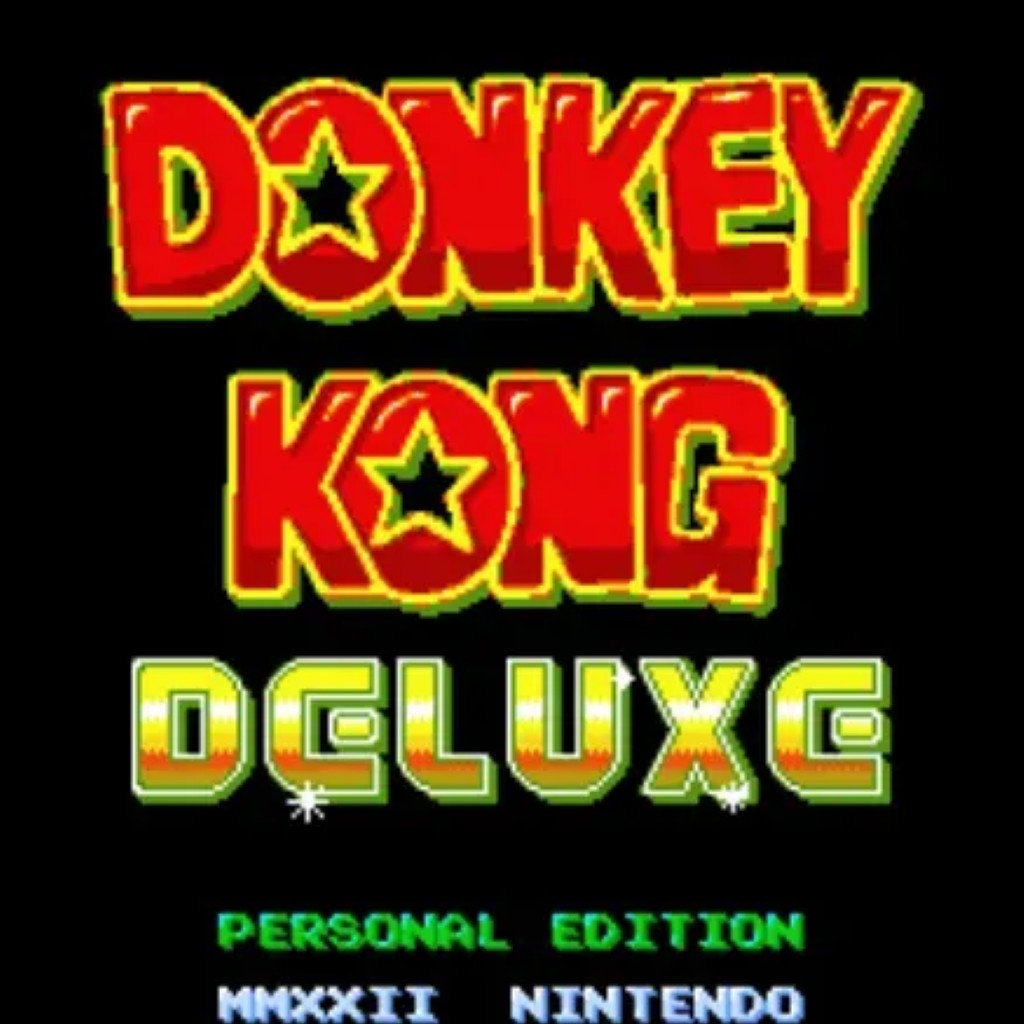

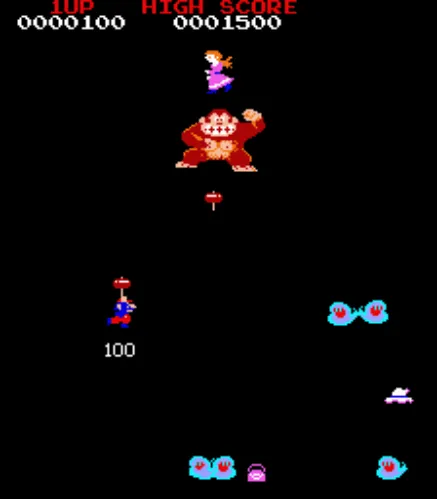

| Hidden Rearranged Editions | Unlockable variations include Drunken Master, Black Hammer, Wild Barrel, Miner 2049er, Builders, FHMC, and Personal editions. |

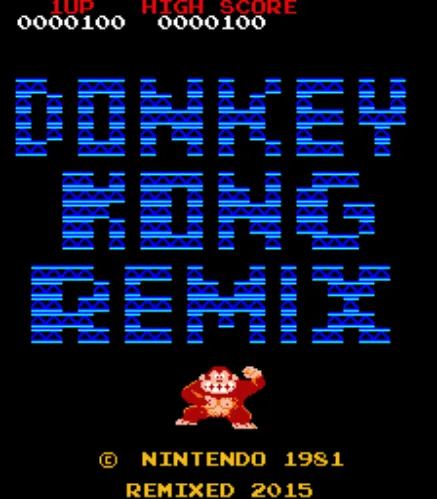

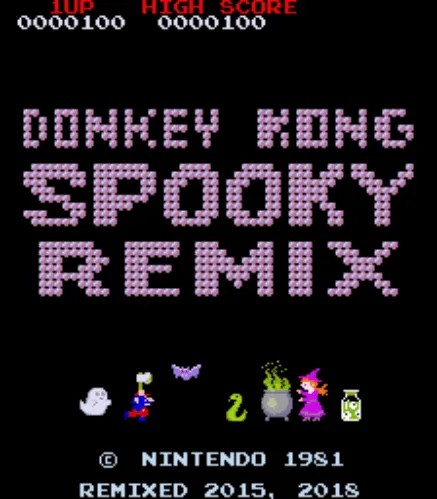

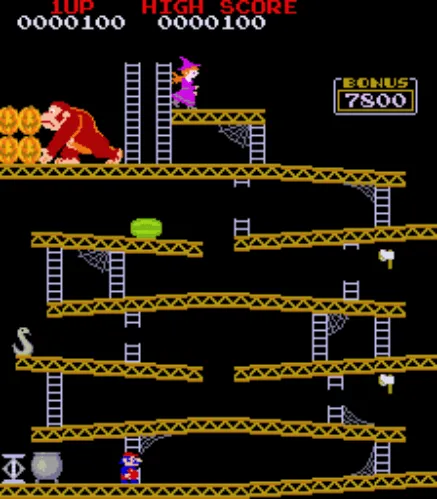

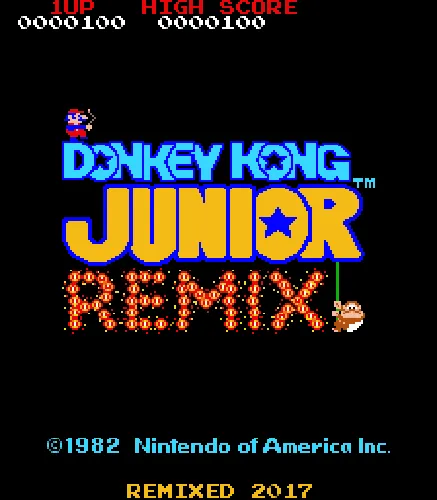

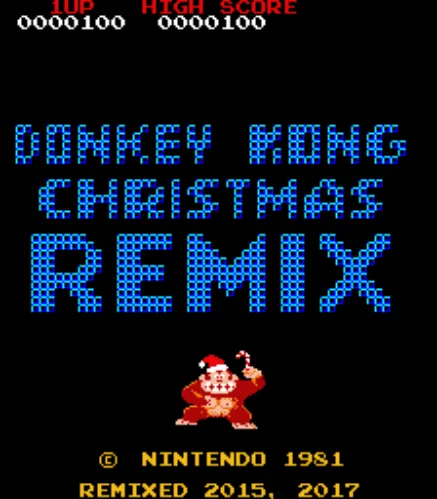

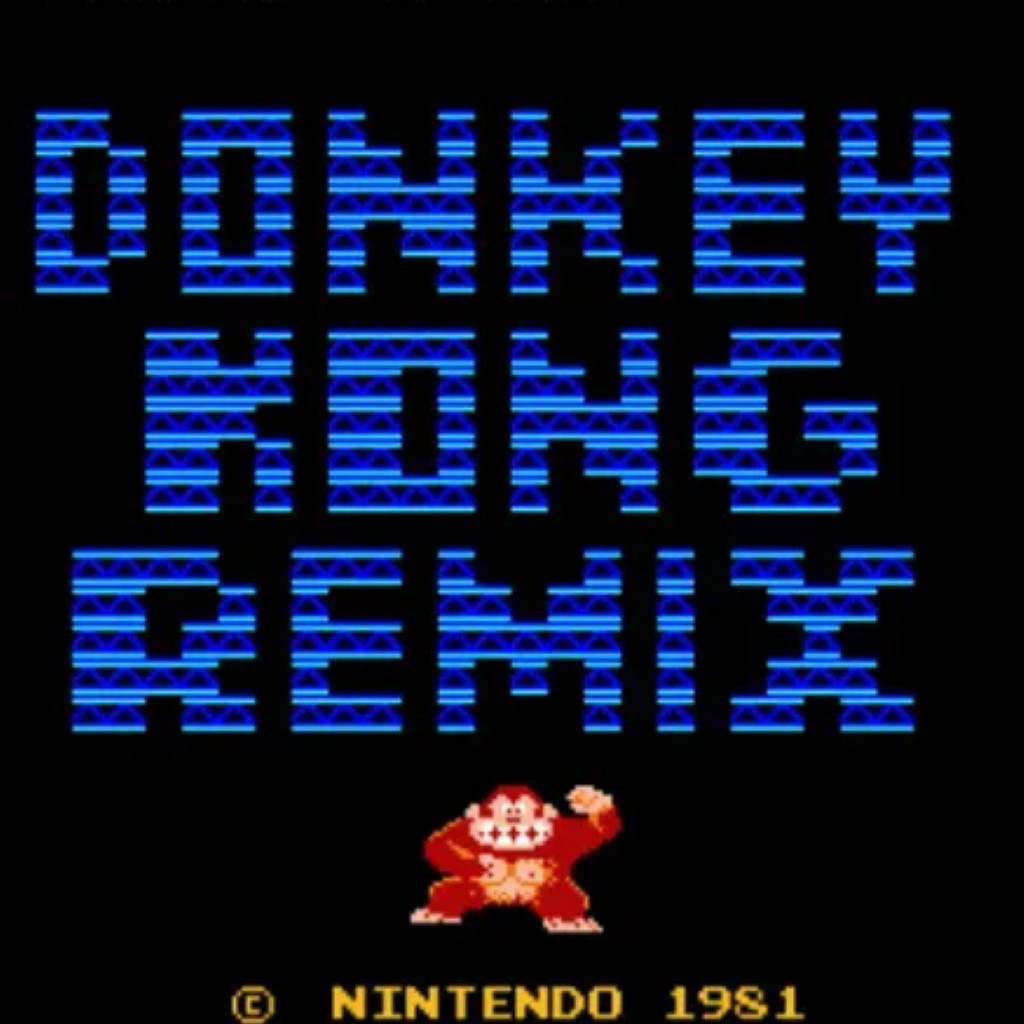

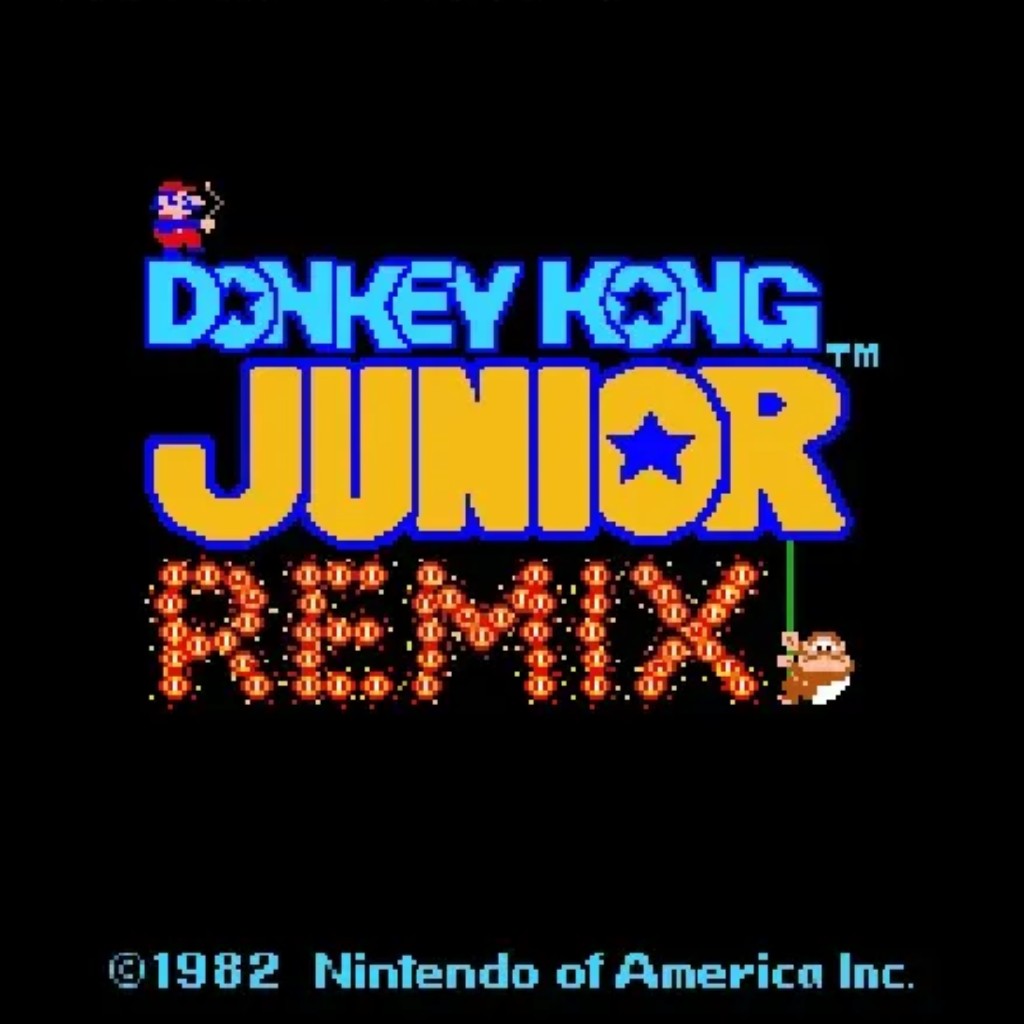

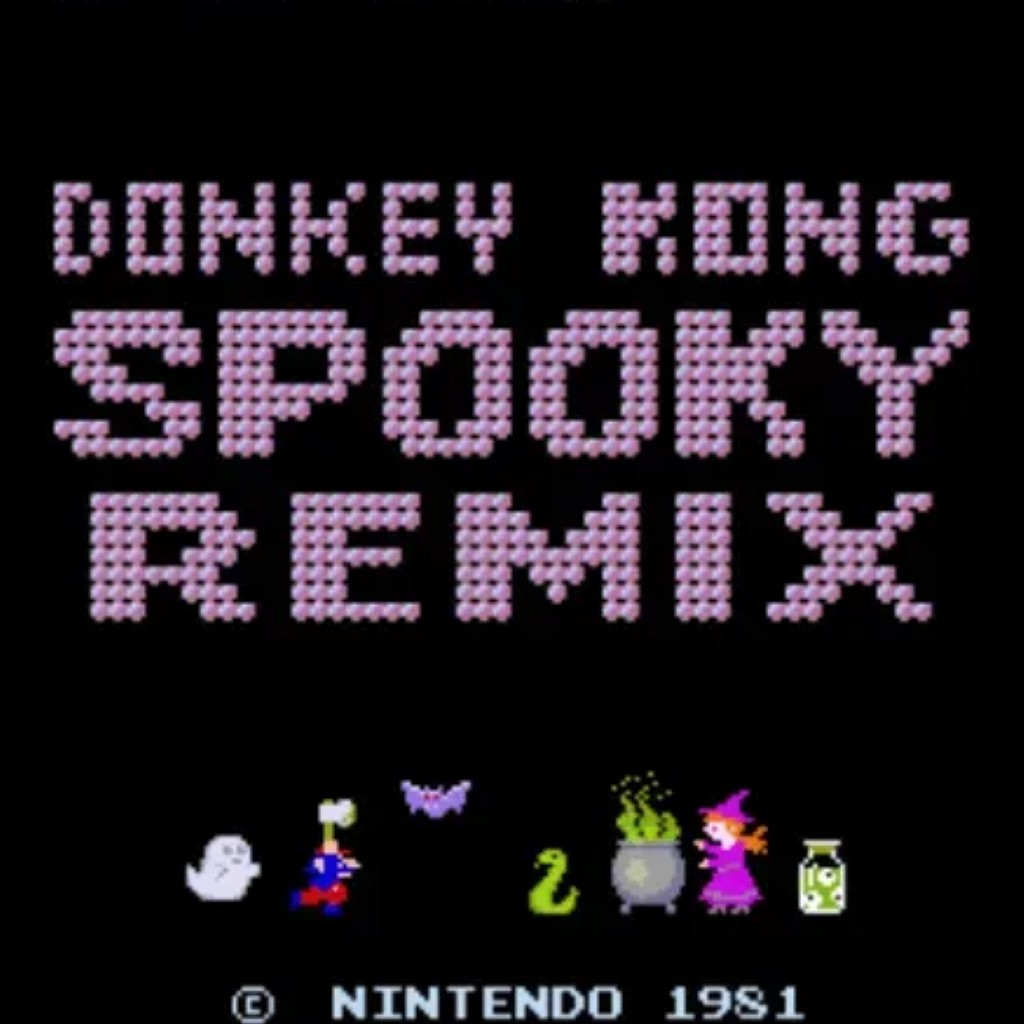

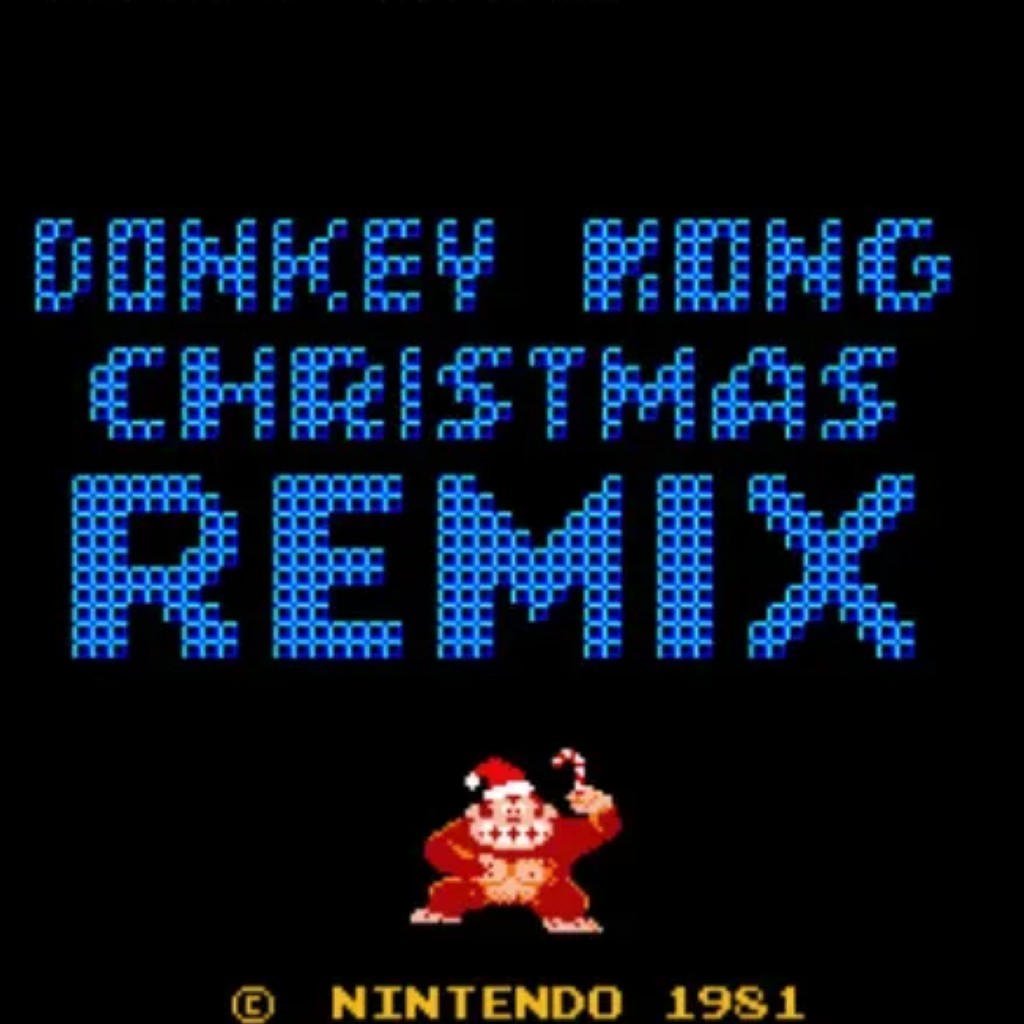

| Optional Remix Collection | When selected as an optional upgrade, adds Donkey Kong Remix, Donkey Kong Jr. Remix, Donkey Kong Christmas Remix, and Donkey Kong Spooky Remix. These four games are not included with the base kit unless the Remix Collection option is selected. |
| Free Play & Coin Operation | Play supported games without inserting coins or retain supported coin and token operation. |
| High Score Saving | Permanently stores the Top 5 supported high scores per game with player initials using battery-free storage. |
| Extended Scoring | Supports scores above 1,000,000 points in supported game selections. |

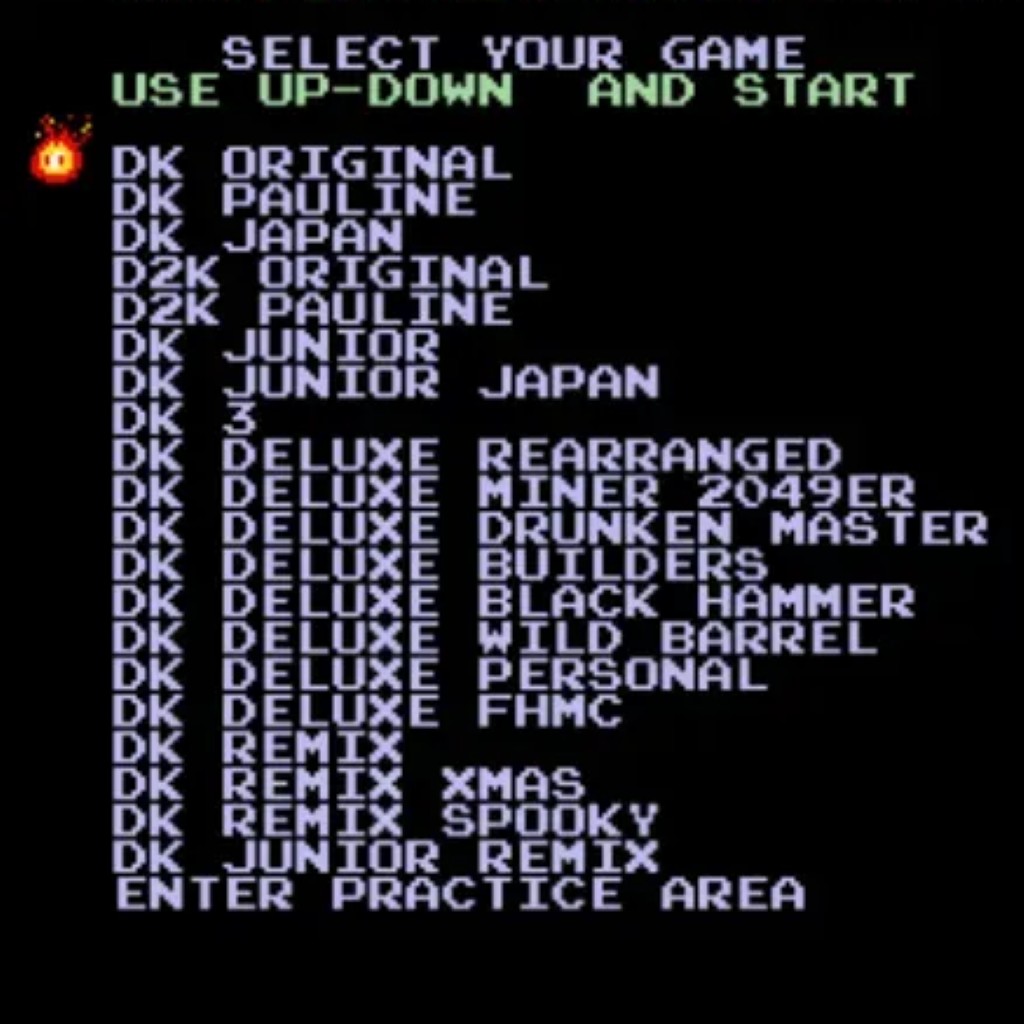

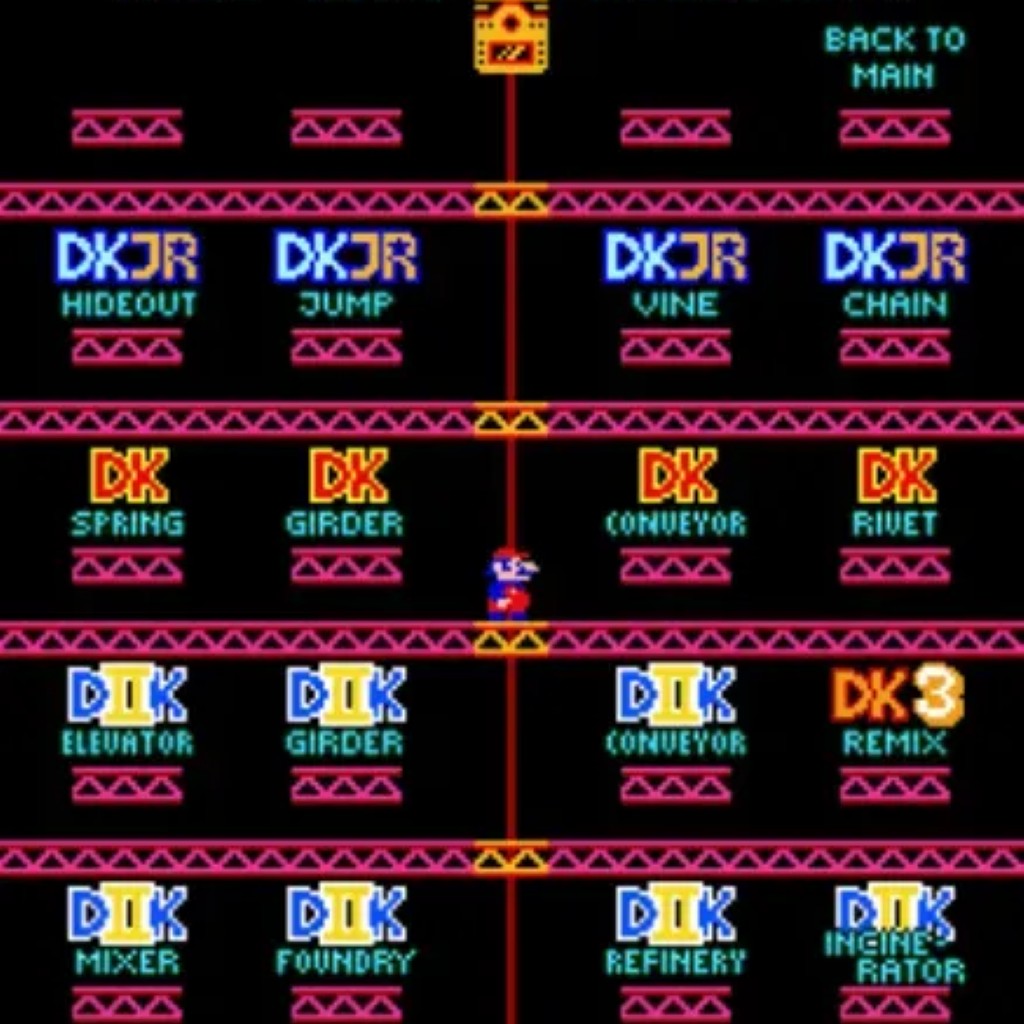

| Modern Game Menu | Hold Player 1 Start for approximately four seconds during attract mode to open the supported game-selection menu. |

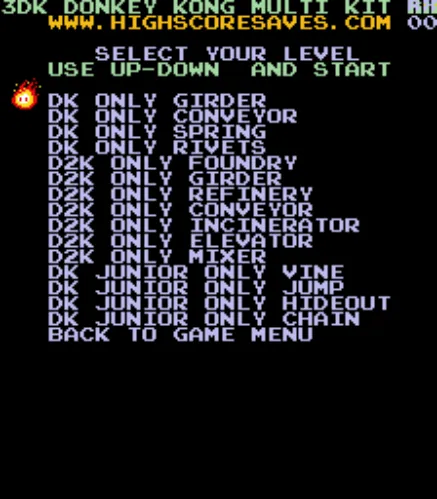

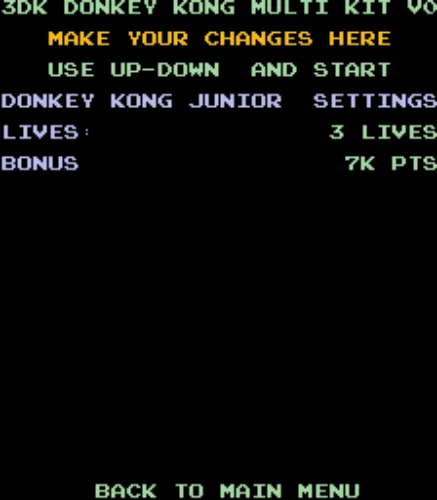

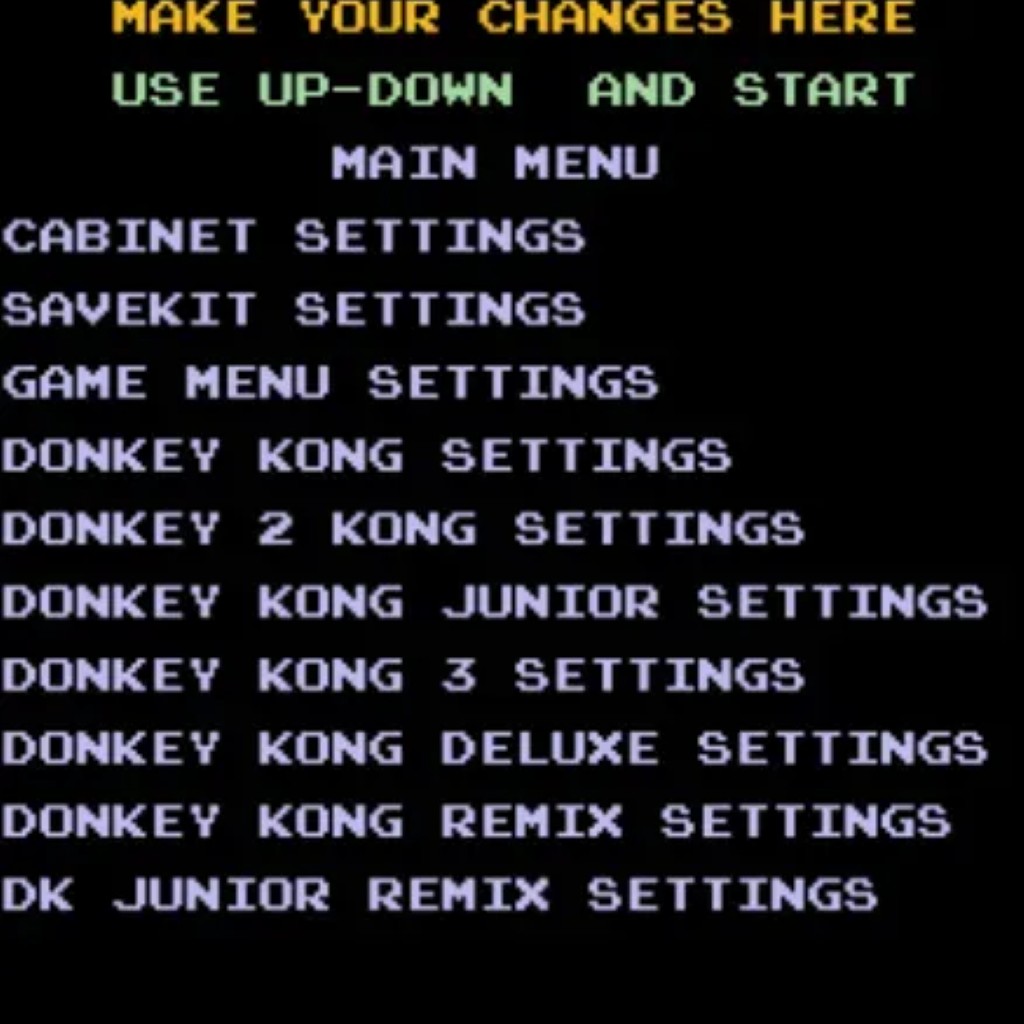

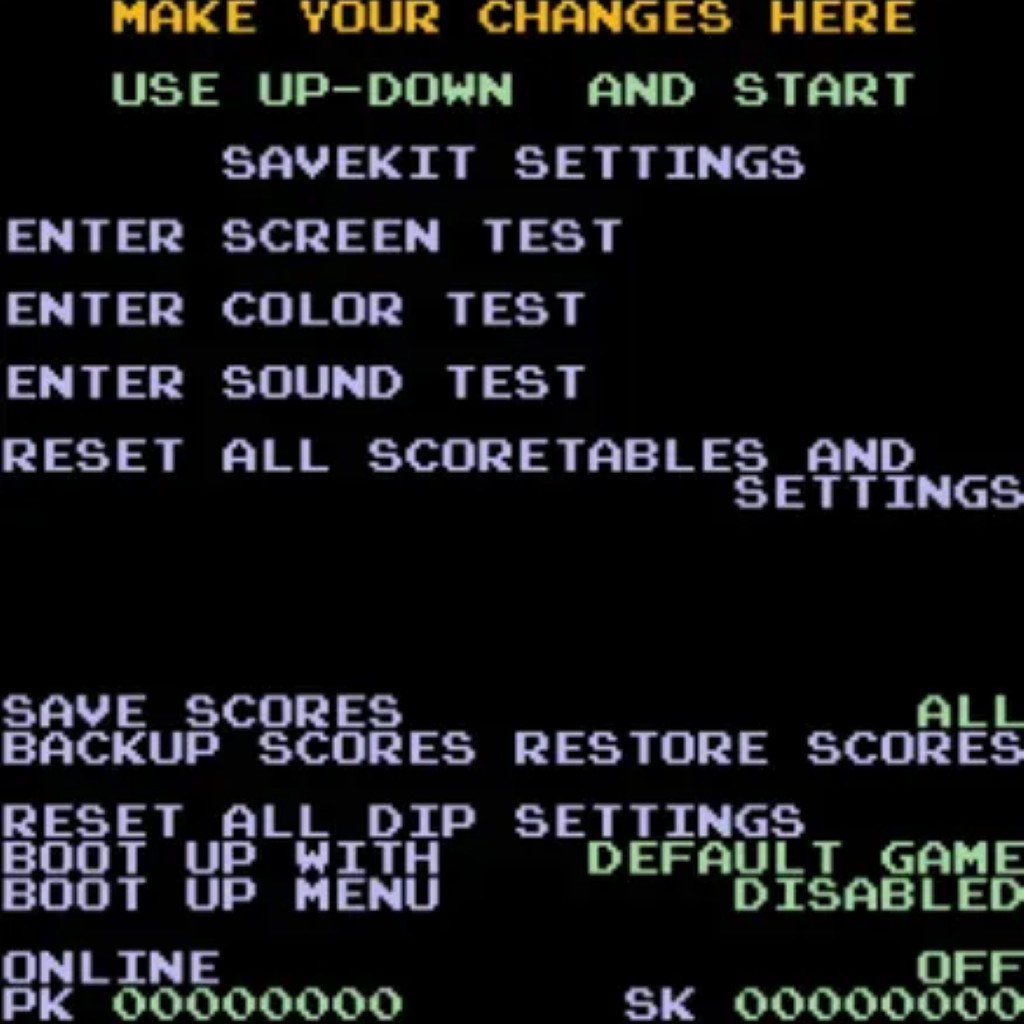

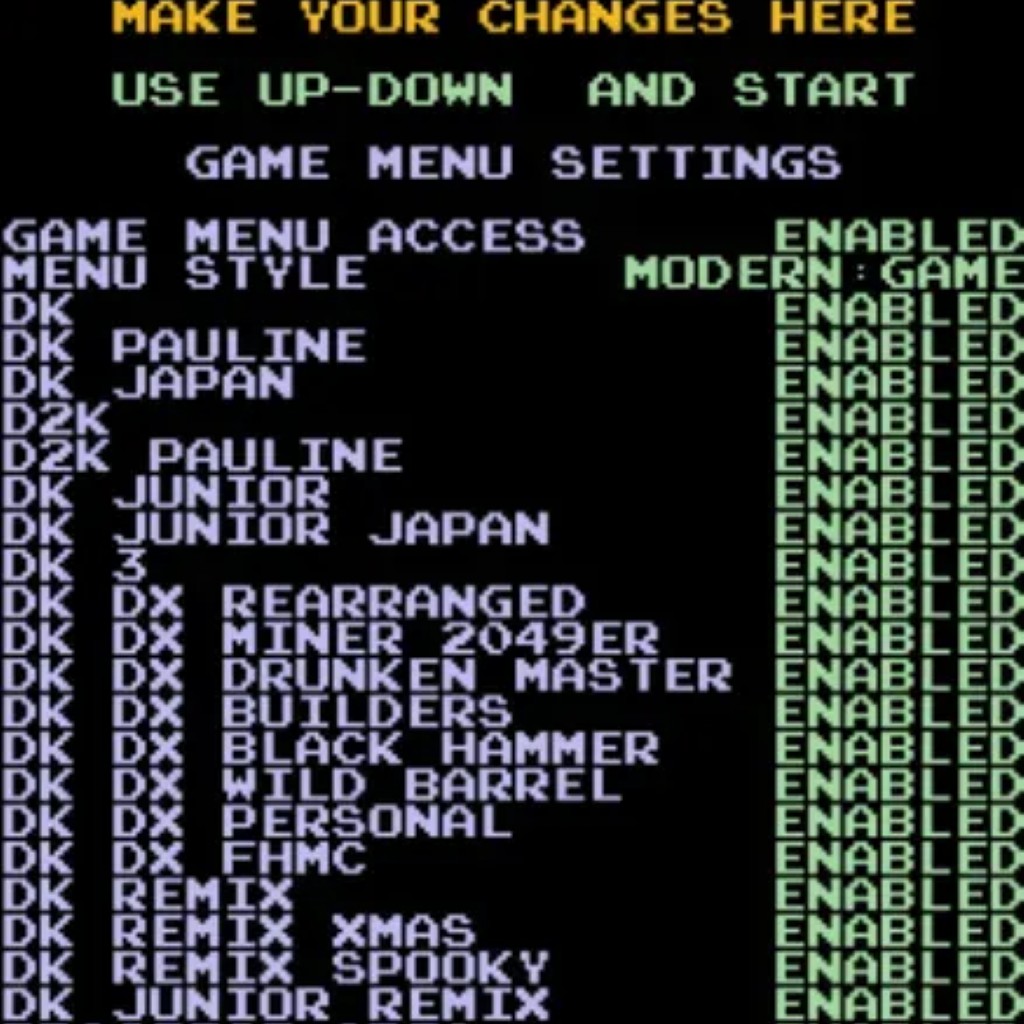

| Menu-Driven Settings | Configure supported game and DIP-switch options through the on-screen settings menu. |
| Adjustable Attract Sounds | Select supported attract sounds at 25%, 50%, or 100% of the attract-mode rotation. |
| Practice & Kill-Screen Options | Practice supported gameplay sections and enable or disable supported kill-screen behavior. |
| Sound Expansion Support | Provides additional audio support required by compatible multigame content. |
| Attract-Screen Protection | Helps reduce prolonged display of supported static attract screens during idle operation. |
| ROM Saver | Supports removal of designated original program ROMs as documented in the correct 3DK or 3DKJr installation guide. |
Installation & Settings Access
3DK vs. 3DKJr: Both configurations provide the same supported game collection. Choose 3DK when installing on a compatible original Nintendo Donkey Kong two-board PCB or 3DKJr for a compatible original Nintendo Donkey Kong Jr. two-board PCB. These configurations use different installation guides.
Unsupported hardware: This kit does not install on a four-board Nintendo Donkey Kong PCB stack or a standalone Donkey Kong 3 PCB. Donkey Kong 3 is included as playable multigame content, but it is not a supported installation PCB.

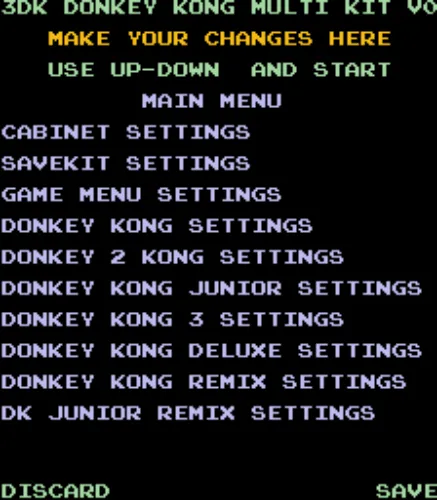

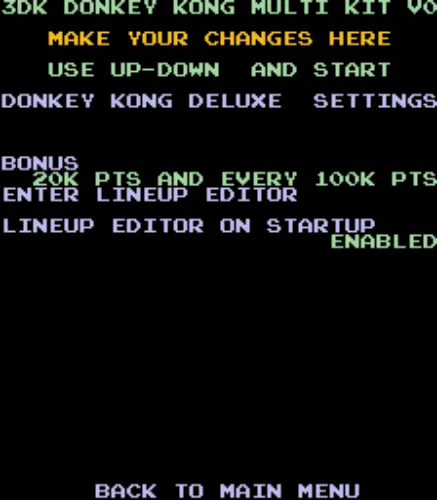

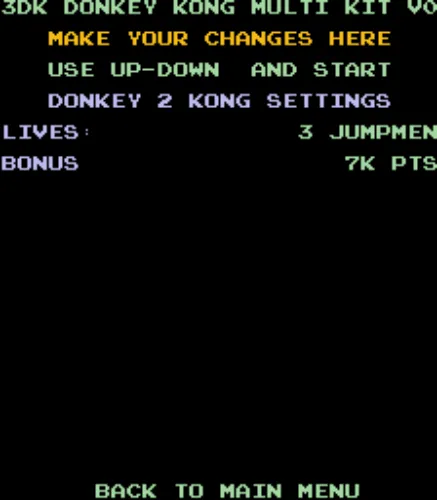

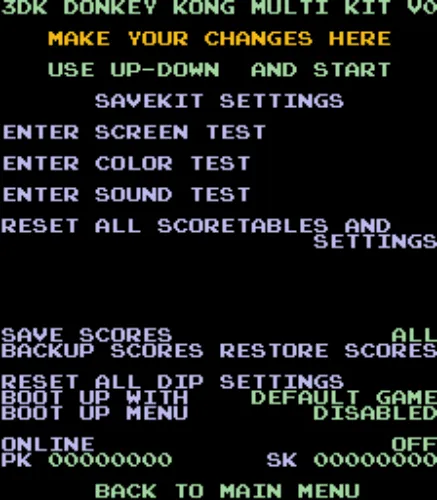

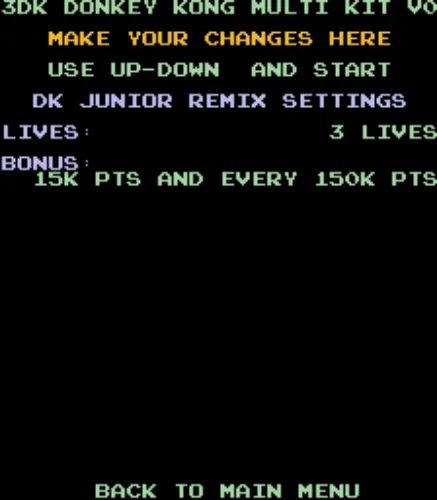

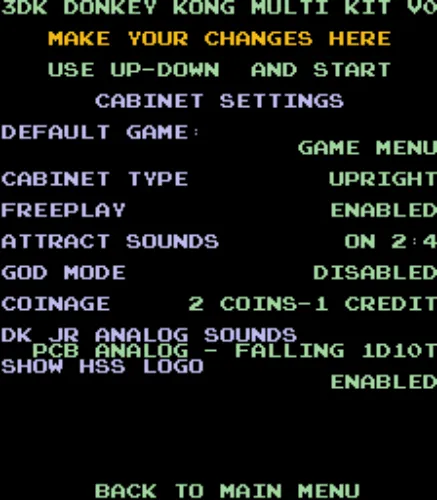

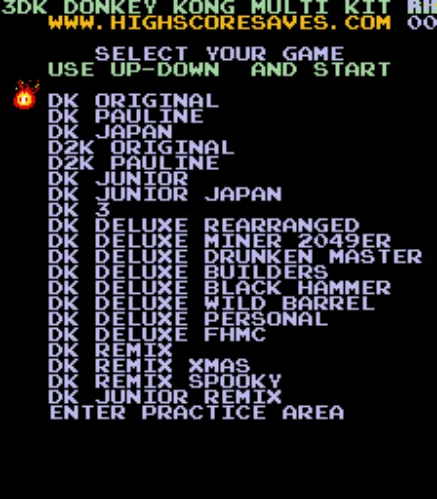

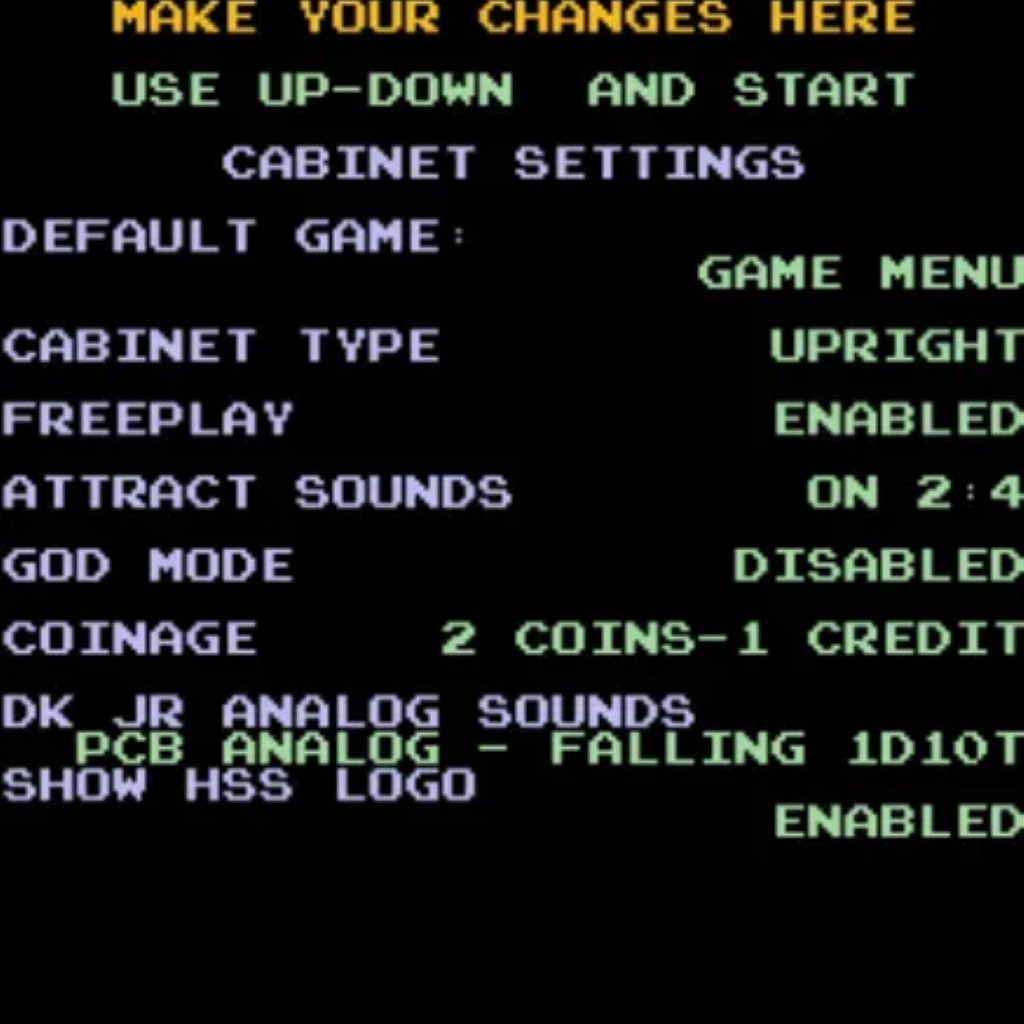

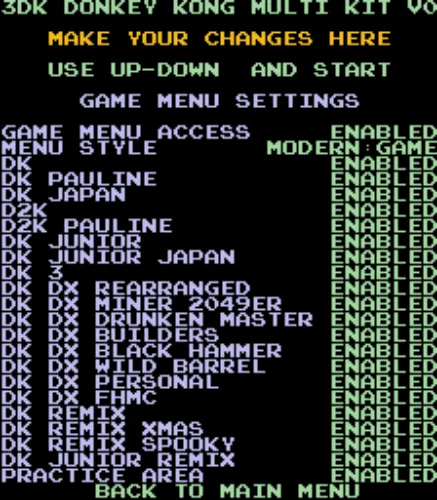

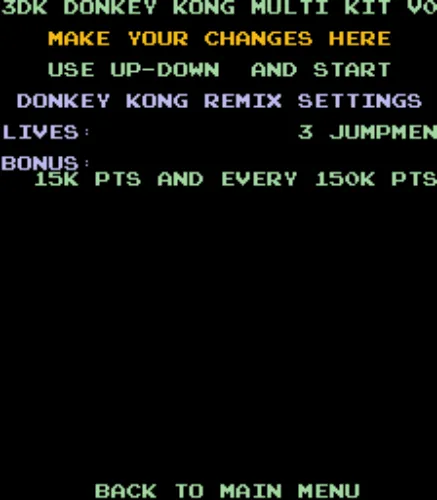

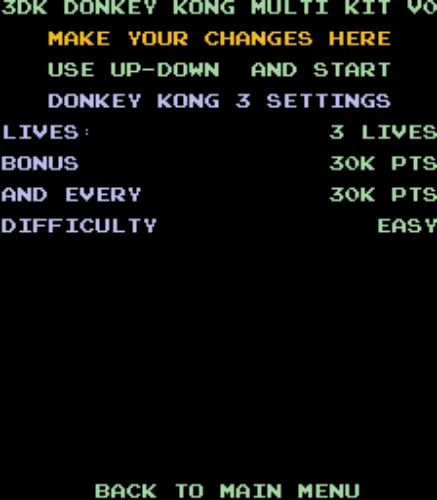

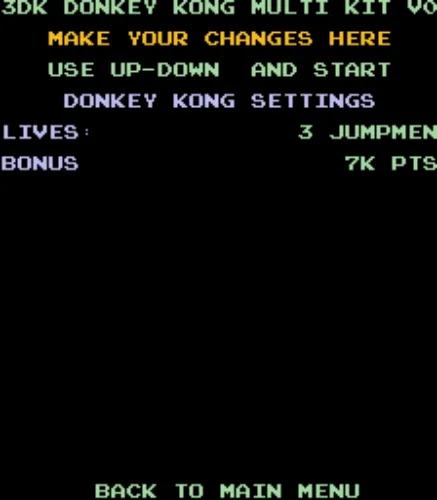

Settings menu: With the cabinet powered off, hold Player 1 Start while turning on the game. Release Player 1 Start when the on-screen prompt tells you to continue. The settings menu video demonstrates available options and controls.

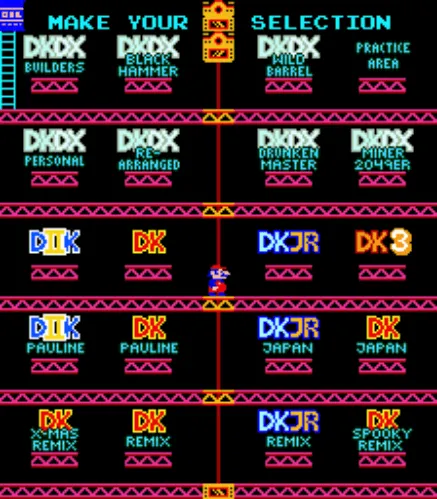

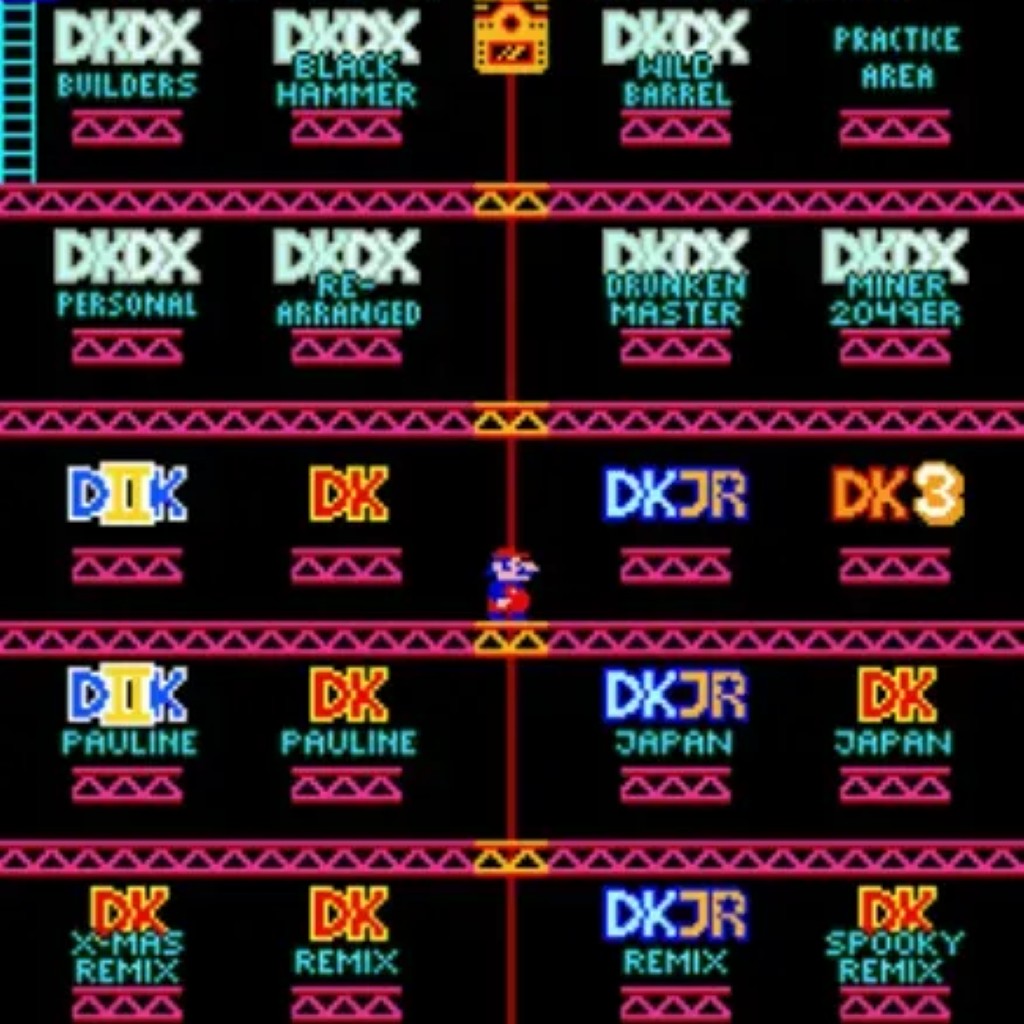

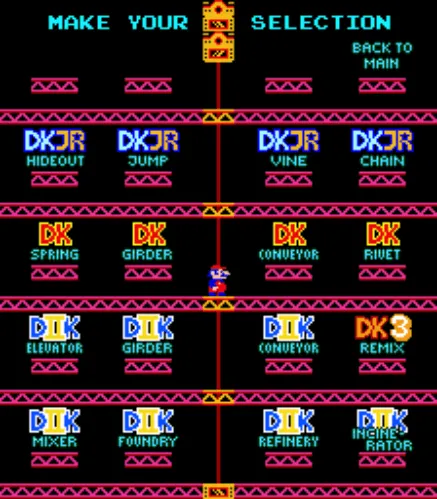

Game-selection menu: During attract mode, hold Player 1 Start for approximately four seconds to open the Modern Game Selection Menu. Select your supported game or multigame mode from the menu.
Main daughterboard and Z80: The HighScoreSaves Rearranged main daughterboard includes its own Z80 processor. Do not transfer the original Nintendo Z80 to the new daughterboard. Follow the installation guide for the correct placement of the assembled kit.
8035 processor transfer: Remove the original compatible 8035 processor from the Nintendo PCB and transfer it to the designated location on the main Rearranged daughterboard according to the correct installation guide.
Multiple daughterboard installation: Installation involves the main daughterboard and the additional 2E, 3N-3P-2N, and 7C-7D-7E-7F daughterboards. Access is required to both boards in the original Nintendo two-board stack. Install the ribbon cable and wire grabber connections as documented for your selected 3DK or 3DKJr configuration.
Socket requirements: All required CPU, EPROM, and PROM installation locations must be socketed. No soldering is necessary when these locations are already socketed. If a required location is soldered directly to the original PCB, a qualified arcade technician must install the appropriate socket before proceeding.
Optional Remix Collection: The four-game Remix Collection must be selected as an additional product option when ordering. It is not included in the standard Rearranged game collection unless that option is selected.
ROM Saver and final verification: Remove only the designated original program ROMs identified in the correct installation guide. Check all daughterboard orientations, processor placement, ribbon cable connections, and wire grabber positions before applying power.
Wi-Fi Setup & Global Scores
The Wi-Fi version connects to compatible 2.4 GHz Wi-Fi networks to submit qualifying completed scores to HighScoreSaves online leaderboards. Local high score saving, player initials, Free Play, multigame selection, settings, practice content, and Donkey Kong Rearranged gameplay continue to operate when Wi-Fi is disabled or unavailable.
Manuals, Schematics & More
3DK Installation Guide — Donkey Kong Two-Board PCB
3DKJr Installation Guide — Donkey Kong Jr. Two-Board PCB
Donkey Kong TKG4-UP Operation Manual — 3DK
Donkey Kong TKG4 CPU and Video PCB Schematics — 3DK
Donkey Kong Junior DJR1-UP Operation Manual — 3DKJr
Donkey Kong Junior Arcade Schematics — 3DKJr
