Elevator Action Arcade Schematics and Wiring Diagrams PDF Download – Taito SJ

Elevator Action Arcade Schematics and Wiring Diagrams PDF Download

Download 31 pages of original Taito Elevator Action SJ hardware documentation covering the game, video, four-board and five-board CPU systems, security board, component information, and cabinet wiring.

Digital product: One PDF file delivered electronically. No printed schematic set or physical item will be shipped.

Document Details

• Game: Elevator Action
• Manufacturer: Taito
• Hardware family: Taito SJ
• Coverage: Four-board and five-board systems
• Length: 31 pages
• Format: Search-free scanned PDF

Technical Drawings Included

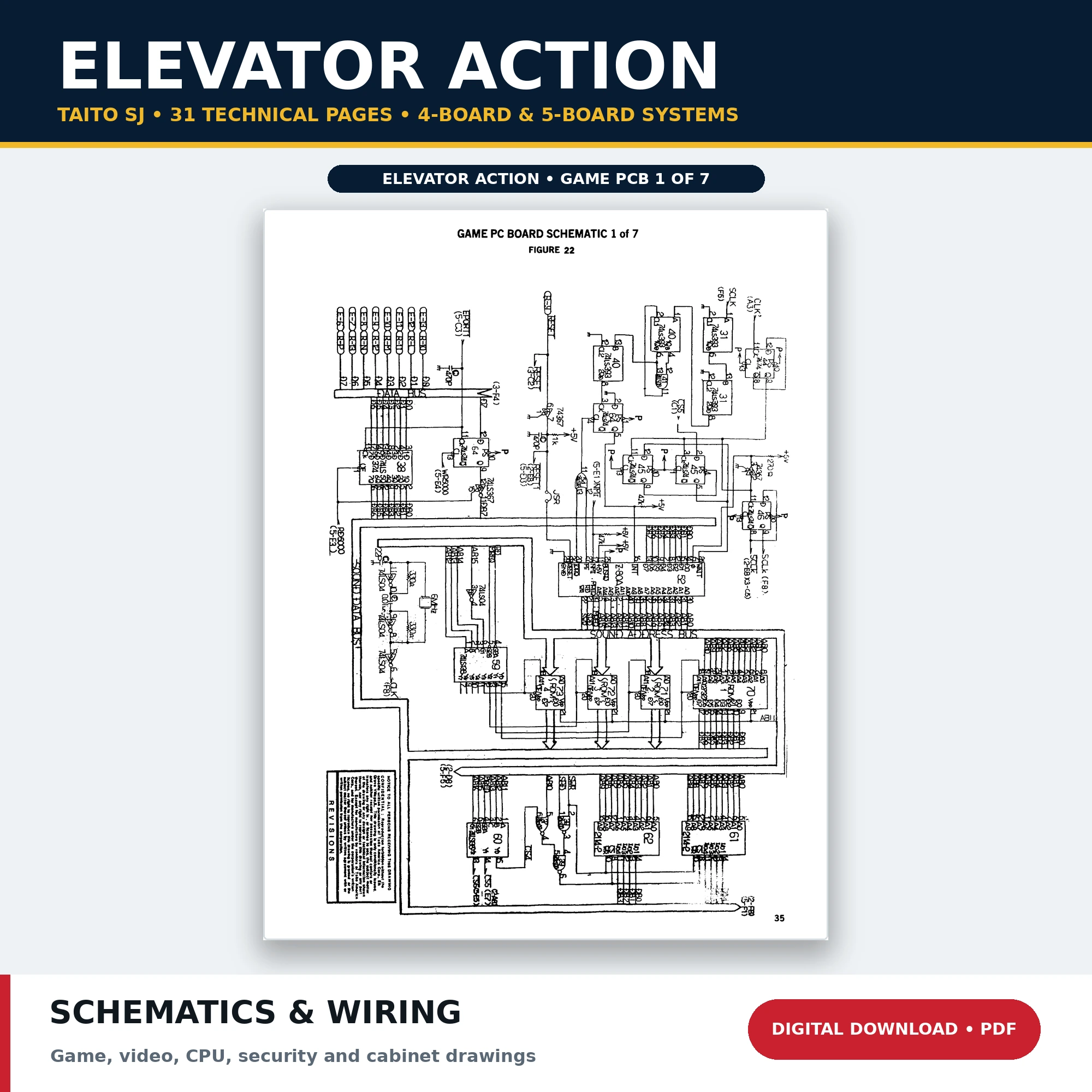

• Game PC board schematics, sheets 1 through 7
• Game PC board component layout
• Video-board parts information and schematics, sheets 1 through 5
• Four-board CPU component layout, parts information, and schematics, sheets 1 through 5
• Five-board CPU component layout, parts information, and schematics, sheets 1 through 3
• Security-board layout, parts information, and schematics, sheets 1 and 2
• Elevator Action cabinet wiring diagram

Standalone Drawing Set

These 31 pages are identical to pages 38–68 of the complete 70-page Elevator Action upright manual. This standalone download is intended for customers who want only the core PCB drawings, component information, and cabinet wiring diagram.

Related Hardware and Documents

• Elevator Action Multigame Free Play and High Score Save Kit
• Elevator Action Arcade Upright Manual PDF
• Arcade Schematics and Wiring Diagrams

Important Hardware and Safety Notes

Compare connector labels, board layouts, and PCB configuration with your original hardware before troubleshooting or ordering components. This set includes documentation for both four-board and five-board CPU configurations.

Arcade cabinets contain hazardous voltages. Disconnect power before servicing, and use a qualified arcade technician for monitor, power-supply, or cabinet electrical work.

How Digital Delivery Works

1. Add the Elevator Action schematics and wiring diagrams download to your shopping cart.
2. Complete checkout, including when the listed price is $0.00.
3. Use a valid email address for digital delivery.
4. Download and save the PDF using the delivery information provided.

Browse additional documents in the Arcade Schematics and Wiring Diagrams category.

Digital product: No printed manual, programmed chip, circuit board, disc, USB drive, or other physical item will be shipped.
