Robby Roto | Wizard of Wor Multigame Free Play and High Score Save Kit

Product information "Robby Roto | Wizard of Wor Multigame Free Play and High Score Save Kit"

Upgrade Your Original Bally/Midway Robby Roto Arcade PCB Stack

The HighScoreSaves Robby Roto / Wizard of Wor Multigame Free Play and High Score Save Kit adds two selectable arcade games, Free Play, permanent high score saving with initials, and on-screen settings to documented compatible original Bally/Midway Robby Roto PCB hardware. Save Top 21 Robby Roto scores and Top 5 Wizard of Wor scores with initials, with adjustable attract sounds, Reset, Stealth Mode, and optional Wi-Fi leaderboard support. The documented original Robby Roto board-stack arrangement is required.

Free Play

Play with or without coins

High Score Saving

Robby Roto Top 21; Wizard of Wor Top 5

with initials!

Attract Sounds

Selectable in settings

Optional Wi-Fi

Upload scores to Personal and Global pages!

Robby Roto Multigame PCB Compatibility at a Glance

Compatible PCB Documented compatible original Bally/Midway Robby Roto PCB stack (not an original Wizard of Wor board)
CPU location Original Z80 CPU location on the Robby Roto CPU board in slot 4
CPU socket Compatible 40-pin Z80 CPU socket required; compatible Z80 on daughter card
Installation Plug-in Z80 daughter card; follow the documented four-slot board arrangement, leaving slot 2 empty
Cabinet support Documented compatible upright and cocktail Robby Roto configurations
Before you order: This kit requires the original Bally/Midway Robby Roto board stack, not an original Wizard of Wor PCB, with a compatible Z80 CPU in a 40-pin socket. The required stack arrangement is slot 1: game board; slot 2: empty (remove the original memory board); slot 3: pattern board; slot 4: CPU board fully forward. The Wizard of Wor starfield background, sparkle effect, and speech are not available on this hardware. If the Z80 is soldered, a qualified technician must install a compatible socket first. Review the PDF before installation.

Two Games Included

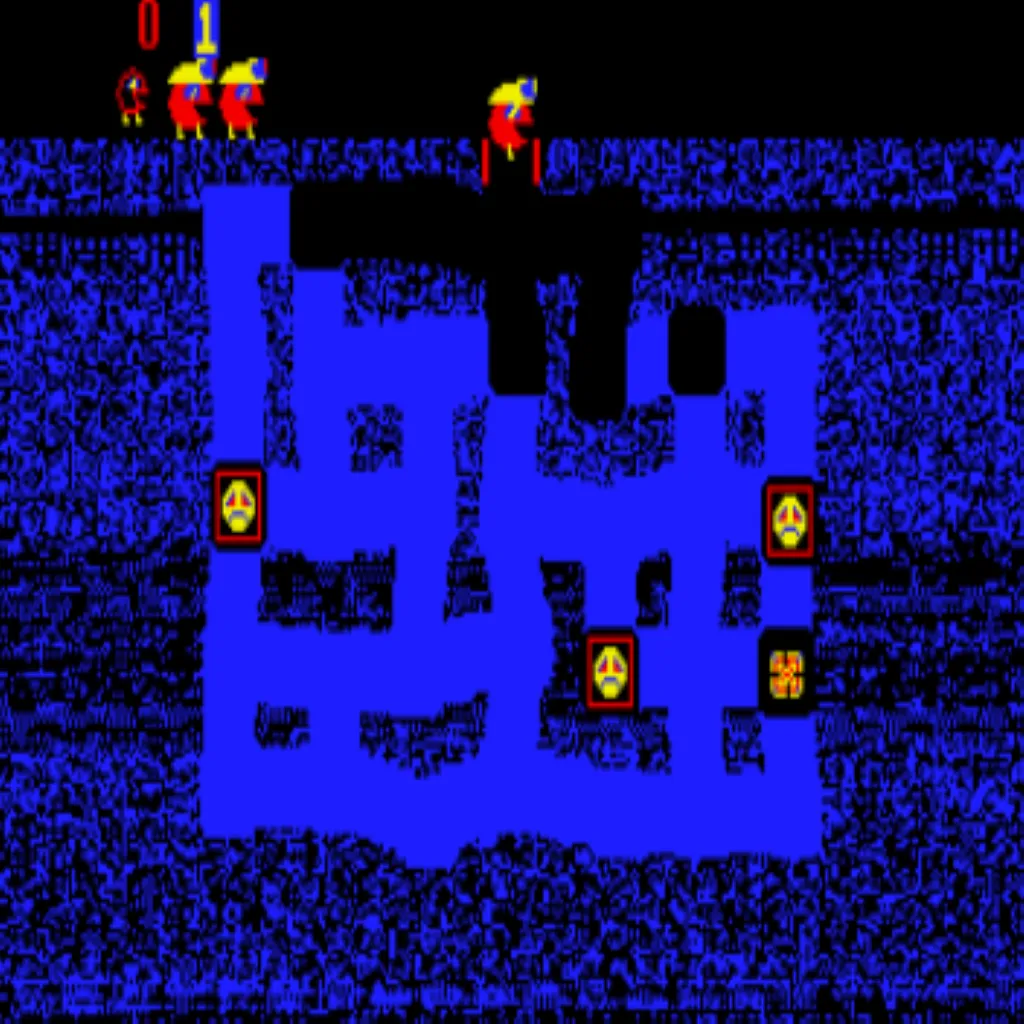

Robby Roto Permanently saves the Top 21 high scores with initials! Separate supported tables are maintained by difficulty.

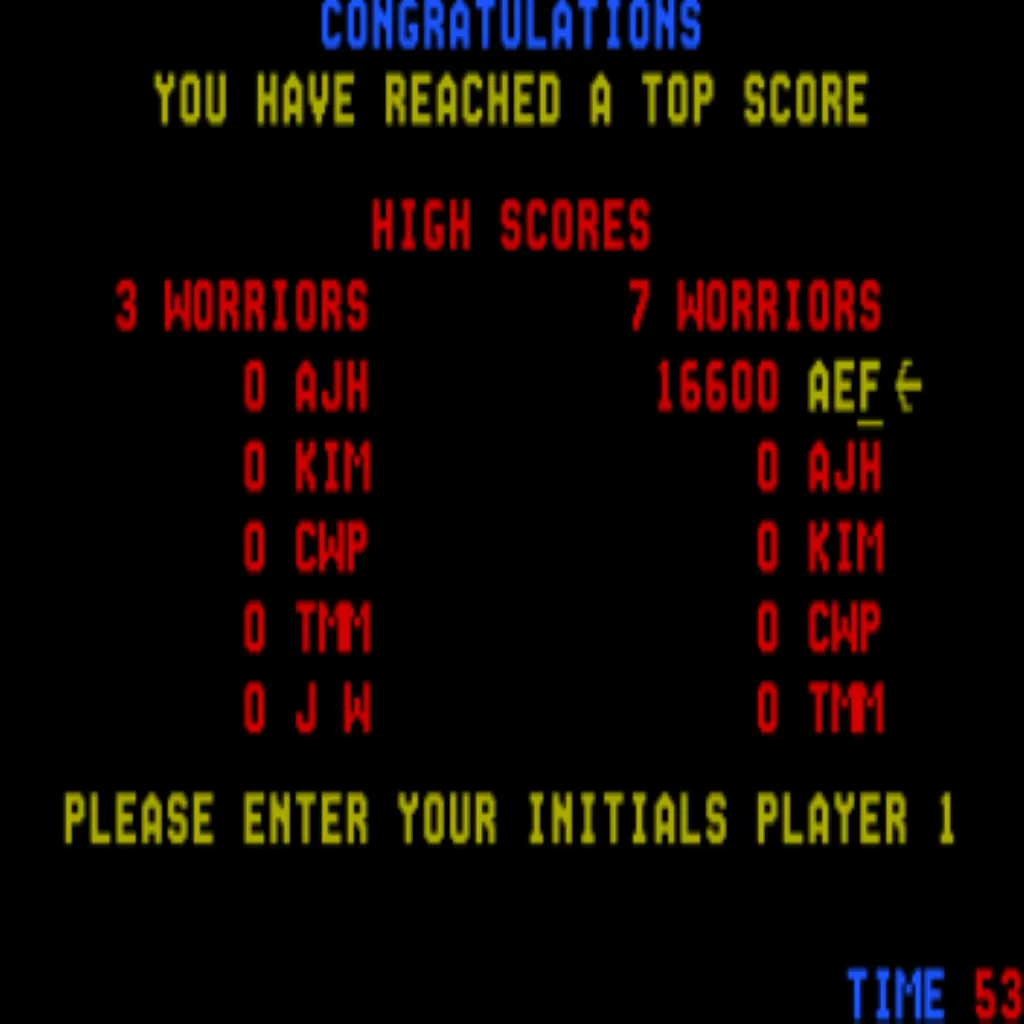

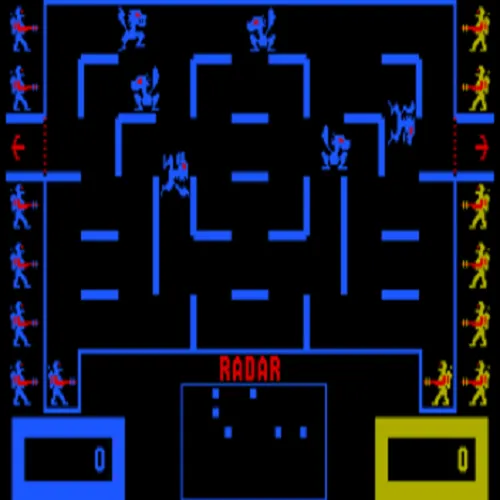

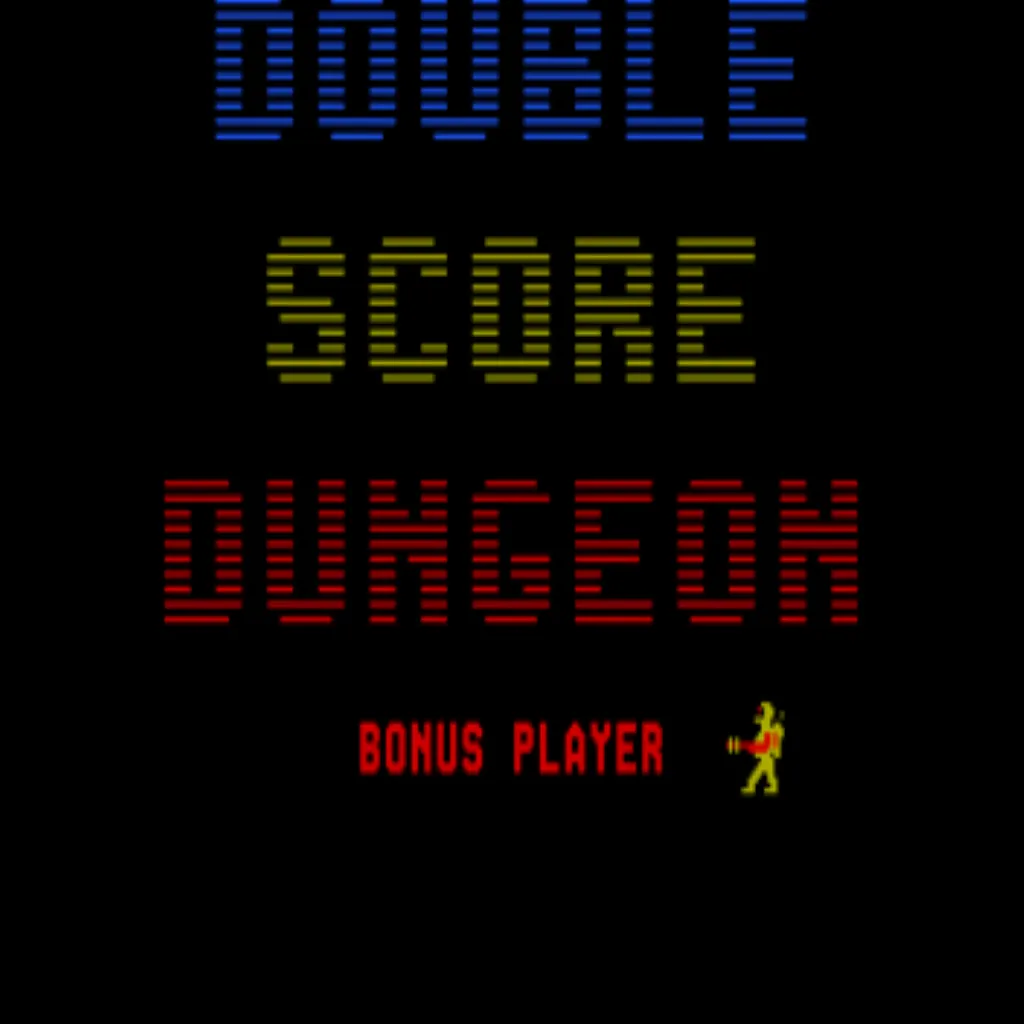

Wizard of Wor Permanently saves the Top 5 high scores with initials! with separate lives-based tables. On Robby Roto hardware, starfield, sparkle effect, and speech are unavailable.

Choose Your Robby Roto / Wizard of Wor Kit Version

Standard Kit

Permanently saves Top 21 Robby Roto scores with initials! and Top 5 Wizard of Wor scores with initials! using battery-free local storage. Includes both games, Free Play, game selection, adjustable attract sounds, Backup and Restore, Reset, and Stealth Mode. No internet connection required.

Wi-Fi Enabled Kit

Includes Standard features and can submit qualifying Robby Roto and Wizard of Wor high scores with initials to supported HighScoreSaves online leaderboards using compatible 2.4 GHz Wi-Fi. Local high score saving and gameplay remain available offline.

What's Included

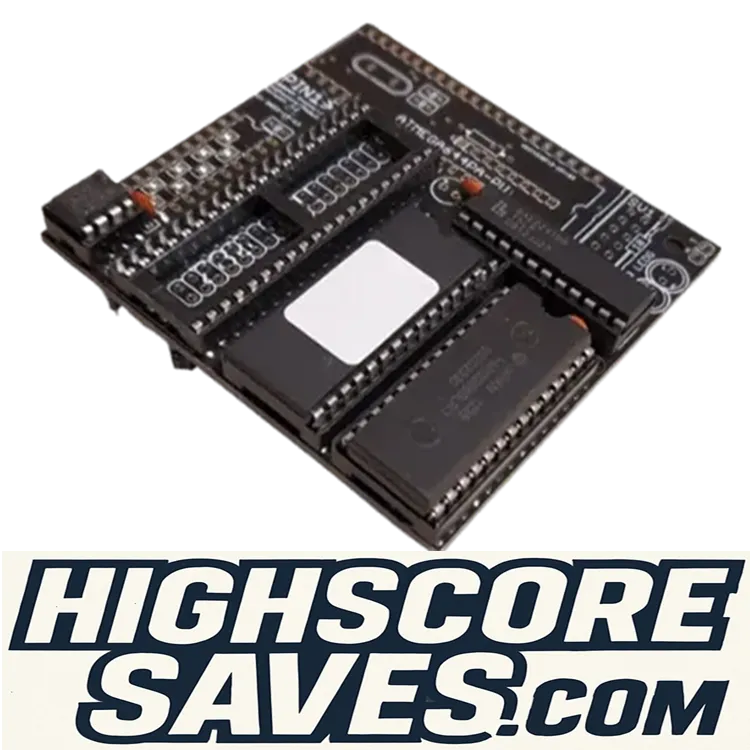

Base kit: 1 × HighScoreSaves Robby Roto / Wizard of Wor Z80 multigame daughter card for the original Robby Roto CPU board.

A compatible Z80 processor and 40-pin CPU socket are required. Optional replacement parts are selected separately when ordering. The original Robby Roto PCB stack is not included. Slot 2 must be empty for the documented multigame arrangement; keep any removed original hardware safely stored.

Installation & Helpful Guides

Confirm the original Bally/Midway Robby Roto PCB stack, compatible Z80 socket, and exact four-slot arrangement. Slot 2 must be empty, and the CPU board must sit fully forward in slot 4. Follow the illustrated installation PDF.

Identify Your Original Arcade PCB
Check that you have an original Robby Roto board stack with the documented socket and slot positions.
View Robby Roto Multigame Installation Guide PDF
Z80 daughter-card fitting, slot 1–4 board-stack layout and CPU board orientation

Additional Details & Resources

Select any section below to see more details.

Advanced Kit Features

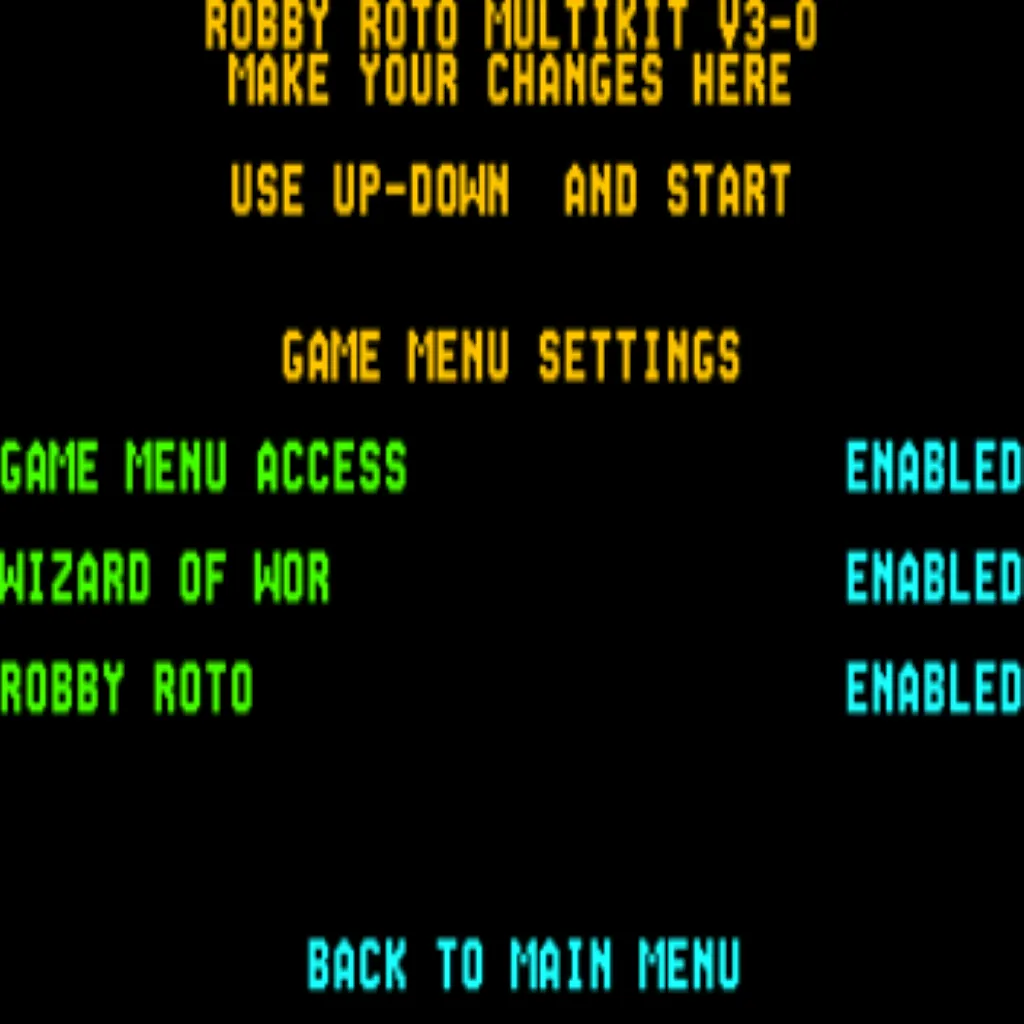

Game Selection & Startup Select Robby Roto or Wizard of Wor at startup, or configure the kit to load the previously selected game.

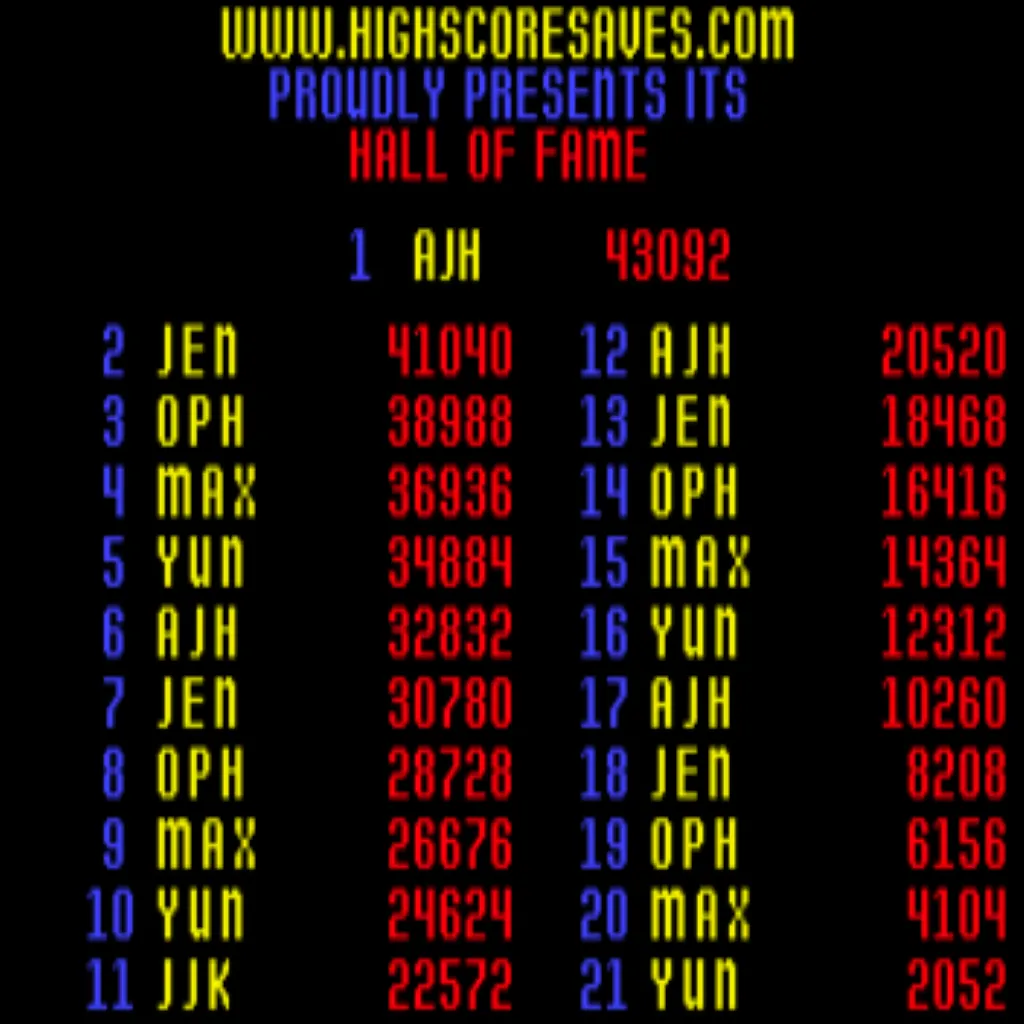

Robby Roto Top 21 Permanently saves Top 21 high scores with initials! in supported separate tables according to game difficulty.

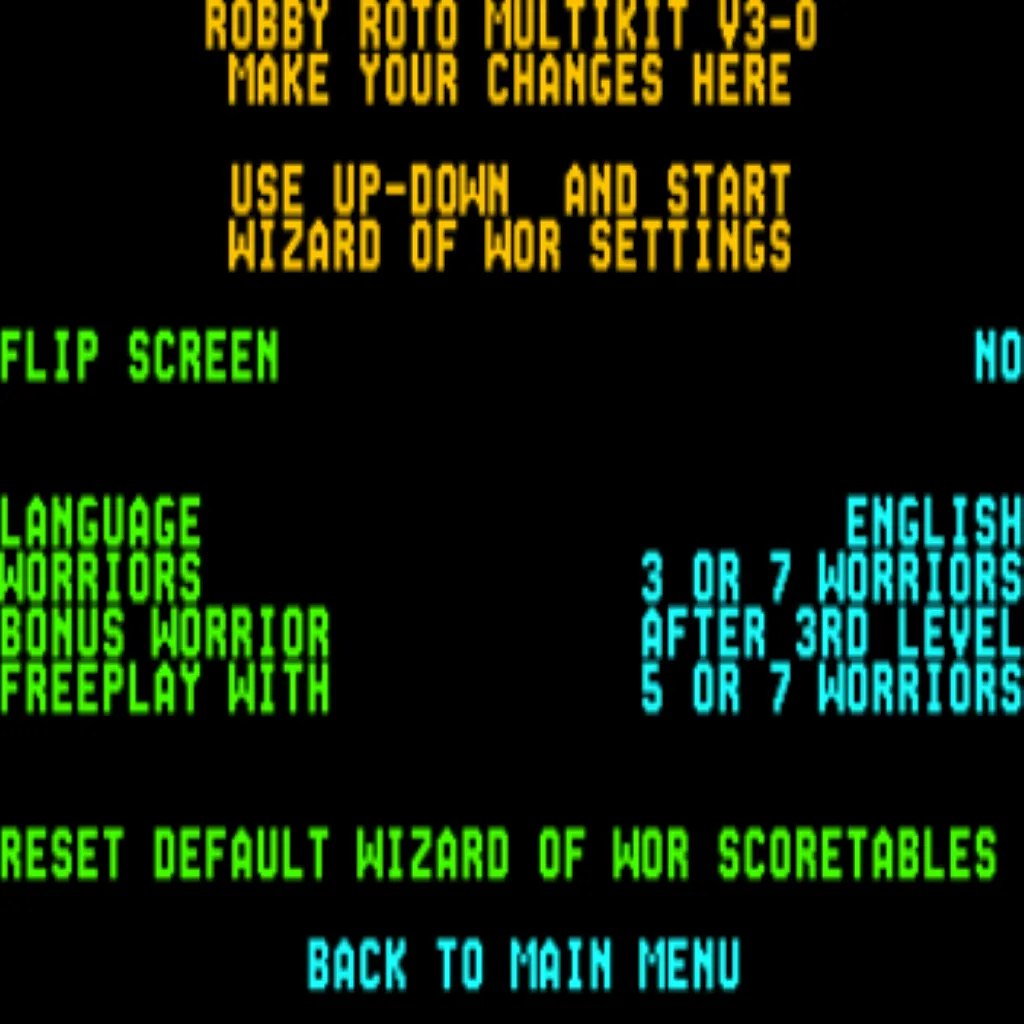

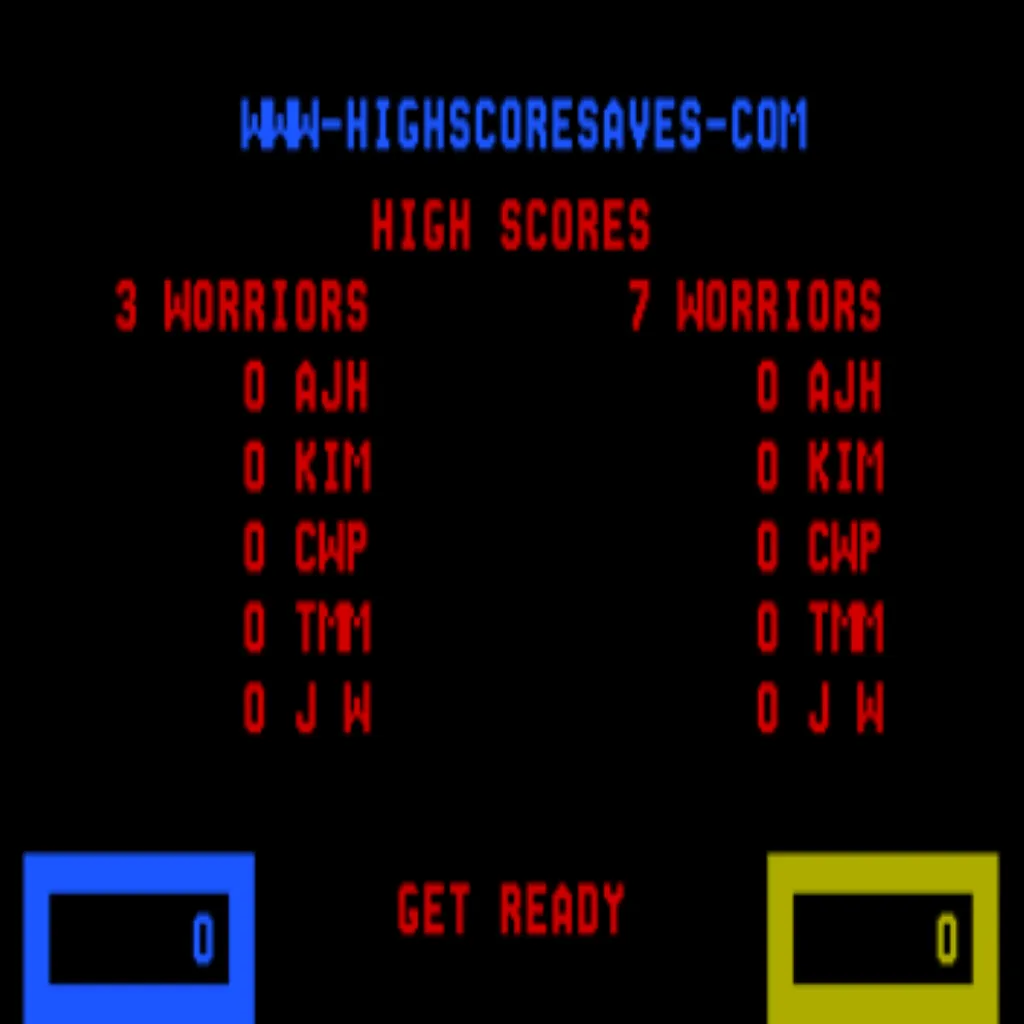

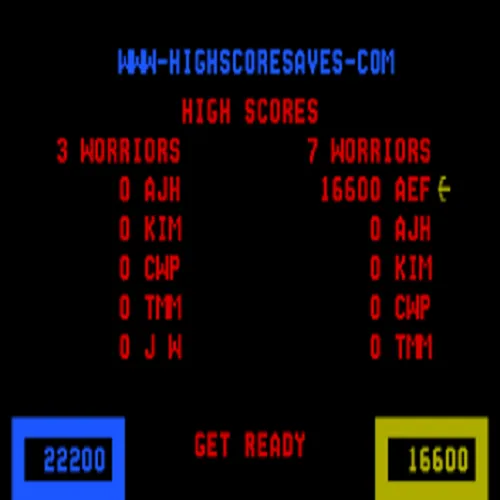

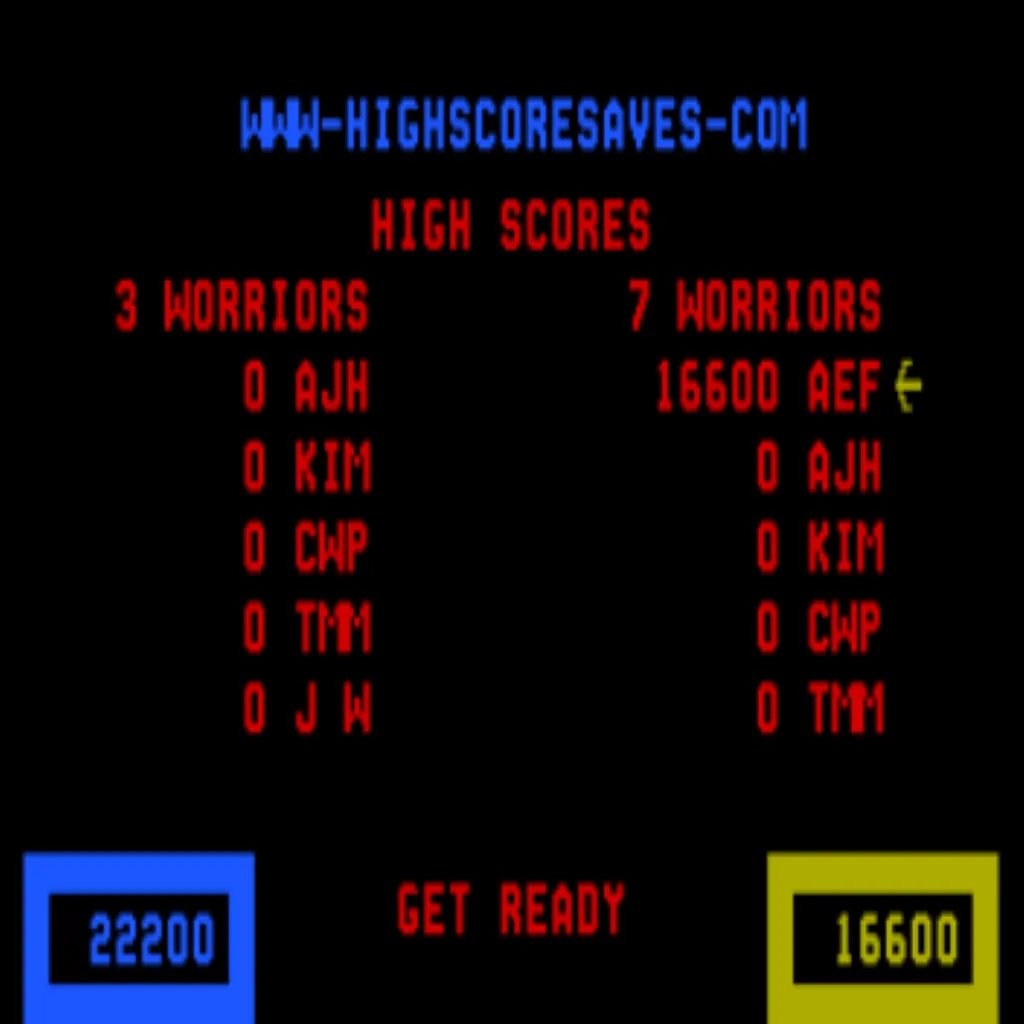

Wizard of Wor Top 5 Permanently saves Top 5 high scores with initials! in supported separate tables according to the selected number of lives.
Adjustable Attract Sounds Select attract sounds at 25%, 50%, or 100% of supported attract intervals.
Reset Function When enabled, pressing Player 1 Start + Player 2 Start together restarts gameplay without switching cabinet power off.
Stealth Mode Boot directly into gameplay without the regular startup menu when enabled.

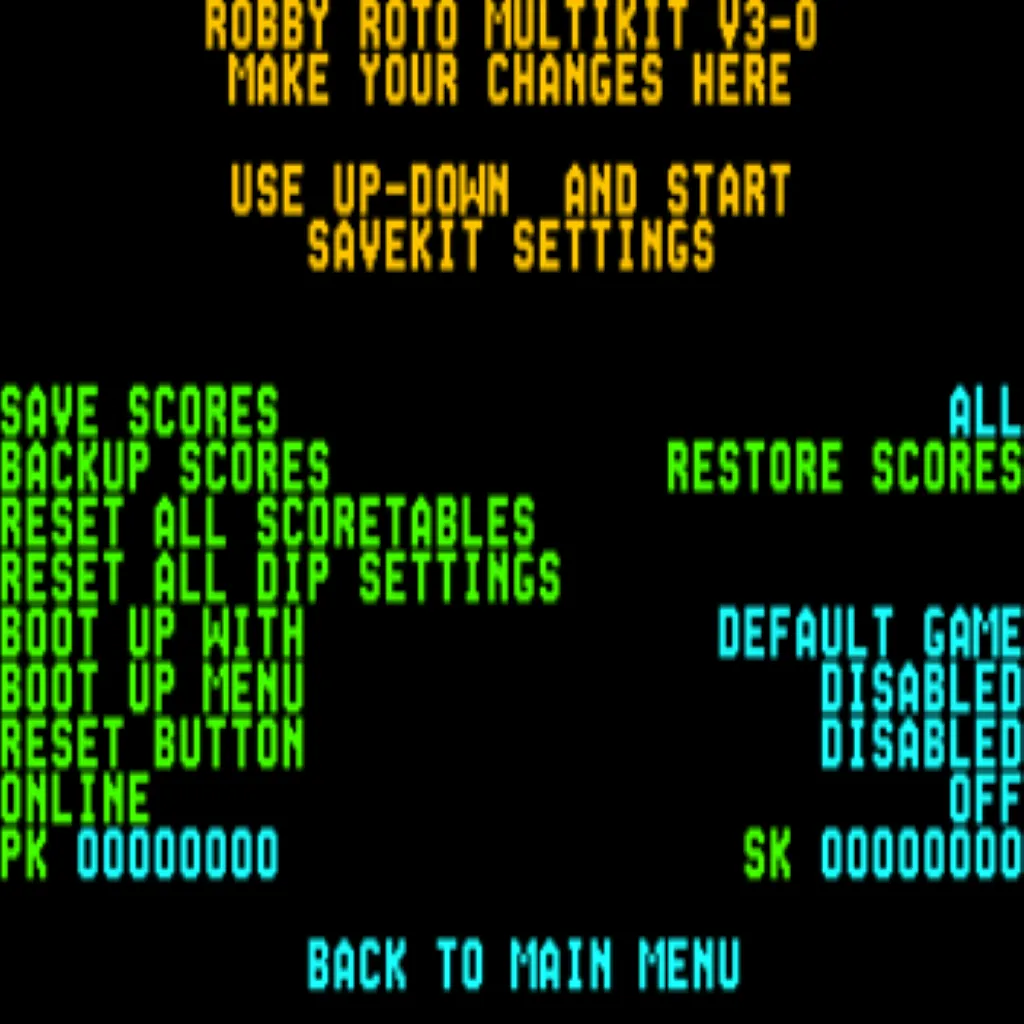

Backup & Restore Back up and restore supported saved high scores and player initials through the kit menu.
Battery-Free Serial EEPROM Retains supported high scores, initials, and settings after power-off without a backup battery.
Copyright Selection Choose the supported original-manufacturer or HighScoreSaves copyright display.
Original Board-Stack Arrangement Slot 1: game board; slot 2: empty (original memory board no longer required); slot 3: pattern board; slot 4: CPU board fully forward.

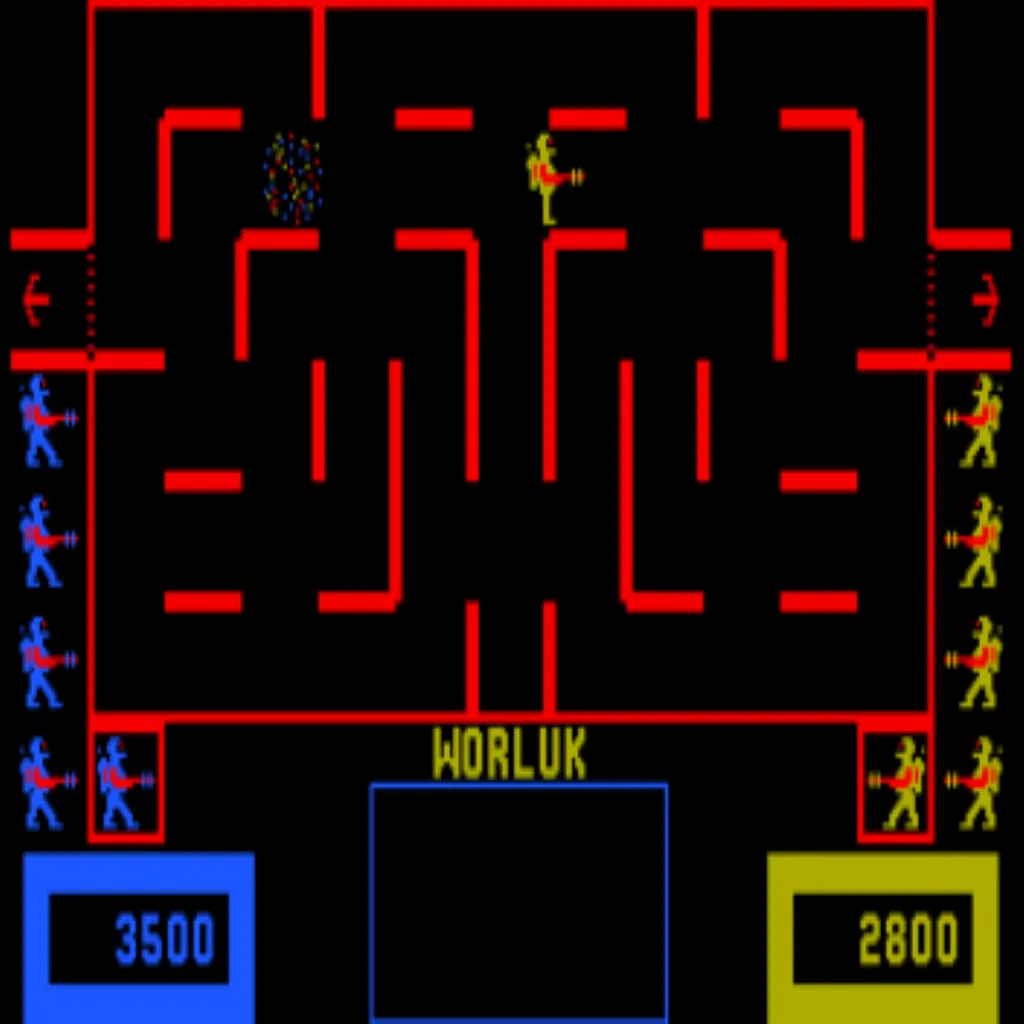

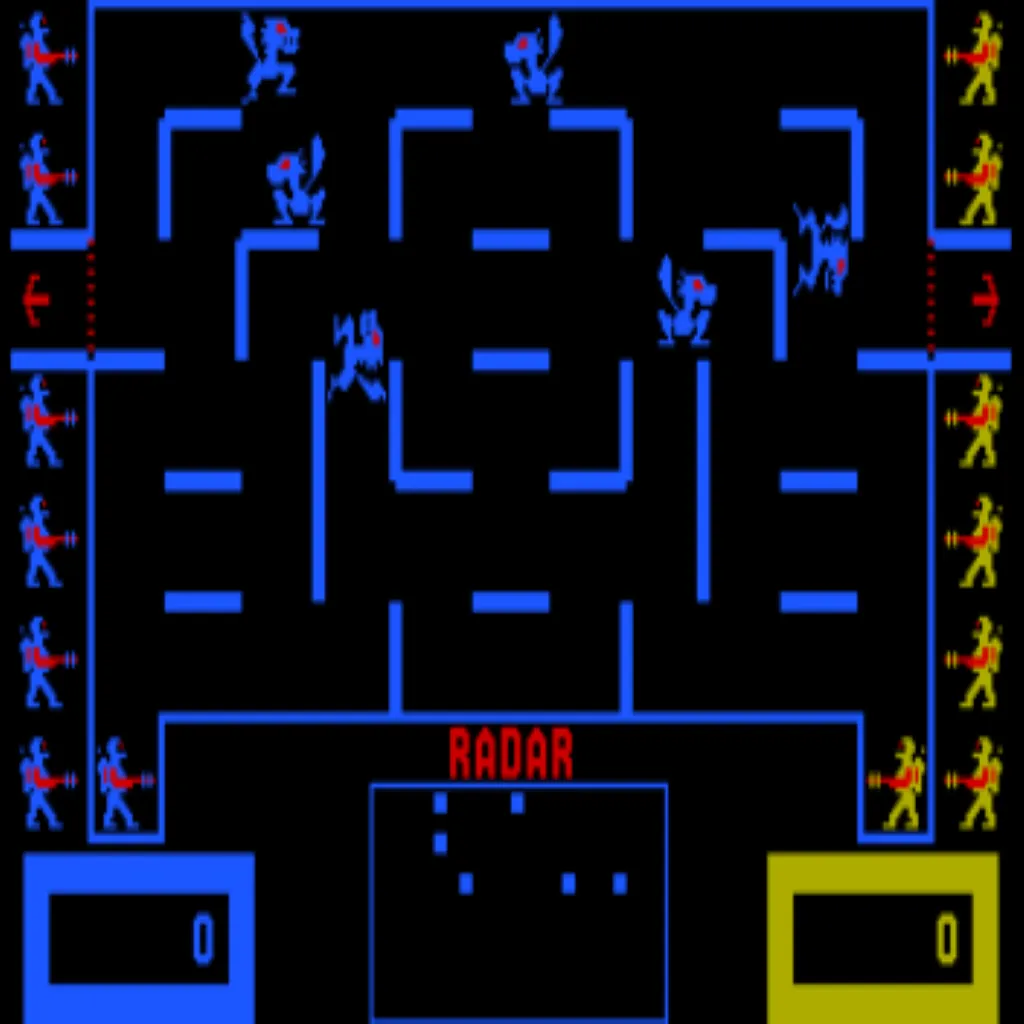

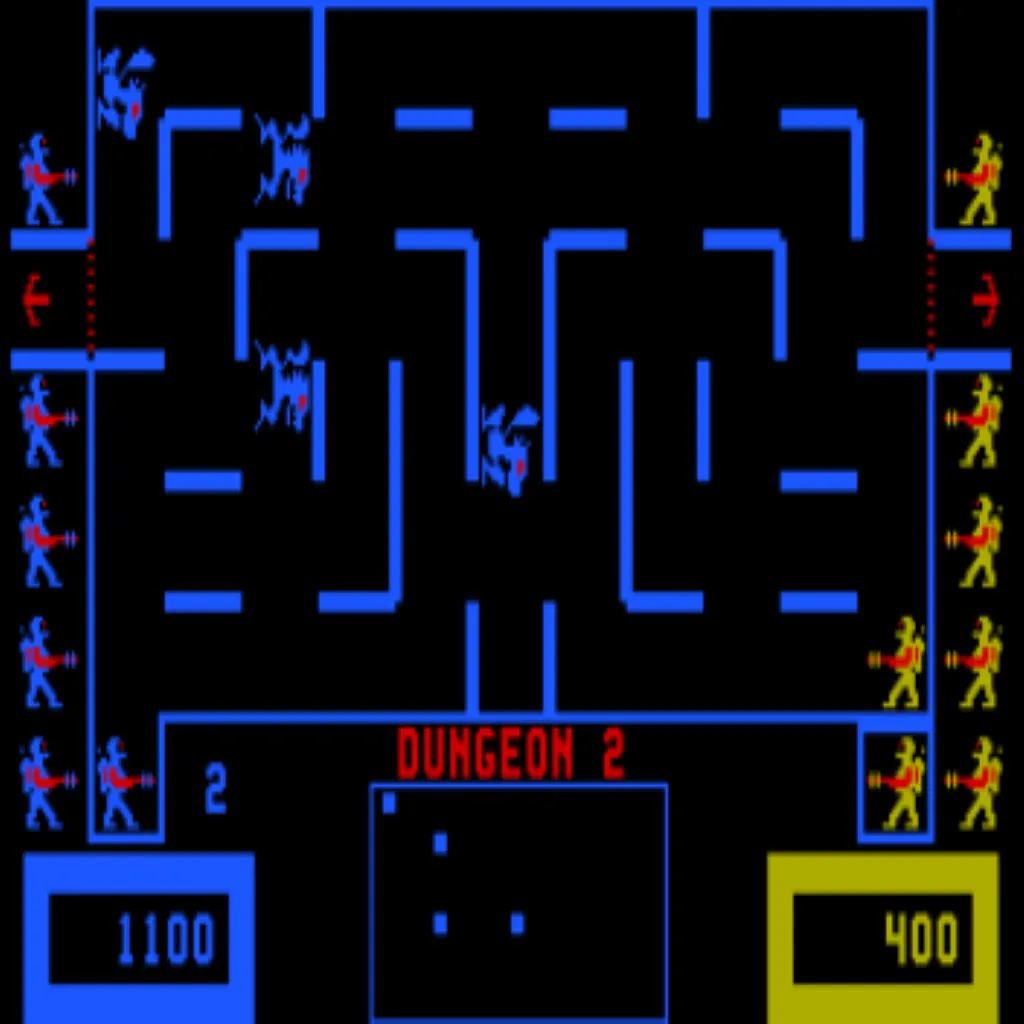

Wizard of Wor Hardware Limitations On the original Robby Roto hardware, Wizard of Wor lacks the original starfield background, sparkle effect, and speech. These cannot be enabled with kit settings.

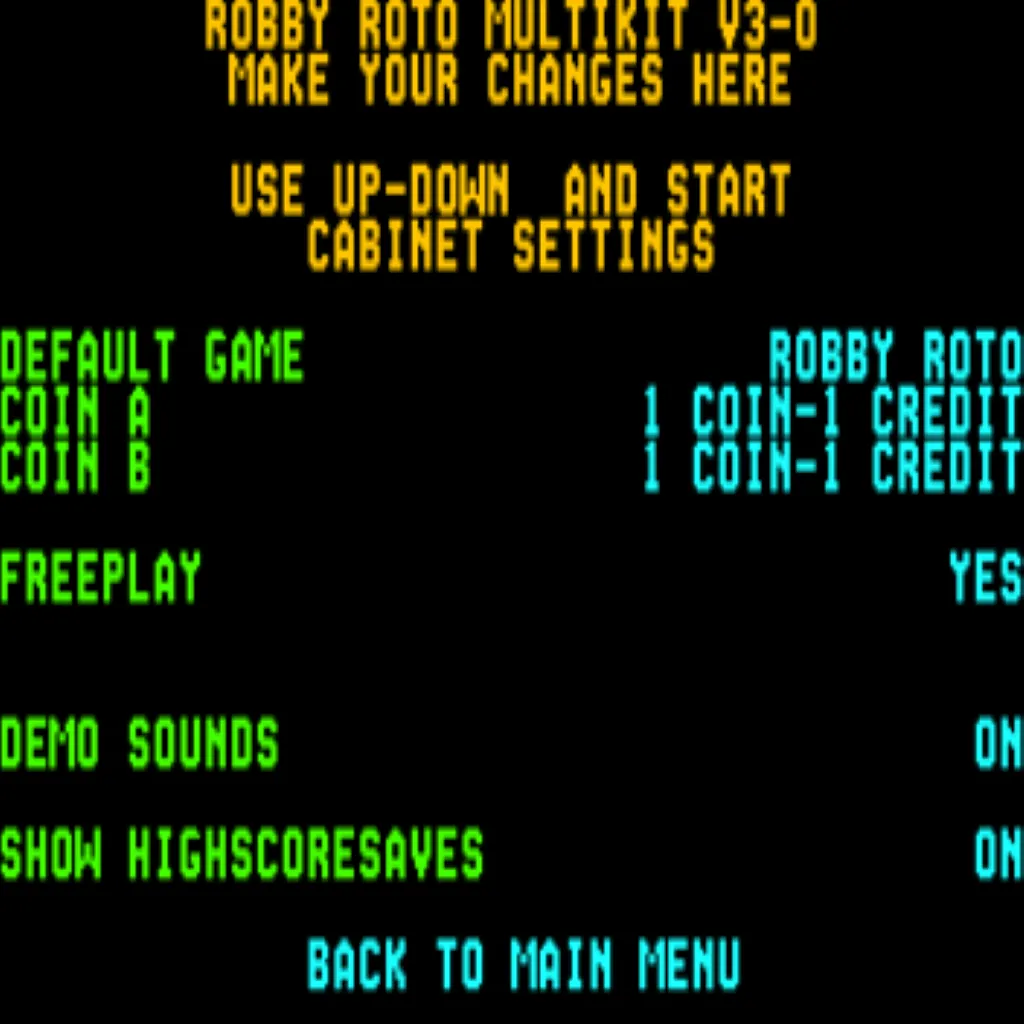

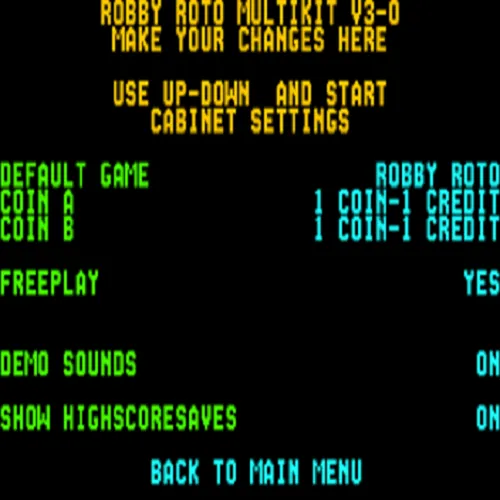

Free Play & Coin Operation Play without inserting coins, or retain traditional coin operation as desired.
Upright & Cocktail Support Works with documented compatible original Bally/Midway Robby Roto upright and cocktail configurations.
Installation & Settings Access

Game selection: Choose Robby Roto or Wizard of Wor at startup, or enable loading the previously selected game. For supported multigame switching, hold Player 1 Start during attract mode or gameplay until the screen freezes; release to open the game-selection menu.

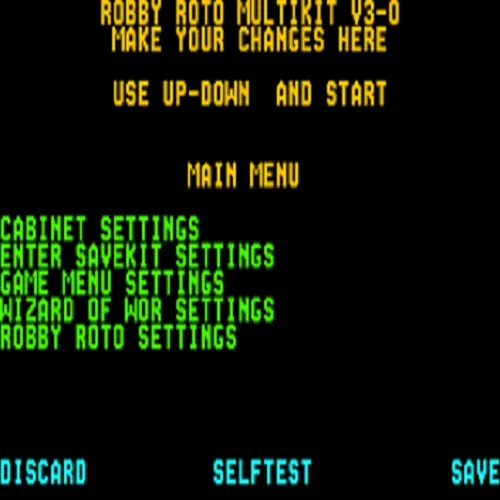

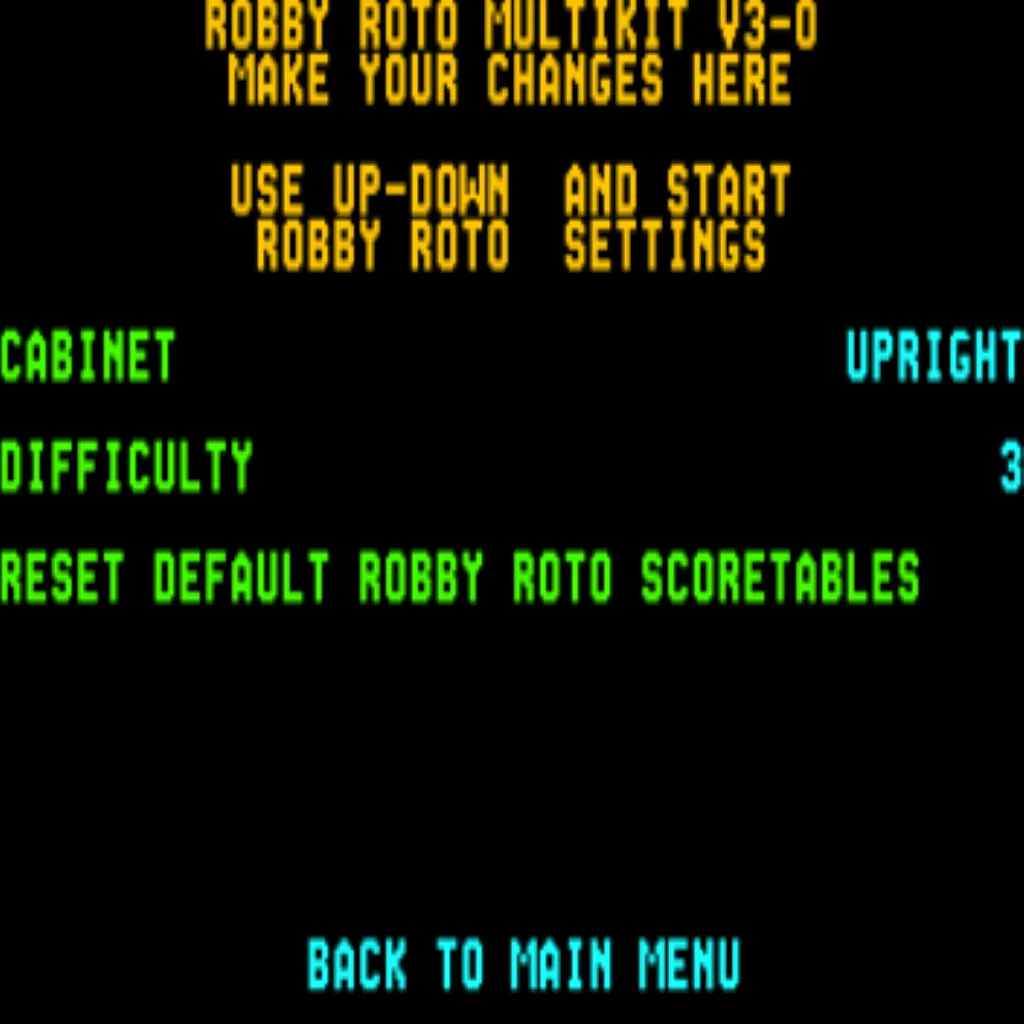

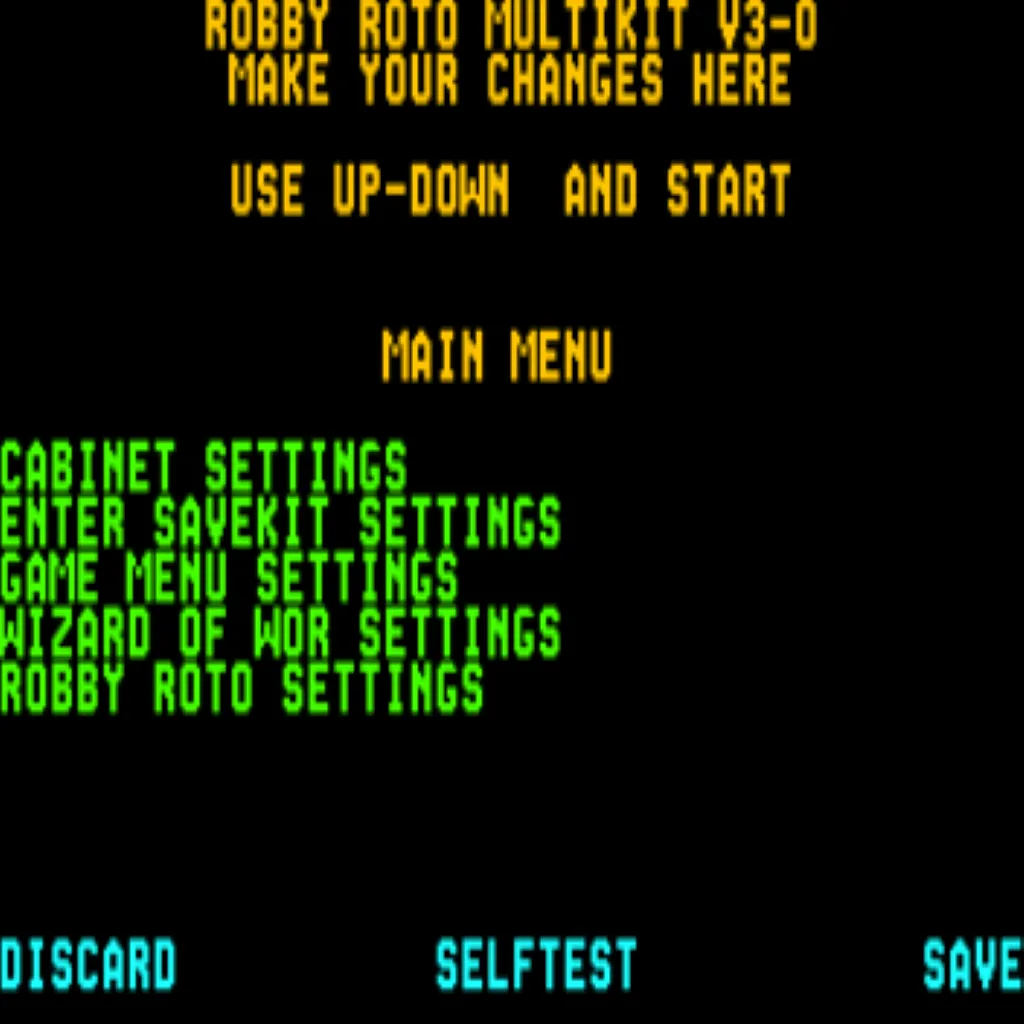

Enter the settings menu: Hold Player 1 Start for approximately 4 seconds while powering on the cabinet, then release when prompted.

Robby Roto board-stack layout: Slot 1 game board; slot 2 empty (remove and safely store the original memory board); slot 3 pattern board; slot 4 CPU board fully forward as illustrated in the PDF.

CPU installation: Install a compatible Z80 processor on the HighScoreSaves daughter card with Pin 1 correctly aligned, then fit it into the documented original 40-pin CPU socket. Have a qualified technician install a socket if the Z80 is soldered to the CPU board.

Wizard of Wor limitation: The original starfield, sparkle effect, and speech are unavailable on Robby Roto hardware. If Reset is enabled, press Player 1 + Player 2 Start together to restart gameplay.

Wi-Fi Setup & Global Scores

The Wi-Fi version uses a compatible 2.4 GHz Wi-Fi network for qualifying online score submissions. Top 21 Robby Roto high scores with initials! and Top 5 Wizard of Wor high scores with initials! remain saved locally, with their supported difficulty/lives tables, when Wi-Fi is disabled or unavailable.

Learn about HighScoreSaves Wi-Fi kits

View Global Arcade High Scores
