Space Duel Free Play and High Score Save Kit

Product information "Space Duel Free Play and High Score Save Kit"

Upgrade Your Original Atari Space Duel Vector Arcade PCB

The HighScoreSaves Space Duel Free Play and High Score Save Kit upgrades compatible original Atari Space Duel vector arcade hardware with Free Play, permanent Top 10 high scores with initials!, adjustable attract sounds, and menu-driven settings. Save scores in independent 2-, 3-, 4-, and 5-life tables, use Fast Boot, Reset and Stealth Mode, and optionally submit qualifying scores using Wi-Fi—all while keeping the original Atari arcade PCB.

Free Play

Play with or without coins

High Score Saving

Top 10 scores saved

with initials!

Attract Sounds

Selectable in settings

Optional Wi-Fi

Upload scores to Personal and Global pages!

Space Duel PCB Compatibility at a Glance

Compatible PCB Documented compatible original Atari Space Duel vector arcade PCB
CPU location Original 6502 processor position on the Space Duel PCB
CPU socket Compatible 40-pin 6502 CPU socket required
Installation Plug-in 6502 daughterboard; no soldering, trace cutting or special wiring if the CPU location is already socketed
Cabinet support Documented compatible upright and cocktail Space Duel configurations
Before you order: This kit requires a compatible original Atari Space Duel vector arcade PCB and a 6502 processor in a suitable 40-pin CPU socket. If the processor is already socketed, the daughterboard installs without soldering, trace cutting, special wiring, or permanent PCB modifications. If the CPU is soldered to the PCB, a qualified technician must install a compatible socket first. Before power-up, check Pin 1 orientation, aligned pins and complete daughterboard seating. Original program ROMs are removed only if using the documented optional ROM Saver configuration.

Choose Your Space Duel Kit Version

Standard Kit

Permanently saves Top 10 high scores with initials! in separate supported tables for 2, 3, 4 and 5 lives. Includes Free Play, Coin-Up, adjustable attract sounds, Fast Boot, Reset, Stealth Mode, on-screen settings and Backup and Restore. No internet connection required.

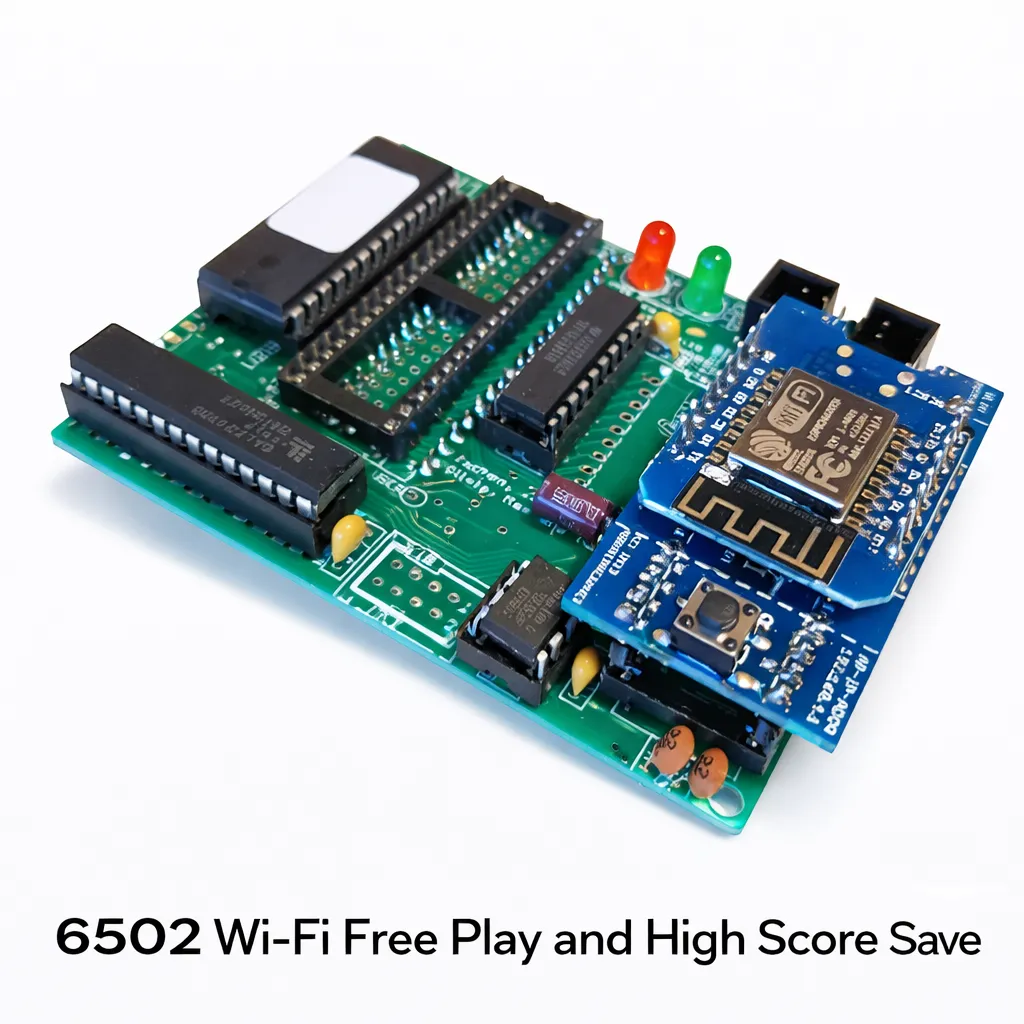

Wi-Fi Enabled Kit

Includes all Standard features and can submit qualifying Space Duel high scores with player initials to HighScoreSaves online leaderboards using a compatible 2.4 GHz Wi-Fi network. Local score saving, settings, and normal gameplay continue to work offline.

What's Included

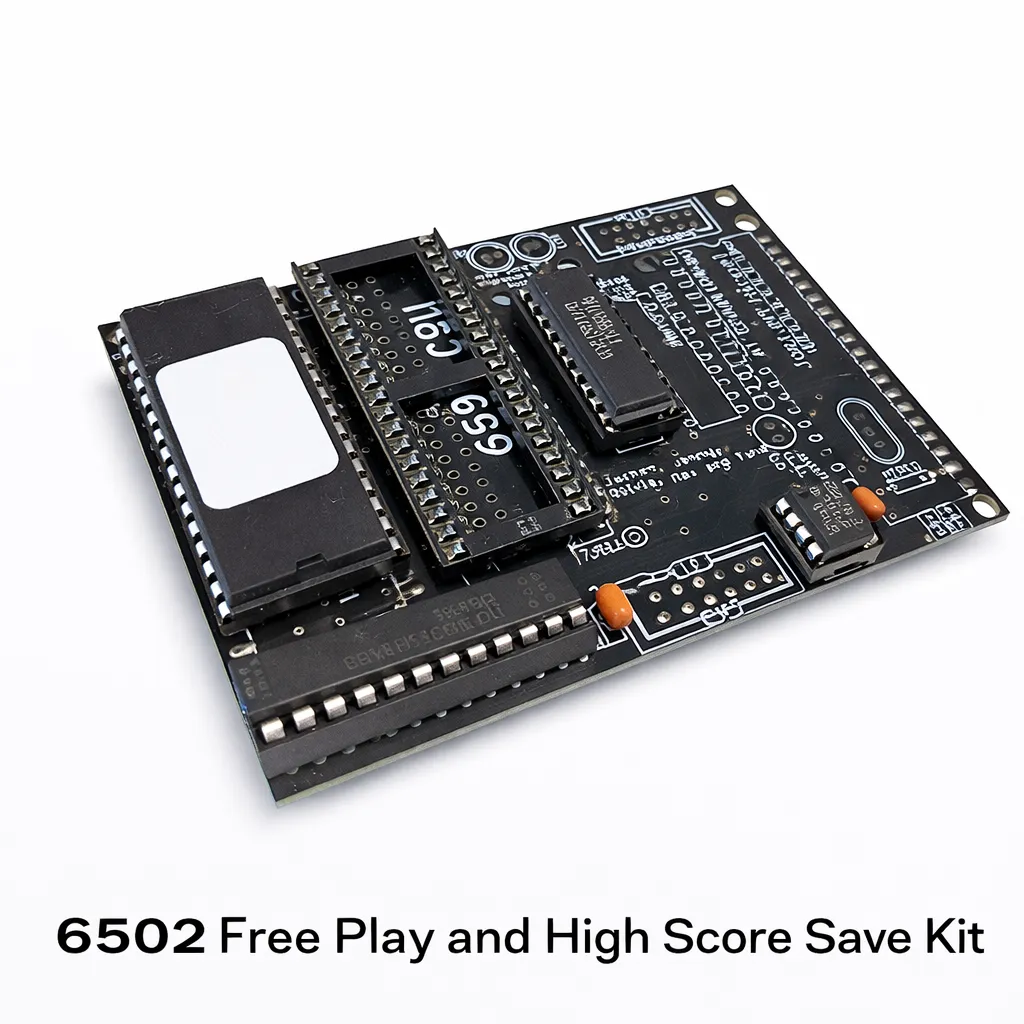

Base kit: 1 × HighScoreSaves Space Duel 6502 daughterboard for installation at the documented original Atari Space Duel CPU position.

A compatible 6502 processor and 40-pin CPU socket are required. Replacement 6502 and socket options may be selected when needed and are not included unless selected. The original Atari Space Duel arcade PCB is not included.

Installation & Helpful Guides

Verify the original Atari Space Duel vector PCB and its 6502 CPU socket before fitting the kit. Check processor Pin 1 orientation and review the illustrated installation guide for any optional ROM Saver steps.

Identify Your Original Arcade PCB
Confirm the original Atari Space Duel vector PCB and its 6502 CPU socket.
View Space Duel Installation Guide PDF
6502 daughterboard placement, Pin 1 orientation and optional program-ROM locations
Watch Space Duel Settings Menu Video
Review Free Play, score saving, attract sounds, Fast Boot and Stealth Mode

Additional Details & Resources

Select any section below to see more details.

Advanced Kit Features

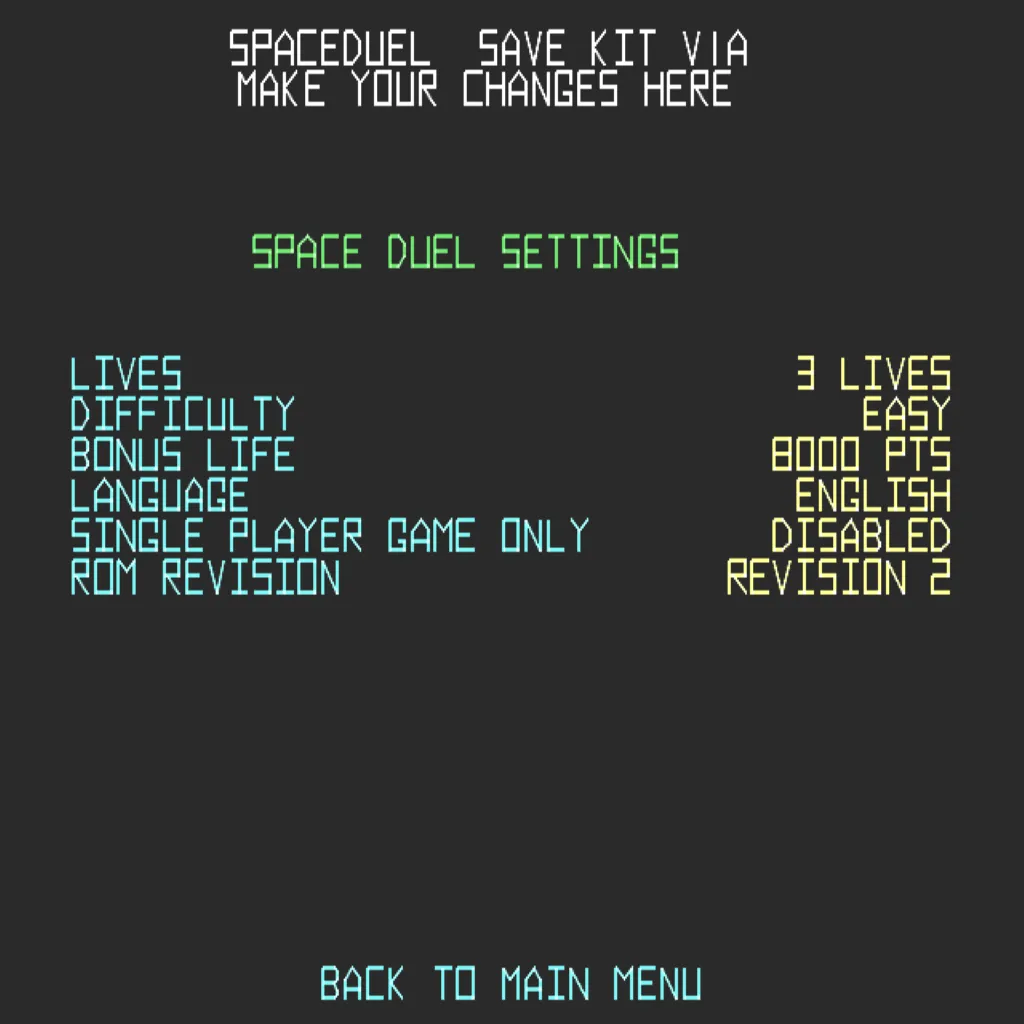

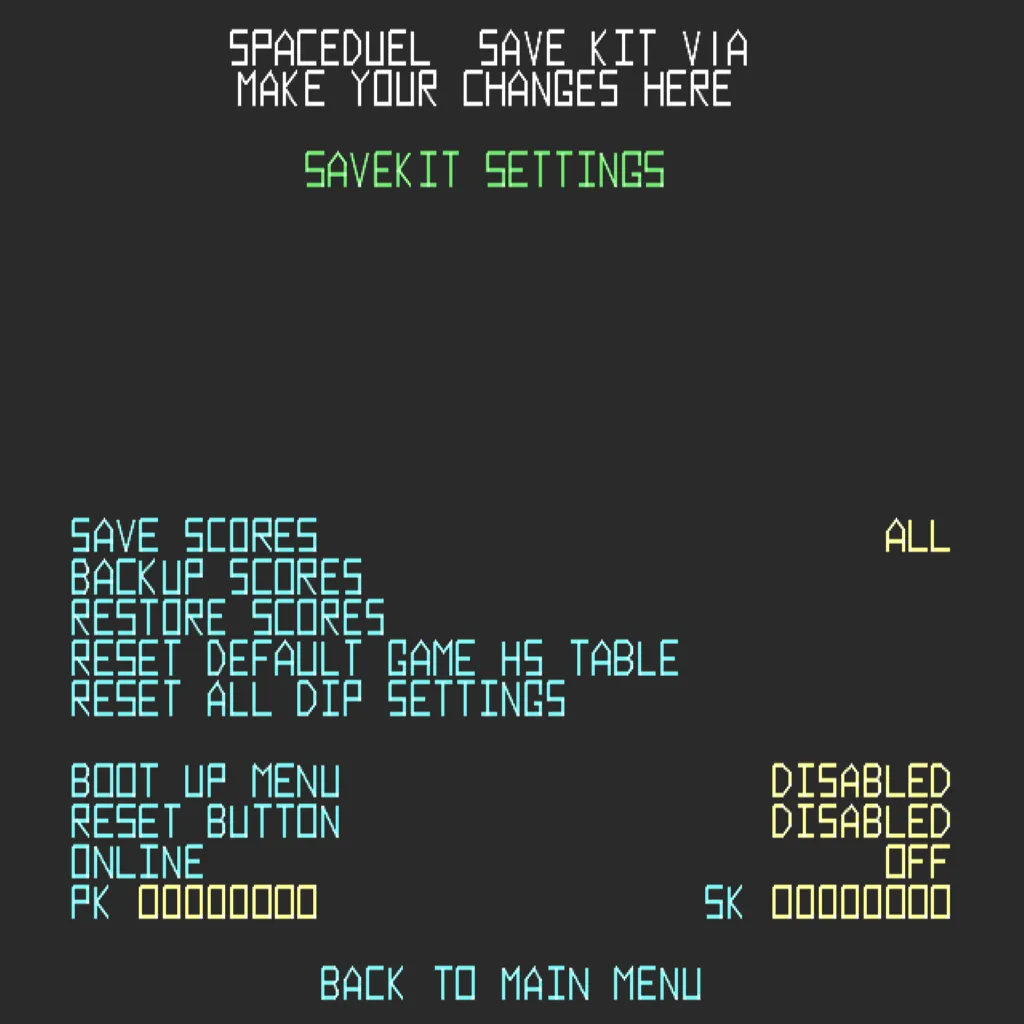

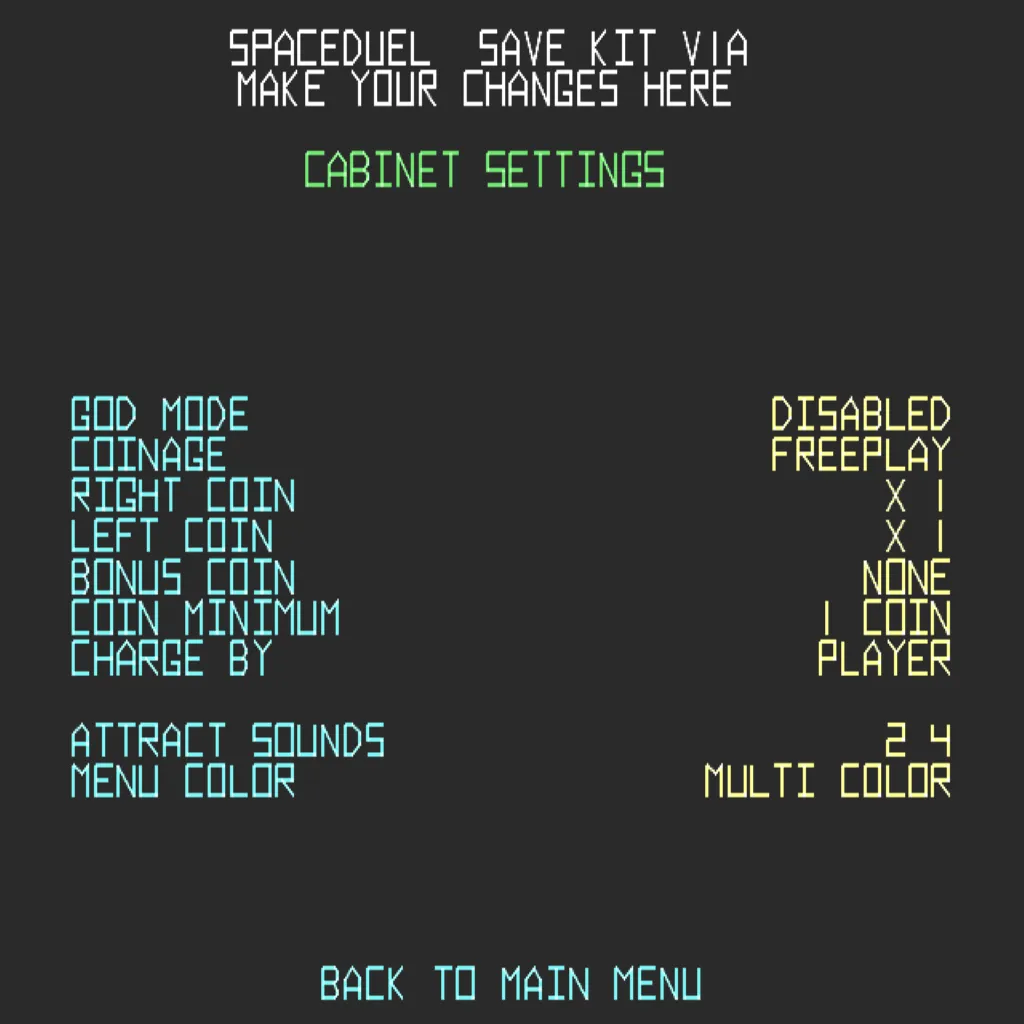

On-Screen DIP & Operator Settings Adjust supported Atari Space Duel gameplay, lives, Free Play, attract sound, score saving, and kit options through the on-screen menu.

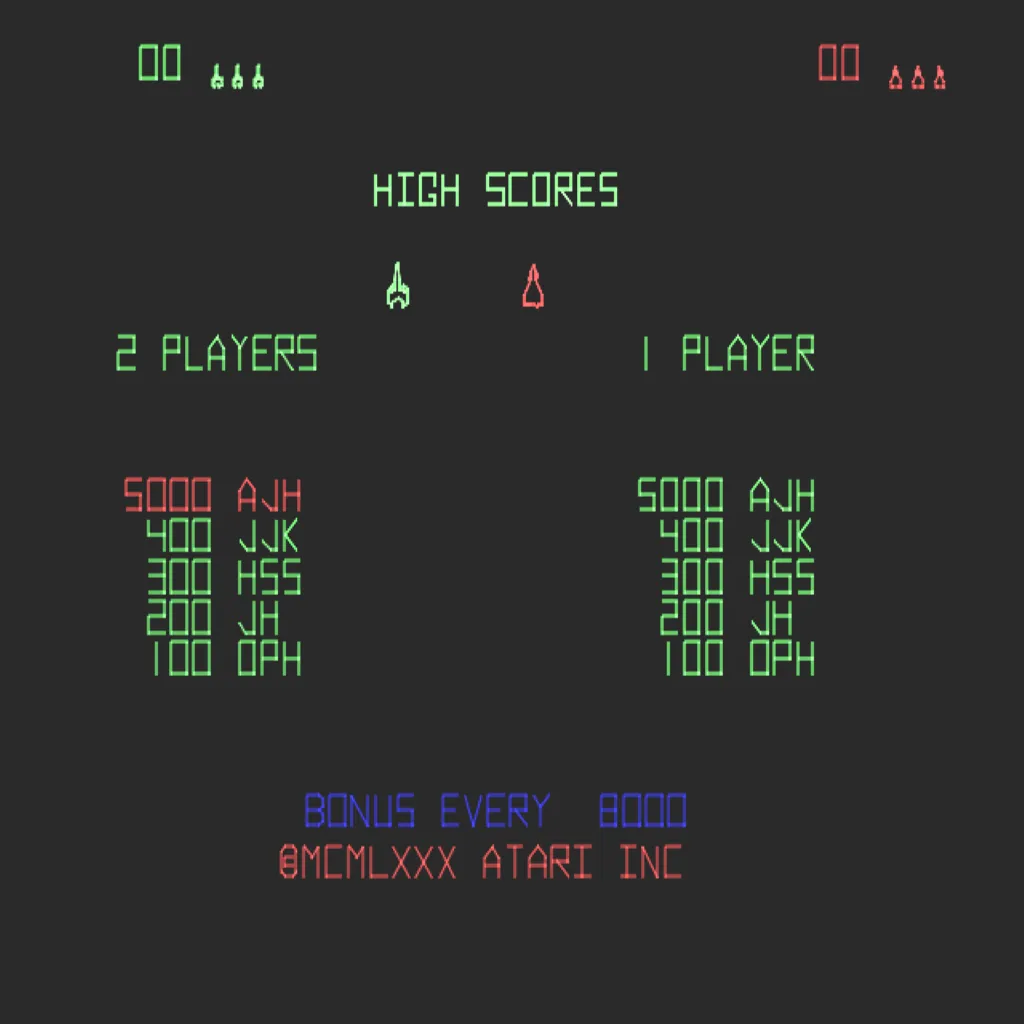

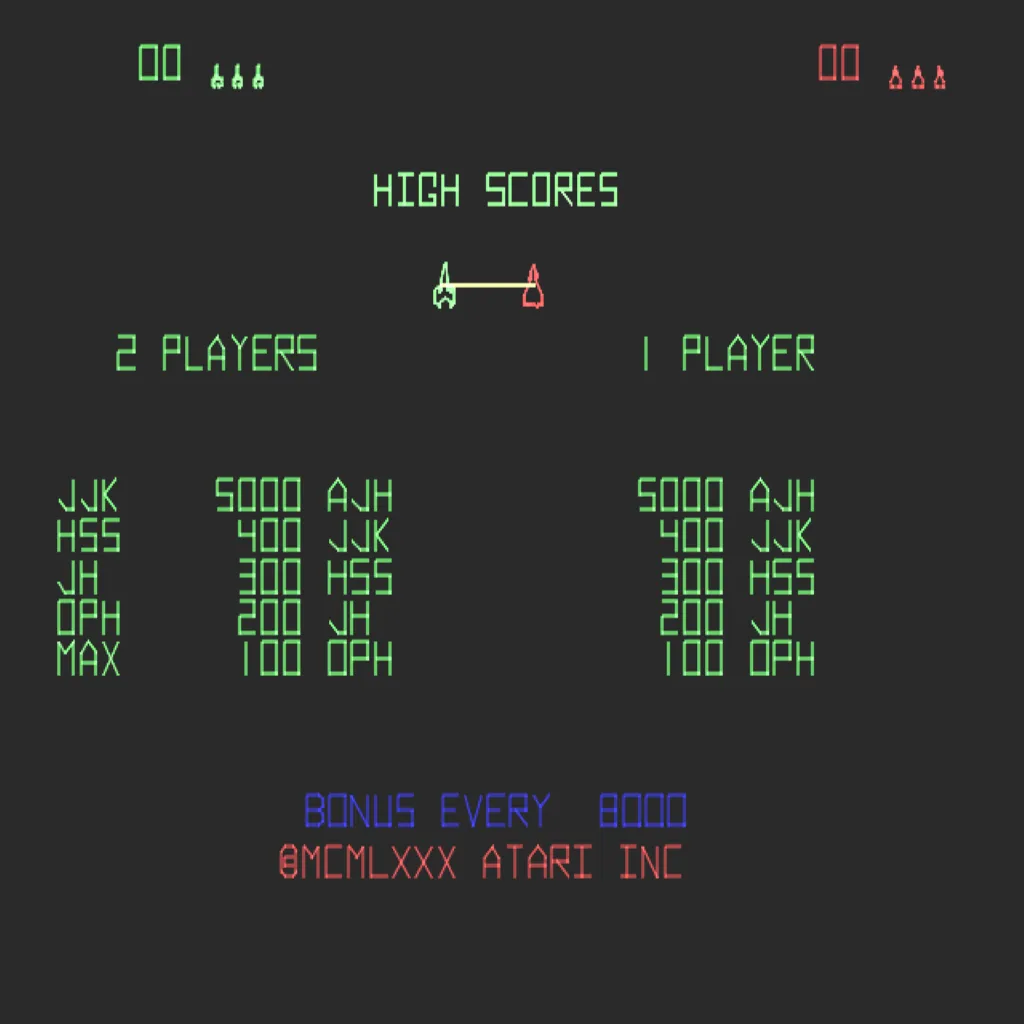

Separate Lives-Based Score Tables Permanently stores Top 10 high scores with initials! in supported independent tables for 2-, 3-, 4- and 5-life configurations.
Adjustable Attract Sounds Select supported attract-sound operation at 25%, 50%, or 100% of attract cycles.
Free Play & Coin-Up Play without inserting coins or retain original quarter/token coin-door operation when preferred.
Fast Boot Skip supported initialization sequences to start Space Duel faster.
Reset Button Restart supported gameplay without cycling cabinet power when enabled through the kit menu.
Stealth Mode Boot directly into normal Space Duel gameplay without displaying the kit menu.
Score Backup & Restore Back up supported saved high scores with initials and restore them through the kit.
Attract-Mode Protection Helps reduce prolonged static attract-screen display on the original vector monitor.
Copyright Selection Choose supported original Atari or HighScoreSaves copyright display options.
ROM Saver (Optional) Designated original program ROMs may be removed when the kit is installed and configured as directed in the Space Duel installation PDF.
Battery-Free Serial EEPROM Retains supported saved high scores, initials and settings after cabinet power-off without a backup battery.
Upright & Cocktail Support Supports documented compatible original Atari Space Duel upright and cocktail configurations.
Installation & Settings Access

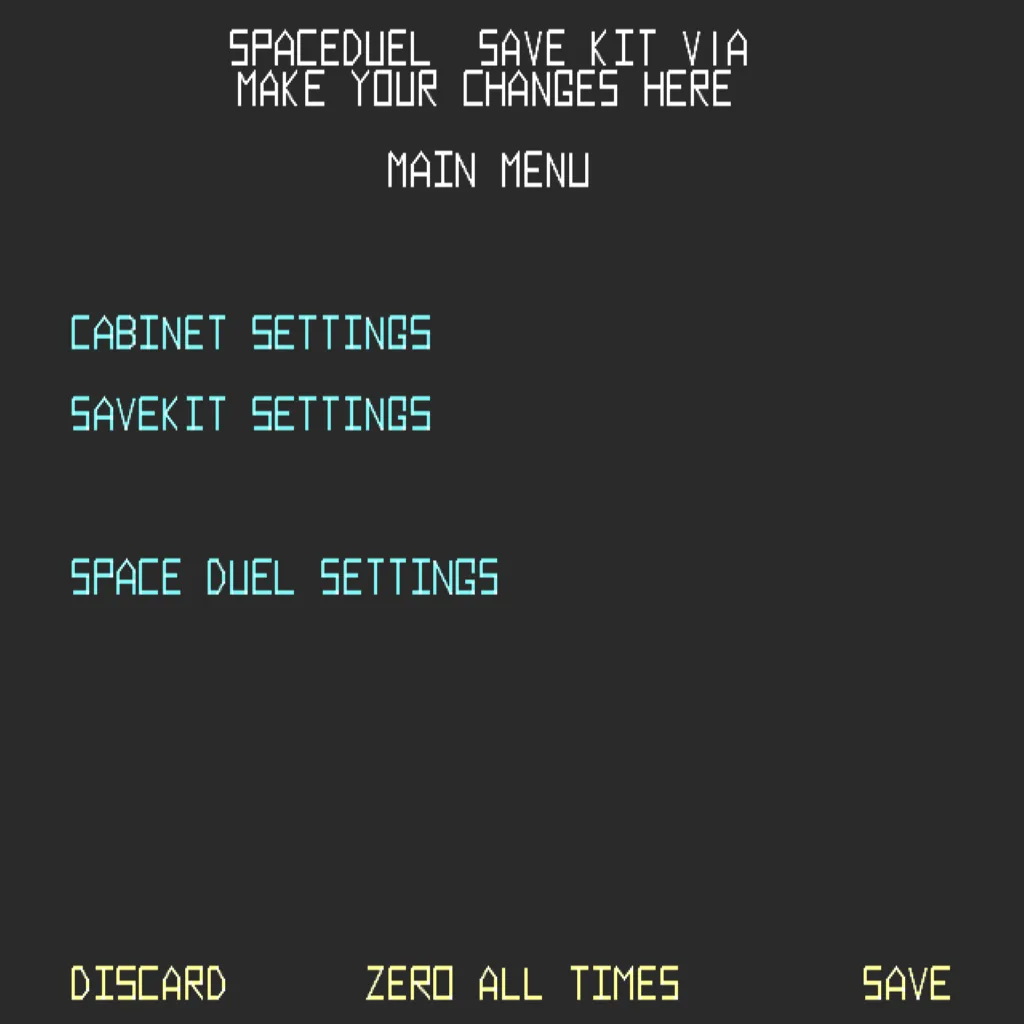

Enter the settings menu: With cabinet power off, hold Player 1 Start for approximately 4 seconds while powering on. Release the button when prompted on screen. Stealth Mode can start directly in the original gameplay while retaining settings access.

CPU installation: Confirm the original 6502 CPU location on the Atari Space Duel PCB. Seat a compatible 6502 on the HighScoreSaves daughterboard as directed in the PDF, checking Pin 1 alignment, and install the assembled daughterboard in the original 40-pin CPU socket. Have a qualified technician install a socket if the original processor is soldered in place.

Before power-up: Verify CPU pin alignment, socket condition, fully seated daughterboard, clearances around components, and the documented program-ROM locations. No soldering, trace cutting or permanent modification is needed when the original CPU position is already socketed.

Optional ROM Saver: Remove only the original program ROMs designated in the Space Duel installation guide when using its documented ROM Saver configuration. Fast Boot skips supported initialization; Reset restarts gameplay when enabled in settings.

Wi-Fi Setup & Global Scores

The optional Wi-Fi version uses a compatible 2.4 GHz Wi-Fi network to submit qualifying Space Duel high scores with initials. The Top 10 high scores with initials! and separate 2-, 3-, 4-, and 5-life score tables continue saving locally when Wi-Fi is disabled or unavailable.

Learn about HighScoreSaves Wi-Fi kits

View Space Duel Global High Scores
