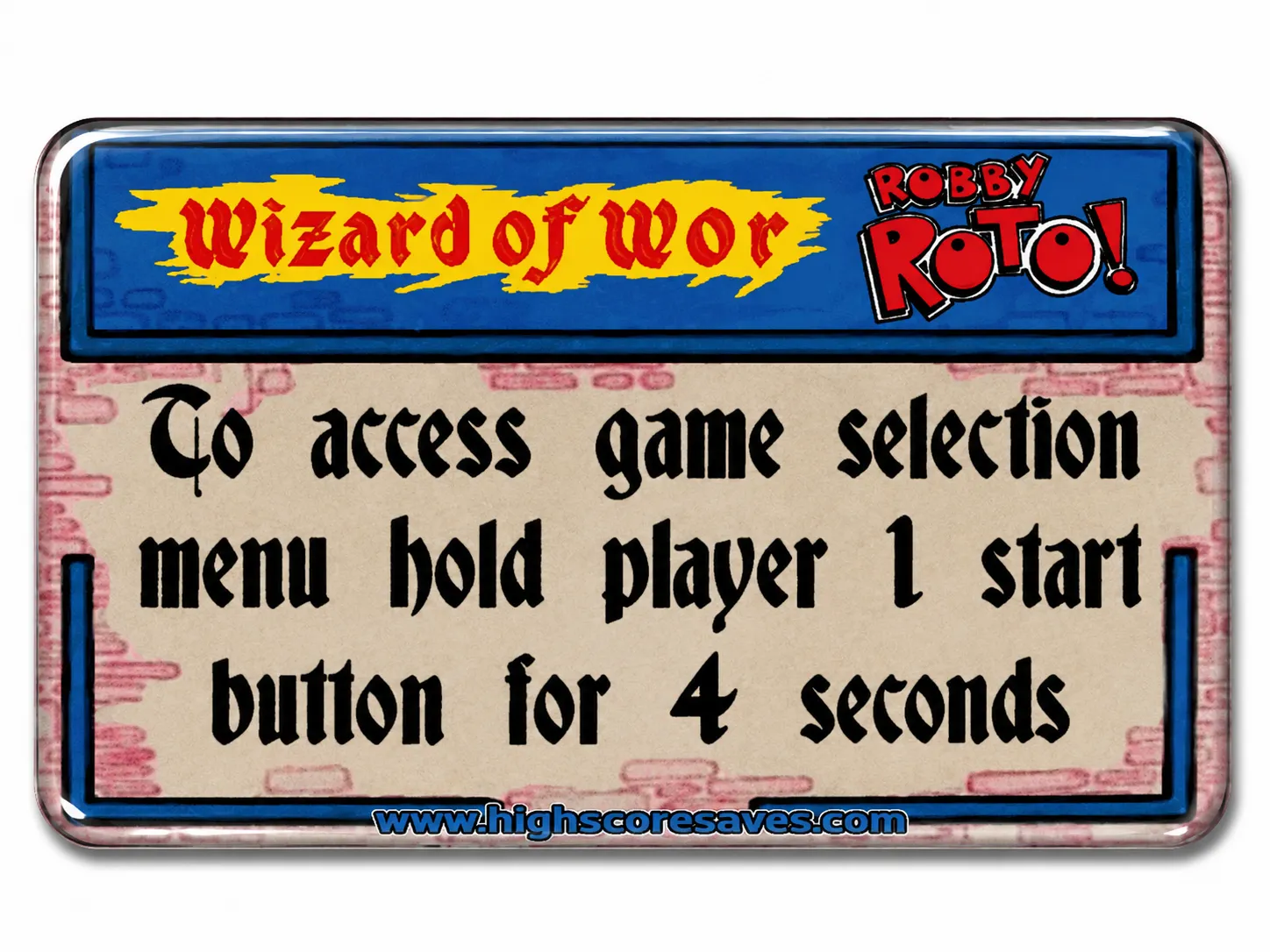

Wizard of Wor | Robby Roto Multigame Instruction Magnet

Wizard of Wor | Robby Roto Multigame Free Play and High Score Save Kit Upgrade compatible original Bally Midway Wizard of Wor or Robby Roto arcade hardware with both games, permanent high score saving, Free Play, adjustable attract sounds, game-specific score tables, menu-driven settings, ROM Saver, Backup and Restore, Stealth Mode, and optional Wi-Fi leaderboard support. This HighScoreSaves multigame kit continues to use the original Bally Midway PCB platform while adding convenient game selection and modern score-saving features. Wizard of Wor and Robby Roto retain their own score-saving behavior and supported game settings. Games Included: Wizard of Wor • Robby Roto Original Bally Midway Hardware • Z80 Processor • Two Games • Separate Score Tables • Free Play • Optional Wi-Fi View Wizard of Wor | Robby Roto Installation Guide Two-Game Multigame Play Wizard of Wor and Robby Roto on compatible original Bally Midway hardware. Game-Specific High Score Saving Wizard of Wor saves Top 5 scores while Robby Roto saves Top 21 scores. Separate Score Tables Wizard of Wor separates supported tables by lives; Robby Roto separates them by difficulty. Standard or Wi-Fi Enabled Choose local score saving or add supported online leaderboard functionality. What the Wizard of Wor | Robby Roto Multigame Kit Adds This multigame upgrade combines Wizard of Wor and Robby Roto on compatible original Bally Midway hardware while adding permanent score saving, Free Play, adjustable attract sounds, and menu-driven configuration. Additional features include game-specific score tables, ROM Saver, Backup and Restore, Reset, Stealth Mode, selectable startup behavior, and optional Wi-Fi leaderboard support. Compatibility and What to Check Before Ordering Hardware: Designed for documented compatible original Bally Midway Wizard of Wor and Robby Roto arcade PCBs. Processor: Requires a compatible Z80 processor. Processor Socket: The required Z80 location must have a compatible 40-pin socket for normal installation. Cabinets: Supports documented upright and cocktail configurations. ROM Saver: The original Program/ROM/RAM board is removed as documented while the required graphics RAM boards remain installed. If the Z80 processor is soldered directly to the PCB, a compatible 40-pin socket must be installed before fitting the kit. Choose Your Multigame Kit Configuration Select either a Standard Save Kit or a Wi-Fi Enabled Kit when ordering. Standard Save Kit Saves supported scores locally and includes Wizard of Wor and Robby Roto, Free Play, game-specific score tables, attract sounds, menu-driven settings, ROM Saver, Backup and Restore, Reset, Stealth Mode, and selectable startup behavior. Wi-Fi Enabled Kit Includes the same local gameplay and score-saving functionality while adding supported online leaderboard uploading. Important: Wi-Fi support must be selected when purchasing the kit and cannot be added later. Game Selection and Settings Menu Access Player 1 Start is used for supported HighScoreSaves multigame and configuration functions. Select a Game: During attract mode, hold Player 1 Start for approximately four seconds to enter the supported game-selection menu. Open the Settings Menu: Power the cabinet off, hold Player 1 Start, power the cabinet back on, and release the button when prompted. Wizard of Wor | Robby Roto Multigame Features Two Games: Wizard of Wor and Robby Roto Permanent Score Saving: Uses reliable serial EEPROM storage Wizard of Wor Scores: Saves the Top 5 supported scores Robby Roto Scores: Saves the Top 21 supported scores Initials Entry: Enter supported player initials directly on the scoreboard Separate Score Tables: Wizard of Wor separates tables by lives selected; Robby Roto separates them by difficulty Free Play: Play without inserting coins Coin-Up Support: Continue using traditional coin operation when desired Attract Sounds: Adjustable at 25%, 50%, or 100% of supported attract rotations Copyright Selection: Choose original manufacturer or HighScoreSaves branding Menu-Driven DIP Settings: Configure supported options through the kit menu ROM Saver: Removes the need for the original Program/ROM/RAM board as documented Backup and Restore: Back up supported high scores and restore them later Reset: Restart supported gameplay without cycling cabinet power Stealth Mode: Boot directly into gameplay without displaying the configuration menu Latest Supported ROM Revisions: Includes supported revisions supplied by the kit Startup Game Selection: Select a startup game or automatically load the last played game Cabinet Compatibility: Supports documented upright and cocktail cabinets Optional Wi-Fi: Adds supported online leaderboard functionality Games Included and High Score Saving Wizard of Wor Wizard of Wor saves the Top 5 supported high scores with player initials. Separate Wizard of Wor high score tables are maintained according to the selected number of lives. Robby Roto Robby Roto saves the Top 21 supported high scores. Separate Robby Roto high score tables are maintained according to the selected difficulty level. Wizard of Wor on Robby Roto Hardware When Wizard of Wor is run on compatible Robby Roto hardware, PCB limitations mean the Wizard of Wor presentation does not include the starfield background, sparkle effect, or speech support. This limitation applies to the underlying Robby Roto hardware rather than the multigame kit itself. Free Play, Attract Sounds, Reset, and Startup Options Free Play allows supported games to start without inserting coins while traditional Coin-Up operation remains available when desired. Attract sounds can be configured for 25%, 50%, or 100% of supported attract-mode rotations. After Reset is enabled through the menu, press Player 1 Start + Player 2 Start together to restart supported gameplay without cycling cabinet power. The startup configuration can be set to a selected game or to automatically load the last game played. Stealth Mode can boot directly into gameplay without showing the kit configuration menu. Installation Notes Z80 Processor Required: A compatible Z80 processor is required on the original Bally Midway hardware. Socketed CPU Required: The required Z80 location must have a compatible 40-pin socket. No Soldering on a Properly Socketed PCB: Normal installation does not require soldering when the required Z80 location is already socketed. Unsocketed PCB: If the Z80 is soldered directly to the PCB, install a compatible 40-pin socket before fitting the kit. ROM Saver: Remove the Program/ROM/RAM board as directed while leaving the required graphics RAM boards installed. Robby Roto Hardware Limitation: Wizard of Wor does not provide the starfield background, sparkle effect, or speech when operated on Robby Roto hardware. Follow the Installation Guide: Verify CPU orientation, daughter-card seating, board placement, and all connections before restoring cabinet power. Read the Wizard of Wor | Robby Roto Installation Guide Optional Wi-Fi and Online High Scores Choose the Wi-Fi Enabled version during purchase if you want supported Wizard of Wor and Robby Roto scores uploaded to the HighScoreSaves online leaderboard platform. Wi-Fi Enabled kits use a compatible 2.4 GHz Wi-Fi network. Standard kits save supported scores locally and do not require an internet connection for gameplay, Free Play, game selection, configuration, or local score storage. Wi-Fi cannot be added later. Select the Wi-Fi Enabled version when ordering if online leaderboard functionality is desired. Standard Kit vs Wi-Fi Enabled Kit View Global Arcade High Scores Wizard of Wor | Robby Roto Multigame Kit FAQ Which games are included? The kit includes Wizard of Wor and Robby Roto. How many Wizard of Wor scores are saved? Wizard of Wor saves the Top 5 supported scores. How many Robby Roto scores are saved? Robby Roto saves the Top 21 supported scores. Are the score tables separated by game settings? Yes. Wizard of Wor separates supported tables by lives selected, while Robby Roto separates supported tables by difficulty level. How do I select Wizard of Wor or Robby Roto? During attract mode, hold Player 1 Start for approximately four seconds to enter the supported game-selection menu. How do I access the settings menu? Power the cabinet off, hold Player 1 Start, power the cabinet on, and release the button when prompted. How does Reset work? Enable Reset through the kit menu, then press Player 1 Start and Player 2 Start together to restart supported gameplay. Does Wizard of Wor work exactly the same on Robby Roto hardware? No. Because of Robby Roto PCB limitations, Wizard of Wor does not include the starfield background, sparkle effect, or speech when operated on Robby Roto hardware. Do I still need the original Program/ROM/RAM board? No. Remove the Program/ROM/RAM board as directed while leaving the required graphics RAM boards installed. What processor is required? A compatible Z80 processor is required. Does installation require soldering? No soldering is required when the Z80 location already has a compatible 40-pin socket. If the processor is soldered directly to the PCB, a compatible socket must be installed first. Does the kit support upright and cocktail cabinets? Yes. The current product supports documented upright and cocktail configurations. Can Wi-Fi be added later? No. Wi-Fi support must be selected when purchasing the kit and cannot be added later. Where can I find the installation guide? View the Wizard of Wor | Robby Roto Multigame Installation Guide PDF . Designed and supported by HighScoreSaves for compatible original Bally Midway Wizard of Wor and Robby Roto arcade hardware. Wizard of Wor | Robby Roto Multigame Kit Resources 1. Wizard of Wor | Robby Roto Multigame Installation Guide PDF 2. Standard Kit vs Wi-Fi Enabled Kit 3. High Score Save Kit Tips and Tricks 4. HighScoreSaves YouTube Channel 5. HighScoreSaves Facebook Page

Robby Roto | Wizard of Wor Multigame Free Play and High Score Save Kit Upgrade a compatible original Bally/Midway Robby Roto PCB stack with Robby Roto and Wizard of Wor gameplay, Free Play, permanent high score saving, configurable game settings, attract sounds, and optional Wi-Fi leaderboard support. This particular multigame kit is designed for the Robby Roto hardware configuration. The HighScoreSaves Z80 daughter card installs on the original CPU board while the compatible Bally/Midway board stack remains the operating arcade hardware. Wizard of Wor is included as a supported game within this Robby Roto-based multigame configuration. The kit does not convert the cabinet to a generic multicade, replacement JAMMA board, or software-emulation platform. Robby Roto PCB Required • 2 Games • Z80 Daughter Card • Permanent Scores • Free Play • Optional Wi-Fi View Install Guide (PDF) Choose Your Robby Roto Multigame Configuration Choose a Standard Save Kit for local high score and settings storage or a Wi-Fi Enabled Kit that also supports qualifying online leaderboard score submission. A compatible Z80 processor is required on the daughter card. An existing compatible Z80 may be reused, or a replacement processor may be selected when ordering. The documented CPU location must use a compatible 40-pin socket. If the Z80 is soldered directly to the board, a suitable socket must be installed before fitting the multigame daughter card. Robby Roto and Wizard of Wor Included Robby Roto Robby Roto runs on the compatible original Bally/Midway hardware used as the base platform for this multigame installation. The kit permanently saves the Top 21 Robby Roto scores, with separate supported score tables based on difficulty. Wizard of Wor Wizard of Wor is included as the second supported game and permanently saves the Top 5 Wizard of Wor scores, with separate supported score tables according to the selected lives setting. Because this version runs from the Robby Roto hardware configuration, Wizard of Wor does not include the original starfield background, sparkle effect, or speech. These are hardware-related limitations of this configuration rather than selectable settings. Robby Roto Multigame Kit Features Two Games: Play Robby Roto or Wizard of Wor from the compatible original Robby Roto hardware Permanent High Score Saving: Battery-free serial EEPROM storage retains supported scores and settings after power is removed Robby Roto Scores: Saves the Top 21 scores Wizard of Wor Scores: Saves the Top 5 scores Initials Entry: Enter initials for supported saved high scores Free Play: Play without coins while retaining traditional coin operation when desired Attract Sounds: Select supported attract-sound operation at 25%, 50%, or 100% intervals Menu-Driven Settings: Configure supported gameplay and kit options through the on-screen menu Separate Score Tables: Wizard of Wor tables vary by supported lives settings while Robby Roto tables vary by supported difficulty settings Backup and Restore: Back up and restore supported saved score data through the kit menu Reset Function: When enabled, restart gameplay with Player 1 + Player 2 without cycling cabinet power Stealth Mode: Configure the kit to boot directly into gameplay without displaying the normal startup menu Game Selection: Select a game during startup or configure the kit to load the previously selected game Copyright Selection: Choose supported original-manufacturer or HighScoreSaves copyright display options ROM Saver: The documented multigame configuration no longer requires the original memory board in slot 2 Cabinet Compatibility: Supports documented compatible upright and cocktail configurations Optional Wi-Fi: Adds qualifying online score submission while retaining local score saving Robby Roto and Wizard of Wor High Score Tables The two games use different permanent score-table structures. Robby Roto saves the Top 21 scores and maintains supported separate tables based on difficulty. Wizard of Wor saves the Top 5 scores and maintains supported separate tables based on the selected number of lives. This keeps scores earned under different supported gameplay configurations from being combined into one table. Robby Roto Multigame Settings Menu With the cabinet powered off, press and hold Player 1 Start. Continue holding Player 1 Start while powering the cabinet on, then release the button when prompted on screen. The settings menu provides access to supported game options, DIP-style settings, attract sounds, score functions, startup behavior, Stealth Mode, Reset configuration, and other kit-specific settings. Robby Roto Multigame Installation Requirements This multigame kit requires a compatible original Robby Roto PCB stack. HighScoreSaves installation documentation specifically identifies Robby Roto hardware as the required base platform for this version. Confirm that the existing game board is working correctly before beginning installation. The kit is an upgrade for functioning compatible hardware and is not intended to repair an existing PCB fault. Required Hardware: Compatible original Bally/Midway Robby Roto PCB stack Processor: Compatible Z80 installed on the HighScoreSaves daughter card CPU Socket: Compatible 40-pin socket required at the documented Z80 location Slot 1: Game board Slot 2: Left empty; the original memory board is no longer required in the documented multigame configuration Slot 3: Pattern board Slot 4: CPU board installed fully forward as shown in the installation guide Z80 Installation: Install the processor on the daughter card with Pin 1 correctly aligned Daughter Card: Install the assembled daughter card into the documented Z80 socket on the CPU board and verify that every pin enters the socket correctly View Install Guide (PDF) Standard Save Kit vs. Wi-Fi Enabled Kit The Standard Save Kit permanently stores supported scores and settings locally and does not require an internet connection for normal gameplay, Free Play, game selection, menu operation, or local high score saving. The Wi-Fi Enabled Kit includes the same local functionality and adds qualifying online score submission to the HighScoreSaves leaderboard. Compare Standard and Wi-Fi Kits View Global Arcade High Scores Robby Roto Multigame Kit FAQ Which original PCB does this multigame kit require? This version requires compatible original Robby Roto hardware. The installation guide specifically identifies the Robby Roto PCB as the required base platform. Which games are included? The kit includes Robby Roto and Wizard of Wor using the compatible Robby Roto hardware configuration. How many high scores are saved? Robby Roto saves the Top 21 scores while Wizard of Wor saves the Top 5 scores. Why does Wizard of Wor look and sound different on this kit? Wizard of Wor runs within the capabilities of the Robby Roto hardware used by this configuration. The starfield background, sparkle effect, and speech are therefore not available. Does the original memory board remain in the board stack? No. In the documented multigame arrangement, slot 2 remains empty because the original memory board is no longer required. Does installation require soldering? No soldering is required for normal daughter-card installation when the required Z80 location is already properly socketed. If the CPU is soldered directly to the board, a compatible socket must be installed first. How do I open the settings menu? With cabinet power off, hold Player 1 Start while turning the game on. Release Player 1 Start when the on-screen prompt tells you to continue. Is Wi-Fi required? No. The Standard Save Kit stores supported scores and settings locally. Wi-Fi is optional and adds qualifying online leaderboard score submission. Need to Verify Your Original Robby Roto Hardware? Review the Robby Roto Multigame PCB Upgrade Guide for Bally/Midway board-stack information, Z80 socket requirements, hardware compatibility, and pre-order checks. View Robby Roto Multigame PCB Upgrade Guide Robby Roto Multigame Resources Robby Roto Multigame Installation Guide (PDF) Robby Roto Multigame PCB Upgrade and Compatibility Guide Standard Save Kit vs. Wi-Fi Enabled Kit HighScoreSaves Tips and Tricks Designed and supported by HighScoreSaves for compatible original Bally/Midway Robby Roto arcade hardware.
