Product information "Zaxxon Free Play and High Score Save Kit"
Upgrade Your Original Sega Zaxxon Arcade PCB
The HighScoreSaves Zaxxon Free Play and High Score Save Kit upgrades compatible original Sega Zaxxon arcade hardware with Free Play, permanent Top 6 high scores with initials!, and selectable attract sounds. Independent score tables for 2-, 3-, 4-, and 5-life configurations, on-screen operator settings, 180-degree Flip Screen, Backup and Restore, Attract-Mode Protection, optional ROM Saver, and optional Wi-Fi leaderboards add convenience while retaining the original Sega PCB, Z80 processor, controls, graphics, sound, and gameplay. This is the HighScoreSaves version; a separate Braze Technologies Zaxxon kit is also available.
|
Free Play Play with or without coins |
High Score Saving Top 6 scores saved with initials! |
|
Attract Sounds 25%, 50%, or 100% in settings |
Optional Wi-Fi Upload scores to Personal and Global pages! |
Zaxxon PCB Compatibility at a Glance
| Compatible PCB | Compatible original Sega Zaxxon arcade PCB — this product is the HighScoreSaves kit, not the separate Braze version |
|---|---|
| CPU location | Original Z80 processor location on the compatible Sega Zaxxon PCB |
| CPU socket | Compatible 40-pin Z80 CPU socket required at the original processor position |
| Installation | Transfer the original Z80 CPU to the HighScoreSaves daughter card, then seat the assembly in the original 40-pin socket; no special cabinet wiring required |
| Cabinet support | Compatible original upright and cocktail Zaxxon cabinets; 180-degree Flip Screen supported in kit settings |
Choose Your Zaxxon Kit Version
Standard Kit

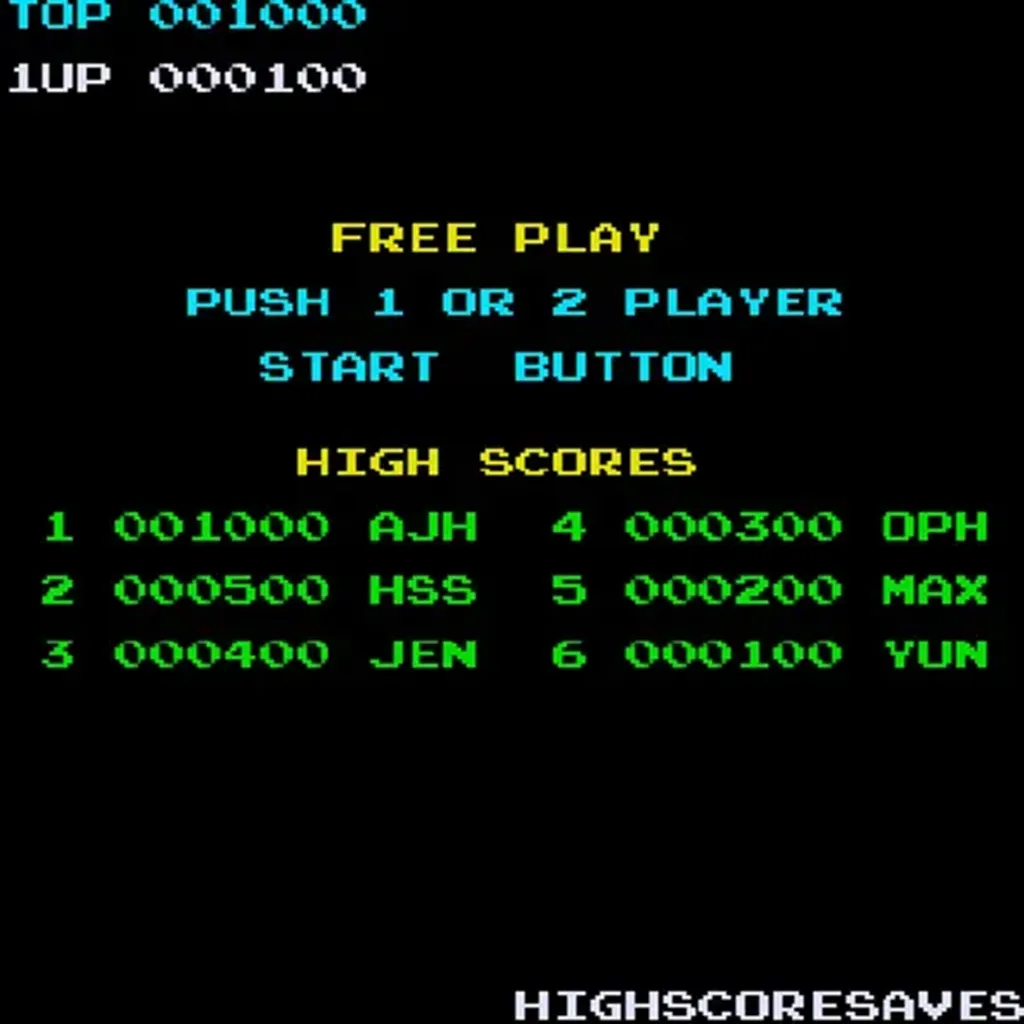

Permanently saves Top 6 high scores with initials! in independent supported tables for 2, 3, 4, and 5 lives. Includes Free Play and Coin-Up, attract sounds at 25%, 50%, or 100%, on-screen DIP/operator settings without a separate service switch, 180-degree Flip Screen, Attract-Mode Protection, original-manufacturer or HighScoreSaves attract logo selection, Backup and Restore of the current supported score table, and optional ROM Saver. No internet connection required.
Wi-Fi Enabled Kit

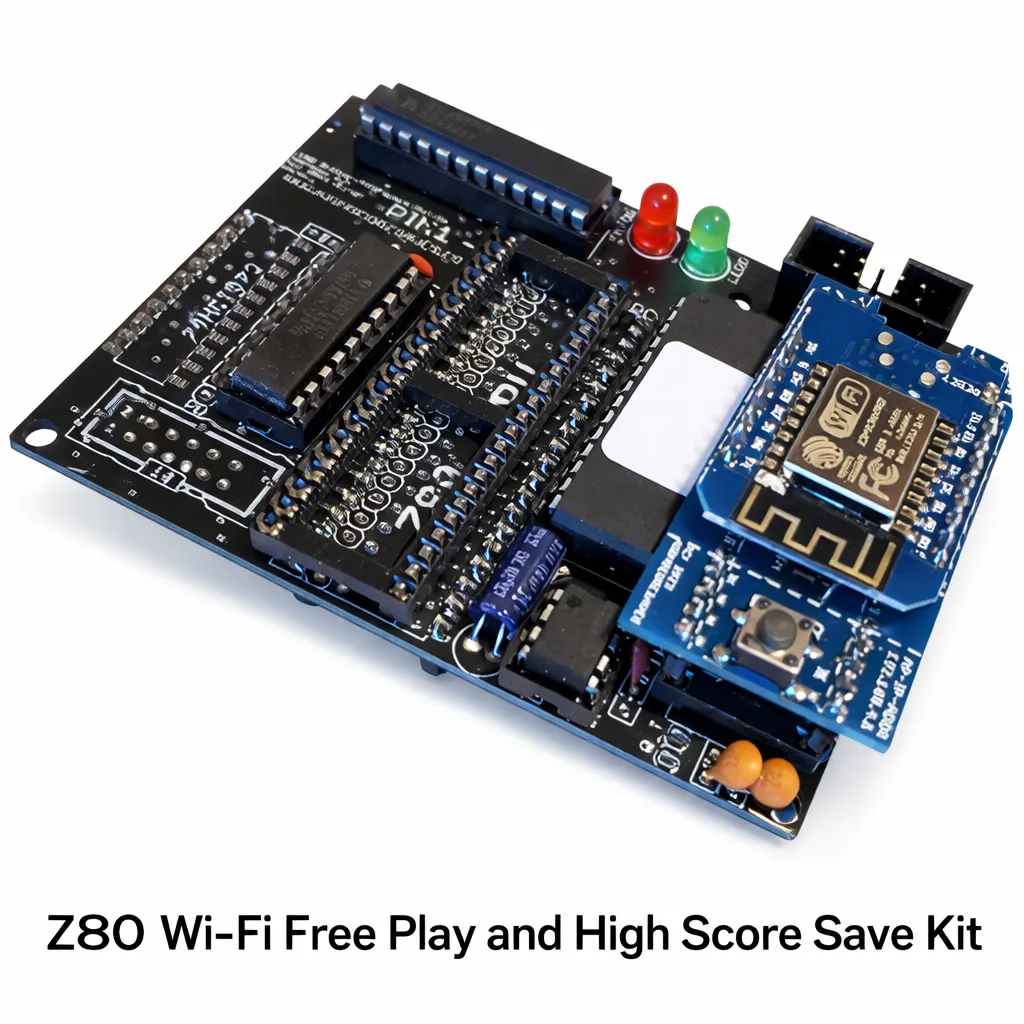

Includes all Standard features and can submit qualifying Zaxxon high scores with initials to the supported HighScoreSaves online leaderboard using compatible 2.4 GHz Wi-Fi. Qualifying scores are submitted after the player enters initials. Local scores, operator settings, and gameplay continue working without an internet connection.
What's Included

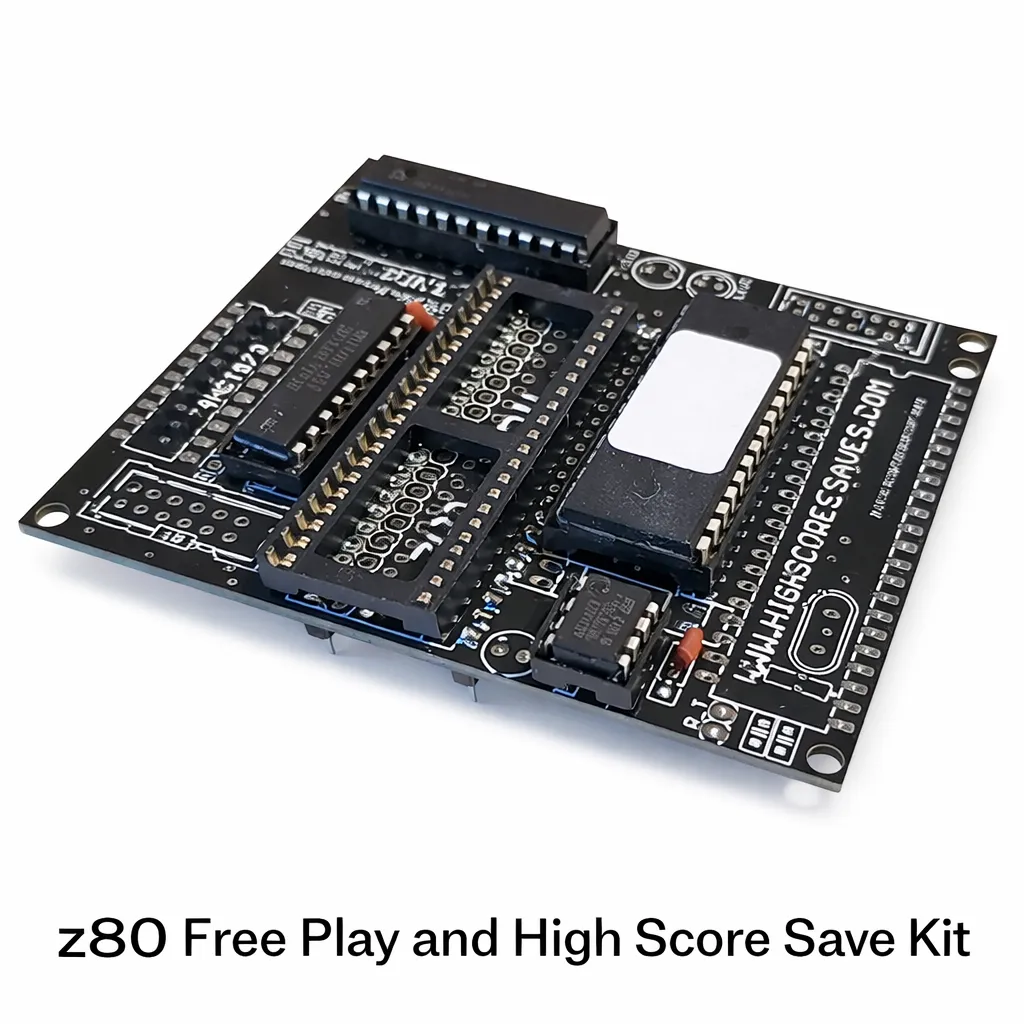

Base kit: 1 × HighScoreSaves Z80 daughter card
Installation & Helpful Guides
Confirm your compatible original Sega Zaxxon PCB, socketed Z80 processor, and proper 40-pin CPU socket. Transfer the original Z80 to the daughter card as shown in the PDF. No special cabinet wiring or separate service switch is needed. The video demonstrates the settings menu, not physical installation.
|
Identify Your Original Arcade PCB Verify your original Sega Zaxxon PCB, Z80 processor, and compatible 40-pin socket; this is the HighScoreSaves version. |
|
View Zaxxon Installation Guide PDF Review Z80 CPU transfer, Pin 1 orientation, 40-pin socket installation, and documented optional ROM Saver steps. |
|

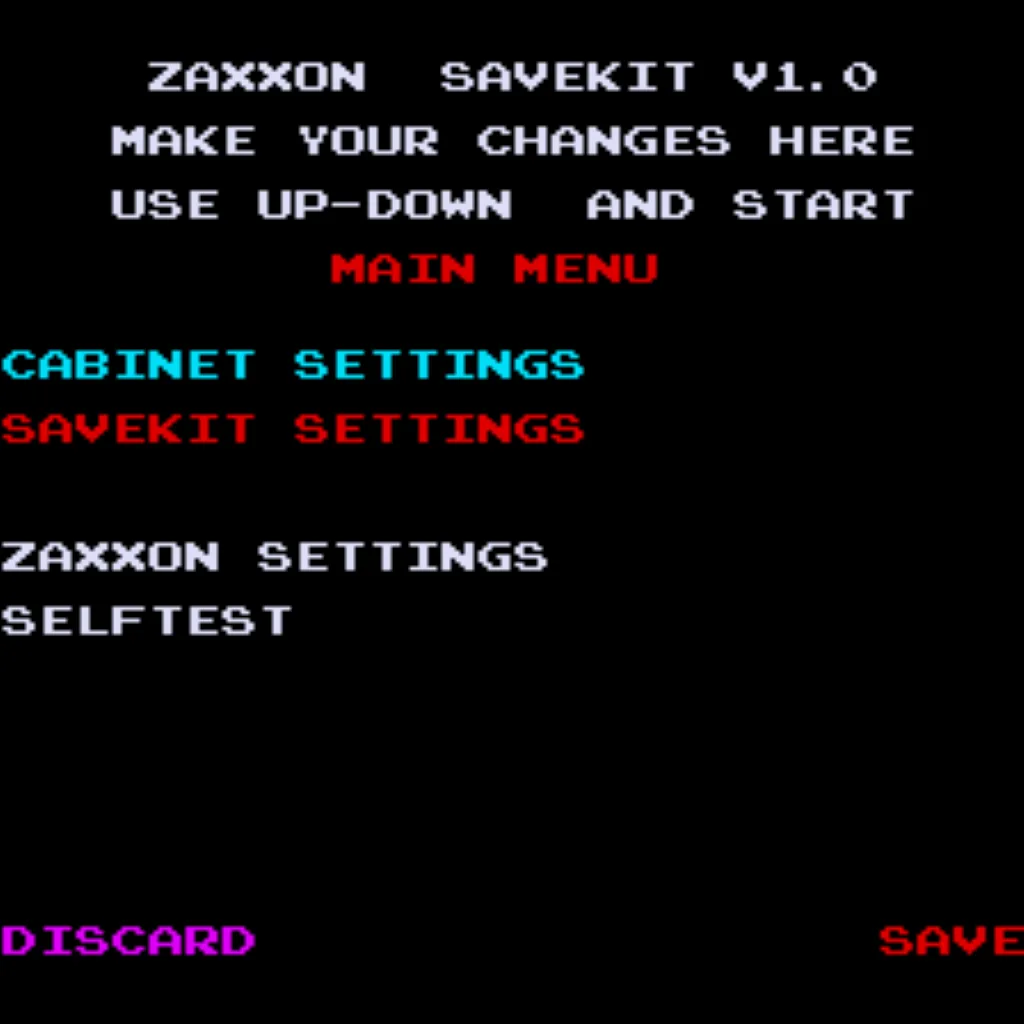

Watch Zaxxon Settings Menu Video See the on-screen operator menu, separate score tables, attract sound settings, Flip Screen, and Backup and Restore. Settings walkthrough—not physical installation. |
Additional Details & Resources
Select any section below to see more details.
Advanced Kit Features
| Top 6 Scores with Initials | Permanently saves the Top 6 high scores with initials! using battery-free serial EEPROM. |
|---|---|
| Separate Lives-Based Tables | Maintains independent supported score tables for 2-, 3-, 4-, and 5-life settings. |
| Adjustable Attract Sounds | Play supported attract audio during 25%, 50%, or 100% of attract-mode rotations. |
| Free Play and Coin-Up | Start games without inserting coins or continue normal supported coin/token operation. |

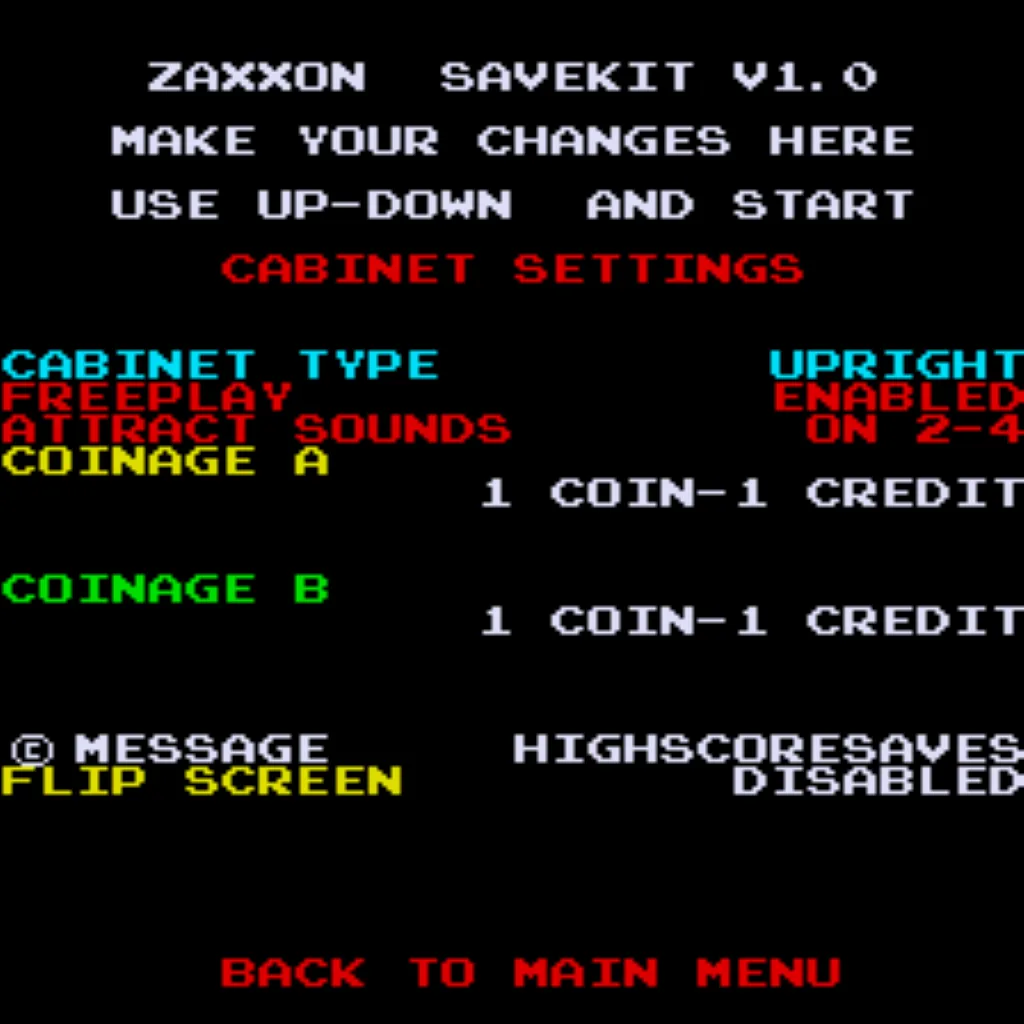

| On-Screen DIP and Operator Settings | Configure supported Zaxxon game and kit options from the menu; no separate service or test switch is required. |
| Flip Screen | Rotate the game display 180 degrees through the on-screen settings menu. |
| Attract-Mode Protection | Helps reduce prolonged static-screen display while the cabinet is idle. |
| Attract Logo Selection | Choose supported original Sega manufacturer or HighScoreSaves attract-logo presentation. |
| Backup and Restore | Back up the current supported high-score table and restore it when needed. |
| ROM Saver (Optional) | Allows designated original program ROMs to be removed and safely stored, only as directed in the Zaxxon installation PDF. |
| Battery-Free Serial EEPROM | Retains supported scores and initials after power-off without batteries or NVRAM. |
| Upright and Cocktail Support | Supports documented original Sega Zaxxon upright and cocktail cabinets. |
Installation & Settings Access
Enter the settings menu: With cabinet power off, hold Player 1 Start while turning on the cabinet for approximately 4 seconds. Release when prompted. Configure supported Free Play, lives, attract sounds, Flip Screen, attract logo, and other operator settings—no separate service or test switch is required.
Original Z80 processor transfer: Verify your compatible original Sega Zaxxon PCB. Carefully remove its original Z80 processor, install it on the HighScoreSaves daughter card using the correct notch and Pin 1 orientation, and seat the assembled kit in the original 40-pin CPU socket. If the Z80 is soldered, have a qualified arcade technician install a compatible socket first. No special cabinet wiring is required.
Before restoring cabinet power: Check Z80 pin alignment, notch orientation, the original socket's condition, full daughter-card seating, clearance, and optional ROM configuration. If Zaxxon fails to start, switch off power and recheck the installation PDF.
Saved scores and cabinet options: The kit saves Top 6 high scores with initials! in separate supported 2-, 3-, 4-, and 5-life score tables. Flip Screen rotates the game display 180 degrees. Backup and Restore operates on the current supported score table. Remove only original program ROMs specifically identified in the Zaxxon installation PDF when using optional ROM Saver.
Wi-Fi Setup & Global Scores
The optional Wi-Fi version uses a compatible 2.4 GHz Wi-Fi network to submit qualifying Zaxxon scores after player initials are entered. Local Top 6 high scores with initials! and the supported 2-, 3-, 4-, and 5-life score tables continue saving when Wi-Fi is disabled or unavailable. Free Play, all local settings, and normal gameplay work offline.
