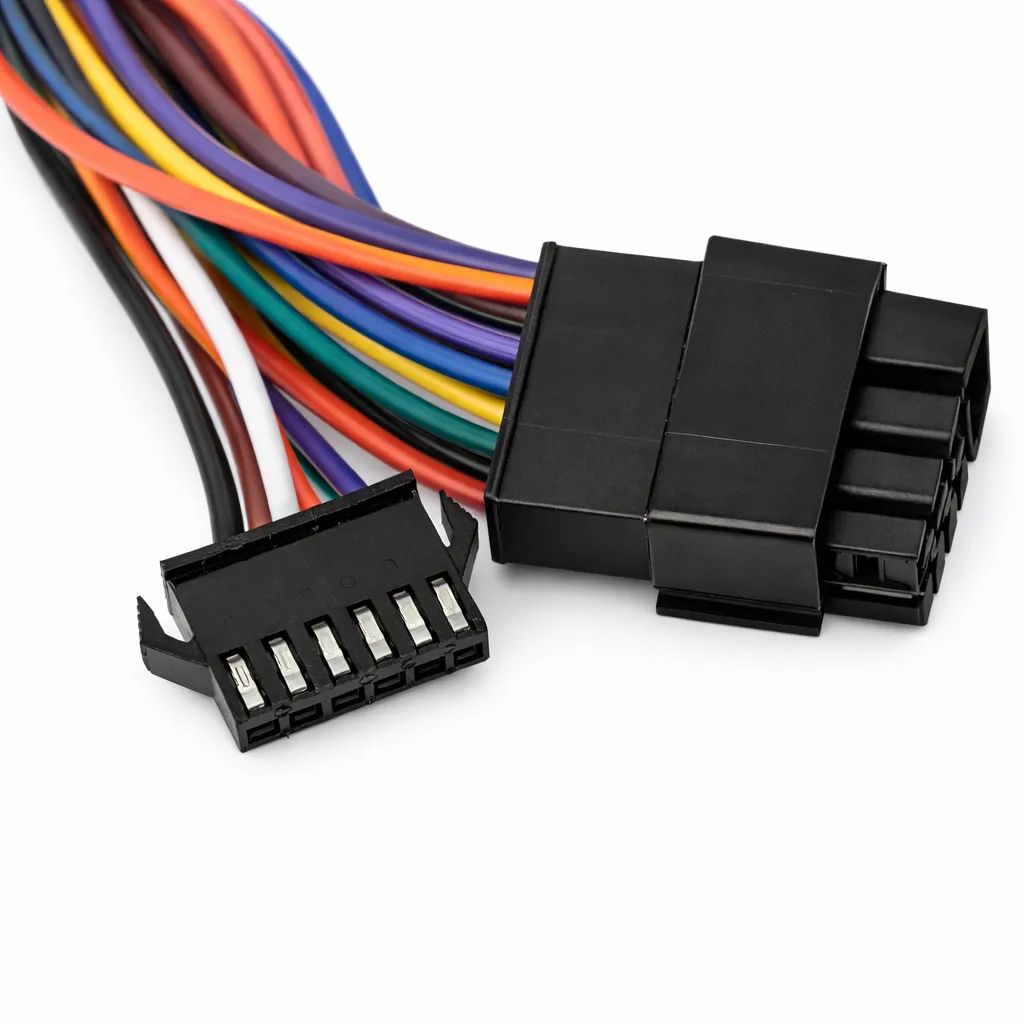

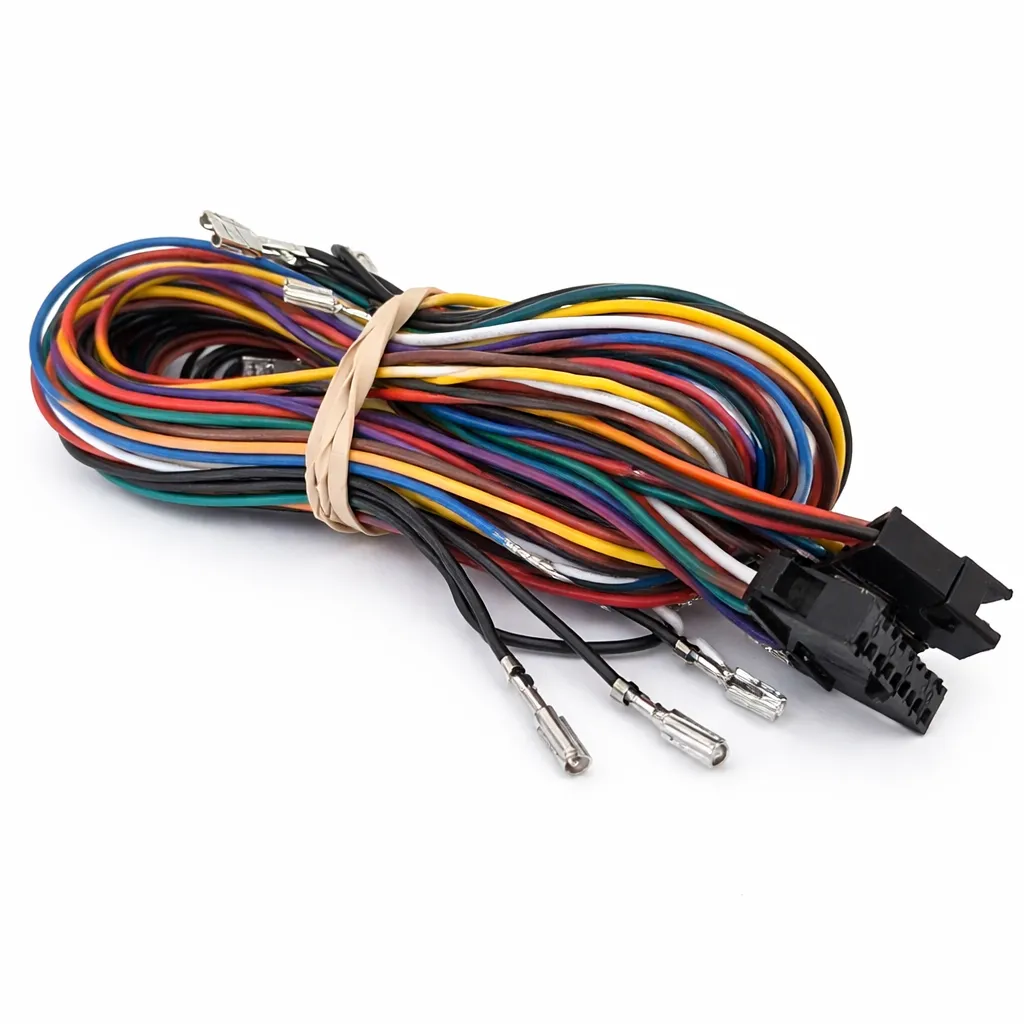

Kick Harness Mortal Kombat 2

Mortal Kombat 3 Kick Harness – JAMMA+ Auxiliary Button Harness The Mortal Kombat 3 Kick Harness by HighScoreSaves allows you to connect the additional action buttons required for Mortal Kombat arcade boards. Standard JAMMA wiring supports only three action buttons per player, while Mortal Kombat 3 style games require additional inputs. This harness supports Mortal Kombat 3, Ultimate Mortal Kombat 3, and Mortal Kombat 4. It provides the necessary wiring for the Low Punch, Low Kick, and Run buttons for both Player 1 and Player 2. Each harness is approximately 4 feet long, providing enough length for clean routing inside your arcade cabinet. All control wires include a .187 female quick disconnect for secure attachment to standard arcade microswitch terminals. Key Features Mortal Kombat 3 kick harness by HighScoreSaves Compatible with Mortal Kombat 3, Ultimate Mortal Kombat 3, and Mortal Kombat 4 Supports additional arcade control inputs beyond standard JAMMA wiring Approximately 4 feet long for flexible cabinet installation .187 female quick disconnects for reliable microswitch connections Ideal for arcade restorations, repairs, and custom builds Mortal Kombat 3 Kick Harness Pinout Connector P12 7 – Player 1 Low Punch (LP1) 8 – Player 1 Low Kick (LK1) 9 – Player 1 Run 11 – Player 2 Low Punch (LP2) 12 – Player 2 Low Kick (LK2) 13 – Player 2 Run

Killer Instinct Kick Harness – JAMMA+ Auxiliary Button Harness The Killer Instinct Kick Harness by HighScoreSaves allows you to connect the additional action buttons required for Killer Instinct arcade boards. Standard JAMMA wiring supports only three action buttons per player, while Killer Instinct and Killer Instinct 2 require additional inputs. This harness provides the necessary wiring for the extra buttons used by Killer Instinct and Killer Instinct 2 for both Player 1 and Player 2. Each harness is approximately 4 feet long, giving you the length needed for clean routing inside your arcade cabinet. All control wires include a .187 female quick disconnect for secure attachment to standard arcade microswitch terminals, ensuring a reliable connection for arcade restorations, repairs, and custom builds. Key Features Killer Instinct auxiliary kick harness by HighScoreSaves Compatible with Killer Instinct and Killer Instinct 2 arcade boards Supports additional action buttons beyond standard JAMMA wiring Approximately 4 feet long for flexible cabinet installation .187 female quick disconnects for dependable microswitch connections Killer Instinct Kick Harness Pinout 1 – Ground 2 – N/C 3 – N/C 4 – N/C 5 – N/C 6 – N/C 7 – Player 1 Quick Punch 8 – Player 1 Medium Punch 9 – Player 1 Fierce Punch 10 – N/C 11 – Player 2 Quick Punch 12 – Player 2 Medium Punch 13 – Player 2 Fierce Punch 14 – N/C 15 – N/C

NBA Jam Player 3 / Player 4 Kick Harness – JAMMA+ Auxiliary Harness The NBA Jam Player 3 and Player 4 Kick Harness allows you to connect the additional controls required for four-player arcade cabinets. This auxiliary JAMMA+ harness provides wiring for the Player 3 or Player 4 joystick and buttons. Compatible with NBA Jam, NBA Jam Tournament Edition, and NBA Maximum Hangtime, this harness allows you to properly connect the Player 3 or Player 4 controls to your arcade cabinet. Each harness is approximately 4 feet long, giving you the length needed for clean routing inside your cabinet. You will need two harnesses if you want to connect both Player 3 and Player 4 controls. Key Features NBA Jam Player 3 / Player 4 auxiliary JAMMA+ harness Compatible with NBA Jam, NBA Jam Tournament Edition, and Maximum Hangtime Provides wiring for Player 3 or Player 4 joystick and buttons Approximately 4 feet long for flexible cabinet installation Ideal for restoring or building four-player arcade cabinets Pinout 1 – Ground 2 – N/C 3 – N/C 4 – N/C 5 – N/C 6 – Start 7 – Up 8 – Down 9 – Left 10 – Right 11 – Shoot / Block 12 – Pass / Steal 13 – Turbo 14 – N/C 15 – N/C

WWF WrestleMania Arcade Kick Harness – JAMMA+ Auxiliary Button Harness The WWF WrestleMania Arcade Kick Harness allows you to connect the additional action buttons required for the WWF WrestleMania arcade board. Standard JAMMA wiring supports only three action buttons per player, while WrestleMania uses five action buttons per player. This auxiliary harness provides the necessary wiring for the bottom buttons for both Player 1 and Player 2. Each harness is approximately 4 feet long, providing the length needed for clean routing inside your arcade cabinet. Every wire includes a .187 female quick disconnect for secure attachment to standard arcade microswitch terminals. Key Features WWF WrestleMania auxiliary kick harness for JAMMA+ arcade boards Allows connection of the extra action buttons required by the game Approximately 4 feet long for flexible cabinet installation .187 female quick disconnects for reliable microswitch connections Designed for arcade cabinet restorations and repairs Pinout Reference Wrestlemania Style Kick Harness Pinout 1 – N/C 2 – N/C 3 – N/C 4 – N/C 5 – N/C 6 – N/C 7 – Player 1 Low Punch 8 – Player 1 Low Kick 9 – N/C 10 – N/C 11 – Player 2 Low Punch 12 – Player 2 Low Kick 13 – N/C 14 – N/C 15 – N/C

Konami 4-Player Kick Harness – JAMMA+ Auxiliary Harness The Konami 4-Player Kick Harness allows you to connect the Player 3 or Player 4 joystick and buttons for Konami four-player arcade games. This harness connects directly to the PCB using a 15-pin header and provides properly numbered wiring to simplify installation in your arcade cabinet. Key Features Compatible with Konami 4-player arcade games Allows connection of Player 3 or Player 4 joystick and buttons Approximately 3 feet long for flexible cabinet installation .187 female quick disconnects for secure microswitch connections Includes enough ground connectors for arcade control wiring 15-pin header connects directly to your PCB Header is numbered to match wiring locations on your control panel Wire colors may vary, but pin numbers remain consistent Pinout Reference Download the full Konami 4-player kick harness pinout reference: Konami Kick Harness Pinout PDF Please Note: You will need two harnesses if you want to connect both Player 3 and Player 4 controls to your control panel.
