Taito CV070020 Sound, I/O and Shifter Board: Missing MB14241
The Taito CV070020 Sound, I/O and Shifter Board is used in compatible original Taito Space Invaders hardware. A working MB14241 data shifter is required for this board to operate with the HighScoreSaves Space Invaders Multigame Free Play and High Score Save Kit. A CV070020 board with the MB14241 missing is incomplete and cannot be used with the kit until a correctly installed 24-pin socket and MB14241 data shifter are present.
Compatibility Warning
The board is not usable with the MB14241 position empty. Installing a socket by itself does not complete the board. A correct 24-pin socket must be installed and an MB14241 data shifter must then be fitted in the proper orientation.
Identify the Missing-Shifter Configurations

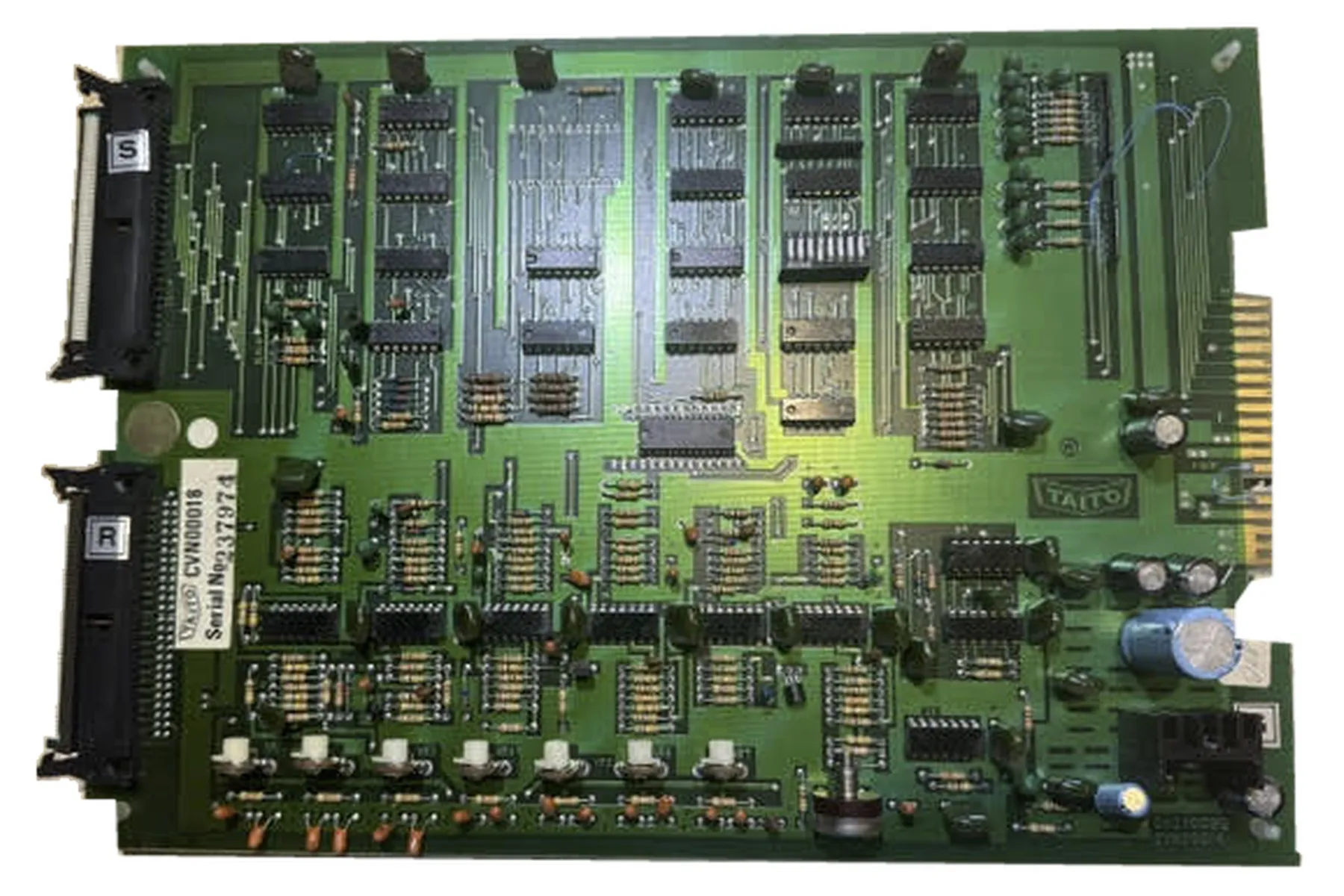

Incompatible as Shown: No MB14241 or Socket
This CV070020 version is missing the MB14241 data shifter and does not have a socket installed at the shifter location. The board requires socket installation by a qualified technician before an MB14241 replacement can be fitted.

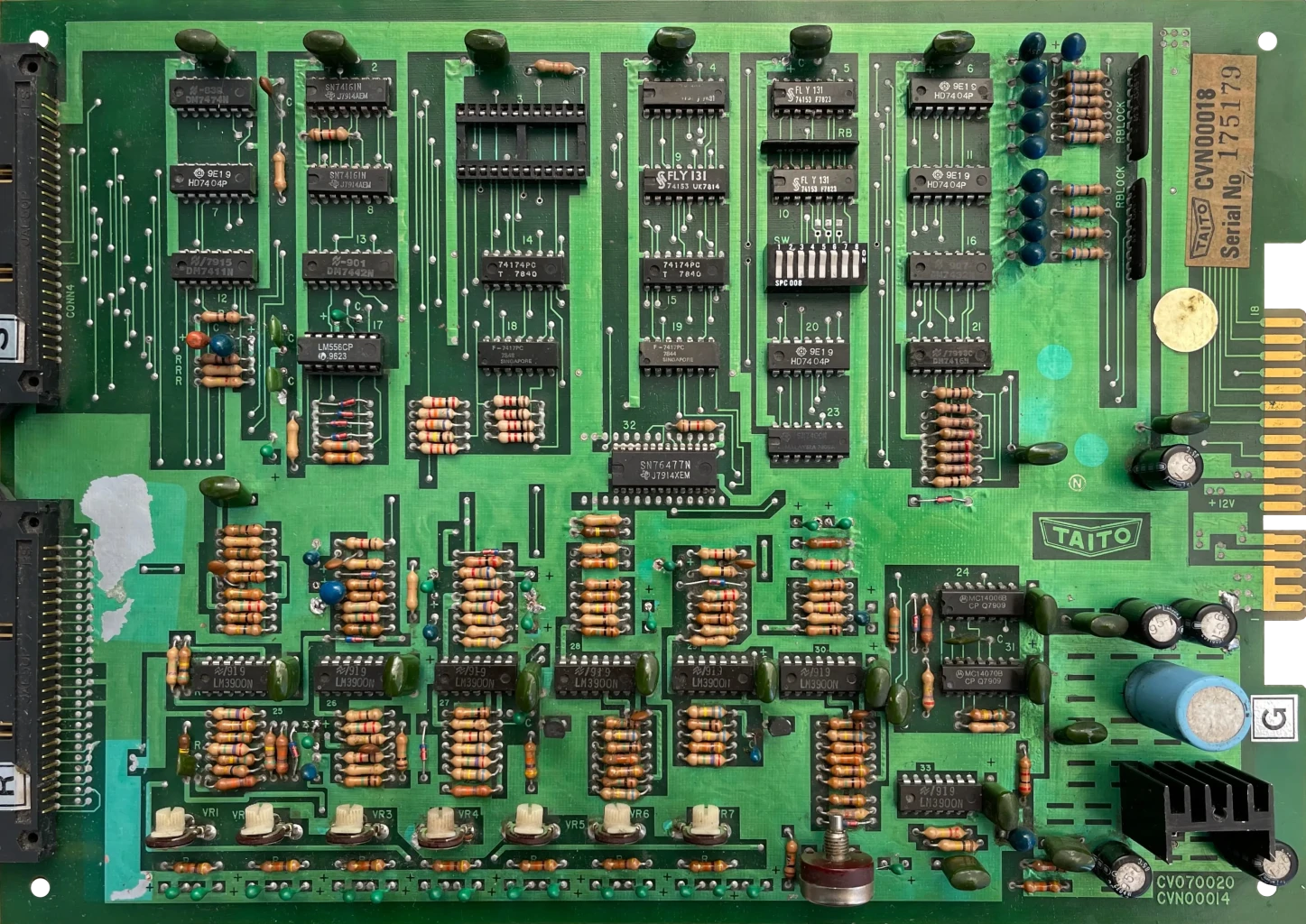

Socketed Version: Ready to Accept an MB14241
This version has a 24-pin socket installed at the MB14241 location. It is ready to accept a correctly oriented original or reproduction MB14241 data shifter, but it remains incomplete while the socket is empty.
Annotated MB14241 Location Guide
The yellow boxes in the annotated images below identify the MB14241 position on each CV070020 board. The first board needs a 24-pin socket installed. The second board already has the correct socket, but the MB14241 data shifter still must be installed before the board is complete.

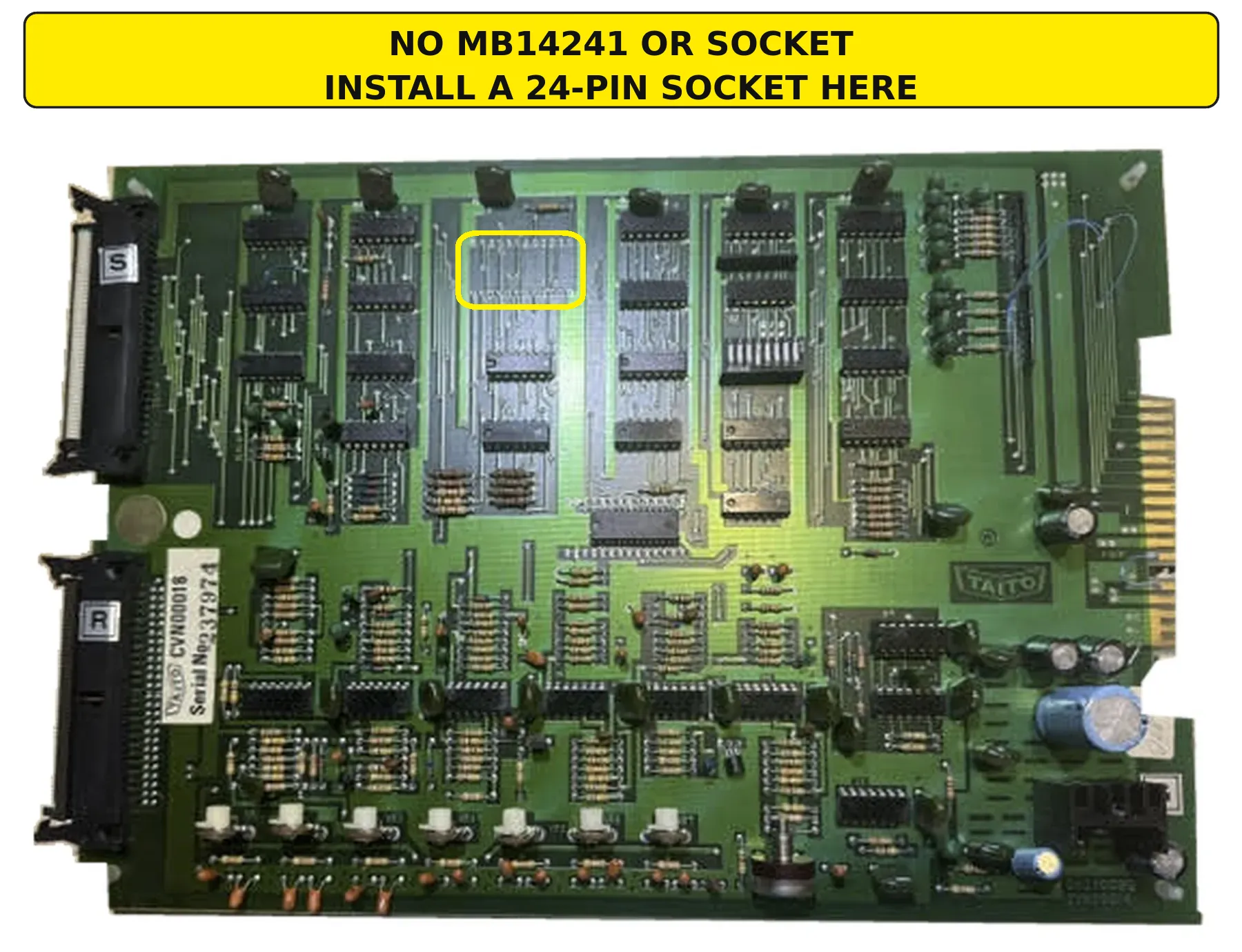

MB14241 Location: Socket Required
The yellow box marks the empty MB14241 footprint. A qualified technician must install a quality 24-pin socket here before the MB14241 data shifter can be fitted.

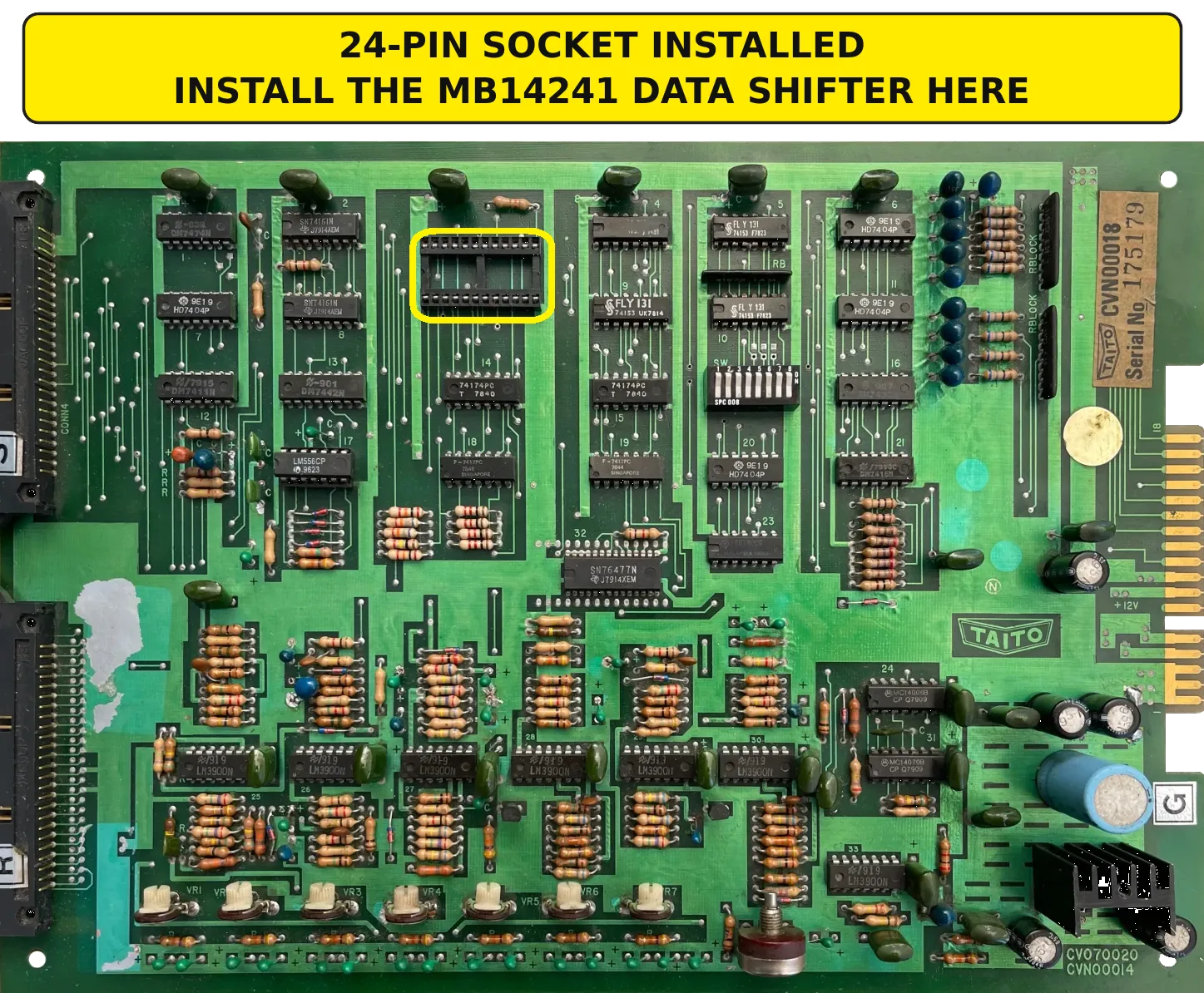

24-Pin Socket Installed: MB14241 Required
The yellow box marks the installed 24-pin socket. The socket is empty in this photo, so the board still requires a correctly oriented MB14241 data shifter before operation.
What the MB14241 Does
The MB14241 is a dedicated data-shifter IC used by Space Invaders hardware to shift video data correctly. If the device is missing or defective, the game cannot produce the intended video output. Symptoms associated with a missing or failed shifter can include scrambled graphics, misaligned graphics, missing image areas, or otherwise incorrect video.
Important: The MB14241 Is Not an EPROM
The empty 24-pin position is for the MB14241 data shifter. Do not install a program ROM or EPROM in this socket. Always confirm Pin 1 orientation before applying power.
Making a Missing-Shifter CV070020 Board Usable
- Confirm that the PCB is a Taito CV070020 Sound, I/O and Shifter Board.
- Inspect the MB14241 position and determine whether a quality 24-pin socket is already installed.
- If no socket is present, have a qualified arcade technician install the correct socket without damaging the PCB traces or through-holes.
- Install an original or reproduction MB14241 data shifter with Pin 1 aligned to the PCB and socket orientation.
- Inspect the complete boardset and verify correct operation after installation.
Service note: Power off and unplug the arcade cabinet before handling any PCB. Use proper ESD precautions. Socket installation requires desoldering and PCB-repair experience and should be performed by a qualified technician.
