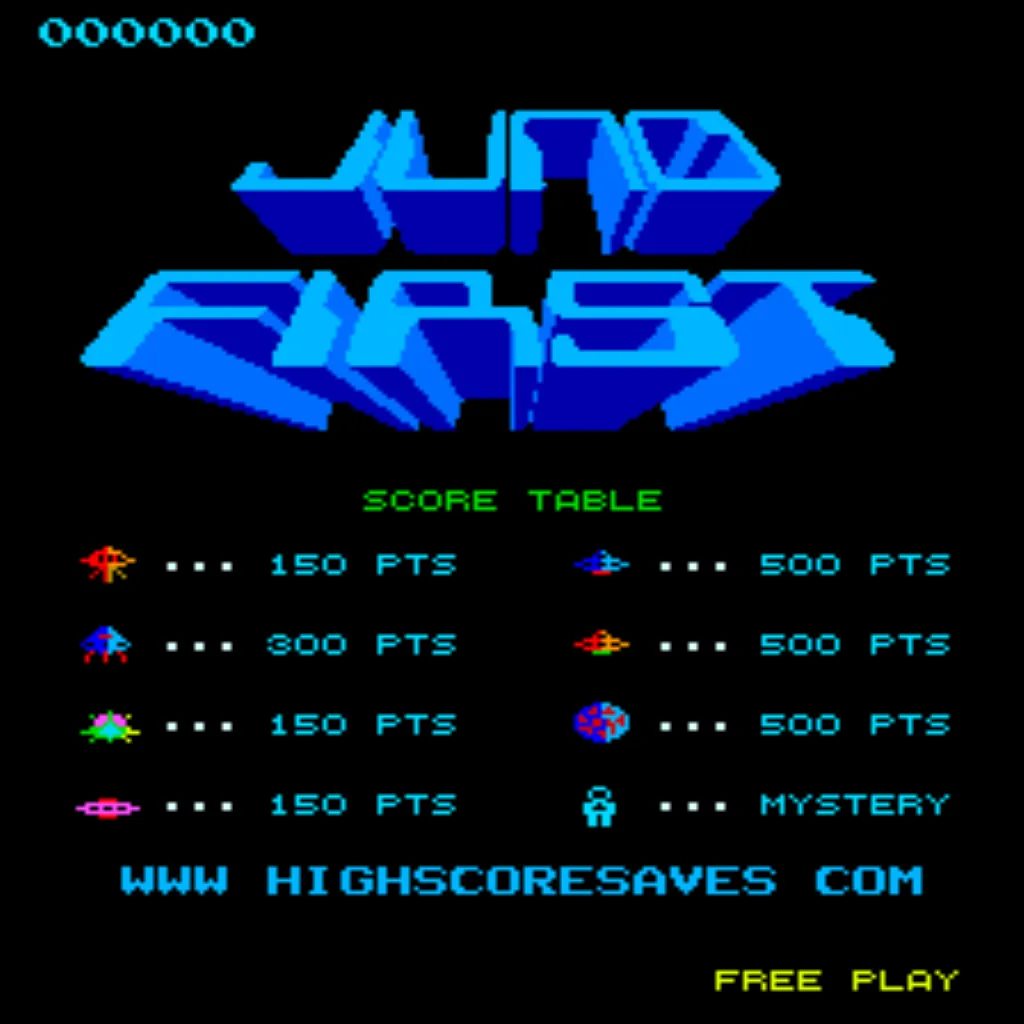

Juno First Free Play and High Score Save Kit

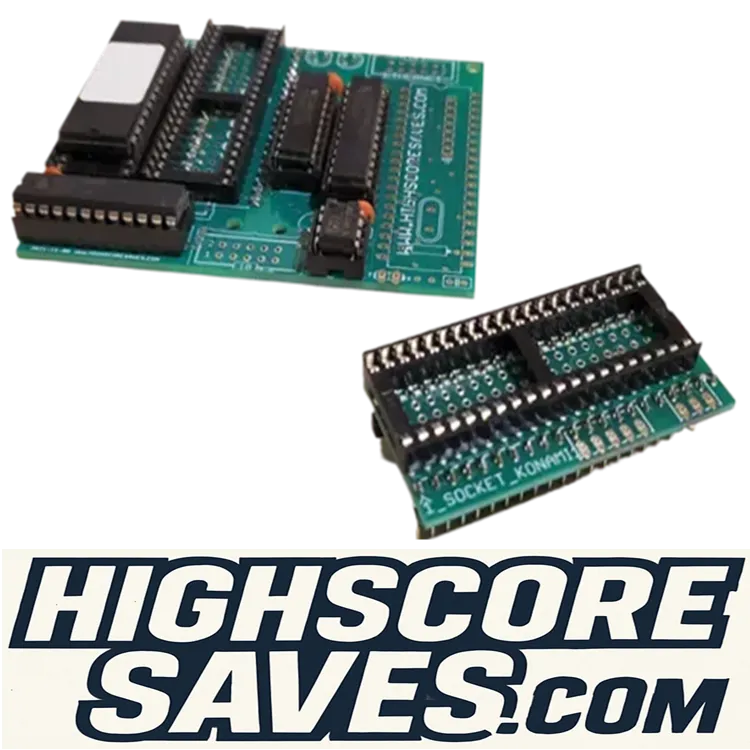

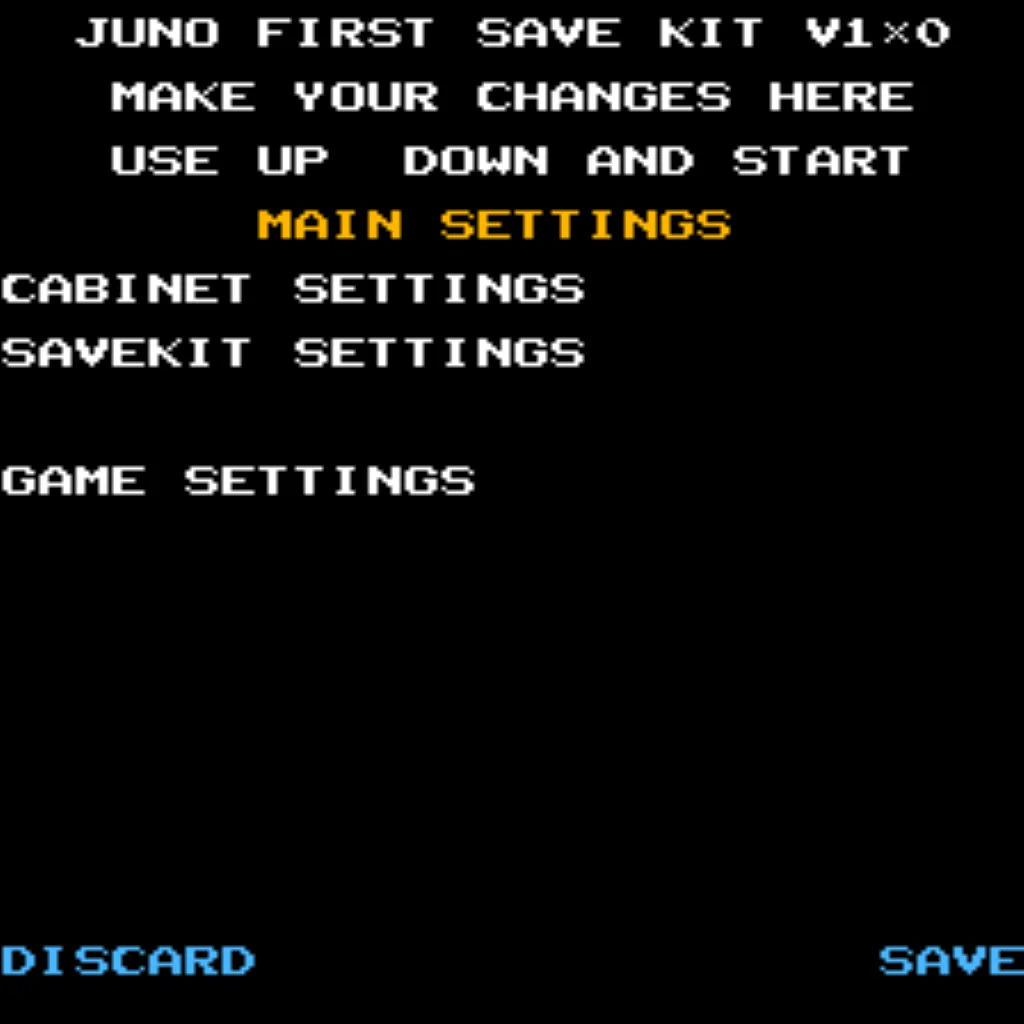

Customize Your Megazone Free Play and High Score Save Kit Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket — optional but recommended for easy installation. Learn More About This Kit Click a button to view details, tips, or the installation guide. Features Easy install — No soldering, board modifications, or special wiring. Plug in and go! Save your scores forever — Uses reliable serial EPROM (not failure-prone NVRAM or batteries). High Score Save — Saves the Top 5 scores. Attract Sounds — Hear what you’ve been missing; can play on every attract screen rotation. Freeplay — No more coins or opening the coin door. Coin Up — Still supports coins if wanted. Attract Mode — Minimizes screen burn; no static screens. Menu-driven DIP settings — Change DIP switches without opening your game. ROM Saver — Optionally remove original program ROMs to save power. Cabinet support — Works in Upright or Cocktail cabinets. Additional Features Separate score tables — 16 distinct HSS tables (one for each difficulty × lives setting). Backup & Restore — Back up high scores and restore later; ideal for parties. Flip Screen — Rotate image 180° when needed. Important Requires a 6809E to run. Ensure your processor is socketed; otherwise install a 40-pin socket. Read the Megazone Installation Guide (PDF) before you install. Frequently Asked Questions Does this kit permanently save high scores? Yes. Scores are stored in a serial EPROM that keeps data even when powered off. Can I still use coins if Freeplay is enabled? Yes. The kit supports both Freeplay and Coin Up modes simultaneously. Do I need to solder anything to install? No soldering is required if your 6809E processor is already socketed. If not, install a 40-pin socket. How many high score tables are available? The kit saves 16 independent high score tables—one for each difficulty and lives setting combination. Can I rotate the screen for cocktail cabinets? Yes. The kit includes a Flip Screen option for alternate display orientations. Where can I download the installation guide? Download it here: Megazone Installation Guide (PDF).

Customize Your Jail Break Free Play and High Score Save Kit Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket — optional but highly recommended for easy installation. Learn More About This Kit Click a button to view details, tips, or the installation guide. Features Easy Install – No soldering, board modifications, or special wiring. Plug in and go! Save Your Scores Forever – Uses a reliable serial EPROM, not failure-prone NVRAM or batteries. High Score Save – Stores the Top 5 scores! Attract Sounds – Hear what you’ve been missing! Full attract sound options available. Freeplay Mode – No more coins or opening the coin door! Coin Support – Still supports coins if desired. Attract Mode – Prevents screen burn with dynamic screen rotation. Menu-Driven DIP Settings – Change DIP switches without opening your game. ROM Saver – Remove original program ROMs to save power. Cabinet Compatibility – Works with Upright and Cocktail cabinets. Additional Features Separate Score Tables – Tracks high scores independently for 2, 3, 4, or 5 lives. Backup and Restore – Save and reload your high scores, perfect for parties and events. Initial Entry – Enter and save your initials with this kit. Important Information This kit requires a 6809E processor to function. If your processor is not socketed, you must install a 40-pin socket for compatibility. Please read the installation guide fully before beginning setup — Download Jail Break Installation Guide (PDF). Just the FAQ's Does this kit require soldering? No soldering is required for the kit itself. However, your 6809E CPU must be socketed; if it isn’t, you’ll need to install a 40-pin socket. Where can I download the installation guide? Grab it here: Jail Break Installation Guide (PDF) . How many high scores are saved? The kit saves the Top 5 high scores using reliable serial EEPROM. Does it support Freeplay and coin operation? Yes. Freeplay is built in, and Coin Up remains supported. Can I change DIP settings without opening the cabinet? Yes. All options are menu-driven via the on-screen interface. What cabinets are supported? The kit works with both Upright and Cocktail cabinets. What is ROM Saver? ROM Saver allows you to remove the original program ROMs; the program runs on the kit, reducing power draw and component wear.

Customize Your Mappy Free Play and High Score Save Kit Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket — optional but recommended for easy installation. Learn More About This Kit Click a button to view details, tips, or the installation guide. Features Easy install — No soldering, board modifications, or special wiring. Plug in and go! Save your scores forever — Uses reliable serial EPROM (not failure-prone NVRAM or batteries). High Score Save — Saves the Top 5 scores. Attract Sounds — Hear what you've been missing; set to 100% of attract screen rotation. Full Attract Sounds — Includes the dot munching sound on the attract gameplay screen, or choose standard attract sounds. Freeplay — No more coins or opening the coin door. Coin Up — Still supports coins if wanted. Attract Mode — Minimizes screen burn; no more static screens. Menu-driven DIP settings — Change DIP switches without opening the game cabinet. ROM Saver — Optionally remove original program ROMs to save power. Cabinet support — Works in Upright or Cocktail cabinets. Additional Features Separate score tables — Different high score tables for 2, 3, 4, or 5 lives. Backup & Restore — Back up high scores and restore later; ideal for game room parties. Selectable character names — Toggle between Goro and Meowky. Important Requires a 6809E processor to run. Ensure your processor is socketed; otherwise install a 40-pin socket. Read the Mappy installation guide (PDF) before beginning installation. Frequently Asked Questions Does this kit permanently save high scores? Yes! The kit saves your Top 5 scores using reliable serial EPROM, so scores are retained even after power-off. Can I switch between Freeplay and Coin Up? Yes. The kit allows you to run in Freeplay mode or traditional Coin Up if you prefer authentic coin operation. Does the kit support attract sounds? Yes, including the unique dot munching sound. You can enable standard attract sounds or full attract gameplay sounds. Is any soldering required? No soldering is needed. Just plug the kit into your socketed 6809E CPU. If your CPU is not socketed, a 40-pin socket must be installed. Can I back up and restore my high scores? Yes, the backup & restore feature lets you save scores and reload them later, perfect for events or tournaments. Where can I find the installation guide? You can download it here: Mappy Installation Guide (PDF).

Customize Your Crazy Climber Free Play and High Score Save Kit Build your kit exactly how you want it. Choose a Wi-Fi Enabled Kit or a Standard Save Kit. You can also add a processor and/or a 40-pin socket—optional but recommended for easy installation. Learn More About This Kit Click a button to view details, tips, or the installation guide. Features Easy install: No soldering, board modifications, or special wiring—plug in and go. Save your scores forever: Serial EEPROM (no battery/NVRAM failures). High Score Save: Stores the Top 5 scores. Copyright: Switch to manufacturer or High Score Saves logo in attract mode. Attract sounds: Set to 25%, 50%, or 100% of attract rotations. Freeplay: Enjoy gameplay without coins; Coin Up still supported. Attract mode: Reduce screen burn with dynamic screens. DIP settings in menu: No more pulling the game to flip switches. ROM Saver: Optionally remove original program ROMs to save power. Cab support: Works in Upright or Cocktail cabinets. Additional Features Backup & Restore: Save high scores before/after parties and restore later. Separate score tables: Different tables per lives setting (2, 3, 4, or 5). Reset button: Restart without powering off (enable in menu; press P1+P2). Fast boot: Minimal initialization time. Important Ensure your Z80 is socketed. If not, install a 40-pin socket for the kit to work. This kit requires a standard Z80 — the original CPU on the board cannot be used. Read the Crazy Climber Free Play and High Score Save Kit Installation Guide / Manual (PDF) before setup. Troubleshooting “NO CC7 ROM FOUND OR UNKNOWN DATA” This can appear if the cc7 sound ROM is missing, corrupt, or unknown. The kit performs a checksum on cc7; unknown checksums trigger this message. Power on while holding a start button to open the settings menu. Set Sound to Standard USA and save. The cc7 on the PCB will not be checked, and the message will no longer appear. Just the FAQ's How many scores are saved? This kit saves the Top 5 scores on-screen. Does it support Freeplay and coins? Yes. You can enable Freeplay or keep Coin Up enabled for quarters/tokens. Are there separate score tables? Yes. There are separate tables for each lives setting (2, 3, 4, or 5). What does the Reset Button do? The Reset Button lets you restart the game without powering off the cabinet (enabled in menu, P1+P2). Which processor does this kit require? This kit requires a standard Z80 processor. Ensure it’s socketed; the original CPU on the board cannot be used. Where can I download the Installation Guide? You can download it here: Download the Crazy Climber Free Play and High Score Save Kit Setup Instructions / Installation Manual (PDF) . Resources Crazy Climber Free Play and High Score Save Kit — Installation Guide / Manual (PDF) HighScoreSaves YouTube Channel — Installation Tips HighScoreSaves Facebook Page HighScoreSaves Reddit Community
